ABB 086318-002 086318-501 Module

ABB 086318-002 is a versatile industrial automation module with important applications in multiple fields. It can be classified into different functional categories. One common classification is as a controller module in the ABB Ability™ System 800xA® control system. With its own characteristics, this module undertakes the key tasks of executing control logic, processing I/O data, and communicating. From another perspective, it can also be regarded as a memory sub-PCB for the ABB AC500 PLC system, which can expand the memory capacity of the AC500 PLC and provide strong support for the storage of data and programs in complex application scenarios. It can be found in fields such as industrial automation, process control, laboratory testing and measurement, helping various equipment and systems operate efficiently and stably.

When used as a controller module, 086318-002 can receive signals from front-end devices such as sensors and switches. Based on pre-set control programs, the module internally analyzes, calculates and processes these signals, and then outputs corresponding control signals to the actuators to achieve precise control of the equipment's operating status. Throughout the process, its high-performance multi-core processor (with a main frequency of 2.4GHz) plays a key role, quickly processing various types of data to meet the strict requirements for data processing speed in high-speed application scenarios.

•


• CPU-related: Adopts a multi-core processor with a main frequency of up to 2.4GHz, featuring strong data processing capability and being able to quickly respond to various control commands and data processing requirements.

• I/O capability: Can be expanded to 512 I/O points, adapting to industrial control projects of different scales and complexities, and flexibly connecting various input and output devices.

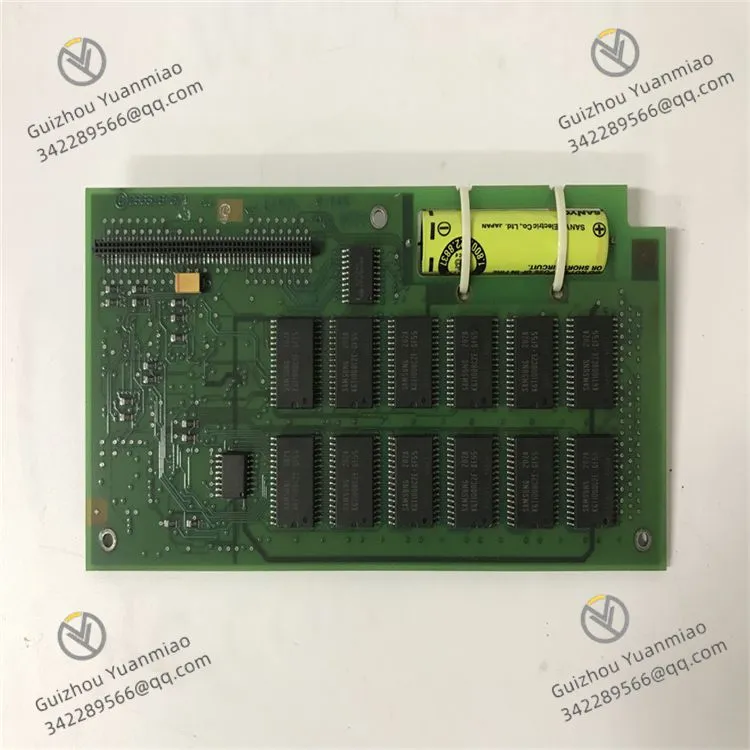

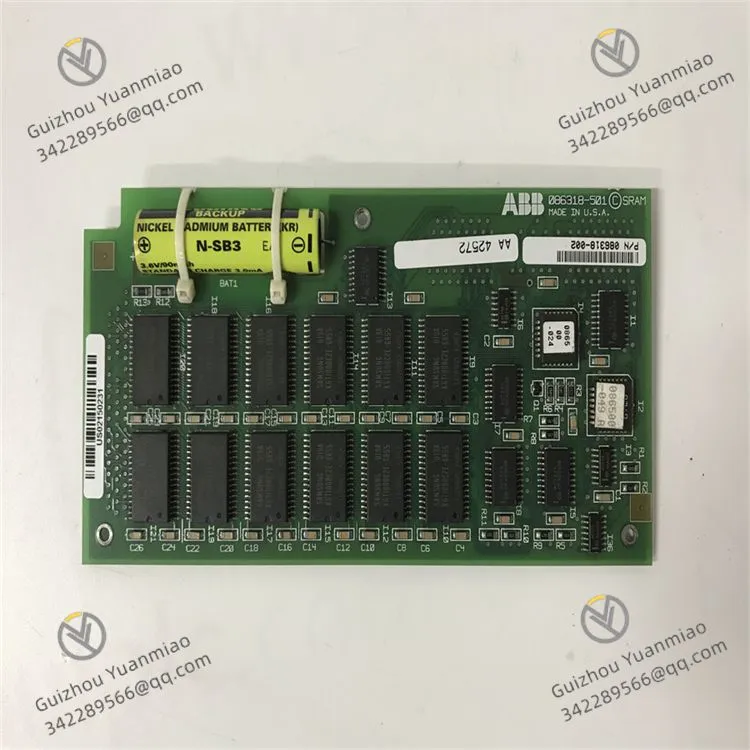

• Storage: When used as a controller module, it has a certain storage capacity for program operation and data temporary storage; when used as a memory sub-PCB, the memory type is SRAM with a capacity of 512KB.

• Communication interfaces: Supports multiple communication interfaces such as Ethernet/IP, PROFINET, RS-232, RS-485, etc., enabling convenient data interaction with other devices or systems to meet the needs of different communication scenarios.

• Power requirements: The working power supply is 24V DC, which conforms to common industrial DC power supply standards and is easy to connect to the industrial power supply system.

• Physical specifications: In terms of size, different descriptions vary slightly, approximately 192 x 64 x 35 mm, 75mm x 30mm x 10mm, or 90mm x 30mm x 25mm; the weight is about 0.5kg, 1kg, or 1.2kg.

• Environmental adaptability: The operating temperature range is -20°C to +60°C, and some data mention that the storage temperature range can reach -40°C to 85°C. The humidity range is generally 5% to 95% RH, and the protection level is IP67 (with strong dustproof and waterproof capabilities).

• High-performance computing: The multi-core processor and 2.4GHz main frequency ensure efficient and fast completion of tasks when executing control logic and processing large amounts of I/O data, meeting the needs of high-speed application scenarios.

• Excellent scalability: It can be expanded to 512 I/O points, and as a memory sub-PCB, it can expand the PLC memory capacity. It can flexibly adjust the system configuration according to actual project requirements, adapting to applications of different scales and complexities.

• High reliability guarantee: Adopts a redundant design and supports hot standby function. During system operation, even if some components fail, the overall system can still run stably, reducing downtime caused by faults and improving system reliability. At the same time, it meets the SIL3 safety level and can be applied to critical application scenarios with extremely high safety requirements.

• Convenient hot-swappable feature: The memory sub-PCB supports hot swapping, allowing memory addition or removal during system operation, facilitating system maintenance and upgrades, and improving work efficiency.

• Wide communication compatibility: The rich types of communication interfaces enable it to communicate seamlessly with a variety of different devices and systems, facilitating the construction of complex industrial automation networks.

• Good environmental adaptability: The wide temperature and humidity operating ranges and certain protection levels allow it to work stably in relatively harsh industrial environments, reducing the impact of environmental factors on equipment operation.
