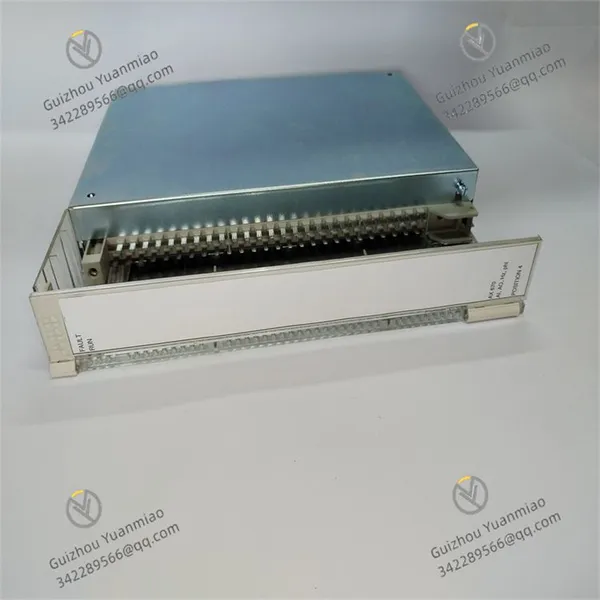

ABB AX670 3BSE000566R1 Analog Mixed Module

ABB AX670 3BSE000566R1 Analog Mixed Module thumbnail-3

ABB AX670 3BSE000566R1 Analog Mixed Module photo-1

ABB AX670 3BSE000566R1 Analog Mixed Module photo-2

ABB AX670 3BSE000566R1 Analog Mixed Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Power Supply 24V DC

Operating Temperature -20°C to +60°C

Overview

ABB AX670 3BSE000566R1 is a high-performance industrial automation analog hybrid module that plays a crucial role in complex industrial automation systems. It is meticulously designed to adapt to various harsh industrial environments and can operate stably in numerous fields such as steel, power, nuclear energy, glass manufacturing, tire production, papermaking, thermal power generation, shipping, and navigation. It provides solid guarantees for the efficient and reliable operation of various industrial equipment and systems. As a member of ABB's industrial automation module series, this module undertakes key tasks such as analog signal processing and digital signal interaction through its own characteristics, serving as an important component for achieving precise control and efficient data transmission in the process of industrial automation.

Working Principle

When the AX670 analog hybrid module operates, it first receives analog signals (such as electrical signals converted from continuously changing physical quantities like temperature, pressure, and flow) and digital signals (such as discrete signals like switch states and pulse signals) from on-site sensors, transmitters, and other devices. The module integrates a high-precision analog-to-digital converter (ADC), which can accurately convert input analog signals into digital signals for subsequent digital processing. For digital signals, the module identifies, shapes, and performs preliminary calculations through specific digital signal processing circuits.

The processed signals are sent to the module's core processor for in-depth computation and logical judgment. Based on preset control algorithms and program logic, the processor comprehensively analyzes these signals. For example, in industrial production process control, it determines whether to adjust equipment operating parameters based on collected analog signals (such as temperature and pressure) and digital signals reflecting equipment operating status. Subsequently, the processor generates corresponding control instructions, which are then converted into analog control signals via a digital-to-analog converter (DAC) or directly output as digital signals to drive actuators (such as control valves and motor drives), thereby achieving precise regulation of industrial equipment operating status. Additionally, the module supports data communication functions, enabling it to upload processed data to the superior control system or receive new instructions from the superior system, ensuring the collaborative operation of the entire industrial automation system.

Technical Parameters

Signal Processing Capability: It typically has multiple analog input channels (the specific number may vary depending on the product version), allowing simultaneous access to various analog signals. The input signal types are diverse, supporting common voltage signals (e.g., 0-10V DC, ±10V DC) and current signals (e.g., 4-20mA), with high resolution (e.g., 16 bits or higher) to accurately capture subtle changes in analog signals. It also has a certain number of digital input and output channels, which can adapt to the connection needs of different digital devices, and the digital signal input/output levels comply with industrial standards (e.g., 24V DC).
Computing Performance: Equipped with a high-performance processor, it has fast data processing capabilities, enabling it to complete complex computing tasks in a short time. This ensures timely response to input signals and rapid generation of control instructions, meeting the real-time requirements of industrial automation systems.
Communication Interfaces: It is equipped with multiple communication interfaces, commonly including an Ethernet interface that supports industrial Ethernet protocols (such as PROFINET and ETHERNET/IP) for high-speed and stable data transmission, facilitating communication with upper computers, other intelligent devices, or control systems. It may also have serial communication interfaces such as RS-485 for connecting devices with lower communication rate requirements but longer distances, enhancing the module's communication compatibility and networking flexibility.
Physical Specifications: In terms of dimensions, according to different data descriptions, the approximate net depth/length of the product is 243 mm, the net height is 45 mm, and the net width is 225 mm. The compact overall design facilitates installation in environments with limited space, such as control cabinets. The weight is approximately 1.25 kg, maintaining a reasonable weight while ensuring powerful functionality, making transportation and installation convenient.
Power Requirements: The operating power supply is usually 24V DC, which complies with common industrial DC power standards and can seamlessly interface with most industrial power supply systems, providing reliable power support for the stable operation of the module.
Environmental Adaptability: It has a wide operating temperature range, generally working normally in an ambient temperature of -20°C to +60°C, and some products can even adapt to more harsh temperature conditions. The humidity range is typically 5% to 95% RH, with a certain degree of moisture resistance. Regarding the protection level, although there is no unified standard specified, it is inferred from application scenarios that it may have certain dustproof and splash-proof capabilities to adapt to complex industrial on-site environments.

Functional Features

Precise Signal Processing Function: Through high-precision ADC and DAC, as well as efficient digital signal processing circuits, it ensures accurate conversion, processing, and output of analog and digital signals. This provides a data foundation for precise control of industrial equipment, effectively improving the control accuracy of industrial production processes and reducing production quality issues caused by signal errors.
Strong Environmental Adaptability: Its wide temperature operating range, certain humidity tolerance, and potential protective features enable it to operate stably in harsh industrial environments such as high temperature, high humidity, and dusty conditions. This reduces the impact of environmental factors on module performance, lowers equipment failure rates, improves the overall reliability and stability of industrial automation systems, and reduces maintenance costs.
Rich Communication Compatibility: Supported by multiple communication interfaces and protocols, it can easily integrate into industrial automation networks of different architectures. Whether connected to advanced industrial Ethernet systems or networked with traditional serial devices, it enables smooth data interaction, facilitating the construction of complex and efficient industrial automation control networks and realizing collaborative work between different devices and systems.
Compact Structural Design: The reasonable size and weight design not only ensure the integration of sufficient functional components inside the module but also facilitate installation and layout in various industrial control cabinets and equipment enclosures. It saves installation space, improves space utilization, and adapts to diverse industrial equipment installation needs.
