IS200DTAIH1ABB GE DIN Rail Type Analog Input Board

IS200DTAIH1ABB GE DIN Rail Type Analog Input Board thumbnail-1
IS200DTAIH1ABB GE DIN Rail Type Analog Input Board thumbnail-2
IS200DTAIH1ABB GE DIN Rail Type Analog Input Board photo-1
IS200DTAIH1ABB GE DIN Rail Type Analog Input Board photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.





The IS200DTAIH1ABB is an industrial automation product manufactured by General Electric (GE), belonging to the Mark VI series and part of GE's Speedtronic gas turbine control system. Here is its detailed information:

  • Product Functions: It is a DIN rail-mounted analog input board used to convert analog signals into digital signals and provide them to the control system, enabling monitoring and control of the operating status of various devices.
  • Performance Parameters:

    • Input Range: -10V to +10V, 4mA to 20mA, etc.

    • Input Impedance: ≥10MΩ.

    • Output Signal: 4-20mA.

    • Operating Temperature Range: -40°C to +85°C.

    • Storage Temperature Range: -55°C to +125°C.

    • Humidity: 5% to 95% (non-condensing).

 IS200DTAIH1ABB

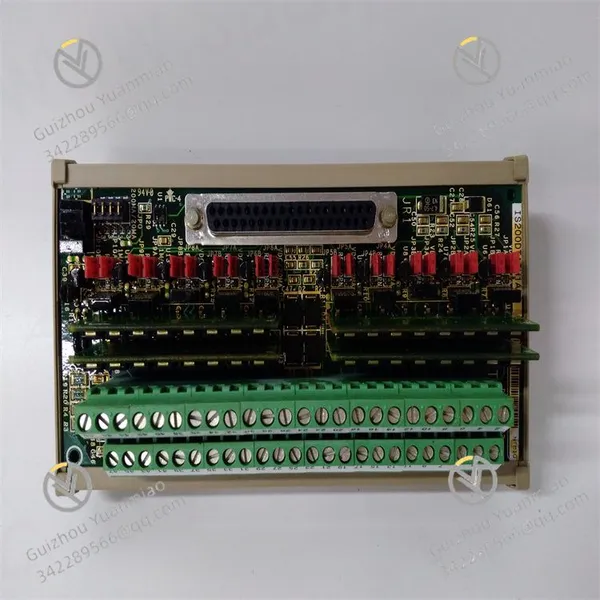

  • Physical Characteristics:

    • Mounted on a plastic bracket, which can be installed on a DIN rail.

    • Equipped with a single 37-pin connector (marked JR1) and locking fasteners.

    • Features a terminal block (TB1) with 48 screw connections. The terminal block typically uses shielded twisted-pair wires of #18 AWG, and screws 43/44 are for ground (SCOM) connection.

  • Circuit Design:

    • Includes 21 jumper switches (marked JP1A/B - JP10A/B, totaling 20, plus JP0), which can be used to configure current and voltage.

    • The circuit board also integrates various capacitors, resistors, integrated circuits, and four small sub-panels.

  • Product Features:

    • Measurement accuracy reaches 0.1%, which can accurately reflect analog signals.

    • Can measure various analog signals, supporting multiple input types such as current and voltage, facilitating connection with various sensors.

    • Can detect faults such as wire breakage and short circuit to ensure safe operation of the system.



IS200DTAIH1ABB (1)
