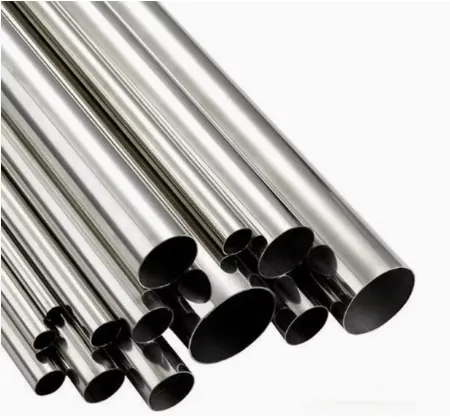

Stainless Steel Seamless Tube ASTM B677 / B674 UNS N08904 / 904L /1.4539/EN10216-5 1.43071.1306.61.43.01
US$ 22 - 30
MOQ: 100 Kilograms
Key Specifications
Get Latest Price
Type:
Stainless Steel Pipes
Certification:
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Manufactur High Quality ASTM Square Tube Plate Coil 316 304L 317 310S Round Welded Seamless Stainless Steel Pipe Coil Steel Products Boiler TubeUS$ 800 - 1100MOQ: 1 Ton -
Precision Bright Surface Seamless Steel Tube for Chemical IndustryUS$ 800 - 1100MOQ: 1 Ton
-
Hastelloy Inconel Monel Seamless Tubes and Tubes Are Sold for High Corrosion ResistanceUS$ 800 - 1100MOQ: 1 Ton
-
Stainless Steel Seamless Tube ASTM B677 / B674 UNS N08904 / 904L /1.4539/EN1.45411.45501.4335US$ 22 - 30MOQ: 100 Kilograms
-
China Wholesale Custom Tube Mirror Polished Round Square Stainless Steel TubeUS$ 800 - 1100MOQ: 1 Ton
Type
Stainless Steel Pipes
Certification
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape
Round
Grade
Other
Technique
Other
Surface Treatment
Polished
Standard
ASTM, AISI, GB, JIS, DIN, EN, Other
Specification
OEM
Trademark
ZHONGZHENG INTERNATIONAL
Origin
China
Dimensions of ASTM A312 UNS N08904 Pipe
| NPS | Outside Diameter (OD) | Wall Thickness (WT) | ||
|---|---|---|---|---|
| mm | in | mm | in | |
| 3/4″ | 27 | 1.050 | 2.870 | 0.113 |
| 1 1/4″ | 42 | 1.660 | 3.556 | 0.140 |
| 1″ | 33 | 1.315 | 3.378 | 0.133 |
| 1 1/2″ | 48 | 1.900 | 3.683 | 0.145 |
| 1/2″ | 21 | 0.840 | 2.769 | 0.109 |
| 2 1/2″ | 73 | 2.875 | 5.516 | 0.203 |
| 2″ | 60 | 2.375 | 3.912 | 0.154 |
| 3″ | 89 | 3.500 | 5.486 | 0.216 |
| 6″ | 168 | 6.625 | 4.775 | 0.188 |
| 4″ | 114 | 4.500 | 6.020 | 0.237 |
| 8″ | 219 | 8.625 | 4.775 | 0.188 |
| 12″ | 324 | 12.750 | 4.775 | 0.188 |
| 10″ | 273 | 10.750 | 4.775 | 0.188 |
| 14″ | 356 | 14 | 4.775 | 0.188 |
| 18″ | 457 | 18 | 5.563 | 0.219 |
| 16” | 406 | 16 | 4.775 | 0.188 |
| 20″ | 508 | 20 | 6.350 | 0.250 |
| 30″ | 762 | 30 | 6.350 | 0.250 |
| 24″ | 610 | 24 | 6.350 | 0.250 |
| 36″ | 914 | 36 | 6.350 | 0.250 |
| 48″ | 1219 | 48 | 9.525 | 0.375 |
| 42″ | 1067 | 42 | 7.925 | 0.312 |
Stainless steel 904L pipe supplier in India provide hot and cold rolling manufacturing process
| Pipe Size | O.D (in.) | 5s | SCH 5 | 10s | SCH 10 | 20 | 30 | 40s & STD | SCH 40 |
|---|---|---|---|---|---|---|---|---|---|
| 1/8 | 0.405 | 0.35 | 0.049 | 0.049 | 0.068 | 0.068 | |||
| 0.1383 | 0.1863 | 0.1863 | 0.2447 | 0.2447 | |||||
| 3/8 | 0.675 | 0.049 | 0.065 | 0.065 | 0.091 | 0.091 | |||
| 0.3276 | 0.4235 | 0.4235 | 0.5676 | 0.5676 | |||||
| 1/4 | 0.54 | 0.049 | 0.065 | 0.065 | 0.088 | 0.088 | |||
| 0.257 | 0.3297 | 0.3297 | 0.4248 | 0.4248 | |||||
| 1/2 | 0.84 | 0.065 | 0.065 | 0.083 | 0.083 | 0.109 | 0.109 | ||
| 0.5383 | 0.5383 | 0.671 | 0.671 | 0.851 | 0.851 | ||||
| 1 | 1.315 | 0.065 | 0.065 | 0.109 | 0.19 | 0.133 | 0.133 | ||
| 0.8678 | 0.8678 | 1.404 | 1.404 | 1.679 | 1.679 | ||||
| 3/4 | 1.05 | 0.065 | 0.065 | 0.083 | 0.083 | 0.113 | 0.113 | ||
| 0.6838 | 0.6838 | 0.8572 | 0.8572 | 1.131 | 1.131 | ||||
| 1 1/4 | 1.66 | 0.065 | 0.065 | 0.109 | 0.109 | 0.14 | 0.14 | ||
| 1.107 | 1.107 | 1.806 | 1.806 | 2.273 | 2.273 | ||||
| 2 | 2.375 | 0.065 | 0.065 | 0.109 | 0.109 | 0.154 | 0.154 | ||
| 1.604 | 1.604 | 2.638 | 2.638 | 3.653 | 3.653 | ||||
| 1 1/2 | 1.9 | 0.065 | 0.065 | 0.109 | 0.109 | 0.145 | 0.145 | ||
| 1.274 | 1.274 | 2.638 | 2.638 | 2.718 | 2.718 | ||||
| 2 1/2 | 2.875 | 0.083 | 0.083 | 0.12 | 0.12 | 0.203 | 0.203 | ||
| 2.475 | 2.475 | 3.531 | 3.531 | 5.793 | 5.793 | ||||
| 3 1/2 | 4 | 0.083 | 0.083 | 0.12 | 0.12 | 0.226 | 0.226 | ||
| 3.472 | 3.472 | 4.97 | 4.97 | 9.109 | 9.109 | ||||
| 3 | 3.5 | 0.083 | 0.083 | 0.12 | 0.12 | 0.216 | 0.216 | ||
| 3.029 | 3.029 | 4.332 | 4.332 | 7.576 | 7.576 | ||||
| 4 | 4.5 | 0.083 | 0.083 | 0.12 | 0.12 | 0.237 | 0.237 | 0.281 | |
| 3.915 | 3.915 | 5.613 | 5.613 | 10.79 | 10.79 | 12.66 | |||
| 5 | 5.563 | 0.109 | 0.109 | 0.134 | 0.134 | 0.258 | 0.258 | ||
| 6.349 | 6.349 | 7.77 | 7.77 | 14.62 | 14.62 | ||||
| 4 1/2 | 5 | 0.247 | |||||||
| 12.53 | |||||||||
| 6 | 6.625 | 0.109 | 0.109 | 0.134 | 0.134 | 0.28 | 0.28 | ||
| 7.585 | 7.585 | 9.289 | 9.289 | 18.97 | 18.97 | ||||
| 8 | 8.625 | 0.109 | .109 | 0.148 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 |
| 9.914 | 9.914 | 13.4 | 13.4 | 22.36 | 24.7 | 28.55 | 28.55 | 35.64 | |
| 7 | 7.625 | 0.301 | |||||||
| 23.57 | |||||||||
| 9 | 9.625 | 0.342 | |||||||
| 33.9 | |||||||||
| 11 | 11.75 | 0.375 | |||||||
| 45.55 | |||||||||
| 10 | 10.75 | 0.134 | 0.134 | 0.165 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 |
| 15.19 | 15.19 | 18.65 | 18.65 | 28.04 | 34.24 | 40.48 | 40.48 | 54.74 | |
| 12 | 12.75 | 0.156 | 0.165 | 0.18 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 |
| 21.07 | 22.18 | 24.2 | 24.2 | 33.38 | 43.77 | 49.56 | 53.53 | 73.16 | |
| 16 | 16 | 0.165 | 0.188 | 0.25 | 0.312 | 0.437 | 0.375 | 0.562 | 0.75 |
| 27.9 | 31.75 | 42.05 | 52.36 | 62.58 | 62.58 | 82.77 | 107.5 | ||
| 14 | 14 | 0.156 | 0.188 | 0.25 | 0.312 | 0.375 | 0.375 | 0.437 | 0.593 |
| 23.06 | 27.73 | 36.71 | 45.68 | 54.57 | 54.57 | 63.67 | 84.91 | ||
| 18 | 18 | 0.165 | 0.188 | 0.25 | 0.312 | 0.437 | 0.375 | 0.562 | 0.75 |
| 31.43 | 35.76 | 47.39 | 59.03 | 82.06 | 70.59 | 104.8 | 138.2 | ||
| 24 | 24 | 0.218 | 0.25 | 0.25 | 0.375 | 0.562 | 0.375 | 0.687 | 0.968 |
| 55.37 | 63.41 | 63.41 | 94.62 | 140.8 | 94.62 | 171.2 | 238.1 | ||
| 20 | 20 | 0.188 | 0.218 | 0.25 | 0.375 | 0.5 | 0.375 | 0.593 | 0.812 |
| 39.78 | 46.05 | 52.73 | 78.6 | 104.1 | 78.6 | 122.9 | 166.4 | ||
| 26 | 26 | 0.312 | 0.5 | 0.375 | |||||
| 85.6 | 136.2 | 102.6 | |||||||
| 30 | 30 | 0.25 | 0.312 | 0.312 | 0.5 | 0.625 | 0.375 | ||
| 79.43 | 98.93 | 98.93 | 157.5 | 196.1 | 118.6 | ||||
| 28 | 28 | 0.312 | 0.5 | 0.625 | 0.375 | ||||
| 92.26 | 146.8 | 182.7 | 110.6 | ||||||
| 32 | 32 | 0.312 | .5 | 0.625 | 0.375 | 0.688 | |||
| 105.6 | 168.2 | 209.4 | 126.7 | 230.1 | |||||
| 36 | 36 | 0.312 | 0.625 | 0.375 | 0.75 | ||||
| 118.9 | 236.1 | 142.7 | 282.3 | ||||||
| 34 | 34 | 0.312 | 0.5 | 0.625 | 0.375 | 0.688 | |||
| 112.3 | 178.9 | 222.8 | 134.7 | 244.8 | |||||
| 40 | 40 | 0.375 | |||||||
| 158.7 | |||||||||
| 48 | 48 | 0.375 | |||||||
| 190.7 | |||||||||
| 42 | 42 | 0.375 | |||||||
| 166.7 |
Stainless steel 904L pipe supplier in India provide annealing, bright and pickling surface finish
| ASME SB 677 904L Electropolished Tubing | ASTM B677 904L 12mm Tubing |
| ASTM B677 904L Rectangular Tubing | ASTM B677 UNS N08904 Hydraulic Tubing |
| DIN 1.4539 Stainless Steel 904L Rectangular Tube | Alloy 904L High Precision Tubes |
| Alloy 904L High Pressure Tubing | ASME SB 677 904L Heat exchanger Tubes |
| ASTM B677 TP 904L ERW Tube | Stainless Steel DIN 1.4539 Coil Tubing |
| 904L Stainless Steel Instrument Tubing | Stainless Steel TP 904L Sanitary Tube |
| ASTM B677 UNS N08904 Square Tubing | ASTM B677 TP 904L SS 1 inch Tube |
| SS 904L Exhaust Tubing | SS TP 904L Cold Drawn Seamless Tube |
| SS TP 904L Seamless Tubing | SS 904L Round Tubing |
| 904L SS ASTM B677 Small Diameter Tubing | SS TP 904L Elliptical and Oval Tubes |
| Stainless Steel DIN 1.4539 Capillary Tubing | 904L SS ASTM B677 Condenser Tubes |
SS TP 904L Tubing Mechanical Properties
| Element | Grade 904L |
|---|---|
| Density | 8 |
| Melting Range | 1300 -1390 ℃ |
| Tensile Stress | 490 |
| Yield Stress (0.2%Offset) | 220 |
| Elongation | 35% minimum |
| Hardness (Brinell) | - |
ASME SB 677 904L Tube Chemical Composition
| AISI 904L | Maximum | Minimum |
|---|---|---|
| Ni | 28.00 | 23.00 |
| C | 0.20 | - |
| Mn | 2.00 | - |
| P | 00.045 | - |
| S | 00.035 | - |
| Si | 1.00 | - |
| Cr | 23.0 | 19.0 |
| Mo | 5.00 | 4.00 |
| N | 00.25 | 00.10 |
| CU | 2.00 | 1.00 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 890L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Material 1.4539 (alloy 904L) is an austenitic special steel with high molybdenum content as well as addition of copper and extremely low carbon content.
Our product range in 1.4539 are tubes and pipes, fittings and flanges, accessories.
1. Commodity: Seamless Stainless Steel Pipe ASTM B677 UNS N08904/904L
2. Process method: Cold drawn/cold rolled
3. Surface finish: Anneal/pickling/manual polish/ mechanical polish
4. Material: UNS N08904/904L
5. Standards: ASTM B677
6. Size:
A) NPS: 1/8" to 8"
B) Schedule: 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S, acc. To ANSI B36.19
C) O. D.: 6 mm to 219 mm
D) W. T.: 0.5 mm to 25 mm
E) Length: Max. 20 meters
7. Delivery conditions: Annealled, Picklinged and Polished
8. packing: Seaworthy wooden cases/steel framed plywood cases/simple packaging
