Home > Products > hydraulic cylinder > Hydraulic Dampers Hydraulic Snubber for Bridges

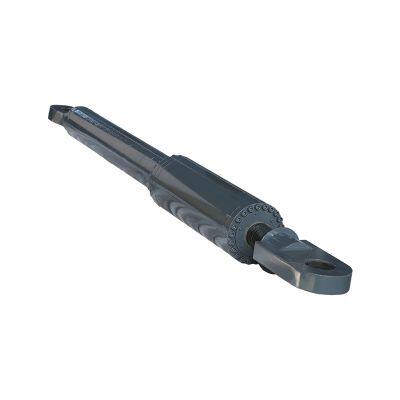

Hydraulic Dampers Hydraulic Snubber for Bridges
USD $300
≥1 Piece
- 0 Piece / Pieces per Month
- shanghai
- T/T L/C PayPal D/P Western Union Other
- 45 days
You May Like
-
Hydraulic cylinder bidirectional lifting mechanical small 40 processing custom single-direction cylinder 2-ton pressure ear-ring telescopic type
-
Hydraulic heavy-duty 12-ton 100-bore diameter forklift crane lifting oil cylinder, double-ear ring oil cylinder for construction machinery
-
Locking Hydraulic Cylinder Hydraulic cylinder, bidirectional hydraulic cylinder, single-direction lifting, small-sized, heavy-duty
-
Up-and-down double-flange hydraulic cylinders, 10-ton and 20-ton heavy-duty hydraulic jacks, hand-operated and electrically-driven
-
double-flange hydraulic cylinders, 10-ton and 20-ton heavy-duty hydraulic jacks, hand-operated and electrically-driven lifting hydraulic cylinders
-
Electric lifting cargo elevator height limit pole lifting hydraulic cylinder accessory. Single and double-direction engineering hydraulic cylinder
Product Details
| Material | Carbon Steel | Certification | GS, ROHS, CE, ISO9001 | |
| Structure | Piston Type | Work Temperature | Normal Temperature | |
| Adjusted Form | Regulated Type | Acting Way | Double Acting | |
| Working Method | Straight Trip | Pressure | Medium Pressure | |
| Transport Package | Wooden box | Specification | 230/80±260 | |
| Trademark | hongda | Origin | china |
Product Description
| Product title | Hydraulic Dampers Hydraulic Snubber for Bridges |
| Product Description | Bridge hydraulic dampers are an important structural control device, mainly used to reduce the oscillation amplitude of bridge structures under external effects such as vibration, wind load, or earthquake, and improve the stability and seismic performance of bridges. |
| Product Name | Hydraulic Snubber |
| Brand | HongDa Hydraulics |
| Model Number | 230/80±260 |
| Weight | 494Kg |
| Dimension | 2940x290x290 |
| Core Component | piston rod, cylinder barrel, end cap |
| Applicable Industries | Engineering Machinery Hydraulic Cylinder |
| Operating Temperature | -20°~80° |
| Maximum Working Pressure | |
| Bore Dia | 230 mm / 9 inch |
| Rod Dia | 80 mm / 3 inch |
| Stroke | ±260 mm / ±10 inch |
| Mounting Style | Earrings |
| Paint | |
| Working Medium | silicone oil |
| Certification |
This hydraulic device absorbs the vibration energy of the structure by adjusting the flow and damping force of the liquid, effectively slowing down the dynamic response of the structure, reducing the amplitude and swing of the bridge, and thus protecting the bridge structure from external force damage. The use of hydraulic dampers in bridges helps to improve the durability of the bridge, extend the structural life, and provide additional protection in extreme situations such as earthquakes, ensuring the stability and safety of the bridge. Overall, hydraulic dampers for bridges provide an effective structural control method for bridge engineering to adapt to the effects of different environments and external forces.
