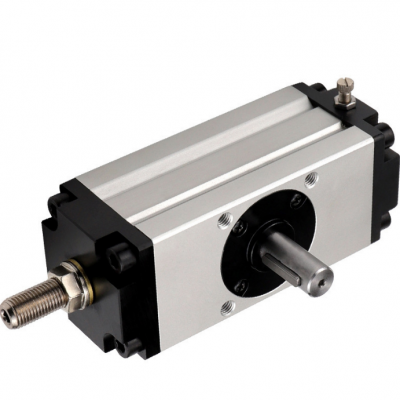

Rotary Rotary Rotary Cylinder CDRA1BS30-90/CRA1BS50*180/63/80/100-90-180 Degrees

The CDRA1BS/CRA1BS rotary cylinder series offers precise and reliable angular motion for industrial automation applications. Designed with compact and modular construction, these pneumatic rotary actuators provide controlled rotation in fixed angles such as 90° or 180°, making them ideal for part positioning, clamping, indexing, and assembly tasks.

Key Features:

• Precise Angular Rotation: Available in rotation angles including 30°, 90°, and 180° for flexible application-specific setups.

• Double-Acting Pneumatic Operation: Ensures smooth and powerful bidirectional rotation with consistent torque output.

• Compact and Space-Saving Design: Features a small footprint (e.g., bore sizes: 30mm, 50mm, 63mm, 80mm, 100mm), ideal for integration into tight spaces.

• Durable Construction: Built with hardened aluminum alloy and corrosion-resistant materials for longevity in demanding environments.

• Easy Installation and Control: Standardized pneumatic ports (e.g., M5 threads) and mounting options simplify setup and compatibility with automation systems.

Applications:

• Automation lines (e.g., part rotation, flipping, or transferring).

• Clamping and fixture systems in machining and assembly.

• Robotic end-effectors and material handling equipment.

Why Choose This Series?
With its combination of precision, durability, and modularity, this rotary cylinder series ensures efficient and repeatable angular motion for enhanced productivity in industrial settings.
