Refrigerator Shredder Recycling Plant /Refrigerator Shredder /Refrigerator Recycling Machine

Refrigerator Shredder Recycling Plant /Refrigerator Shredder /Refrigerator Recycling Machine photo-1
Refrigerator Shredder Recycling Plant /Refrigerator Shredder /Refrigerator Recycling Machine photo-2
Refrigerator Shredder Recycling Plant /Refrigerator Shredder /Refrigerator Recycling Machine photo-3
Refrigerator Shredder Recycling Plant /Refrigerator Shredder /Refrigerator Recycling Machine photo-4
Refrigerator Shredder Recycling Plant /Refrigerator Shredder /Refrigerator Recycling Machine photo-5
US$ 18600 ≥1 Set
Key Specifications
Get Latest Price
Certification:
ISO, CE
Warranty:
2 year
After-sales Service:
engineer ready to serve
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
15 days
Certification ISO, CE
Warranty 2 year
After-sales Service engineer ready to serve
Screw Other
Automation Automatic
Knife Type Piece Knife Crusher
capacity 300-400KG/H
area 15㎡
power 52KW
loading time 15 days
Transport Package 20GP
Specification WL-T300 TURBO
Trademark WALLE INDUSTRY
Origin CHINA
Basic Info.
Model NO.
wL-1200
Automation
Automatic
Certification
ISO, CE
Screw
Multi-Screw
Knife Type
Flat Knife Crusher
Recycling Product
Washing Machine, Refrigerator, Computer, Television
Appliance
Home Appliance
Recycling Rate
99%
Recovery Method
Physical
Capacity
as Customer Requirement
Power Consumption
185 Kw
Area
17500*4500*5000 mm
Operators
2/Shift
Wastage
Zero Emmission
Transport Package
Standard Package
Trademark
WALLE INDUSTRY
Origin
China
Production Capacity
10set/Month
Product Description

Product Description

Waste Refrigerator Recycling machine is used to different kinds of the material of home applaince, such as the refrigerator, washing machine, air conditioner. through the pre- shredder, vertical hammer mill shredder, overband magnetic separator, and eddy current separator, also the air gravity separator , impulse dust collector etc.

The processing as below:

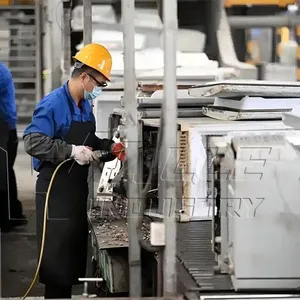

1. Dismantling maachine
The roller dismanting machine could be as the motor diriving the roller forwarding or the non motor forwarding by manual.
length of the dismnantling platform decided the capacity. to protection the environment, there is equipped with the impulse dust collector. meanwhile. the compressor drilling machine has been used to this line to get the pure oil  wastage.
through the dismantling you could get the refrigerant , compressor shell, wastage oil, and other high valve material.

2. Hydraulic assist pressing machine to help fast feeding the material to the shredding system.
微信图片_20250710144537
typepowerchamber sizereducer typedimension sizeweight
WL-100037kw*21000*788mmZSY3553260*1300*2370 MM6500 kgs
WL120045kw*21200*1188mmZSY3554000*2500*2400 mm8000 kgs
WL-140055kw*21400*1188 mmzsy40049000*2000*2700mm12000 kgs

3. Hydrualic hammer mill shredder
微信图片_20250710144446Hmamer mill shredder used to crush the material and sort the material from outlook. the impulse jet dust collector and cyclone has been fit. to collect the sponge.
typeworking chamber mmbale sizecapacity Main power kw
Y1251200*700*600300*3001.5T/H18.5
Y1601600*1000*700400*4002-3t/h22
Y2001800*1200*750450*4503-4t/h30
Y2502000*1750*800500*5005-6t/h2*22kw
Y3152500*2000*900600*6006-8t/h2*37kw
Y4003000*2000*950600*60010-12t/h2*45kw
Y6003500*2500*1000600*60015-20t/h2*45kw

4. Eddy current separator
To sort the non ferrous metal from plastic. the efficiency is higher.
微信图片_20250710144540
Typepump motorvibration motorbelt conveyor motorcapacity m3/hdimension mmweight
WL-8007.5150w*2PCS1.1 kw1-35100*1220*19001450 kgs
WL-120011250w*2PCS2.2 kw3-55700*1680*21801780 kgs
WL-150011250w*2PCS2.2kw5-75700*2040*21802130 kgs
WlL-200015250w*2PCS3kw7-105700*2680*25402890


微信图片_20250710144451微信图片_20250710144454微信图片_20250710144503

Detailed Photos

微信图片_20250710144506微信图片_20250710144449微信图片_20250710144515微信图片_20250710144513微信图片_20250710144459

FAQ

1. where is your factory location ?
Zhengzhou city,Henan province
2. How about the after selling service
The engineer team will be dispatched to assist installing the equipment at customer side. The trainning, operation skill will be learned free of charge.
3. Where is your agent ?
we do not have setting any agent abroad.
