Help CenterIndustrial Household Appliance Recycling Line Refrigerator Shell Metal Separation Plant
Product Spotlights
Related Products
-
Full Automatic Waste Refrigerator Recycling Production Line For Metal Plastic RecoveryUS$ 18600MOQ: 1 Set -
E Waste Home Appliance Recycling Plant Refrigerator Shredding And Sorting Production LineUS$ 18600MOQ: 1 Set
-
Integrated Refrigerator Dismantling Recycling Line Waste Appliance Processing EquipmentUS$ 18600MOQ: 1 Set
-
High Efficiency Waste Fridge Recycling Line Household Appliance Shredder Sorting SystemUS$ 18600MOQ: 1 Set
-
Scrap Home Appliance Recycling Production Line Refrigerator Crushing Separation PlantUS$ 18600MOQ: 1 Set
Basic Info.
Model NO.
wL-1200
Automation
Automatic
Certification
ISO, CE
Screw
Multi-Screw
Knife Type
Flat Knife Crusher
Recycling Product
Washing Machine, Refrigerator, Computer, Television
Appliance
Home Appliance
Recycling Rate
99%
Recovery Method
Physical
Capacity
as Customer Requirement
Power Consumption
185 Kw
Area
17500*4500*5000 mm
Operators
2/Shift
Wastage
Zero Emmission
Transport Package
Standard Package
Trademark
WALLE INDUSTRY
Origin
China
Production Capacity
10set/Month
Product Description
Product Description
Waste Refrigerator Recycling machine is used to different kinds of the material of home applaince, such as the refrigerator, washing machine, air conditioner. through the pre- shredder, vertical hammer mill shredder, overband magnetic separator, and eddy current separator, also the air gravity separator , impulse dust collector etc.
The processing as below:

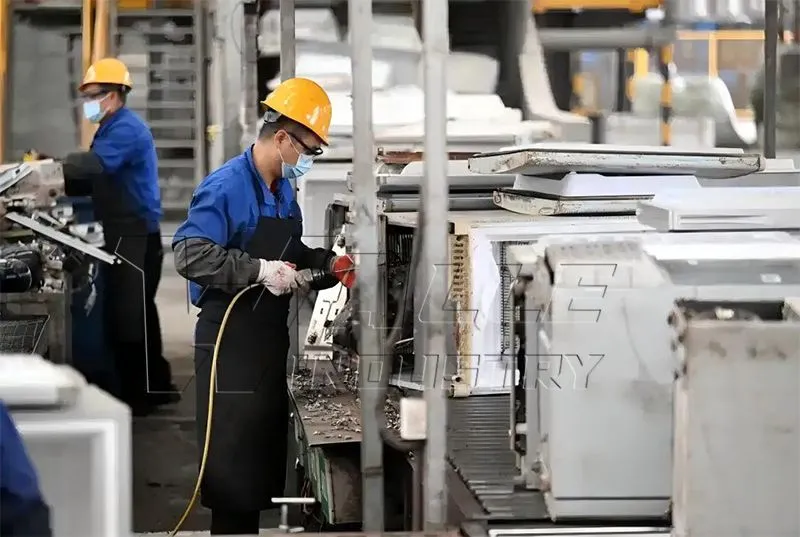

1. Dismantling maachine
The roller dismanting machine could be as the motor diriving the roller forwarding or the non motor forwarding by manual.
length of the dismnantling platform decided the capacity. to protection the environment, there is equipped with the impulse dust collector. meanwhile. the compressor drilling machine has been used to this line to get the pure oil wastage.
through the dismantling you could get the refrigerant , compressor shell, wastage oil, and other high valve material.
2. Hydraulic assist pressing machine to help fast feeding the material to the shredding system.
| type | power | chamber size | reducer type | dimension size | weight |
| WL-1000 | 37kw*2 | 1000*788mm | ZSY355 | 3260*1300*2370 MM | 6500 kgs |
| WL1200 | 45kw*2 | 1200*1188mm | ZSY355 | 4000*2500*2400 mm | 8000 kgs |
| WL-1400 | 55kw*2 | 1400*1188 mm | zsy400 | 49000*2000*2700mm | 12000 kgs |

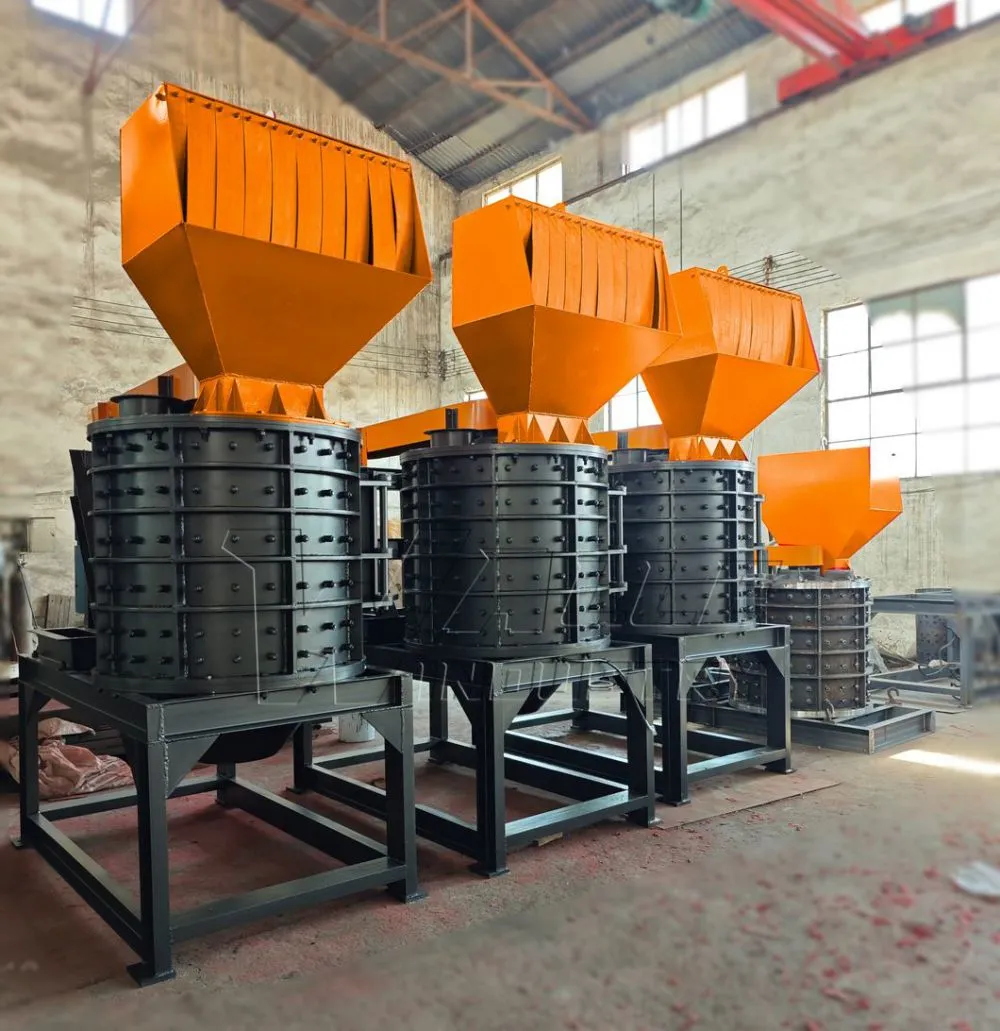

3. Hydrualic hammer mill shredderHmamer mill shredder used to crush the material and sort the material from outlook. the impulse jet dust collector and cyclone has been fit. to collect the sponge.
| type | working chamber mm | bale size | capacity | Main power kw |
| Y125 | 1200*700*600 | 300*300 | 1.5T/H | 18.5 |
| Y160 | 1600*1000*700 | 400*400 | 2-3t/h | 22 |
| Y200 | 1800*1200*750 | 450*450 | 3-4t/h | 30 |
| Y250 | 2000*1750*800 | 500*500 | 5-6t/h | 2*22kw |
| Y315 | 2500*2000*900 | 600*600 | 6-8t/h | 2*37kw |
| Y400 | 3000*2000*950 | 600*600 | 10-12t/h | 2*45kw |
| Y600 | 3500*2500*1000 | 600*600 | 15-20t/h | 2*45kw |

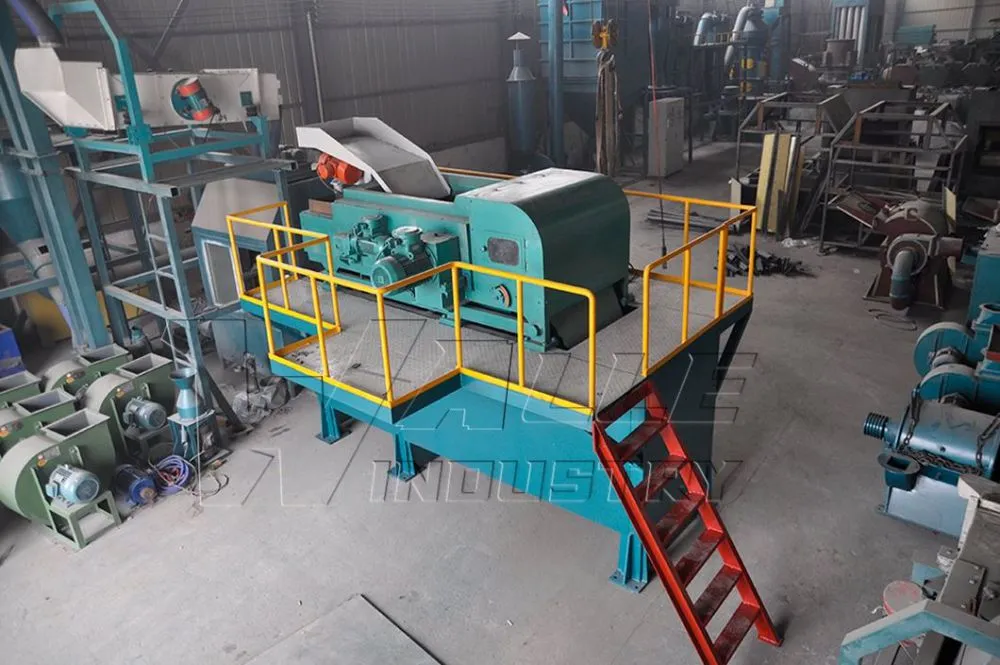

4. Eddy current separator
To sort the non ferrous metal from plastic. the efficiency is higher.
| Type | pump motor | vibration motor | belt conveyor motor | capacity m3/h | dimension mm | weight |
| WL-800 | 7.5 | 150w*2PCS | 1.1 kw | 1-3 | 5100*1220*1900 | 1450 kgs |
| WL-1200 | 11 | 250w*2PCS | 2.2 kw | 3-5 | 5700*1680*2180 | 1780 kgs |
| WL-1500 | 11 | 250w*2PCS | 2.2kw | 5-7 | 5700*2040*2180 | 2130 kgs |
| WlL-2000 | 15 | 250w*2PCS | 3kw | 7-10 | 5700*2680*2540 | 2890 |
Detailed Photos
FAQ
1. where is your factory location ?
Zhengzhou city,Henan province
2. How about the after selling service
The engineer team will be dispatched to assist installing the equipment at customer side. The trainning, operation skill will be learned free of charge.
3. Where is your agent ?
we do not have setting any agent abroad.
