Electrical characteristics Power supply method ● Battery power supply
Working voltage range ● DC 9V -95V
Working current ● 12V/average 40mA
Sleep current ● 12V/less than 10mA
Built in battery capacity ● 140 mAh (3.7V polymer battery) optional
Environmental characteristics Operating temperature range ● -20 ℃ -75 ℃
Storage temperature range ● -30 ℃ -80 ℃
Working humidity range ● 10% -85% RH non condensing
Communication Characteristics: Communication Module Brand/Chip Model ● A7670C-OPEN
Communication frequency band ● LTE-FDD/4G B1/B3/B5/B8
LTE-TDD/4G B34/B38/B39/B40/B41
SIM card ● Standard SIM card
Communication antenna ● Built in antenna
Antenna specifications ● PIFA antenna
GPS/BD positioning feature positioning module brand/chip model ● Zhongke Micro AT6558
Positioning method ● Beidou+GPS
Cold start time ● Average 32 seconds
Hot start time ● Average 1 second
Tracking sensitivity ● -162 dBm
Positioning antenna ● Built in antenna
Antenna specifications: 25mm * 25mm * 4mm
GPS frequency band ● L1: 1575.42 ± 1.023MHz
Beidou frequency band ● B1: 1561.098 ± 2.046MHz
Number of satellite channels ● 64
Positioning accuracy ●
Timing accuracy ●
Speed measurement accuracy ●
Maximum acceleration ● 4g
Maximum speed ● 515m/s
Maximum height ● 18000m

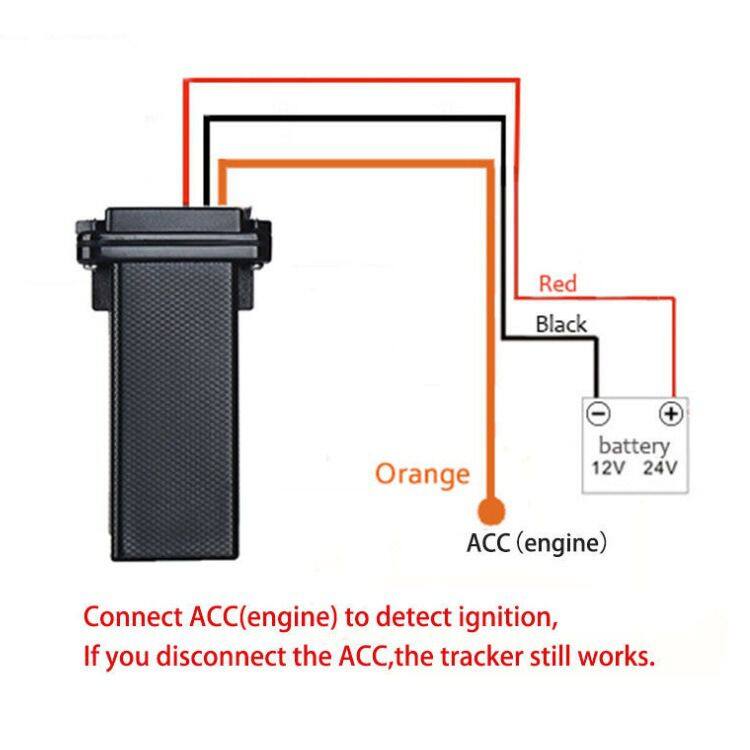

External interface ACC detection input ●

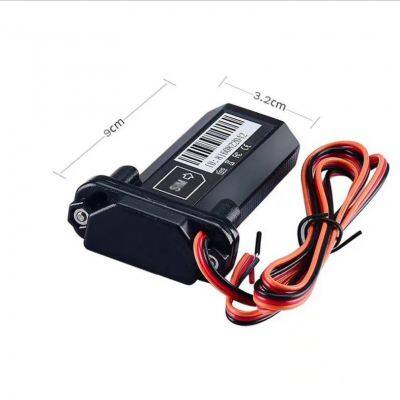

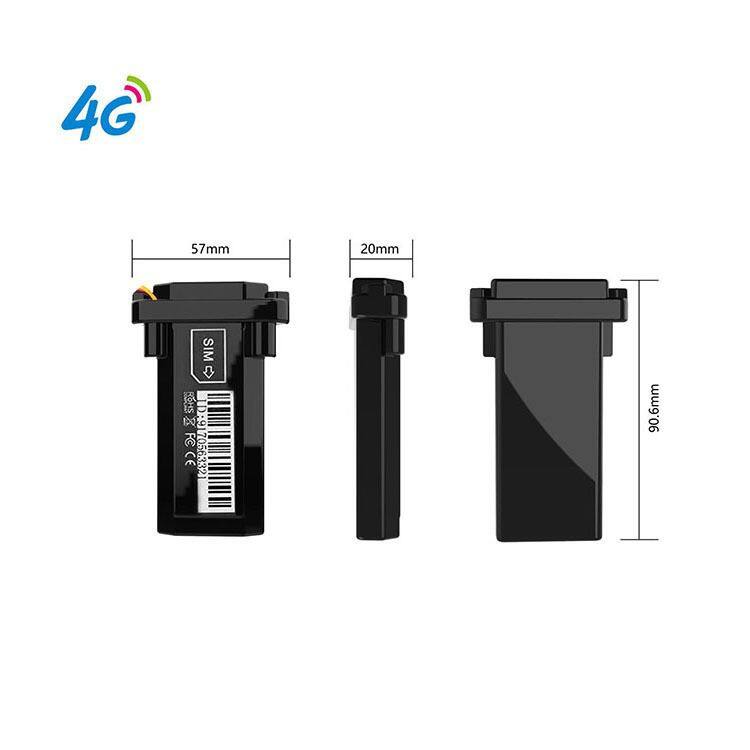

External specifications: Host dimensions (length, width, height) ● 90.6mm * 34mm * 20mm
Motherboard size (length, width, height) ● 85mm * 30mm * 7.6mm (with antenna height: 11mm)
Shell material ● ABS plastic
IP protection level ● IP67
Host weight ● 68 grams
