Help CenterCross Border 4G Positioning Dog Pet Anti Loss Device GPS Tracker Dog Cow Sheep Waterproof Long Standby Collar Locator
Related Products
-
Cross Border 4G Pet Locator GPS Beidou Cat, Dog, Sheep Anti Lost Waterproof Collar Remote Positioning TrackerUS$ 25 - 36MOQ: 2 Combos -
4G Wireless GPS Locator, Car Anti-theft Pickup Positioning, Remote Tracking Tracker, Car Mounted Beidou Anti Loss DeviceUS$ 30 - 39MOQ: 2 Combos
-
Global 4G Locator GPS Car Electric Motorcycle Waterproof and Anti Loss Mobile Phone Tracker TrackerUS$ 20 - 25MOQ: 2 Combos
-
4G Installation Free Car Mounted Wireless Strong Magnetic Tracker, Anti-theft and Anti Loss for Electric Vehicles, Beidou GPS LocatorUS$ 25 - 39MOQ: 2 Combos
-
GPS for Children and Elderly, 4G Locator for Children and Babies, Anti Turning Remote Tracking for the Elderly, Anti Loss Pendant, Anti Loss DeviceUS$ 20 - 29MOQ: 2 Combos

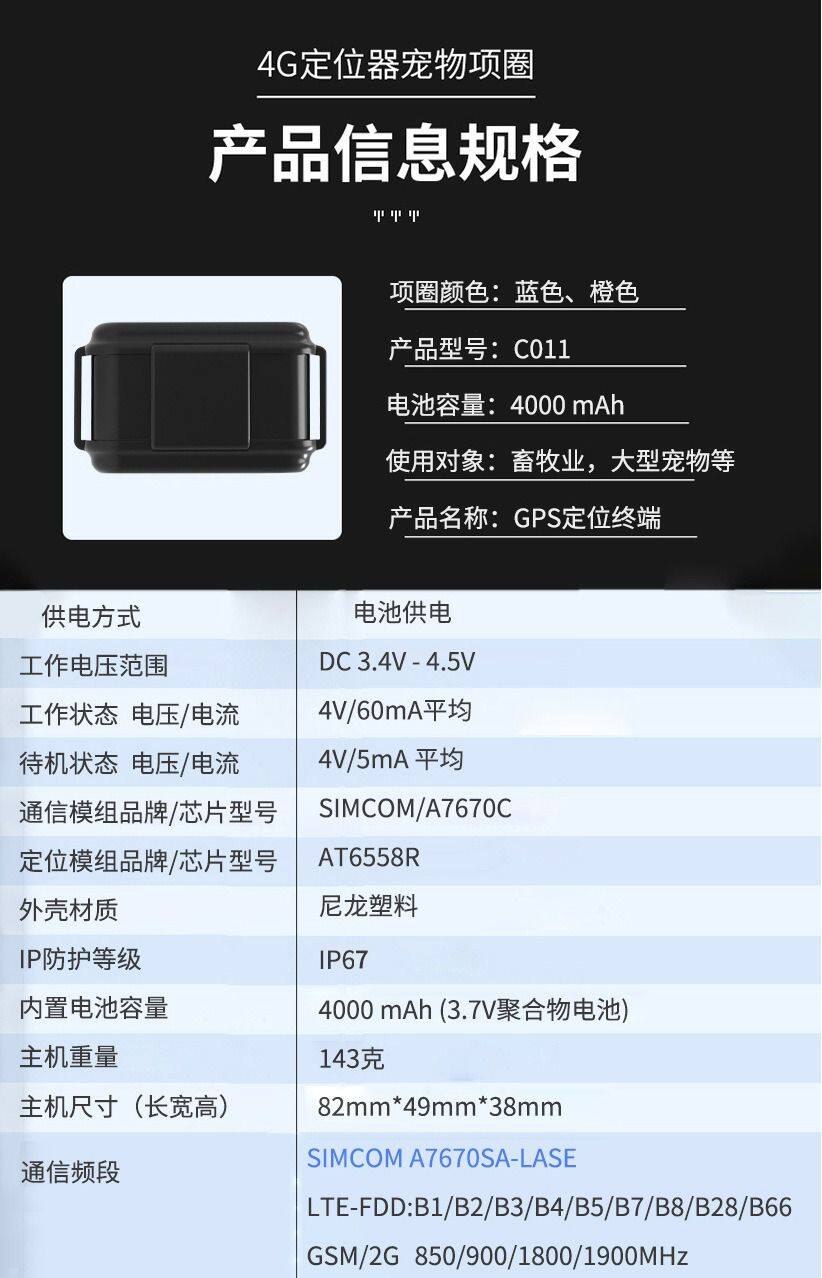

GPS pet locator
Power supply method ● Battery power supply
Working voltage range ● DC 3.4V -4.5V
Working state voltage/current ● 4V/average 59.8mA
Standby state voltage/current ● 4V/average 4.8mA
Built in battery capacity ● 4000 mAh (3.7V polymer battery)
Environmental
Working temperature range ● -20 ℃ -75 ℃
Storage temperature range ● -30 ℃ -80 ℃
Working humidity range ● 10% -85% RH non condensing
Communication antenna ● Built in FPC antenna
GPS/BD positioning characteristics
Positioning module brand/chip model ● AT6558R
Positioning method ● BDS/GPS/AGPS/LBS
Cold start time ● Average 32 seconds
Hot start time ● Average 1 second
Tracking sensitivity ● -162 dBm
Positioning antenna ● Built in antenna
Antenna specifications: 20mm × 20mm × 4mm
GPS frequency band ● L1: 1575.42 ± 1.023MHz
Beidou frequency band ● B1: 1561.098 ± 2.046MHz
Number of satellite channels ● 64
Positioning accuracy ●
Timing accuracy ●
Speed measurement accuracy ●
Peripherals: Magnetic charging port+serial port ● 1 channel
Speaker ● 1 channel
LED light ● Charging light (red)+GPS (yellow)+4G (blue)+Pet recording light (white)

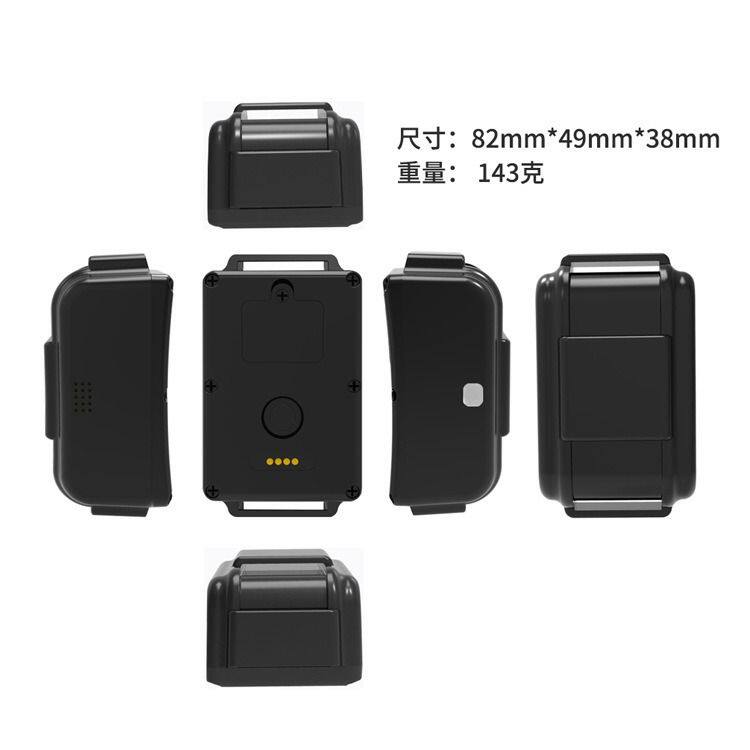

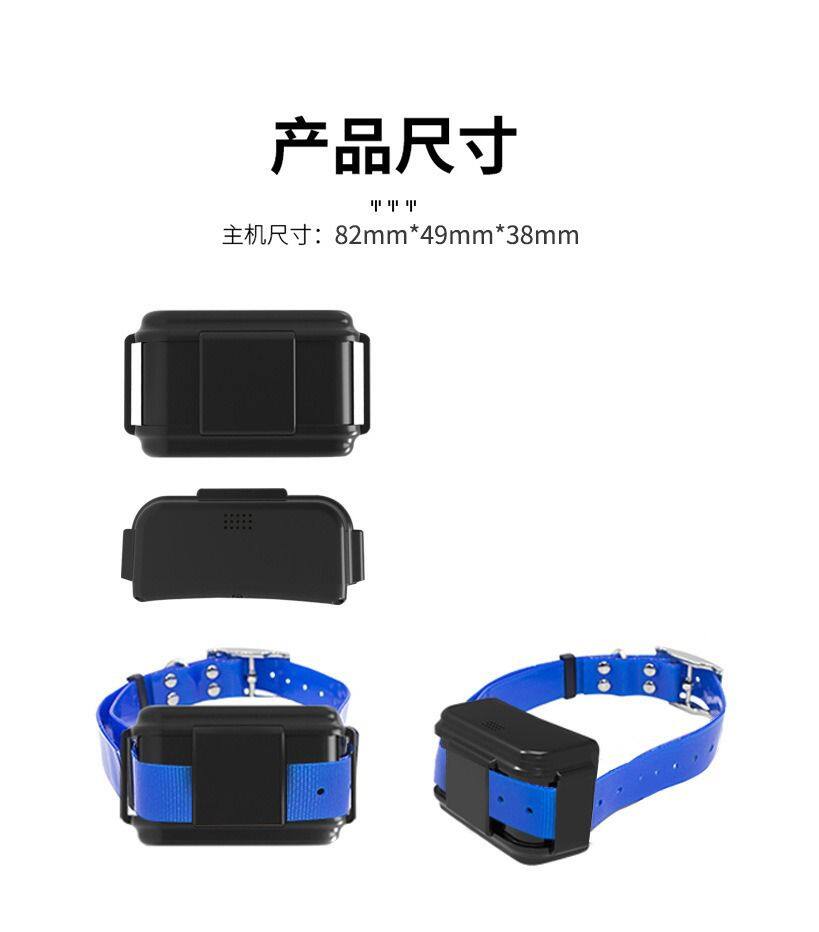

Exterior specifications: Host dimensions (length, width, height) ● 82mm * 49mm * 38mm
Shell material ● Nylon plastic
IP protection level ● IP67
Host weight ● 143 grams
