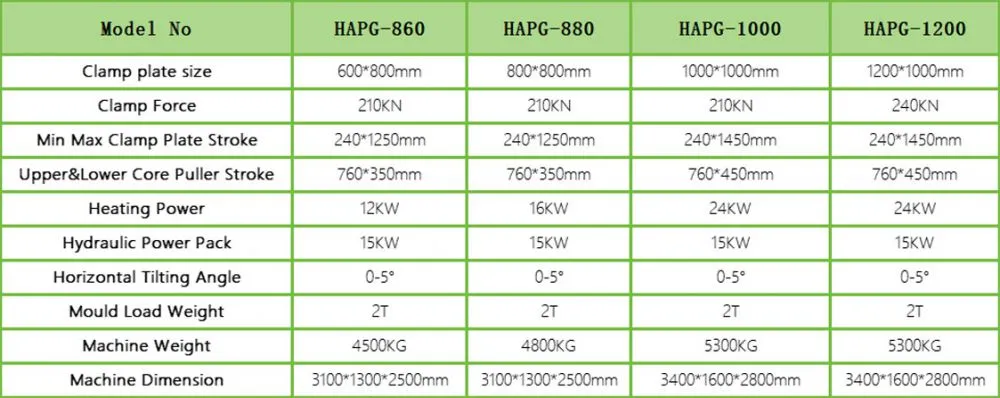

Product Description This series is a standard APG (Automatic Pressure Gelation) clamping machine, with a minimum clamp plate size of 600×800mm and a maximum clamp plate size of 1200×1000mm. It meets production requirements for 11-36kV epoxy products, including current transformers, voltage transformers, insulators, bushings, spouts, SF6 gas-insulated switchgear covers, and enclosures, among others.
The upper and lower core stroke distance can be customized. However, a foundation pit is required if the lower core travel distance exceeds 500mm
FAQ
Q: What machines are included in a complete set of APG Clamping System?
A: A complete APG Clamping System consists of: the APG main unit, a control box, a hydraulic station, a thin-film degassing mixing station, a mixing pot, and resin casting molds.
Q: What is the APG machine used for?

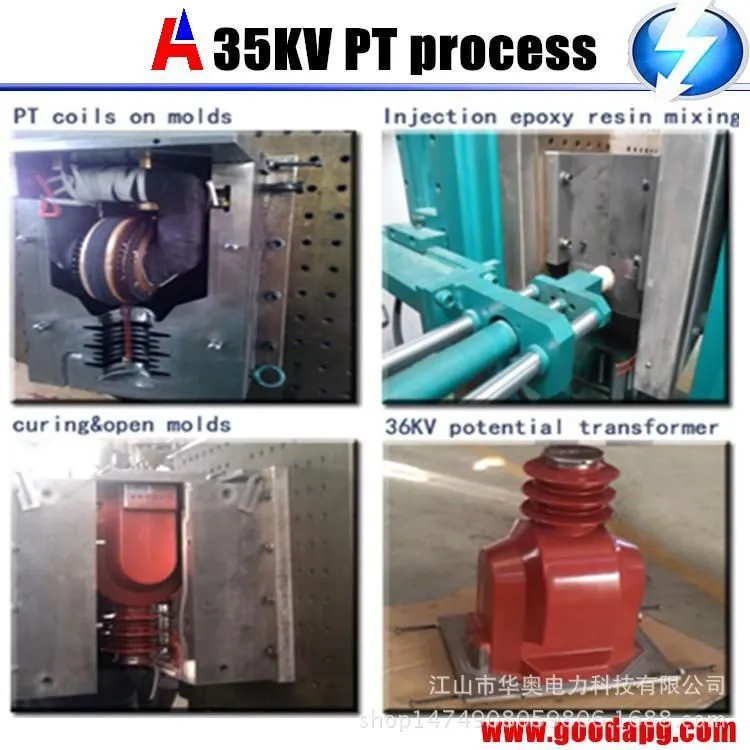

A: It is used to produce electrical epoxy resin products, such as low- and medium-voltage transformers, insulators, bushings, and switchgear components.The hydraulic epoxy resin encapsulation technology not only enhances the insulation reliability and service life of electrical equipment, but also makes it more robust, moisture-resistant, and easier for mass production.
Q: How many years can a set of APG equipment last?
A: It depends on whether it is properly maintained. Generally, it can last over 15 years.
Key Benefits:
Wide Compatibility - Fits 600×800mm to 1200×1000mm molds for flexible production.
High-Voltage Ready - Perfect for 11-36kV insulators, bushings, and transformers.
Custom Strokes - Adjustable core travel (500mm+ needs a pit).
APG Precision - Auto pressure gelation for bubble-free epoxy.
Fast Curing - High-pressure process speeds up production.
Heavy-Duty Build - Steel construction for long-lasting use.
Industry-Proven - Trusted for power, energy, and rail parts.
Short, clear, and scannable - ideal for product pages!
Overseas on-site technique training
1. Offer epoxy resin production line consulting service.
2. Supply High quality APG machine, mixing device, APG&casting Mold, CT/PT winding machine.
3. Produce qualified samples with APG machine and molds before dispatch, guarantee APG machine and molds are in good condition.
4. One-site training APG technique till you control produce products by yourself.
