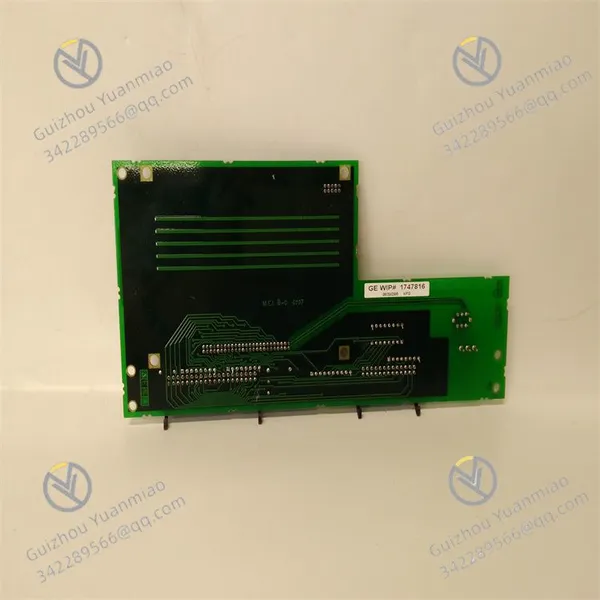

DS200ADPBG1ABB Genius Adapter Board GE

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

Detailed Information on DS200ADPBG1ABB
Product Overview
The DS200ADPBG1ABB is a Genius adapter board developed by General Electric (GE), primarily designed for use in Mark V series turbine control systems. As an interface module, it connects and adapts various I/O devices, enabling communication and data exchange between the system and external equipment. It integrates functions such as I/O expansion, signal conversion, and isolation protection.
Technical Specifications

Parameter	Specification
Power Supply	Typically 24V DC; some configurations support 12–48V DC. Alternative specs: +5V DC (6A) with a supply voltage of 28V DC.
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% (non-condensing)
Slots & I/O Capacity	4 slots, supporting up to 128 I/O points
Communication Interfaces	Typically includes RS-232, RS-485, and CAN interfaces. Potential additional interfaces: UART, SPI, I2C, and Ethernet.
Dimensions & Weight	Approx. 140mm × 85mm × 25mm (weight: ~250g). Alternative dimension: 15.9cm × 17.8cm.

Hardware Features

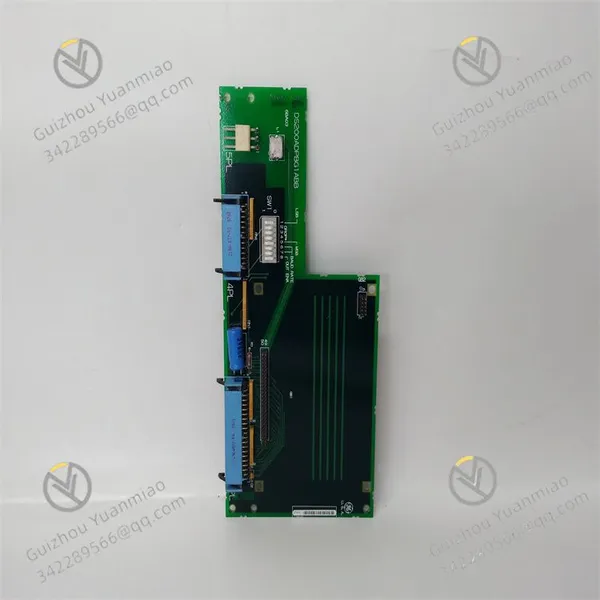

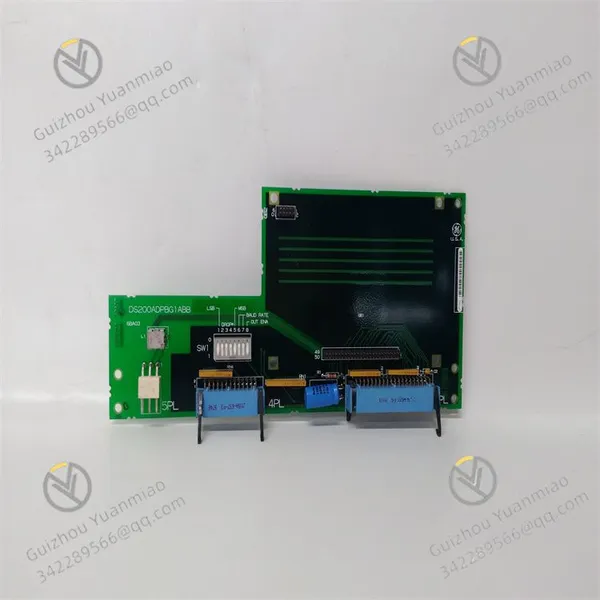

Equipped with a configuration panel consisting of 8 switches for system setup.
Features one 40-pin connector and one 26-pin connector for external device connections.
Includes manually adjustable hardware jumpers to meet diverse on-site requirements and customization needs.
Application Fields
Power Industry：

Used in power plants to connect various sensors, actuators, and other equipment.
Applied in substations for monitoring and controlling substation devices.
Utilized in transmission lines to monitor operational status.
