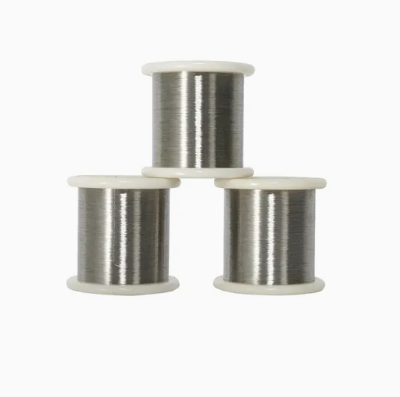

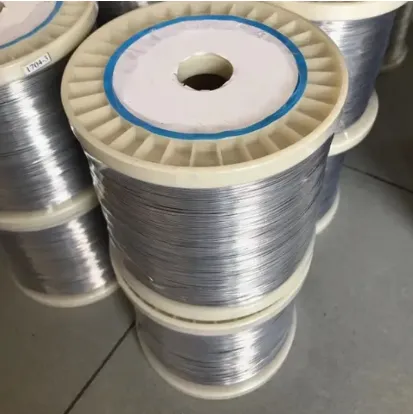

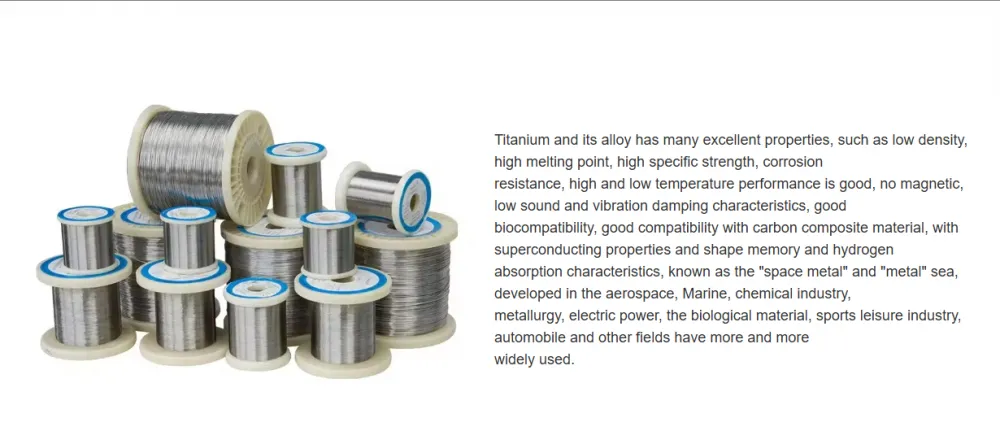

Help CenterGr1 /Zta1/JIS H4600 Tr270c High Purity and High Quality Titanium Wire Has Good Strength and Corrosion Resistance Industrial Medical
Related Products
-
GB/T3624-2010 Ta1 Ta2 Ta8 Titanium TubeUS$ 1500 - 2000MOQ: 1 Ton -
High Purity Pure Tantalum Rod for Sale/Tantalum Rod Ta1 ASTM B365 R05200 Round BarUS$ 2000 - 2500MOQ: 500 Kilograms
-
Condenser GB/T3624-2010 Ta1 Ta9-1 Titanium TubeUS$ 2000 - 2500MOQ: 500 Kilograms
-
Condenser GB/T3625-2007 Ta2 Ta9 Titanium TubeUS$ 2000 - 2500MOQ: 500 Kilograms
-
China Manufacturer Titanium Welded Tube ASTM GB Ta1 Ta2 Ta10 Gr1 Gr2 CoilUS$ 2000 - 2500MOQ: 500 Kilograms
Product Name |
titanium wire |
Material |
Pure titanium and Titanium alloy |
Titanium Grade |
GR1/GR2/GR3/Gr4/GR5/GR6/GR7/GR9/GR11/GR12/Gr5Eli/Gr23/Ti-15333 etc |
Standard |
ASTM B265/ASME SB265, ASTMF67, ASTM F136, ISO-5832-2(3),AMS 4911,JISH4600 ZTA1,ZTA2,ZTA3,ZTA5,ZTA7,ZTB32,ZTC4,ZTC21, etc |
Shape |
Titanium plate/strips/coil/bar/pipe/wire |
Diameter |
0.1-20mm or as Required |
Length |
10-3000mm or Customizable |
Surface |
Pickled,Sandblasting,Polishing,etc. |
Main Technique |
Hot Rolled ,Cold Rolled,etc. |
Heat Treatment |
Usually are Annealled,but Solid Solution & Aging can be also OK |
Application |
Metallurgy, Electronics, Medical, Chemical, Petroleum, Pharmaceutical,aerospace, etc. |
| Material |
* Grade 1-4 : Commercial Pure Ti
*Grade 5: Ti-6AI-4V * Grade 6: Ti-5AI-2.5Sn
* Grade 7: Ti-0.2Pb * Grade 9: Ti-3AI-2.5V
* Grade 12:Ti-0.3Mo-0.8Ni * Grade 23: Ti-6AI-4V EL
|
Product Description
| 1.Chemical requirements | |||||||||||
| Grade | N(≤) | C(≤) | H(≤) | Fe(≤) | O(≤) | Al(≤) | V(≤) | Pd(≤) | Mo(≤) | Ni(≤) | Ti |
| GR1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| GR3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| GR4 | 0.05 | 0.08 | 0.015 | 0.2 | 0.4 | / | / | / | / | / | bal |
| GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| GR7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| GR9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| GR12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| GR23 | 0.05 | 0.08 | 0.012 | 0.25 | 0.13 | 5.5~6.5 | 3.5~4.5 | bal | |||
| 2.Tensile requirements | |||||
| Grade | Tensil strength(≥) | Yeild strength(≥)) | Elongation(≥)%) | ||
| ksi | Mpa | ksi | Mpa | ||
| GR1 | 35 | 240 | 20 | 138 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR3 | 65 | 450 | 55 | 380 | 18 |
| GR4 | 80 | 550 | 70 | 483 | 15 |
| GR5 | 130 | 895 | 120 | 828 | 10 |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 483 | 15 |
| GR12 | 70 | 483 | 20 | 345 | 18 |
| GR23 | 120 | 828 | 110 | 760 | 10 |
Our Advantages
Superior Materials:
We source only the finest, top-tier raw materials to ensure our products offer unmatched strength, durability, and longevity.
Cutting-Edge Technology:
Our production utilizes state-of-the-art technologies, including advanced smelting, continuous casting, and innovative rolling techniques.
Tailored Services:
We provide bespoke design and manufacturing solutions tailored to meet the distinct needs and specifications of our customers.
Frequently Asked Questions (FAQ)
Q1: Why should I choose your company?
A: With over 16 years of unmatched industry experience, a modern factory, and a professional, dedicated sales team, we offer exceptional services and top-tier products.
Q2: What are your payment terms?
A: We require a 30% T/T deposit in advance, with the remaining 70% due prior to delivery.
Q3: What are your delivery terms?
A: We proudly offer flexible and convenient delivery terms including FOB, CFR, CIF, and EXW, designed to meet your specific needs.
Q4: What is your delivery time?
A: Our standard lead time is impressively swift, ranging from just 7 to 15 days after receiving the deposit, ensuring your project stays on track.
Q5: Can you provide samples?
A: Absolutely! We offer complimentary samples if available in stock. Please note, the transportation fees must be covered by the buyer.
