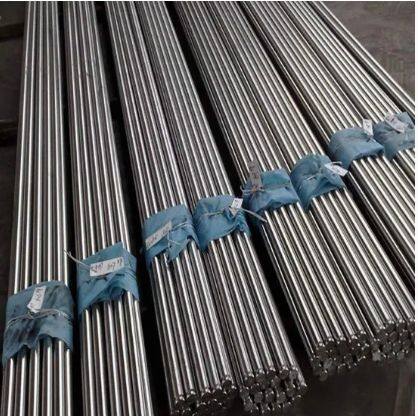

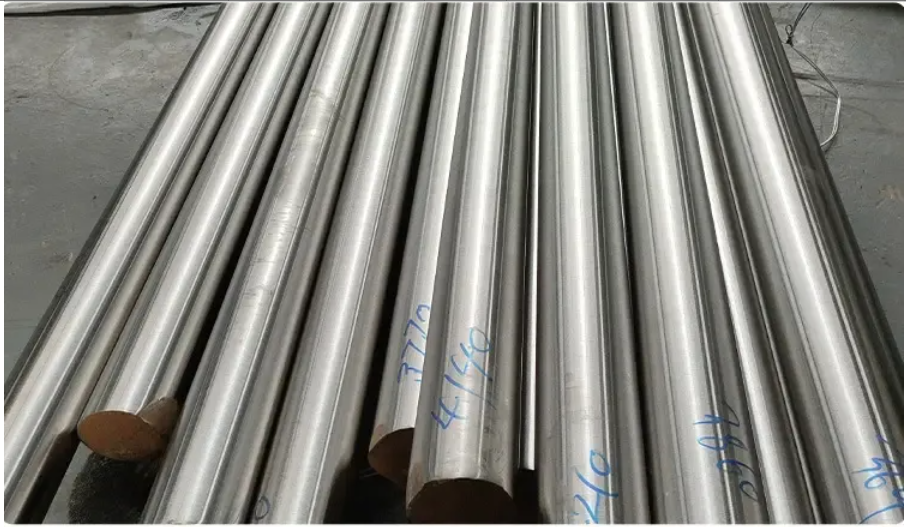

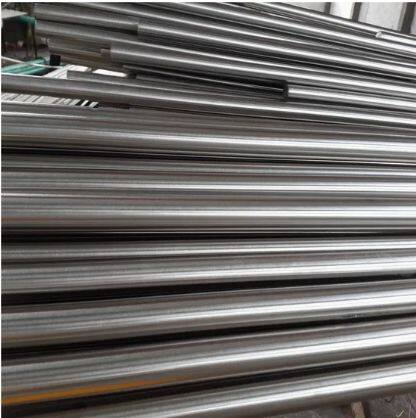

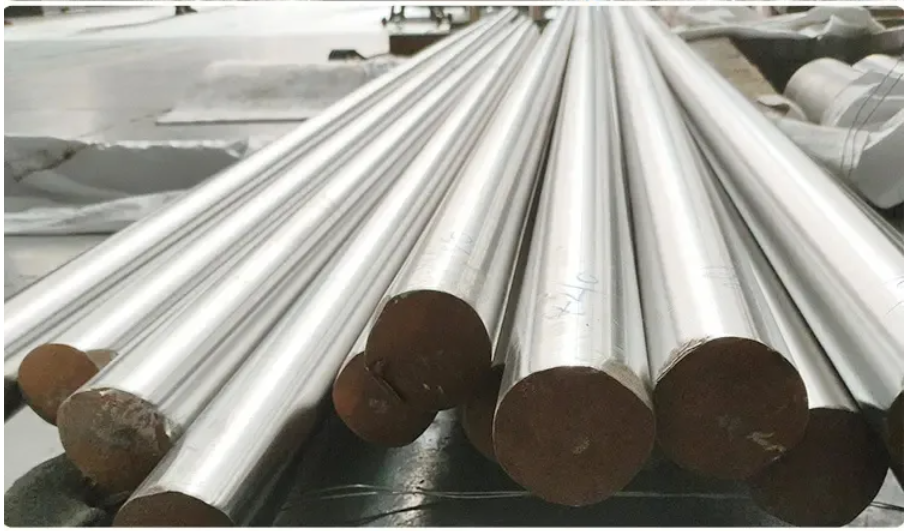

High Purity Pure Tantalum Rod for Sale/Tantalum Rod Ta1 ASTM B365 R05200 Round Bar
US$ 2000 - 2500
MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Type:
Other
Certification:
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape:
Round
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
8 days
Related Products
-
Condenser GB/T3624-2010 Ta1 Ta9-1 Titanium TubeUS$ 2000 - 2500MOQ: 500 Kilograms -
Condenser GB/T3625-2007 Ta2 Ta9 Titanium TubeUS$ 2000 - 2500MOQ: 500 Kilograms
-
China Manufacturer Titanium Welded Tube ASTM GB Ta1 Ta2 Ta10 Gr1 Gr2 CoilUS$ 2000 - 2500MOQ: 500 Kilograms
-
Inconel (Nickel-based Alloys Haynes (Cobalt-based Alloys) Nickel Alloy Monel Copper Plate/Sheet Bar Titanium AlloyUS$ 27 - 30MOQ: 10 Kilograms
-
Custmized High Quality Nickel Based Monel400 K500 Uns No4400 Alloy Round BarUS$ 27 - 30MOQ: 10 Kilograms
Type
Other
Certification
ISO, ROHS, IBR, AISI, ASTM, GB, EN, DIN, JIS, Other
Shape
Round
Grade
Other
Technique
Other
Surface Treatment
Polished
Standard
ASTM, AISI, GB, JIS, DIN, EN, Other
Specification
OEM
Trademark
ZHONGZHENG INTERNATIONAL
Origin
China
Basic Info.
Model NO.
EB9803
Usage
Alloys
Shape
Rod
Concentrate or Not
Non-concentrate
Transport Package
Plywood Case
Trademark
ZHONGZHENG
Origin
China
Production Capacity
500000 Kilograms/Year
Product Description
EB China offers our customers a diverse selection of tantalum rod, tantalum bar, and tantalum wire products which are all engineered for a range of applications. Our products are cold-rolled and annealed in a proprietary process that creates metallurgical properties ideal for such applications as sputtering gun barrels, machining into fasteners, x-ray or radiation shielding, medical markers for surgeons, vacuum furnace heating elements, chlorinator springs, components for light bulbs, or machined parts for chemical processing equipment. EB China is tantalum rods are manufactured by cold rolling large diameter tantalum ingots into smaller diameters and performing intermediate anneals to recrystallize the metal before repeating the process. This process guarantees that the metallurgy of the rod is uniform. The tantalum rods and bars are typically centerless ground to ensure a smooth uniform surface. Usually, customers who plan to machine the rods prefer the material to be unannealed, whereas those who plan on drawing or rolling the material further ask for annealed.
Uses of Tantalum Rods and Tantalum Bars Tantalum rods and tantalum bars appear in many applications, including:
Sputtering gun barrels: Computer disk manufacturers and other industries using sputtering processes are increasingly adopting tantalum to resist corrosion in sputtering gun barrels. The tantalum lining process is more environmentally efficient than chromium lining, helping industries reduce their ecological impact.
Machined fasteners: Machined fasteners fabricated from tantalum offer superior corrosion resistance. They replace fasteners made of alternative materials prone to failure or that require expensive equipment shutdowns for maintenance. Tantalum fasteners appear in industries such as mining, energy, and pharmaceuticals as well as in metal and chemical processing.
X-ray/radiation shielding: Tantalum's radio-opaque qualities make it ideal for X-ray and shielding applications seeking to prevent radiation leakage. Tantalum shielding also protects sensitive electronic components in aerospace structures as well as components operating in corrosive environments.
Vacuum furnace heating elements: Because of tantalum's oxidation resistance and high melting point, many vacuum furnace components incorporate tantalum bars. Tantalum's temperature grain stabilization increases machine life expectancy due to its ability to withstand high temperatures for long periods of time.
Machined parts for chemical processing equipment: Tantalum's corrosion-resistant properties make it a choice material for machined parts used in chemical processing equipment. Tantalum machined parts replace inferior materials that do not perform as well in harsh chemical environments and require extensive maintenance.
Sputtering gun barrels: Computer disk manufacturers and other industries using sputtering processes are increasingly adopting tantalum to resist corrosion in sputtering gun barrels. The tantalum lining process is more environmentally efficient than chromium lining, helping industries reduce their ecological impact.
Machined fasteners: Machined fasteners fabricated from tantalum offer superior corrosion resistance. They replace fasteners made of alternative materials prone to failure or that require expensive equipment shutdowns for maintenance. Tantalum fasteners appear in industries such as mining, energy, and pharmaceuticals as well as in metal and chemical processing.
X-ray/radiation shielding: Tantalum's radio-opaque qualities make it ideal for X-ray and shielding applications seeking to prevent radiation leakage. Tantalum shielding also protects sensitive electronic components in aerospace structures as well as components operating in corrosive environments.
Vacuum furnace heating elements: Because of tantalum's oxidation resistance and high melting point, many vacuum furnace components incorporate tantalum bars. Tantalum's temperature grain stabilization increases machine life expectancy due to its ability to withstand high temperatures for long periods of time.
Machined parts for chemical processing equipment: Tantalum's corrosion-resistant properties make it a choice material for machined parts used in chemical processing equipment. Tantalum machined parts replace inferior materials that do not perform as well in harsh chemical environments and require extensive maintenance.
Tantalum Bar, Rod & Wire Specifications | |||
Available Sizes for Tantalum Bar, Rod & Wire | |||
Thickness Diameter |
Common Specifications |
Available Alloys |
Available Purities: |
.010″ to .080″ |
ASTM B708 R05200 |
Tantalum 2.5% Tungsten |
3N 99.90% | 3N5 99.95% |
.030″ to .125″ |
» Electron Beam Melted (Unalloyed) |
Tantalum 7.5% Tungsten |
4N 99.99% | 4N5 99.995% |
.060″ to 10″ |
ASTM B708 R05400 |
Tantalum 10% Tungsten |
5N 99.999% |
.060″ to 10″ |
» Powder Metallurgy Grade (Unalloyed) |
Tantalum 40% Niobium |
|
Loose Coil |
ASTM B708 R05252 |
Furnace Grade Tantalum |
|
Straight Lengths |
» Tantalum 2.5% Tungsten Alloy |
||
ASTM B708 R0255 |
|||
» Tantalum 10% Tungsten Alloy |
|||
AMS 7849 Rev E |
|||
AMS 7849 Rev E |
|||
Chemical Composition:
| Element | O | N | C | H | Nb | Mo | W | Ti | Si | Fe | Ni | Ta |
| R05200 | 0.015 | 0.01 | 0.01 | 0.0015 | 0.1 | 0.2 | 0.5 | 0.01 | 0.005 | 0.01 | 0.01 | bal. |
| RO5400 | 0.03 | 0.01 | 0.01 | 0.0015 | 0.1 | 0.2 | 0.5 | 0.01 | 0.005 | 0.01 | 0.01 | bal. |
| RO5255 | 0.015 | 0.01 | 0.01 | 0.0015 | 0.5 | 0.2 | 2.0-3.5 | 0.01 | 0.005 | 0.01 | 0.01 | bal. |
| RO5252 | 0.015 | 0.01 | 0.01 | 0.0015 | 0.1 | 0.2 | 9.0-11.0 | 0.01 | 0.005 | 0.01 | 0.01 | bal. |
Tantalum Bar & Tantalum Rod Applications
Tantalum bar and tantalum rod are used in the following applications:
* Used in laboratory equipment.
* Used as a substitute for platinum.
* Used in manufacturing superalloys and electron-beam melting.
Our Advantages
Superior Materials:
We source only the finest, top-tier raw materials to ensure our products offer unmatched strength, durability, and longevity.
Cutting-Edge Technology:
Our production utilizes state-of-the-art technologies, including advanced smelting, continuous casting, and innovative rolling techniques.
Tailored Services:
We provide bespoke design and manufacturing solutions tailored to meet the distinct needs and specifications of our customers.
Frequently Asked Questions (FAQ)
Q1: Why should I choose your company?
A: With over 16 years of unmatched industry experience, a modern factory, and a professional, dedicated sales team, we offer exceptional services and top-tier products.
Q2: What are your payment terms?
A: We require a 30% T/T deposit in advance, with the remaining 70% due prior to delivery.
Q3: What are your delivery terms?
A: We proudly offer flexible and convenient delivery terms including FOB, CFR, CIF, and EXW, designed to meet your specific needs.
Q4: What is your delivery time?
A: Our standard lead time is impressively swift, ranging from just 7 to 15 days after receiving the deposit, ensuring your project stays on track.
Q5: Can you provide samples?
A: Absolutely! We offer complimentary samples if available in stock. Please note, the transportation fees must be covered by the buyer.
