PCB Components Removing Machine Dismantling Machine IC Chips Remover
US$ 6023
≥1 Set
Key Specifications
Get Latest Price
Recycling Product:
PCB
Knife Type:
Piece Knife Crusher
Origin:
china
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Pcb Board Electronic Component Removing Machine Scrap PCB Electronic Component Dismantling MachineUS$ 6500MOQ: 1 Set -
PCB Circuit Board Dismantling Machine Pcb Electronic Components Removing MachineUS$ 6023MOQ: 1 Set
-
Full Auto PCB Board Recycling Plant Electronic Waste Crushing Shredding Copper Resin Separation Production LineUS$ 28000MOQ: 1 Set
-
Industrial Electronic Waste PCB Board Recycling Machine Circuit Board Crushing Separator Copper Recovery SystemUS$ 28000MOQ: 1 Set
-
Factory Price Circuit Boards Gold Stripping Machine Motherboards Precious Metal Gold Recovery UnitUS$ 45000MOQ: 1 Set
Recycling Product
PCB
Knife Type
Piece Knife Crusher
Origin
china
Waste Fully Automatic Circuit Board Motherboard Disassembly and Crushing Production Line
PCB Components Dismantling Machine is used to remove the electronic components on different PCB boards, The drumer made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability. It is Pre Processing before E waste Pcb Recycling Line

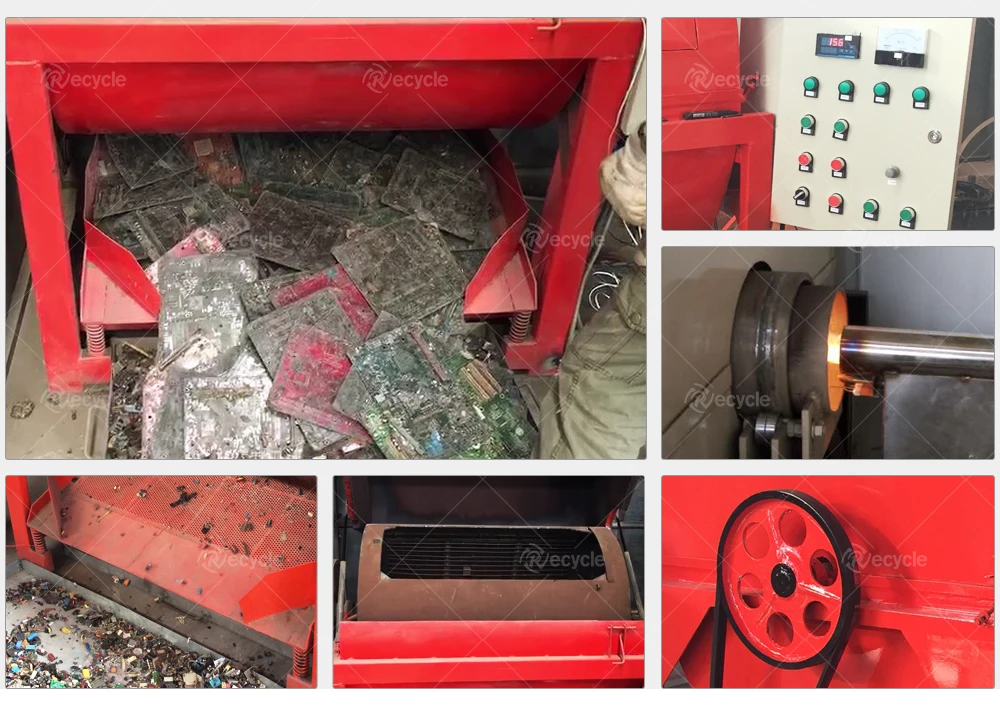

Working Principle

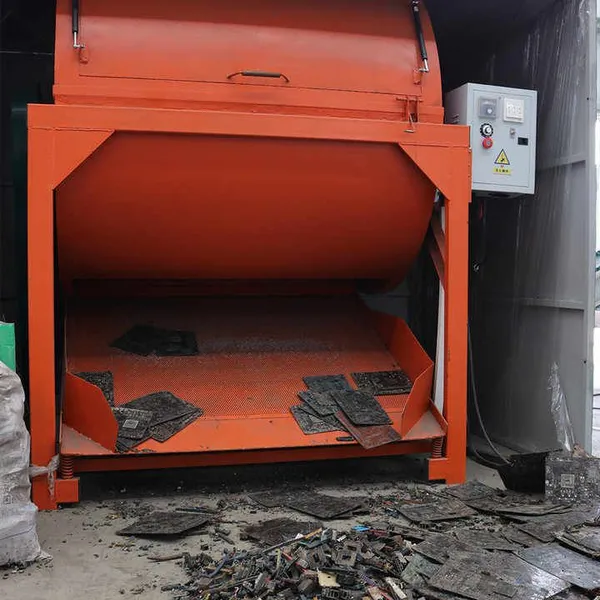

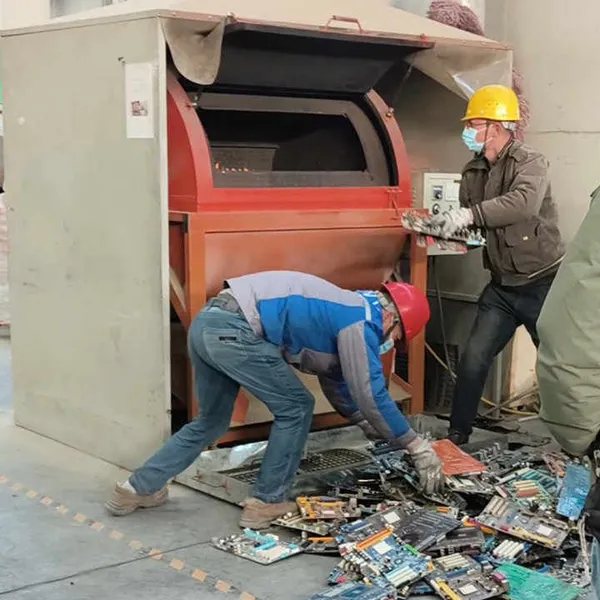

Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works. So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components
screen and magnetic machine.
screen and magnetic machine.

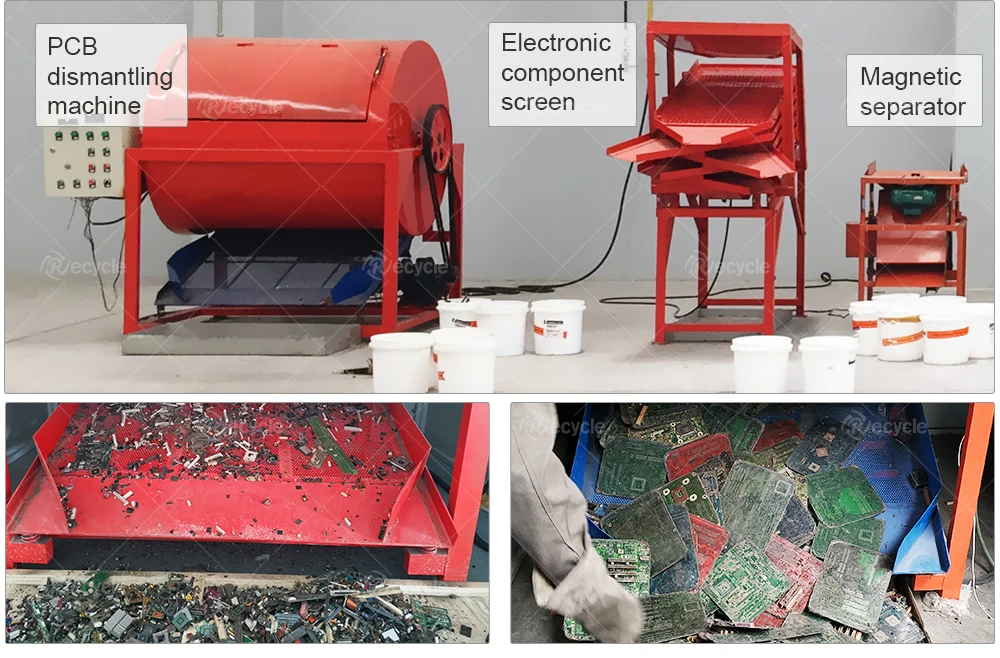

The Whole Process:
1. PCB Dismantling Machine Body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic Component Screen: Classify the similar size electronic components in one side;
3. Magnetic Separator: Further classify these components which include iron or not.
Technical Parameters
NOTE:
Working voltage:380±10V(415V ,440V also can be customized)
(The Price depends on your capacity and configuration of the machinery;)
Features

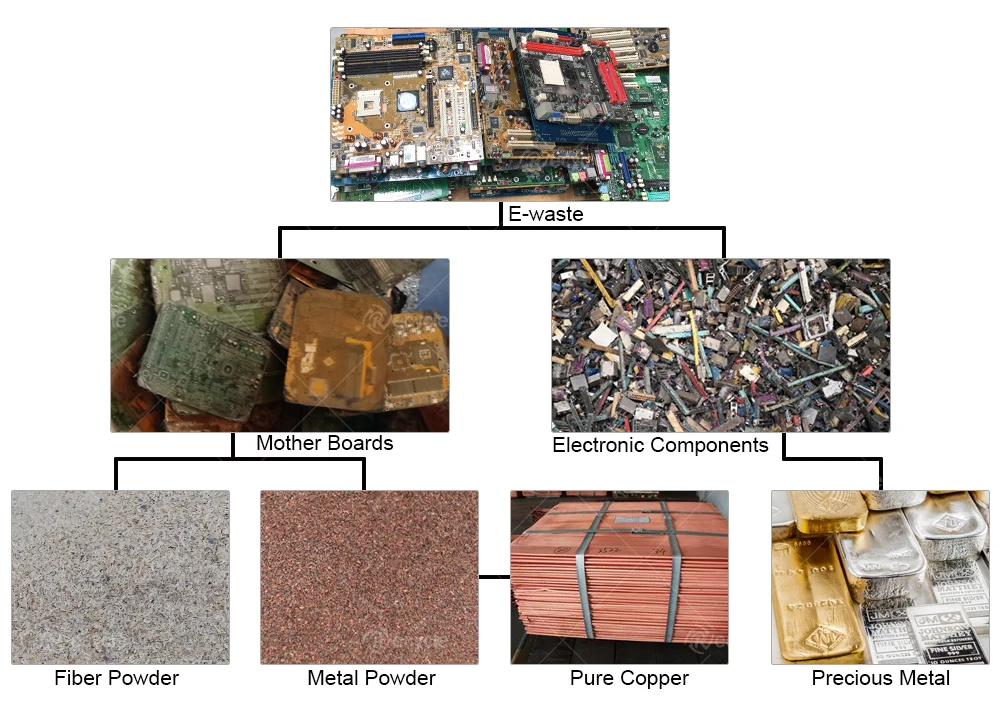

Mother board and components can be proceed respectively in the next step to improve economic benefits.
1. Full automatic working, save labor, 1-2 persons are enough;
2. Tin remove and dismantling components at one step;
3. Automatic temperature control system,controlled by PLC;
5. Large capacity: 500kg/h;
6. Operating safety and easily;
7. It can ensure the nature of electronic component and keeps its high recycle value;
8. Friendly to the air environment, all the smoke processing by the waste gas treatment system.
1. Full automatic working, save labor, 1-2 persons are enough;
2. Tin remove and dismantling components at one step;
3. Automatic temperature control system,controlled by PLC;
5. Large capacity: 500kg/h;
6. Operating safety and easily;
7. It can ensure the nature of electronic component and keeps its high recycle value;
8. Friendly to the air environment, all the smoke processing by the waste gas treatment system.
Related Equipment

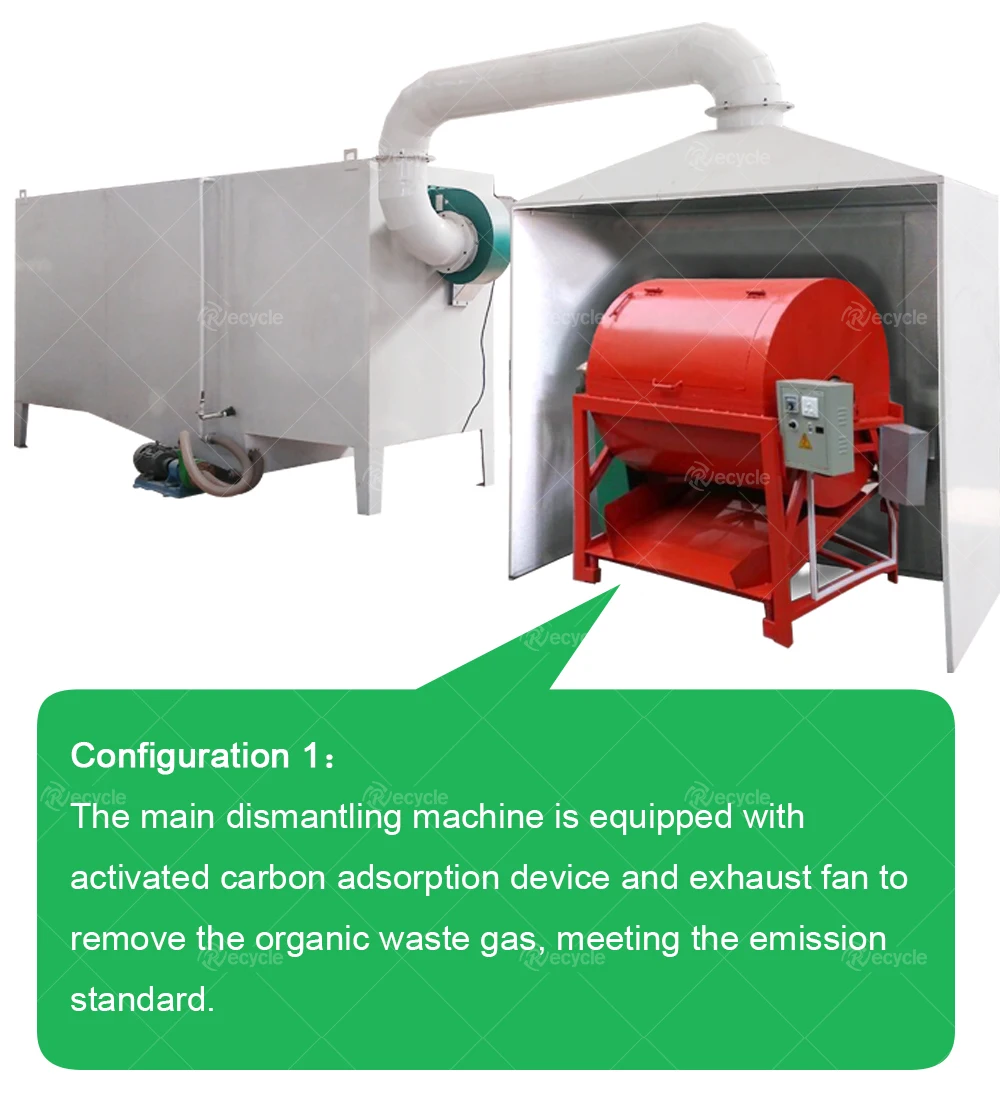

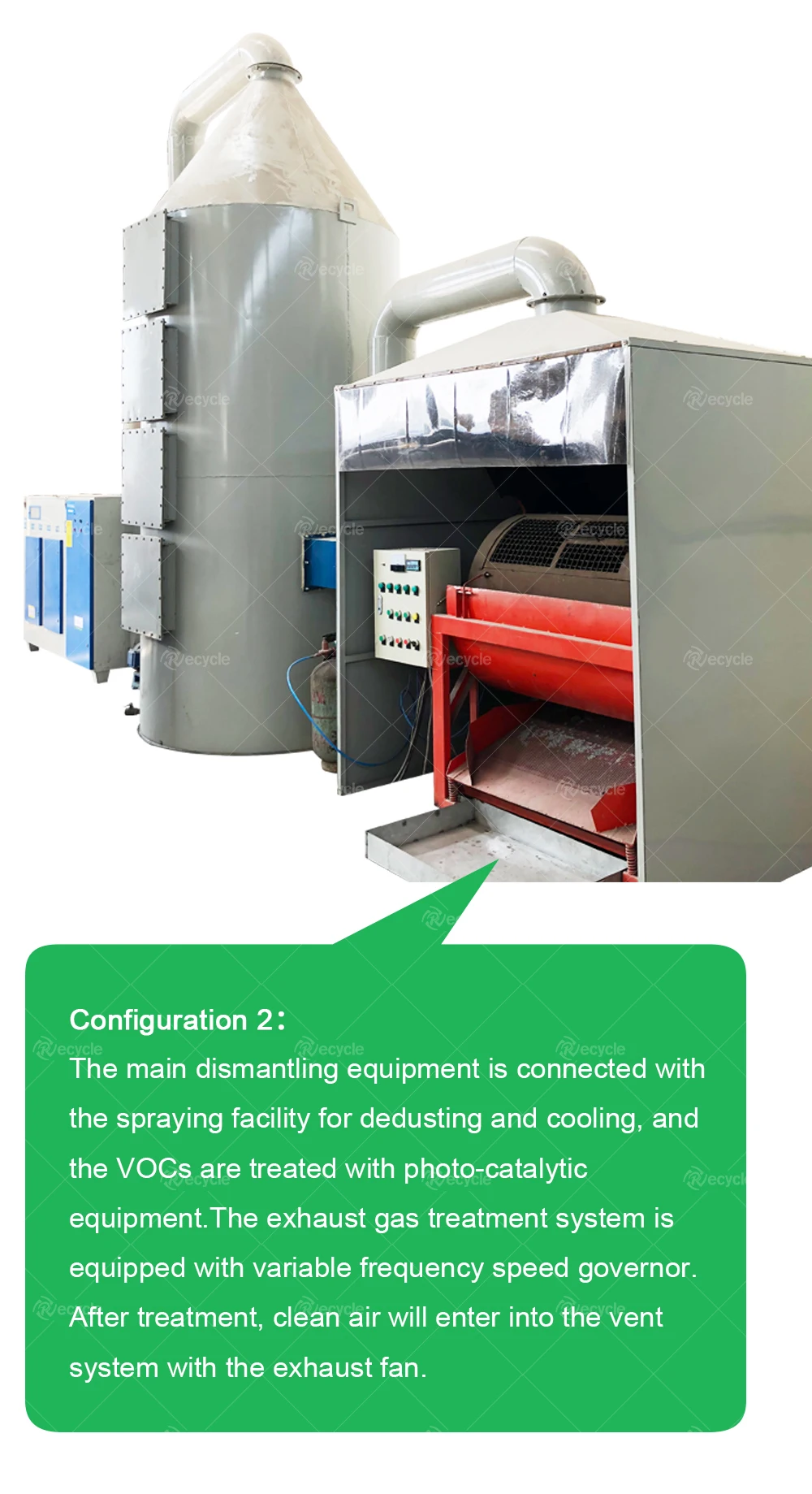

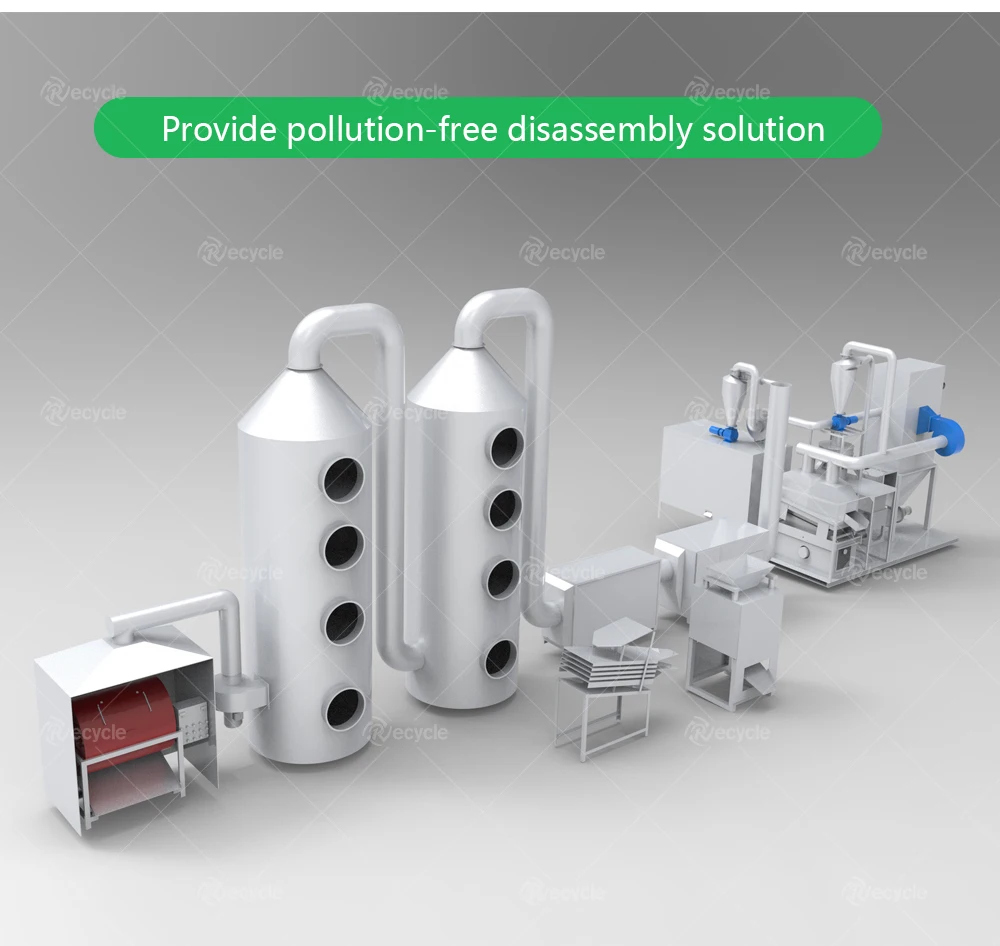

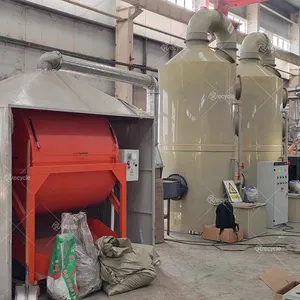

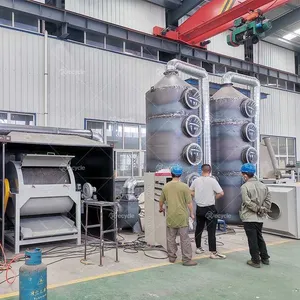

When recovering waste PCB circuit board with components ,the first process need to be done is to heat and remove electronic elements which would produce a lot exhaust gases. These gases are harmful,toxic and cancerogenic and will cause secondary pollution without proper treatment before discharge.Heavy metal dust and inorganic acid gases and organic gases were removed separately through our three levels filtrating equipment.
