Semi Automatic Vertical Scrap Baler Hydraulic Baling Press Machine Cardboard Plastic Baler Machine

Semi Automatic Vertical Scrap Baler Hydraulic Baling Press Machine Cardboard Plastic Baler Machine photo-1

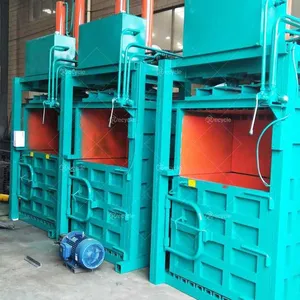

Semi Automatic Vertical Scrap Baler Hydraulic Baling Press Machine Cardboard Plastic Baler Machine photo-2

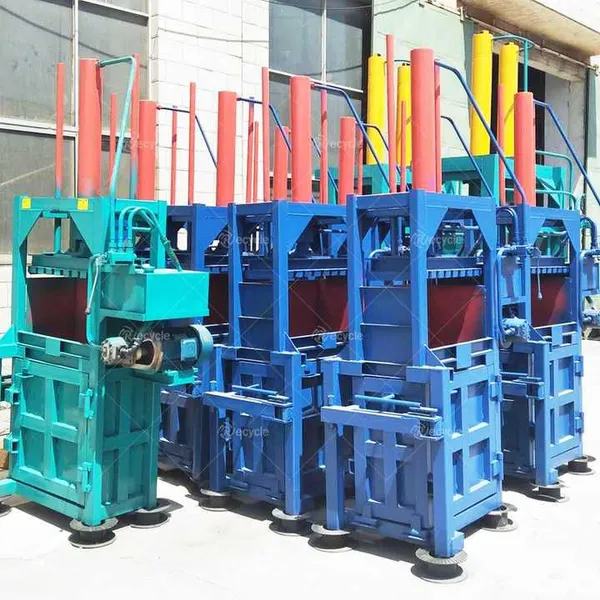

Semi Automatic Vertical Scrap Baler Hydraulic Baling Press Machine Cardboard Plastic Baler Machine photo-3

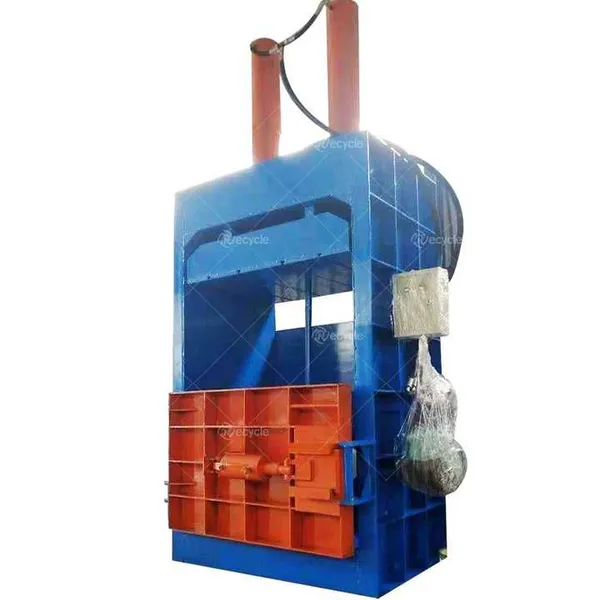

Semi Automatic Vertical Scrap Baler Hydraulic Baling Press Machine Cardboard Plastic Baler Machine photo-4

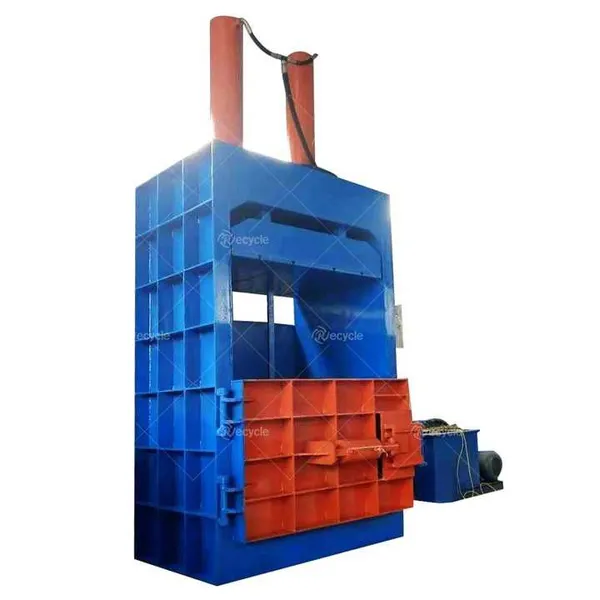

Semi Automatic Vertical Scrap Baler Hydraulic Baling Press Machine Cardboard Plastic Baler Machine photo-5
US$ 3500 ≥1 Set
Key Specifications
Get Latest Price
Automation:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Automation Semi-Automatic

Semi Automatic Vertical  Scrap Baler Hydraulic Baling Press Machine Cardboard Plastic  Baler Machine


Customized Models


We have different Models to choose(from small capacity to large capacity), different models with different parameters as following:


Small Capacity

Function

To pack the waste material into bundles

Pressure

20T

 60T

Voltage

380V 50Hz 3phase

380V 50Hz 3phase

Motor Power

7.5kw

7.5kw

Variable Piston Pump

20T

60T

Cylinder

Single Cylinder

Two Cylinder

Discharge Method

Manual

Automatic

The Hydraulic Capacity

30L

100L

Press Chamber Size

800x400x600mm

900x600x800mm

Bale Size

L*W=800x400mm

L*W= 900x600mm

Machine Weight

600kg

800kg

Overall Dimensions

1200x750x2900mm

1300*1100*2980mm

Medium Capacity

Model

R-150

R-200

Force

150T

200T

Bale Size

1500*1000MM

1600*1200MM

Bale Weight

850-900KG

1000-1500KG

Efficiency

4-6Bale/Hour

4-6Bale/Hour

Power(kw)

18.5KW

22KW

Machine Weight

5500KG

8500KG

Size(mm)

2200*1600*3600MM

2800*2600*3600MM

Large Capacity

Model

R-250

Max Shearing Force

250 Tons

Press Force

70 Tons

Motor Power

30KW*2

Pump

YCY160*2

voltage (Customized)

200-680V/3phase

Shearing Width

1400mm

Shearing Speed

3 times/min

Max Blade Opening

500mm

Control System

Automatic

Loading Box

1400*5000*700mm

Shipping Weight

25000kg

Loading Container

1×20GP+1×40GP


APPLICATIONS


The baler machine is mainly used for compressing scrap tires, plastic, clothes, paper, carton, woven bag textile, cotton, cotton wool, linen, clothing, wheat straw, medicinal materials, straw, rice husk, aluminum can and other waste materials into bales.

After compressing, it is easy to transport, so save storage area,transportation cost and labor cost, meanwhile, be beneficial to the environment and waste recycling. Easy operation, durable, long service life, high efficiency, energy saving and low consumption.


FEATURES


The baler machine is designed with vertical structure,hydraulic transmission,electrical control and manual binding. And it is a good machine to improve labor efficiency, reduce labor intensity, and reduce transport costs.


ADVANTAGES


--All models are driven by hydraulic pressure;


--There are different ways of discharging materials,such as bag turning, bag pushing
( side pushing and front pushing ) or manual bag taking ( packaging ).


-Installation does not require foot screws,and diesel engine can be used as power source where there is no power source.

--There are ten grades of squeezing force from 5 tons to 200 tons, which can be selected by users, and the production efficiency is from 4 tons / shift to 40 tons shift;

--The size of compression chamber and package block can be customized according to customer requirements;
