USB-to-Optical/Near-Infrared Meter Reader Communication Head for Import/Export Smart Electricity Meters With Strong Magnetic Adhesion - IEC

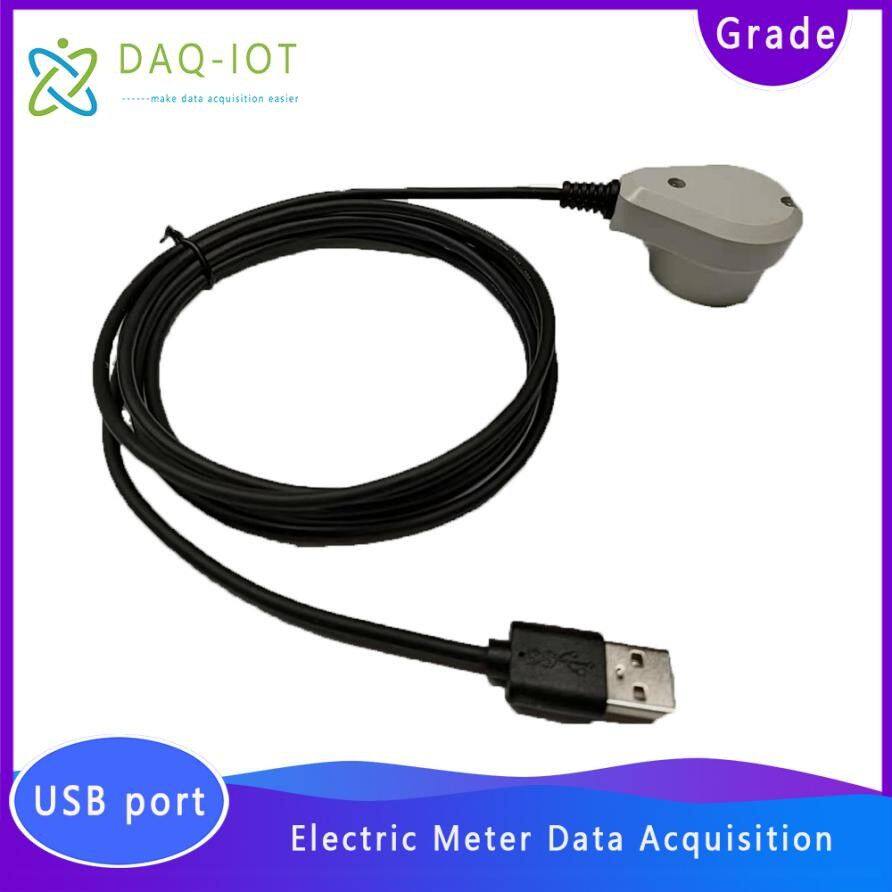

SC-GP-IRUSB infrared meter transceiver is a general infrared meter m. gas meter launched by Shanghai Digital Internet of Things Technology Co., LTD., which can collect the electric energy data, voltage, current, power factor and other electric parameter data of the state grid electricity meter.

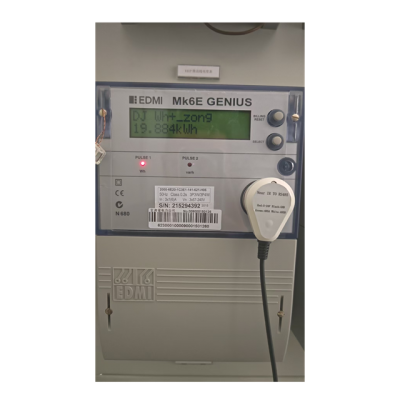

Introduction to the principle of infrared meter reading: The infrared photoelectric probe can regularly read the parameter information of the smart meter through the infrared optical port and upload it.

This product supports all kinds of meter reading scenarios of meters, gas meters, flowmeters and other meters with infrared communication interfaces. It is suitable for power meter data collection, smart city data collection, power monitoring data collection, energy saving and emission reduction data monitoring system data collection, energy consumption monitoring system data collection, photovoltaic system data collection, intelligent monitoring data collection, robot data collection, intelligent security system data collection, cloud platform system data collection; electricity meter verification and testing table; especially suitable for the lead seal of total meter of state grid of power supply bureau is completely closed, and not sealed.

We solemnly promise that:

What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )

If we purchase our wireless products, we will provide free remote guidance, remote configuration and debugging service, and send the data to the cloud platform designated by the user.

Free Internet of Things solution consulting services!

Collect characteristics

l  Communication wave rate: 1200~115200 bps, adaptive according to the communication parameters of the electricity meter

l  Communication distance: 10 meters

l  Communication Angle: 15 degrees

l  Infrared communication protocol: Transparent transmission

l  Working power consumption: less than 0.5w

l  Emission power consumption: 20 ~ 50 mA @ 12 V

l  Transmission mode: usb transparent transmission

l  Paud rate: 1200~2400, adaptive, highest Baud rate 19200

structural property

l  Material: ABS plastic (enclosure)

l  Protection level: IP64

l  Body size: 48mm 37mm 15mm

l  Installation method: paste / magnetic suction installation

work environment

l  Temperature-30°C~75°C, humidity of 0~95%

Storage environment

l  Temperature-40°C~90°C, humidity of 0~95%

Ø  Infrared non-contact acquisition, which does not affect the instrument body

Ø  Small size

Ø  Simple installation, fast deployment, help the Internet of things project quickly landing

Ø  Free gifts of multiple meter reading debugging software and meter communication protocol documents

A total of three meter reading debugging software:

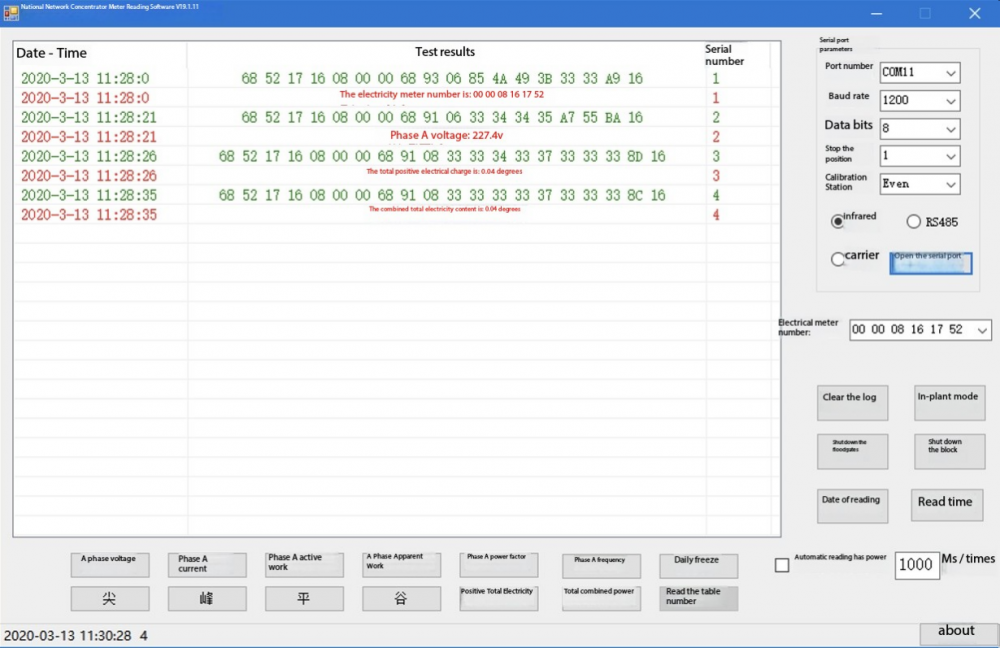

State grid concentrator electricity meter debugging software

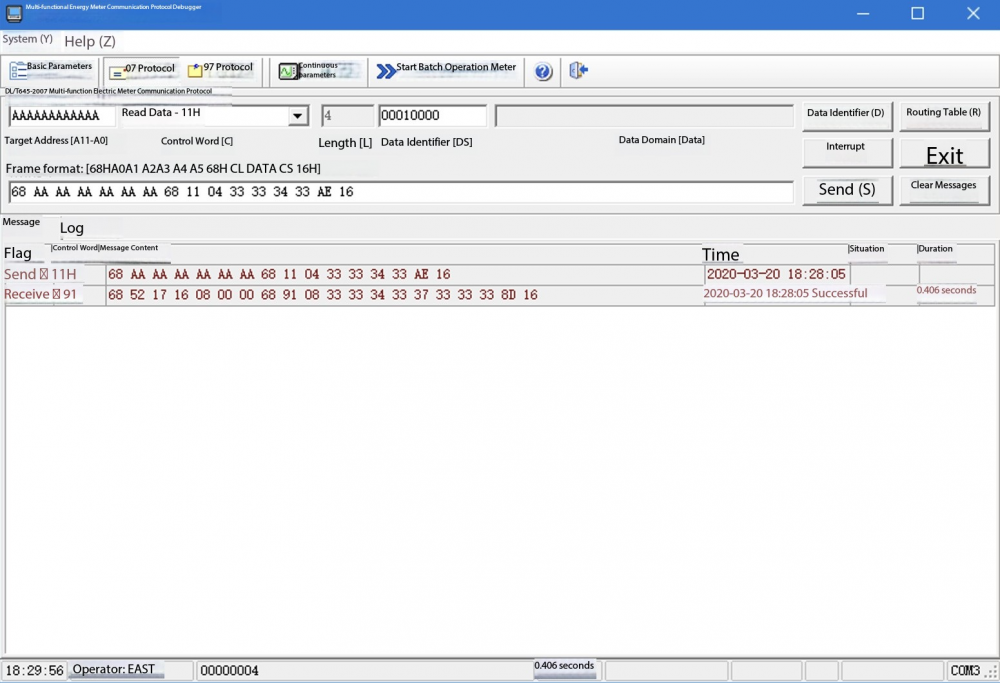

Multi-function electricity meter communication protocol debugger

DL / T645-2007

DLT645-2007 multi-function electricity meter communication protocol 2010.pdf

Software download method: follow the wechat official account "Digital", enter the product information menu, download relevant information.

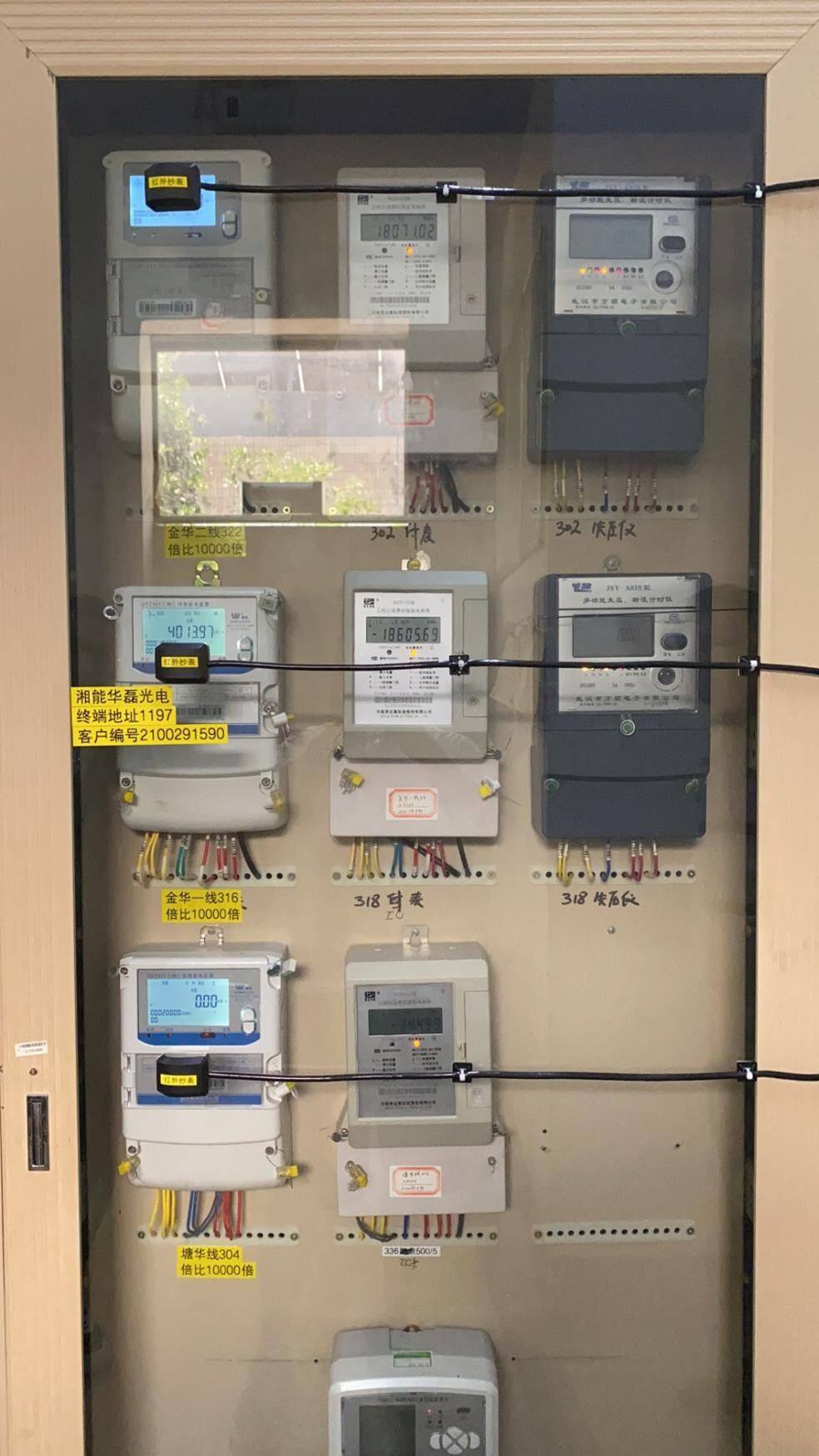

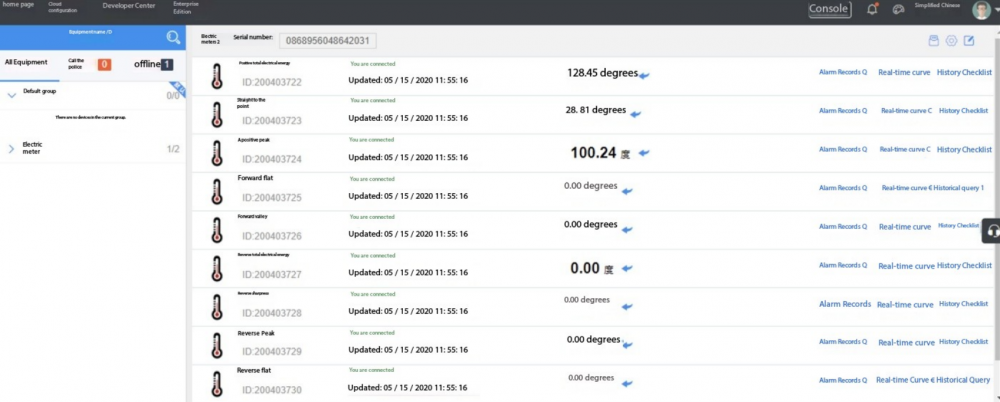

Data collection of the 10kV metering cabinet and electricity meters in the industrial park

In this case, the power meter data of the 10kV metering cabinet in the industrial park is collected by battery power supply, and the collection frequency is 2 hours each time, and the power meter data is sent to the remote server by 4G to realize the energy consumption monitoring in the park.

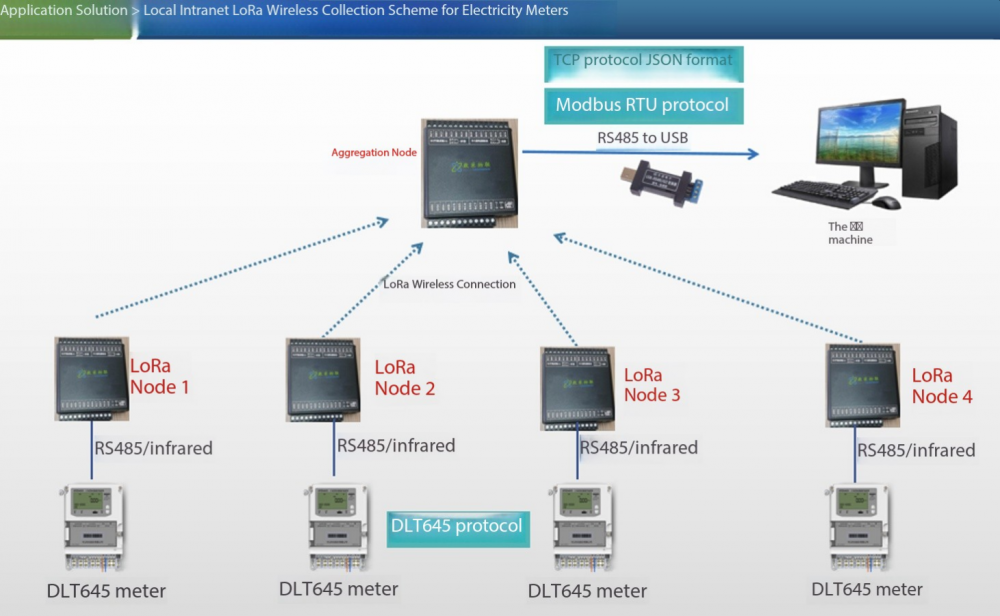

Enterprise Intranet collection and meter reading application case

1）The infrared transmitting and receiving hole can be aligned with the infrared equipment that needs to collect communication. During the communication process, please ensure that the communication distance and tilt Angle are within the technical requirements, otherwise the communication effect will be seriously affected.
