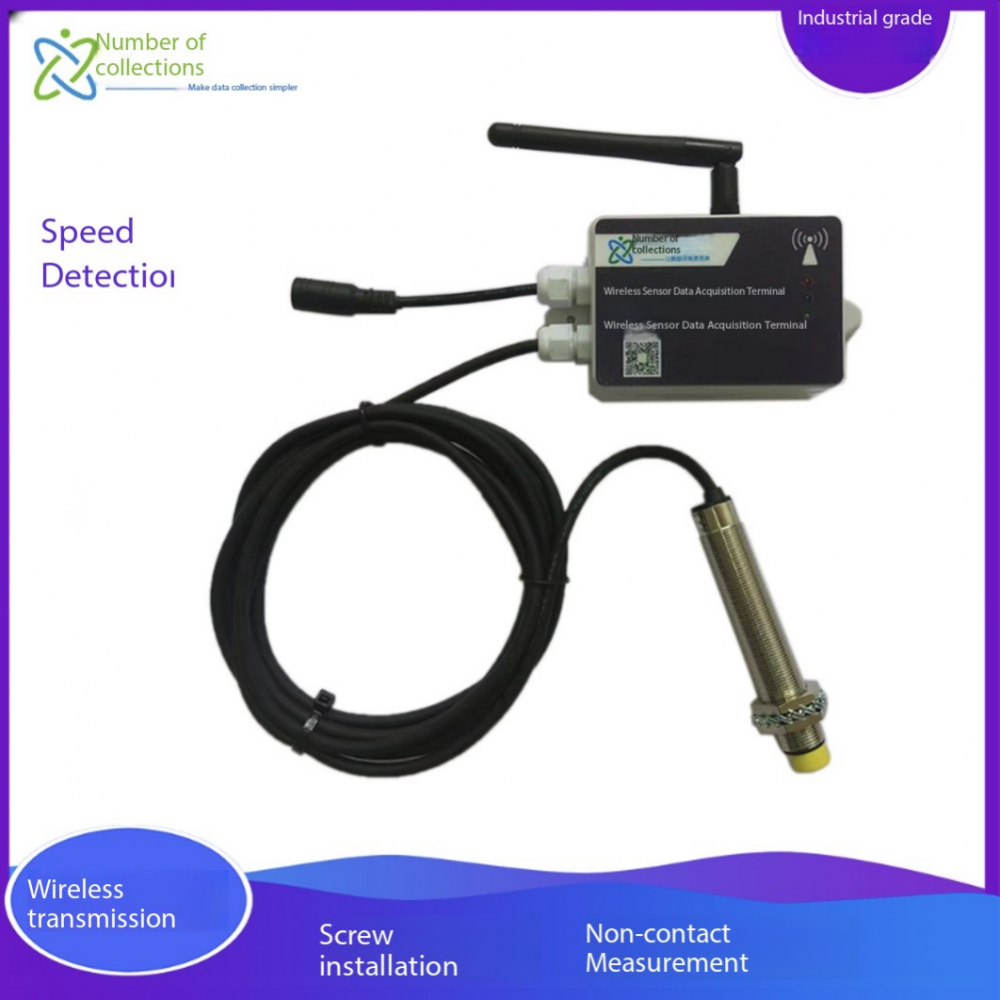

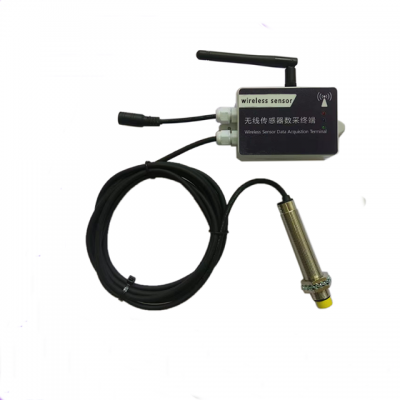

4G Wireless RPM Monitor - Industrial Rotating Machinery Speed Sensor, Hall Element Technology

SC-GP-RPM 4 G wireless speed monitor is a Shanghai Internet of Things Technology Co., Ltd. based on the principle of Hall element induction magnet, the internal precision circuit processing to achieve the speed measurement instrument. Can be used to detect the rotational speed of various kinds of rotating machines.

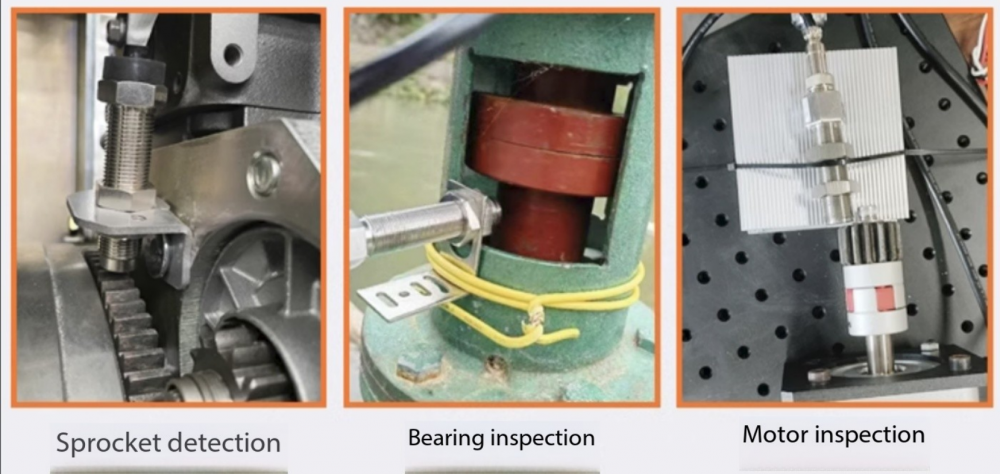

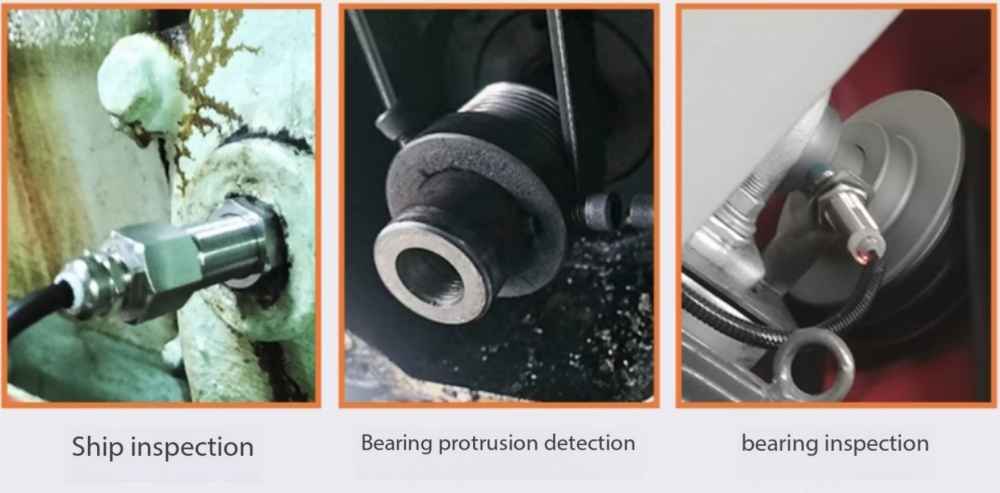

Application field: SC-GP-RPM 4 G wireless speed detector can be widely used in the measurement of power, metallurgical, petrochemical and paper industry of large rotary machinery (such as steam turbine, compressor, motor, fan, pump) speed and gear speed. At the same time, it is widely used in the fields of workpiece processing speed monitoring, steel pipe coating speed monitoring and gear speed measurement.

We solemnly promise that:

You buy not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )

This product, the site only needs ordinary workers to connect electricity installation! No debugging!

We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.

As an industrial data collection expert, it provides free Internet of Things solutions consulting services!

measuring range:

0~15000 rpm (60 test points per lap)

0~30000 rpm (30 test points per lap)

0~9000000 rpm (1 test point per lap)

Measuring accuracy: 0.5%

Material being tested: iron, magnet (other metal materials should be indicated)

Working power supply: DC 12V

Power consumption: less than 5W

Installation clearance: 0.5 ~3mm

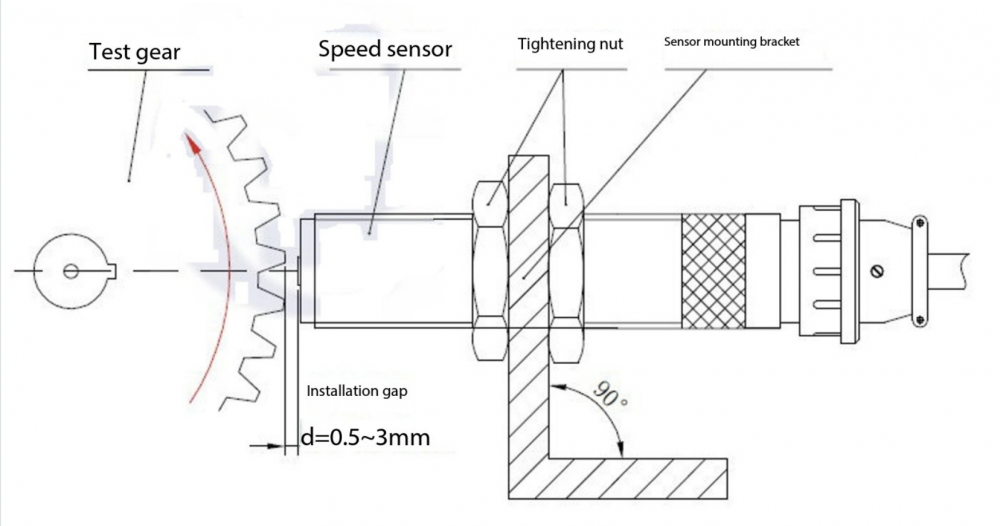

Schematic diagram of installation

Wireless transmission mode: 4G / LoRa / WiFi / network cable

Communication protocol: MQTT / TCP / UDP / HTTP / SSL /, and other protocols can be customized

Data forwarding: any public network server

Number of server centers: up to simultaneous data reporting to 7 cloud servers.

Heartbeat packet: support custom heartbeat packet, can be set to signal intensity.

Registration package: support custom registration package, can be set to IMEI code.

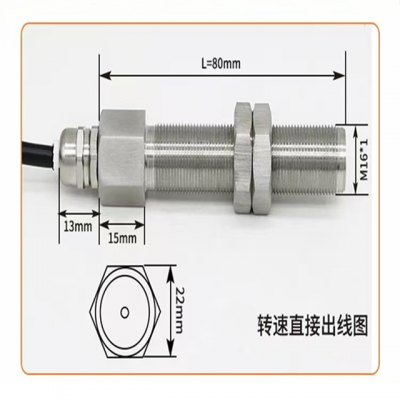

Sensor size: M16 * 1 * 80mm

l  Temperature-30°C~75°C, humidity of 0~95%

u  Simple installation, fast deployment, help the Internet of things project quickly landing

u  Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.

u  Support any Internet of Things cloud platform and configuration software, and provide data protocol docking

u  Support Ali Cloud, Baidu Tiangong, OneNet, Tencent Cloud mainstream cloud platform

u  Support for the external multiplex sensor

u  Non-invasive collection, does not affect the normal operation of the equipment

u  Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance

For UDP / TCP / MQTT / HTTP and other push methods, users should provide the IP address and port number of the public network of the cloud server to receive the data.

Example of JSON format:

{"IMEI":860344048491162,"RotateSpeed":254,"ICCID":"1119205006447538"}

Message analysis:

{

"RotateSpeed": 2000 / / rotational speed r / min

        "ID": "860344048491162" / / Device ID

}

The protocol receives the test

Use network debugging assistant NetAssist.

If you need to customize other communication protocols, you can contact the business personnel to communicate.

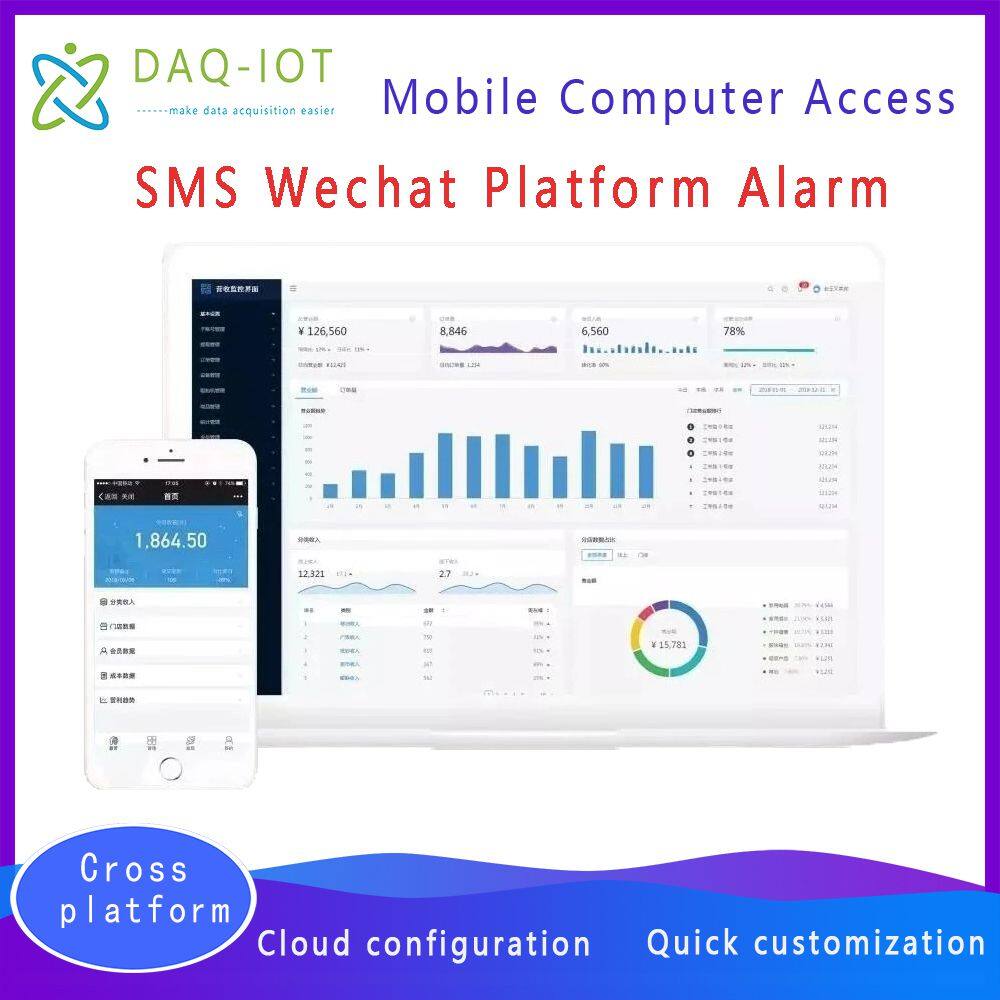

The product is connected to our designated open industrial Internet of Things platform by default, and the platform interface is as follows:

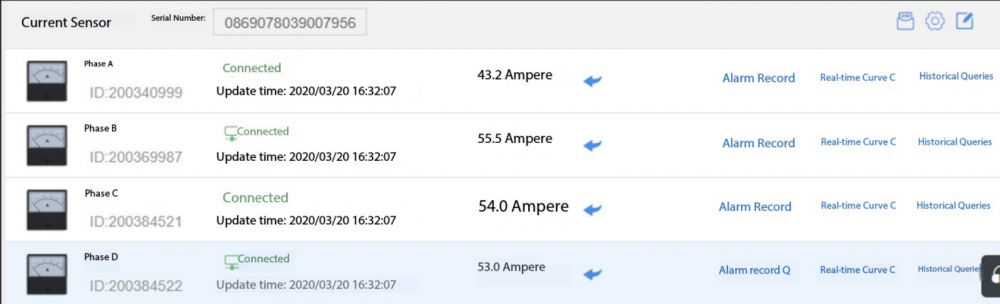

Computer-side browser interface

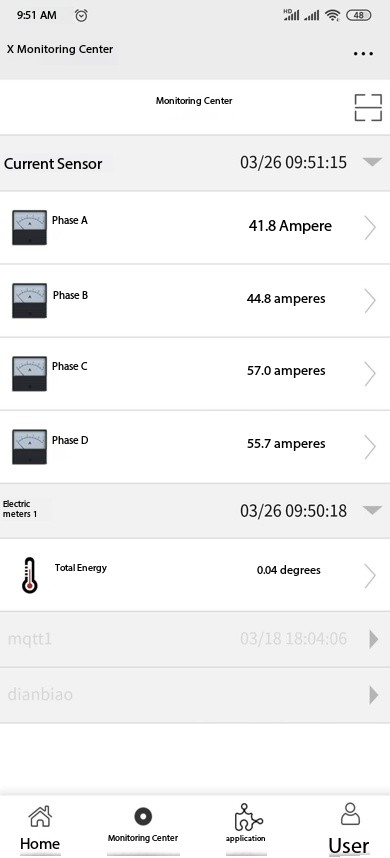

Mobile terminal wechat access interface

Take the connection of Ali Cloud platform as an example. After users create products and add devices on the Ali Cloud Internet of Things platform, users need to provide a triad: {ProduRPMKey, DeviceName, DeviceSecret} and MQTT theme to be released.

For example, the value of triples are:

ProduRPMKey = b0FMK1Ga5cp

DeviceName = 862991419835241

DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q

Take OneNet platform docking as an example, after users create products and add devices on China Mobile OneNet platform, users need to provide product ID and and device registration code.

for instance:

ID：332590

Registration code: DGRUa7Vr9KYGunwJ
