Home > Products > ABB > ABB CMA136 3DDE300416 Generator Relay Terminal Board

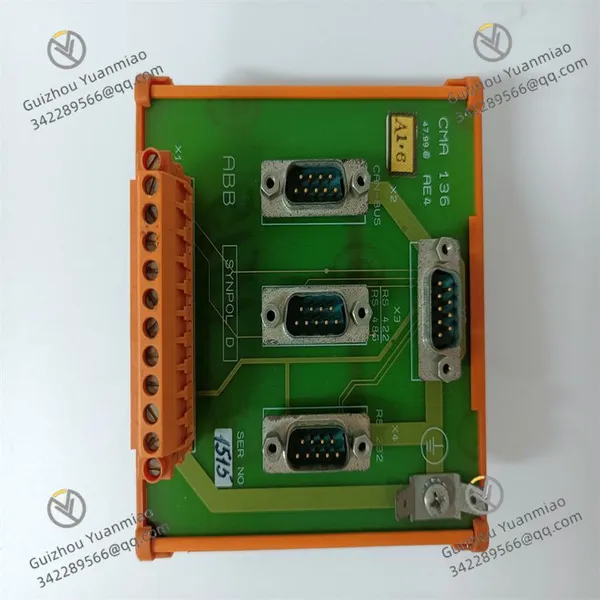

ABB CMA136 3DDE300416 Generator Relay Terminal Board

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating Voltage	24V DC
Dimensions	230mm (L) × 160mm (W) × 60mm (H)	Operating Temperature	-20°C to +60°C

Product Description

Overview

The ABB CMA136 3DDE300416 is a module with remarkable influence in the field of industrial automation, integrating ABB's advanced technical concepts and exquisite manufacturing processes. As a key hub of industrial automation systems, it undertakes core tasks such as signal acquisition, data processing, equipment communication, and control, committing to promoting the intelligent and efficient development of industrial production. Its design fully considers the complexity and harshness of industrial environments, aiming to provide stable, reliable, and flexible automation solutions for various industrial scenarios, helping enterprises enhance production efficiency, optimize operational costs, and gain an edge in fierce market competition.

Technical Parameters

Parameter Category	Details
Product Model	CMA136 3DDE300416
Product Type	Industrial Automation Multifunctional Module
Series	Advant OCS/800xA Series
Processor Type	32-bit RISC processor with a main frequency of 200 MHz
Memory	128 KB RAM, 256 KB Flash
Input Channels	32 channels
Input Types	Thermocouple, RTD, mV, mA, V, potentiometer
Resolution	16-bit
Isolation Voltage	1500 VAC (between input channels and power supply)
Communication Interfaces	RS-232, RS-485, CAN I/O, Ethernet
Communication Protocols	Modbus RTU, Profibus DP, Modbus TCP, TCP/IP, UDP, Ethernet, etc.
Operating Temperature Range	-20°C to +60°C
Storage Temperature Range	-40°C to +80°C
Protection Level	IP20
Power Supply Voltage	24V DC
Dimensions	230mm (L) × 160mm (W) × 60mm (H) (or standard modular dimensions, such as 122 x 25 x 26 mm, with differences in various materials)
Weight	Approximately 1.2kg (or 0.5-1.2kg, with differences in various materials)
Supported Output Signals	16 relay outputs, 4 analog outputs, 8 digital outputs
Supported Communication Rates	9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps

Functional FeaturesPowerful Data Processing Capability

Equipped with a 32-bit RISC processor operating efficiently at a high main frequency of 200 MHz, it can quickly parse and process various complex input signals, easily handling both precise acquisition of analog signals and rapid response to digital signals. Combined with 128 KB of RAM and 256 KB of Flash memory, it provides a solid guarantee for real-time data calculation and storage, ensuring the system's control and monitoring of industrial production processes with high real-time performance and accuracy.

Rich and Flexible Communication Functions

Featuring multiple communication interfaces such as RS-232, RS-485, CAN I/O, and Ethernet, it supports numerous mainstream industrial communication protocols like Modbus RTU, Profibus DP, and Modbus TCP. This enables it to seamlessly connect with devices and systems from different manufacturers and types, achieving efficient data interaction and collaborative operations between equipment. Whether building a small automated production line or integrating into a large complex industrial network, it can flexibly adapt, greatly enhancing the convenience of system integration.

High-Precision Signal Acquisition and Conversion

With 32 input channels, it can access various types of sensors such as thermocouples, RTDs, mV, mA, V, and potentiometers, covering common physical quantity detections in industrial production. The 16-bit high resolution can acutely capture subtle signal changes, ensuring the accuracy of collected data. Meanwhile, it can precisely convert the acquired analog signals into digital signals, providing a reliable basis for subsequent data processing and control decisions.

Excellent Signal Isolation and Protection

With an isolation voltage of 1500 VAC between input channels and the power supply, it effectively resists external electrical interference, protects internal circuits from surges, spikes, and other abnormal voltage impacts, ensures the stable operation of the module and connected devices, and reduces the risk of equipment damage caused by electrical faults.

Flexible Expandability

With multiple expansion slots and interfaces, it facilitates users to add additional functional modules according to actual application needs, such as increasing communication interfaces and expanding I/O channels, to adapt to changing production processes and system upgrade requirements.

High Reliability and Stability

Adopting industrial-grade design standards, selecting high-quality components, and undergoing strict high-low temperature testing, vibration testing, electromagnetic compatibility testing, etc., it ensures stable operation in harsh industrial environments such as high/low temperature, high humidity, and strong electromagnetic interference, providing strong support for the continuity of industrial production.

Convenient Remote Monitoring and Maintenance

Supporting remote programming and debugging functions, technicians can remotely access the module through the network to perform operations such as parameter setting, program updating, fault diagnosis, and troubleshooting, reducing on-site maintenance workload and downtime, and improving equipment operation and maintenance efficiency.

Application FieldsIndustrial Automation Production Lines

Connecting various sensors and actuators, it real-time collects data such as position, speed, and pressure on the production line. After processing, it precisely controls the movements of robotic arms, the start/stop of conveyor belts, and the adjustment of equipment operation parameters, ensuring the efficient and stable operation of the production line and improving product quality and production efficiency.

Process Control Industries

In fields such as chemical, petroleum, and metallurgy, it performs real-time monitoring and precise control of key process parameters such as temperature, pressure, flow, liquid level, and component concentration. The module collects sensor data and outputs signals according to preset control strategies to adjust valve openings, pump speeds, reactor temperatures, etc., ensuring that chemical reactions and production processes are executed according to established processes, achieving safe production and efficient operation.

Power Systems

Used in power grid monitoring, power transmission, and distribution systems. It real-time monitors power parameters such as voltage, current, power, and frequency, and cooperates with protection devices to achieve fault diagnosis and rapid isolation, ensuring the stability and reliability of power supply. Meanwhile, it communicates with the power dispatching system to help realize remote monitoring and dispatching management of smart grids.

Energy Management

In energy management systems for scenarios such as intelligent buildings and industrial plants, it collects data from energy metering devices such as water, electricity, and gas, analyzes energy consumption, and realizes reasonable allocation and efficient use of energy by controlling energy supply equipment, helping enterprises reduce energy consumption, save costs, and promote the realization of energy conservation and emission reduction goals.

Transportation Field

Applied to facilities such as rail transit and electric vehicle charging piles. In rail transit, it monitors the operation status of trains and track circuit information, controls the signal system and power supply system, and ensures the safe and punctual operation of trains; in electric vehicle charging piles, it realizes the monitoring and control of the charging process to ensure safe and efficient charging.

Medical Equipment Control

In medical instruments such as medical monitors and imaging diagnostic equipment, it undertakes the tasks of data collection and equipment control. It precisely collects human physiological parameters and equipment operation status data, controls equipment operations such as scanning, imaging, and treatment, and provides stable and reliable support for medical diagnosis and treatment.
