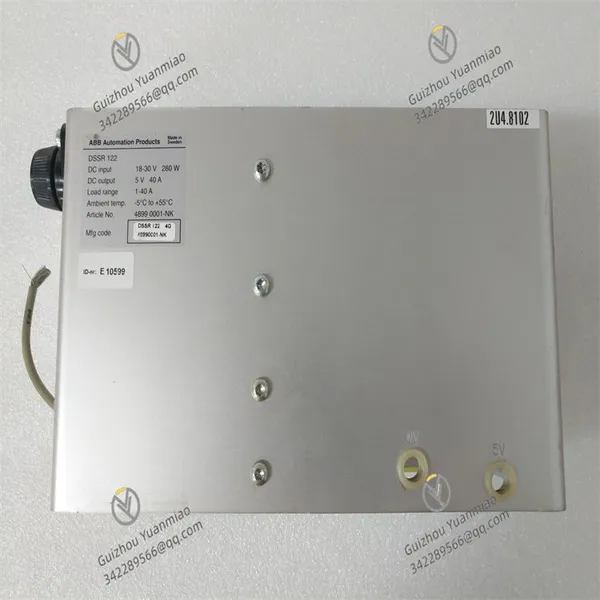

ABB DSSR122 48990001-NK Power Supply Unit

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -25°C to +70°C

Power 200W

Dimensions 238.5×72×162mm

Overview

The ABB DSSR122 48990001-NK is a meticulously designed DC input/output power supply module, holding a significant position in the field of industrial automation. As a member of ABB's product line, it leverages the brand's profound accumulation in electrical and automation technologies, committing to providing stable power supply for various industrial automation equipment and ensuring smooth and efficient industrial production processes. Its design closely aligns with practical industrial needs, striving to become a solid power power backbone for reliable equipment operation in complex and changeable industrial environments.

Functional FeaturesEfficient Power Conversion

Utilizing advanced power conversion technology, it precisely converts the 24V DC input voltage to a 5V DC output voltage with an efficiency of up to 95%. This high-efficiency conversion significantly reduces energy loss, not only complying with energy-saving and emission-reduction concepts but also saving operational costs for enterprises, demonstrating remarkable advantages in long-term operation.

Strong Output Capability

Capable of delivering 40A of current, it provides sufficient power for various high-power-demand industrial equipment. Whether for small precision instruments or control units of large industrial machinery, it easily meets their power requirements, ensuring stable equipment operation.

Multiple Protection Mechanisms

Equipped with built-in overcurrent protection, overvoltage protection, and short-circuit protection functions. Once abnormal current increase, voltage exceeding the safe range, or short circuit is detected, the protection mechanisms activate rapidly to cut off the circuit, preventing equipment damage from power failures, effectively extending equipment service life, and ensuring the stable operation of industrial automation systems.

Compact Design

With a small overall size and minimal space occupation, it is convenient to install and flexibly lay out in space-constrained applications such as industrial control cabinets and automated production lines, without affecting the installation and operation of other equipment.

High Reliability

Manufactured with high-quality industrial-grade electronic components, it can stably operate within a wide temperature range of -25°C to +70°C and in harsh industrial environments such as dusty and humid conditions, reducing equipment failure downtime and ensuring production continuity.

Flexible Installation Methods

Supporting DIN rail installation or panel installation, it allows flexible selection of suitable installation methods according to the installation space and requirements of different industrial equipment, improving installation convenience and adaptability.

Technical Parameters

Parameter Category	Details
Input Voltage	24V DC (some materials show the input voltage range is 18-30VDC)
Output Voltage	5V DC
Output Current	40A
Power	200W
Efficiency	Up to 95%
Operating Temperature Range	-25°C to +70°C
Dimensions	238.5×72×162mm
Weight	Approximately 2.35kg
Protection Level	IP20 (dustproof)
Installation Method	DIN rail installation or panel installation
Cooling Method	Natural cooling
Possible Processor Used	High-performance 16-bit ARM processor (featuring low power consumption and high efficiency)
Memory	256KB of RAM (for storing programs, data, and configuration information), 16MB of Flash memory (for long-term storage of programs and configurations)
Communication Interfaces	Supports multiple communication interfaces such as Ethernet (10/100Mbps) (to achieve connection and data exchange with other devices and systems)

Working Principle

In an industrial automation system, after the DSSR122 48990001-NK module is connected to a 24V DC power supply, it first removes clutter and interference signals from the input power through an internal filter circuit to ensure the purity of the input power. The current then enters the high-efficiency DC-DC conversion circuit, where the 24V DC voltage is converted into a high-frequency AC pulse voltage through the high-frequency switching action of power semiconductor devices (such as MOSFETs). Next, a transformer is used for voltage transformation to adjust the high-frequency AC pulse voltage to an appropriate amplitude, which is then converted into a stable 5V DC output voltage through rectification and filtering circuits.

Throughout the process, the internal control circuit of the module real-time monitors the input voltage, output voltage, and current. Once anomalies are detected, such as overcurrent, the control circuit quickly adjusts the switching frequency of power semiconductor devices or shuts down the circuit to trigger overcurrent protection; when overvoltage occurs, the control circuit restricts the output voltage by adjusting circuit parameters to activate overvoltage protection. Meanwhile, with communication interfaces, the module can interact with other devices in the system, feedback its working status, receive control commands, and achieve intelligent power management.

Product Tags: DSSR122 , 3BSE004203R1 , Pressductor Load Cell
