Help CenterLork Custom AMS 5844/Uns R30035 Cobalt Rod for Aircraft Engine Fasteners MP35n Cobalt Alloy Bar
Related Products
-
Lork Uns R31537/ASTM F1537 Cocrmo Cobalt Alloy Rod Medical Materials Cobalt-28 Chromium-6 Molybdenum Cobalt BarUS$ 45 - 50MOQ: 100 Kilograms -
Lork ASTM B348/ASTM F136/Uns R56401 Titanium Rod for Medical Implants Ti-6al-4V Titanium Alloy BarUS$ 30MOQ: 100 Kilograms
-
Lork Uns N07750/ASTM B637 Nickel Alloy Rod Inconel X750 Nickel BarUS$ 28 - 30MOQ: 100 Kilograms
-
Lork Uns N02201/ASTM B162/DIN 17740 Nickel Plate Purity Nickel 201 Alloy SheetUS$ 28 - 30MOQ: 100 Kilograms
-
Lork Spot Goods Uns N06200/ASTM B462 Nickel Alloy Bar Hastelloy C2000 Nickel RodUS$ 28 - 30MOQ: 100 Kilograms
Lork Group All Categories
LORK is a alloy manufacturer with 20 years of manufacturing experience.
MP35N is a multi-phase alloy containing Nickel, Cobalt, Chromium and Molybdenum with a unique range of properties - ultra high strength, toughness, biocompatibility and corrosion resistance. It is produced by vacuum induction melting and vacuum arc re-melting (VIM-VAR) and is then strengthened by work hardening and aging, giving hardnesses of up to 55-60 Rockwell C and strength levels as high as 260-300KSI.
Due to this unique combination of properties, MP35N has many applications in such industries as oil and gas, aerospace and medical. MP35N can be effectively used at cryogenic temperatures without embrittlement and maintain its properties at temperatures up to 600°F, and is also suitable for medical implants and orthodontic/prosthetic devices.
MP35N is able to resist corrosion to most mineral acid, hydrogen sulfide and seawater environments whilst exhibiting excellent resistance to stress corrosion cracking and hydrogen embrittlement, even at high strength levels. NACE MR0175 allows a hardness of up to 51 HRC for material that has been work strengthened and aged by one of the processes listed in the table below.
Cobalt Alloy MP35N Applications
Fasteners
Springs
nonmagnetic electrical components
medical instruments
medical and dental devices
seawater
oil and gas well
chemical applications
food processing environments
MP35N Cobalt Alloy Benefits
Exceptional Corrosion Resistance: Offers superior performance in harsh, corrosive environments, including resistance to pitting and crevice corrosion.
High Strength: Provides one of the highest strength levels among metallic materials, even at elevated temperatures.
Outstanding Toughness: Maintains excellent toughness and ductility over a wide range of temperatures, making it ideal for demanding applications.
Biocompatibility: Suitable for medical implant devices due to its excellent biocompatibility and resistance to body fluids.
Good Fatigue Resistance: Exhibits superior fatigue strength, crucial for cyclic loading applications such as springs and cables.
Resistance to Stress Corrosion Cracking: Highly resistant to stress corrosion cracking, especially in environments containing chlorides or hydrogen sulfide.
Magnetic Properties: Non-magnetic, which is essential for electronic and certain medical applications where magnetic interference must be minimized.
Wear Resistance: Exhibits good wear resistance, beneficial in applications involving friction and material wear.
Cobalt Alloy MP35N Specifications
▪ UNS R30035
▪ AMS 5758 - MP35N VIM-VAR Bar
▪ Solution heat treated 1900-1925°F for 4 to 8 hours
▪ AMS 5844 - MP35N VIM-VAR Bar
▪ Solution heat treated 1900-1925°F for 4 to 8 hours and Work Strengthened
▪ AMS 5845 - MP35N VIM-VAR Bar
▪ Solution heat treated 1900-1925°F for 4 to 8 hours, Work Strengthened & Aged 1000-1200°F for 4 hours
▪ NACE MR0175
▪ ASTM F-562 - Surgical Implant Applications
▪ BS 7252-6 Surgical Implant Applications
▪ ISO 5832-6 Surgical Implant Applications
Cobalt Alloy MP35N Chemical Composition
| Weight % | Ni | Co | Cr | Mo | Ti | Fe | Si | Mn | P | B | S | C |
| MP35N | 33-37 | Bal | 19-21 | 9-10.5 | 1 max | 1 max | 0.15 max | 0.15 max | 0.015 max | 0.010 max | 0.010 max | 0.03 max |
Cobalt Alloy MP35N Mechanical Properties
| Material | Condition | Ultimate Tensile Strength ksi | 0.2 % Yield Strength ksi | Elongation % | Reduction of Area % | Hardness HRC |
| MP35N AMS 5844 |
Solution Heat Treated and Work Strengthened | 255 | 225 | 12 | 50 | 45 |
| MP35N AMS 5845 |
Solution Heat Treated and Work Strengthened and Aged | 260 | 230 | 8 | 35 | 38 min |
Cobalt Alloy MP35N Heat Treatment
MP35N should be aged at the temperature required to achieve the final properties desired. The amount of cold work in MP35N defines the recommended aging treatments. For AMS 5844 (fully strength/heavily cold worked) material, the alloyshould be ages at 1000ºF - 1200ºF for 4 hours. For optimum sulphide SCC resistance, less-heavily cold worked material can be aged at 1300ºF or 1350ºF for 4 hours or at 1425ºF for 6 hours as indicated in NACE MR-0175. The 425ºF aging treatment provides the best sulphide SCC resistance, but at the expense of strength. Exposure to temperatures much above the recommended aging temperatures may result in significant (and nonrecoverable) loss in strength cause by the reversion of the cold-worked metallurgical structure to the much softer annealed structure.
Lork Group Packaging

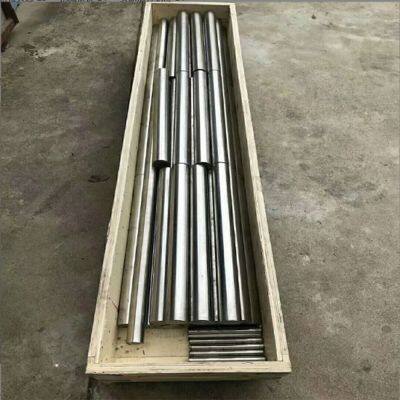

Lork Group Detection
