Plastic Blue Barrel, Pallets, Plates Hard Plastic and Films, Bags, Foil Plastic Single Shaft Shredder Machines

Plastic Blue Barrel, Pallets, Plates Hard Plastic and Films, Bags, Foil Plastic Single Shaft Shredder Machines photo-1

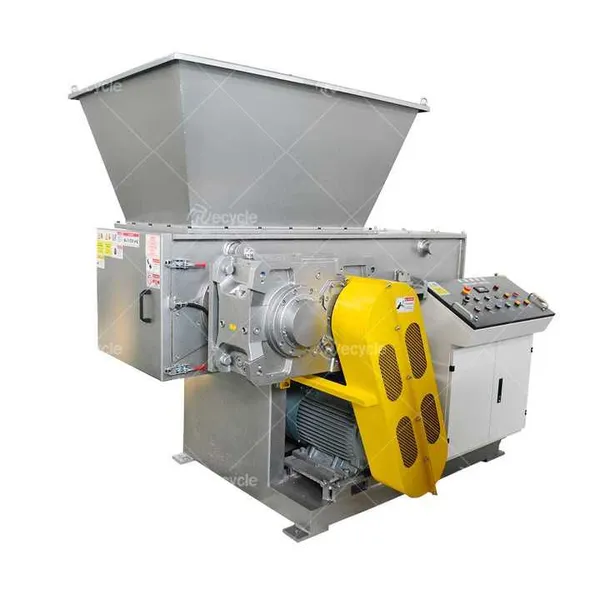

Plastic Blue Barrel, Pallets, Plates Hard Plastic and Films, Bags, Foil Plastic Single Shaft Shredder Machines photo-2

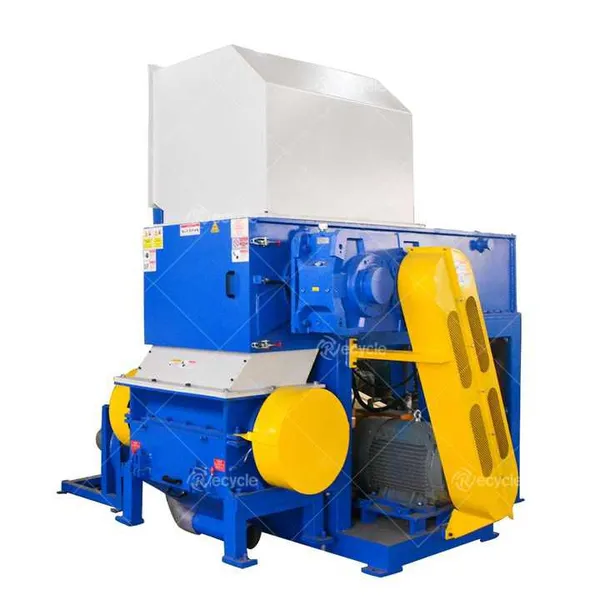

Plastic Blue Barrel, Pallets, Plates Hard Plastic and Films, Bags, Foil Plastic Single Shaft Shredder Machines photo-3

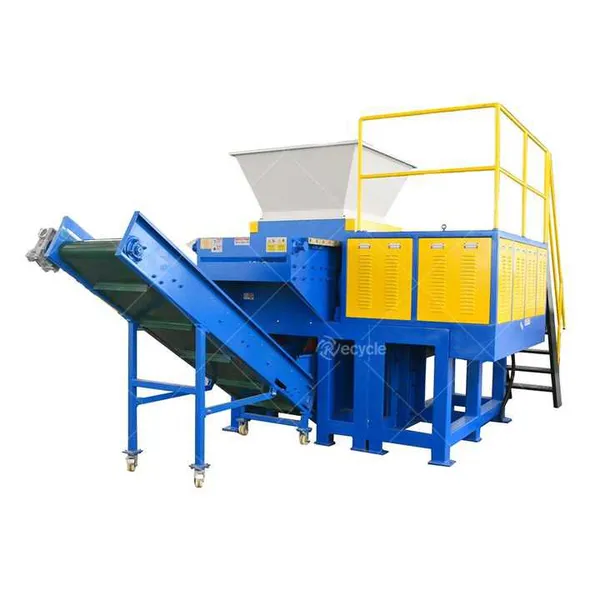

Plastic Blue Barrel, Pallets, Plates Hard Plastic and Films, Bags, Foil Plastic Single Shaft Shredder Machines photo-4
Plastic Blue Barrel, Pallets, Plates Hard Plastic and Films, Bags, Foil Plastic Single Shaft Shredder Machines photo-5
US$ 12800 ≥1 Set
Key Specifications
Get Latest Price
Type:
Scrap Metal Shredder
Automation:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Type Scrap Metal Shredder
Automation Automatic

Plastic Blue Barrel, Pallets, Plates Hard Plastic and Films, Bags, Foil Plastic Single Shaft Shredder Machines
Technical Parameter
Model
RSK-S500
RSK-S1000
RSK-S1500
RSK-S2000
RSK-S2500
Capacity (kg/h)
500-1000
1000-1500
1500-2000
2000-2500
2500-3000
Rotor-knives (pcs)
26+4
46+6
49+4
64+4
90+4
Counter-knives(pcs)
4
4
4
4
6
Blade Material
Cr12MoV/SKDII
Cr12MoV/SKDII
Cr12MoV/
SKDII
Cr12MoV/
SKDII
Cr12MoV/
SKDII
Rotor Diameter(mm)
240
400
400
500
500
Rotor Speed(r/min)
45-90
45-90
45-90
55-75
55-75
Cutting Chamber(mm)
600*600
810*800
1000*1000
1200*1100
1500*1200
Hydraulic Power(kw)
2.2
3
4
5.5
7.5
Cylinder Stroke(mm)
600
800
1000
1000
1200
Machine Size (mm)
1780*1400*1800
2400*1680*2000
3000*2000*2200
3500*2300*
2200
3600*3000*
2400
Weight(kg)
2800
4000
5500
7000
9000
NOTE:

The above shredder is our standard configuration. For different raw materials to be shredded, the

configuration might be different. Please feel free to contact us for detailed information or special request;

Suitable Raw Materials
It is mainly used for shredding and recycling various thick-wall waste materials and leftover materials in the plastic industry. It can effectively shred and crush large materials ( such as extra-thick head materials, nozzle materials, gate materials, large plastic pipe fttings, large-diameter thick-wall PE pipes, PE head materials, plastic packaging barrels, large bundles of plastic films, large bundles of woven bags, rolled films, paper, fibers, plastic boxes, plastic garbage cans, TV casings, computer shells, printer housings,copper wires, forklift pallets, plastic clamping plates, plastic turnover boxes, etc. ) and is suitable for crushing and recycling various materials of plastic, rubber and wood. Shredded particles can be small to 20mm according to different needs.

Advantages
1. The main shaft is driven by gear reducer, running smoothly, with low noise and large torque

2. The material of the knife: Cr12MoV (Japanese brand SKD-11, American brand D2); the moving knife uses the "V" or "one" word installation way to make the knife cut evenly, reduce energy consumption and reduce noise in the whole work; each knife has 4 cutting edges, and then rotates 90 degrees after wear; each set has 2 cutting edges. After wearing, it can be rotated for 180 degrees to continue to use; the blade on the rotor can be disassembled for easy cleaning, maintenance.

3. We can supply different rollers according to different materials. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller.

4. We have designed three different knives holders according to the materials, such as welded knife holders, assembled knife holders and CNC cutting knife holders.

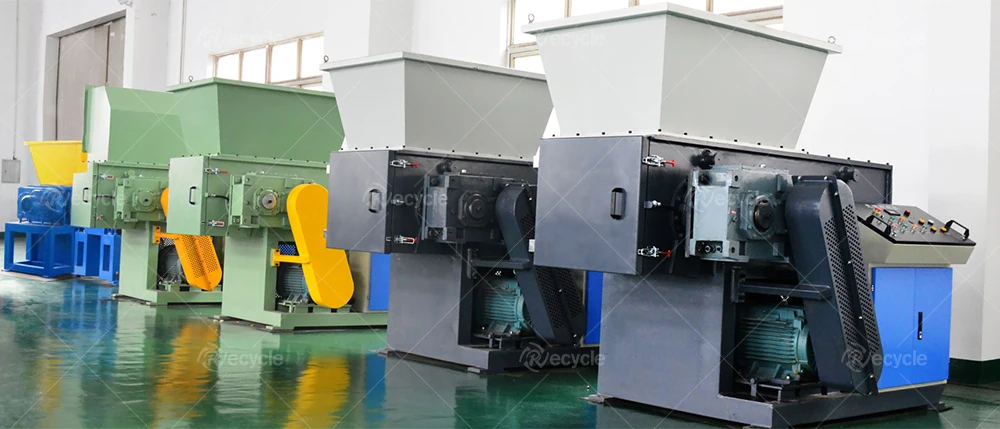

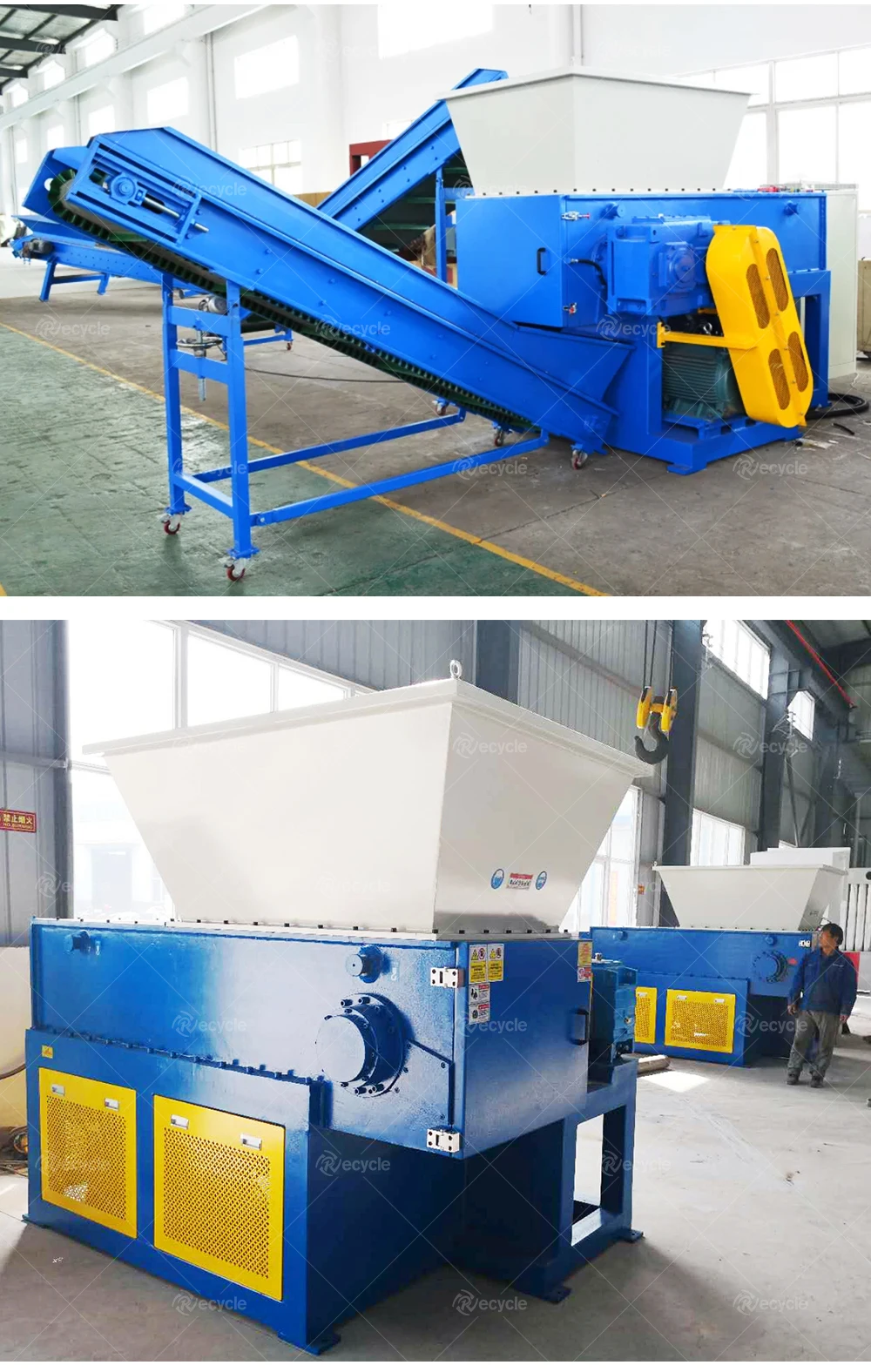

Main Structures

1. Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet,control panel, screen, roller, knives holder, ect.
2. After shredding, the dimension of most large plastic or other material will reduce 30%, some material dimension after shredding can up to 50%. (We have arranged many videos. Please contact us freely if you need.)

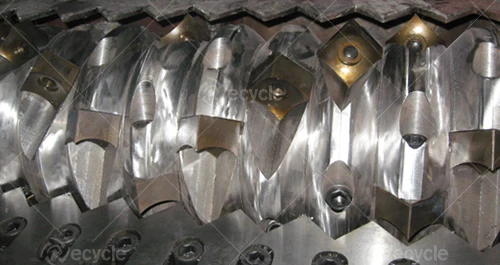

Single shaft shredder consists of a

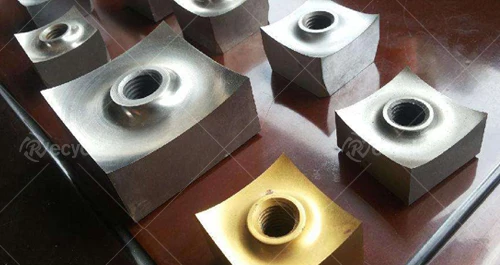

knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block.


The blade can be used in four directions. Blade quality have 9CrSi, C12MoV, SKD-II, D2 etc. Can be customized

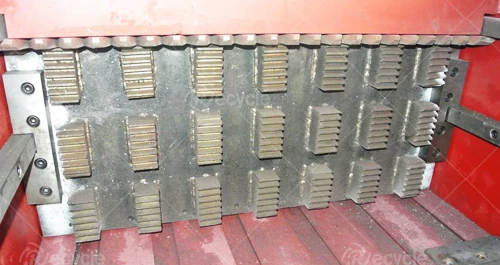

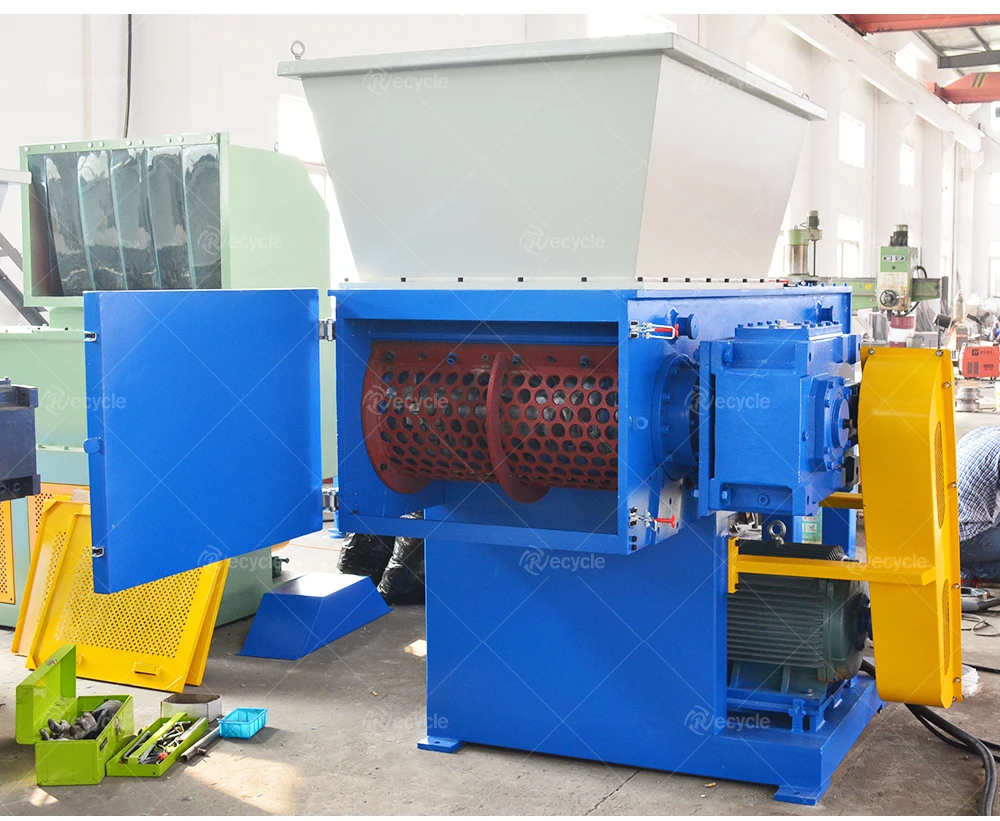

The screen can be changed quickly,
the aperture of the mesh is able to control the size of the output material. Special screen can be designed according to the type of your raw materials.

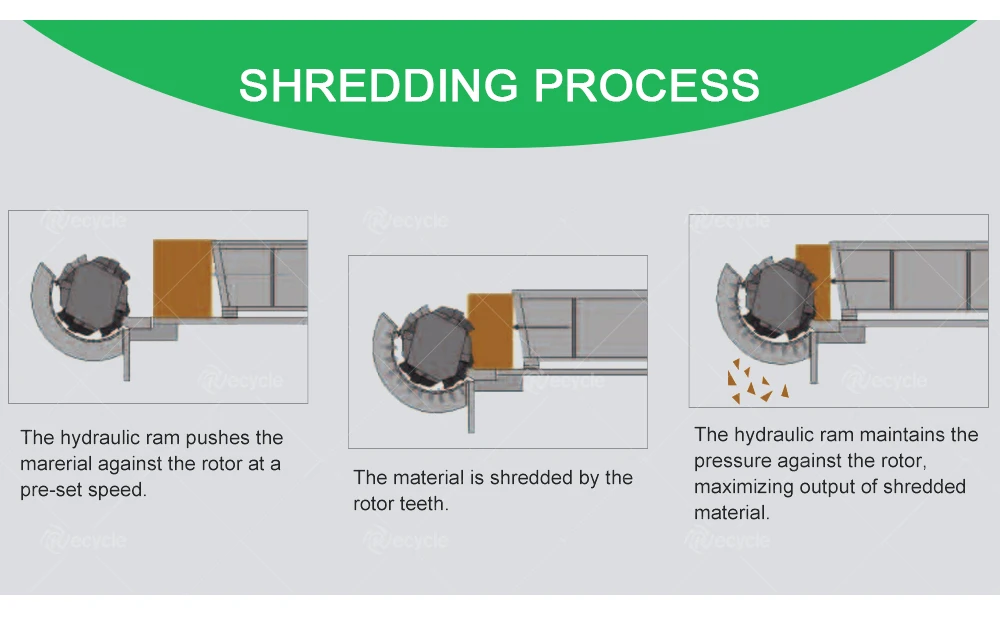

Hydraulic-driven pusher:
The hydraulic driven pusher is equipped with an adjustable guide block and adopts advanced sealing design. Ash chute - remove the dust from the pusher in the shredding process so as to protect the hydraulic system.

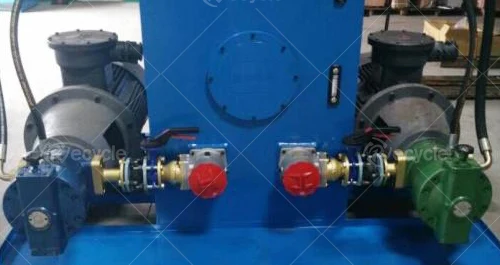

Double speed hydraulic system: Push the material box high speed back, maximize the output. The built-in oil/air cooling device is able to meet the needs of continuous production.

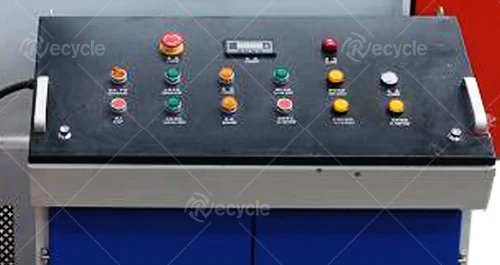

PLC Intelligent control system : When the equipment is overloaded, the knife roller will turn and reverse automatically, and the equipment will stop working automatically when there is no feeding materials.
