Titanium tube light weight, high strength, superior mechanical properties. It is widely used in heat exchange equipment, such as tubular heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and conveying pipes.
Titanium pipe and Titanium tube
Grade : Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Standard: ASTM B337,ASTM B338,ASTM B861
Specifications :
1.Dimensions
A).Seamless titanium tube range:
OD:2.0mm-219mm
WT:0.3mm-120mm
Length: Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
B).Welded titanium tube range:
OD:6mm-219mm
WT:0.5mm-10mm
Length:Material: Gr1,Gr2,Gr3,Gr5,Gr9
| Product | ATitanium Pipe seamless pipe |
| Size |
Cold-rolled: OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"), 12000mm (472.4") max (OD. over 15mm, 0.59")factory price 1.5mm 1.6mm 40mm titanium seamless pipe tube Extruded: OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7") |
| Material | Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc. |
| Standard | ASTM B 338, ASTM B 337, ASTM B 861 |
| Shape | Round |

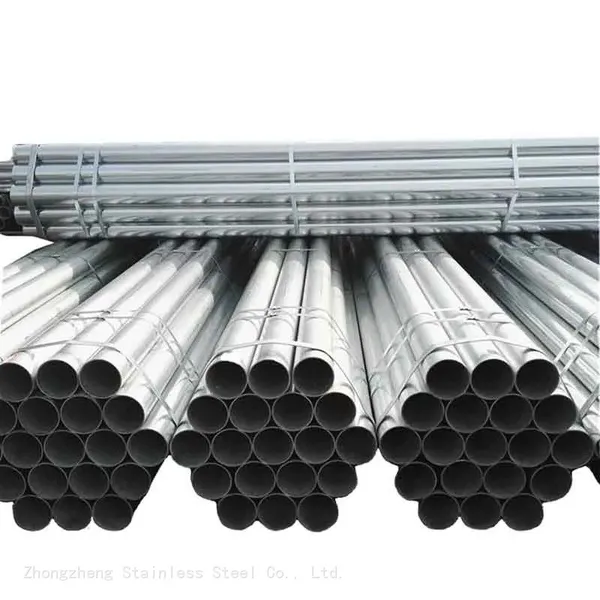

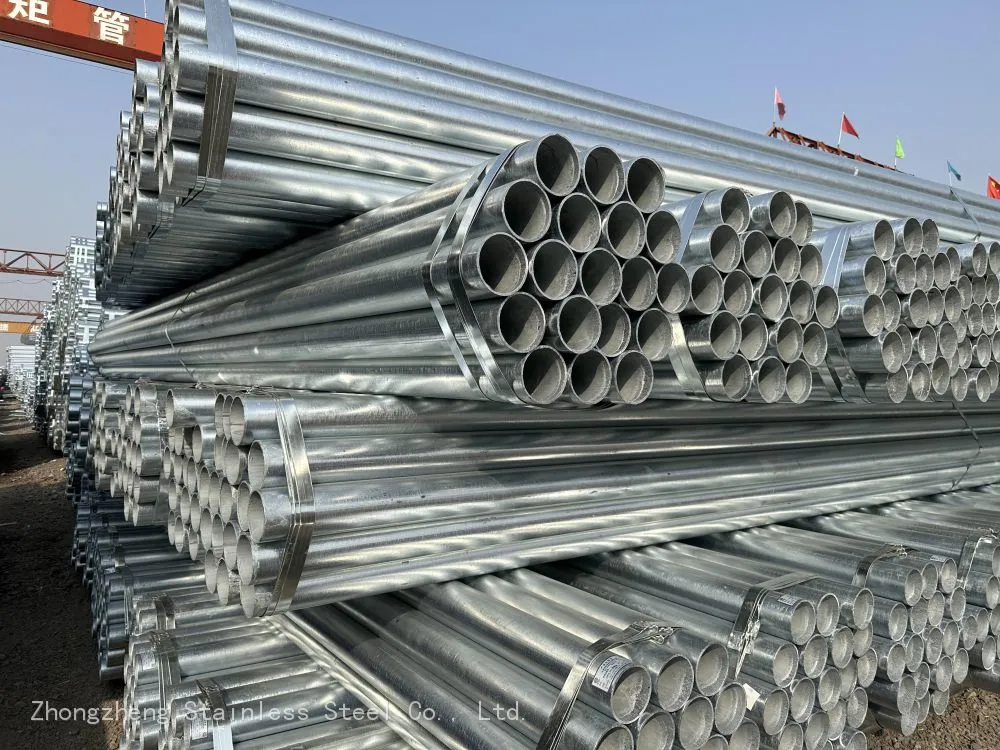

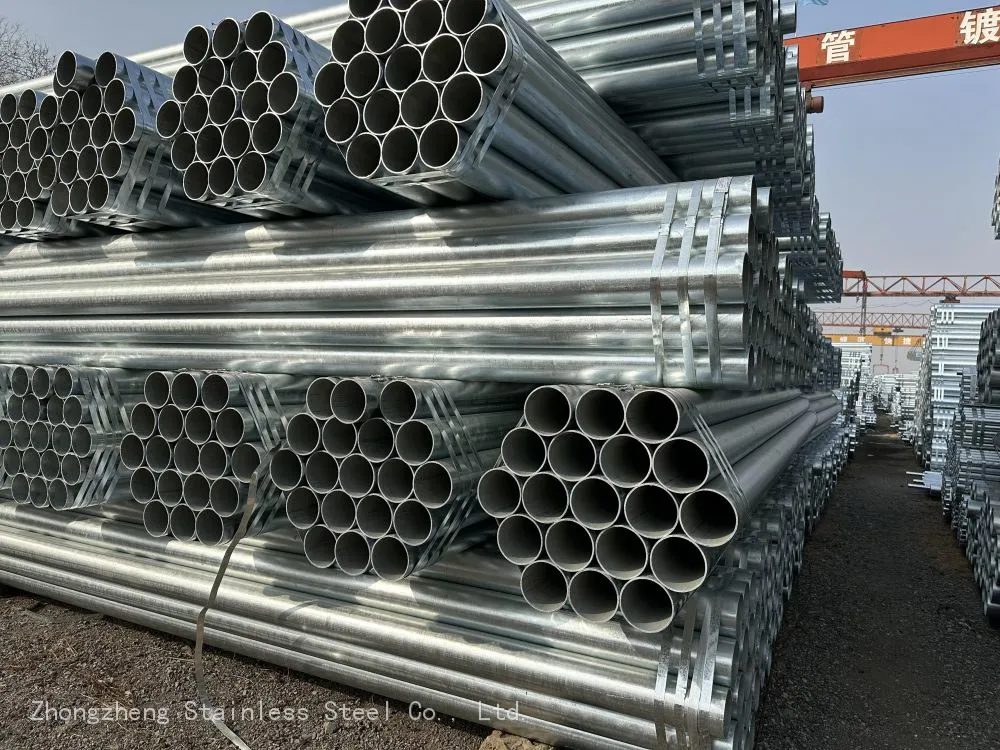

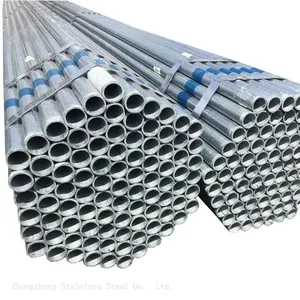

Product picture
| 1.Chemical requirements | |||||||||||
| Grade | N(≤) | C(≤) | H(≤) | Fe(≤) | O(≤) | Al(≤) | V(≤) | Pd(≤) | Mo(≤) | Ni(≤) | Ti |
| GR1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| GR3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| GR4 | 0.05 | 0.08 | 0.015 | 0.2 | 0.4 | / | / | / | / | / | bal |
| GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| GR7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| GR9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| GR12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| GR23 | 0.05 | 0.08 | 0.012 | 0.25 | 0.13 | 5.5~6.5 | 3.5~4.5 | bal | |||
| 2.Tensile requirements | |||||
| Grade | Tensil strength(≥) | Yeild strength(≥)) | Elongation(≥)%) | ||
| ksi | Mpa | ksi | Mpa | ||
| GR1 | 35 | 240 | 20 | 138 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR3 | 65 | 450 | 55 | 380 | 18 |
| GR4 | 80 | 550 | 70 | 483 | 15 |
| GR5 | 130 | 895 | 120 | 828 | 10 |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 483 | 15 |
| GR12 | 70 | 483 | 20 | 345 | 18 |
| GR23 | 120 | 828 | 110 | 760 | 10 |
2.We offer quality, strong and rugged products.
3.Advanced technology, to provide customers with customized products.
4.High quality + ex-factory price + rapid response + reliable service, we strive to provide.
5.Professional workers and efficient foreign trade team, to provide services for you.
Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.
Q: What is your payment terms?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.
Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.
Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.
