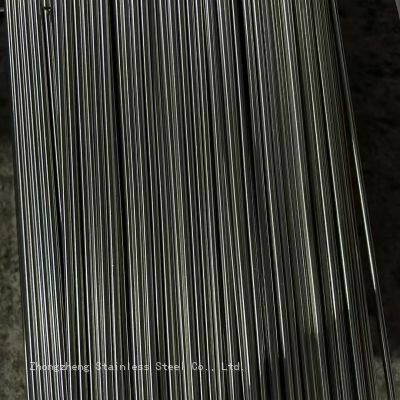

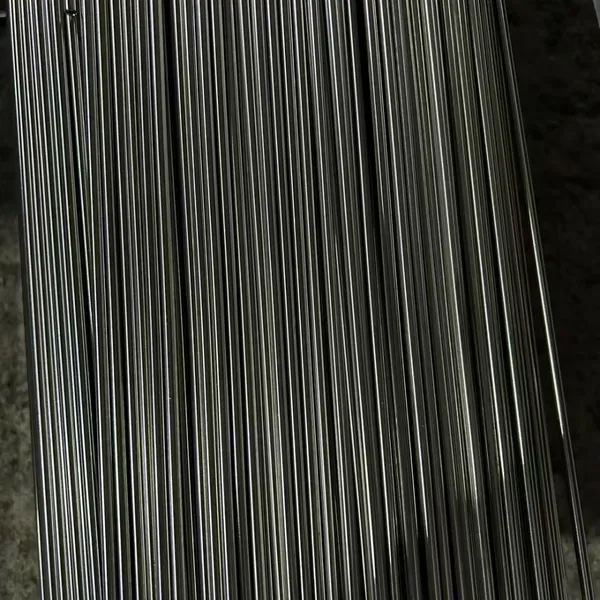

Help CenterHot Sale Stainless Steel Muffler Pipe Motorcycle Exhaust Stainless Steel Pipes 201 304
Related Products
-
Low Price Building Material Steel Pipe AISI201 202 304 304L 316 444 409 430 904L Seamless Steel PipeNegotiableMOQ: 1 Ton -
High Quality 201 304 316L 430 310S 2205 Stainless Steel PipeNegotiableMOQ: 1 Ton
-
China Factory 304 and 316 Stainless Steel Pipe SeamlessNegotiableMOQ: 1 Ton
-
Wholesale Price of Stainless Steel Welded Pipe Custom Model Stainless Steel PipeNegotiableMOQ: 1 Ton
-
Hard Wear Resistant Corrosion Resistant High Quality Welded Decorative Stainless Steel PipeNegotiableMOQ: 1 Ton
Material |
Stainless Steel 304/304L/316L |
Shape |
Round / Square / Rectangle |
Production Standards |
ASTM A270, ASTM A269, ASTM A249, ASTM A778, ASTM A789, DIN 11850, EN 10357, EN 10217-7 and so on. |
Size |
Outer diameter = 16 - 2000mm ; Thickness = 0.8 - 20 mm ; Length = 6 - 18.3 meter ; Or as customer' s request. |
Tolerance |
According to the Standard , +/-10% Commonly ; |
Surface Treatment |
180#, 320#, 400# Satin / Hairline, Bright Anneal, Pickle,400#, 500#, 600# or 800# Mirror finish |
Process Characteristics |
Inner Welded Seam Removed ; Online Bright Solution Anneal ; Inner Electro Polish And Mechanical Polish ; |
Application |
Petrochemical Industry ; Chemical Fertilizer Industry ; Oil Refining Industry ; Oil And Gas Industry ; Light Industry And Food Industry ; Pulp And Paper Industry ; Energy And Environmental Industries . |
Test |
Flaring test ; Flattening test ; Bending Test ; Hydraulic Test ; Eddy Current test |
Design |
OEM / ODM / Customized |
Certificate |
ISO9001 ; ISO14001; ISO 18001; TUV ; SGS |
"The pursuit of quality is our persistence"
We chose austenitic stainless steels from BAOSTEEL or TISCO as raw materials. Because these raw materials have high-quality properties, the effects after surface treatment will be more diversified. Pickling, polishing, mirror polishing, satin brushing, powder coating, you can choose the effect you want according to actual needs, we will try our best to help you complete.
"Stainless steel welded pipes with a outer diameter of 25.40mm to 101.6mm meters can meet 80% of the market requirements"
The outer diameter range of the stainless steel welding tubes that our company has currently made is 15.88 mm to 2000 mm, if you need a bigger one, we can also complete it.
"The products we do the most are round pipes , rectangular pipes and square pipes. In this respect, our production line and workmanship are very mature."
If you need a profiled tube, please consult us with engineering drawings with parameters. Our engineers will analyze the technical difficulties and discuss cooperation plans with you.
1.The inner wall of the our pipeline is smooth and not easy to scale, so it is not easy to be infected by bacteria, reduce coliform bacteria poisoning and other hazards.And it ensures the safety of drinking.
2.Stainless steel tube is 3 times stronger than steel pipe and 8-10 times stronger than plastic pipe, which is not easy to leak. Stainless steel pipes are also resistant to damage in earthquakes because they are impact resistant.
3.Stainless steel tubing has low thermal conductivity, the thermal insulation performance is five times that of copper pipe, so it is also suitable for application in high temperature fluid.
"One-stop shopping, reducing the procurement process."
We have extensive experience in providing stainless steel welding pipes and fittings for more than 118 project contractors and stockists.
Stainless steel seamless pipe is a long strip of steel with a hollow section and no seams around it. The thicker the wall thickness of the product, the more economical and practical it is, and the thinner the wall thickness, the higher its processing cost will be.
The process of this product determines its limited performance. Generally, seamless steel pipes have low precision: uneven wall thickness, low brightness inside and outside the tube, high cost of cutting to length, and pits and black spots on the inside and outside are not easy to remove; its detection and Shaping must be handled offline. Therefore, it embodies its superiority in terms of high pressure, high strength, and mechanical structural materials.
Stainless steel pipe is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used as furniture and kitchenware.
| Material | Stainless Steel Seamless Pipe/Tube |
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Steel Grade | 200 Series: 201,202 300 Series: 301,304,304L,316,316L,316Ti,309,310,317,321 400 Series: 409,410,420,430,436,444,441,440c Duplex Steel: 904L,2205,2507,2101,2520,2304 |
| Wall Thickness | 0.1-60mm |
| Diameter | 6mm-2500mm (3/8"-100") |
| Manufacturing Method | Cold Rolled, Hot Rolled |
| Manufacturing Technique | Seamless, Welded (ERW,EFW,Seamless,Spiral Welded) |
| Shape | Round, Square, Rectangular, Oval |
| Surface | Primary, Bright Polished, Hairline, Mirror,BA,2B |
| Color | Golden, Champagne gold, Rose gold, Brown, Bronze, Brass, Black, etc. |
| Delivery Time | In stock: 5-10 days Manufacturing: 10-20 days |
| MOQ | 5 Ton |
| Itme | Surface finishing | Surface finishing methods | Main application |
| NO.1 | HR | Heat treatment after hot rolling, pickling, or with treatment | For without the purpose of the surface gloss |
| NO.2D | Without the SPM | Method of heat treatment after cold rolling, pickling surface roller with wool or eventually a light rolling a matte surface processing | General materials,building materials. |
| NO.2B | After SPM | Giving No.2 processing materials appropriate method of cold light sheen | General materials, building materials ( most of the goods are processed ) |
| BA | Bright annealed | Bright heat treatment after cold rolling , in order to be more shiny, cold light effect | Automotive parts, home appliances, vehicles, medical equipment, food equipment |
| NO.3 | Shiny, coarse grain processing | The NO.2D or NO.2B processing timber No. 100-120 polishing abrasive grinding belt | Building materials, kitchen supplies |
| NO.4 | After CPL | The NO.2D or NO.2B processing timber No. 150-180 polishing abrasive grinding belt | Building materials, kitchen supplies, vehicles, medical equipment, food equipment |
| 240# | Grinding of fine lines | The NO.2D or NO.2B processing timber 240 polishing abrasive grinding belt | Kitchen appliances |
| 320# | More than 240 lines of grinding | The NO.2D or NO.2B processing timber 320 polishing abrasive grinding belt | Kitchen appliances |
| 400# | Close to BA luster | The MO.2B timber 400 polishing wheel polishing method | Building materials, kitchen utensils |
|
HL (hair lines) |
Polishing line having a long continuous processing | In a suitable size ( usually mostly No. 150-240 grit ) abrasive tape for as long as the hair, having a continuous processing method of polishing line | The most common building materials processing |
| NO.6 | NO.4 processing less than the reflection , the extinction | NO.4 processing material used for polishing Tampico brushing | Building materials, decorative |
| NO.7 | Highly accurate reflectance mirror processing | No. 600 of the rotary buff with a polishing | Building materials, decorative |
| NO.8 | Highest reflectivity mirror finish | Fine particles of abrasive material in order polishing , mirror polishing with a polishing | Building materials, decorative, mirrors |
We has a complete series of advanced equipment from Germany, Japan, Italy and France, including plasma auto-welding machine, polishing facility, online inner bead removed and online bright anneal facilities etc.
The tubes, produced by our facilities, are mainly applied for mechanical industries in boiler, heat exchanger, condenser, heater. After inner and outer polished, tubes are widely used in sanitary industries of food, beverage, biology, pharmacy, beer and electron. Large diameter fluid conveying welded pipes, ranging 325-2000 mm, are commonly used in oil, chemical.
We have three factories that can be used to make stainless steel pipes. You don't have to worry about the production cycle at all.We will formulate a production plan according to the delivery time to ensure that it can be completed on time.
We have a team of professional designers, engineers and skillful welders.We can make products that meet your requirements.
Our annual production capability is more than 15,000 tons. We has been vertified and recognized as material manufacturer according to AD 2000-Merkblatt W0, PED 2014/68/EU, and TUV ISO 9001:2015 International Quality System.
The good quality and professional service help us gain many good reputation all over the world.
The main material including TP304/304L, TP316/316L, TP321, 310S, 904L, S31803, 2520Si2 Monel400 etc, the available specification range are OD: from 3.0mm to 60.33mm, WT: from 0.25mm to 7.0mm. The main production equipment including 102 cold-rolling lines. Three sets of bright annealing furnaces, two sets of polishing machines, 4 sets of Ultrasonic cleaning machine with independent intellectual property rights. Tensile testing equipment, Hardness tester, Roughness tester, Salt spray testig machine, Carbon-sulfur analyzer, Eddy current test, Ultrasonic test, Hydraulic test, Germany import direct reading spectrometer etc. The annual output of more than 5000 tons precision bright annealing tubes, mainly used in Semiconductor industry, Automotive engine, Locomotive brake system, Gas equipment manufacturing, integrated circuits industry, microelectronic equipment, Instrumentation and laboratory etc.
| Item | Bright Annealed Seamless Stainless Steel Tube | Size | Outer Diameter: 6-114mm Thickness: 0.5-5mm Length: as per customer request |
| Customized Polished Stainless Steel Tube | Outer Diameter: 5-114mm Thickness: 0.5-42mm Length: as per customer request |
||
| Pickled & Annealed Seamless Stainless Steel Tube | Outer Diameter: 5-406mm Thickness: 0.5-42mm Length: as per customer request |
||
| Standard | ASTM A213, A312, ASTM A269, ASTM A778, ASTM A789, DIN 17456, DIN17457, DIN 17459,JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 | ||
| Material | 304, 304L, 309S, 310S, 316, 316Ti, 317, 317L, 321, 347, 347H, 304N, 316L, 316N, 201, 202 |
||
| Surface | Polishing,annealing,pickling,bright | ||
| Type | Hot Rolled and Cold Rolled | ||
| Transport Package | With plastic caps on both end, pack into Bundles/customized | ||
| Trademark | Sailing/customized | ||
| MOQ | 1 Ton | ||
| Productivity | 3000 Ton Per Month | ||
| Certificate | GOST, PED by TUV, ISO9001 | ||
| Origin | China | ||
| Usage | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose | ||
We have 3 warehouses covered more than 100, 000 square meters, and steady stock on kinds of stainless steel, Carbon Steel, PPGI, PPGL, Galvanized Steel, copper and aluminum products. Our head-office located in Jiangsu, one of the largest stainless steel industrial base in China, we could provide customers with decoiling, slitting, shearing, oil grinding, wire drawing, 8K mirror, titanium and other processing services in one-stop, and quickly trans goods on board in half day-time.
Our business philosophy is "keep improving & win-win cooperation". We furnish best steel and strict quality management, perfect after-sales services, reasonable product prices, good customer reputation as we have faith in integrity of the our business philosophy. We realize the common development of customers, employees and enterprises.
We have won trust and support of customers from all over the world. Selling steel all over China and mainly exported to South America, Southeast Asia, Middle East, South Africa, Australia and many more. Learned over the years, we provide a strict quality control and customer service. Whether you select a current product from our catalogue or you seek engineering assistance for your application, you can talk to our customer service center about sourcing requirements.
Ali steel trading company is a bridge which is helping you to open the window for imports and exports of steel all over the world. Products are in compliance with the international standards and approved by the third party production. That is why our sales are increasing constantly. A huge credit for which also goes to our customers' valuable feedback as they have expressed praise and recognition.
You are always welcome to visit our factory. We hope to establish a long term cooperation with you. Based on high quality and warmly service, we have won clients all over the world, our products are widely trans to USA, Euro, India, Iran, Dubai, Vietnam, South America, and so on.
