BENTLY 3500/32 125712-01 Dual-channel Vibration Monitor Module

BENTLY 3500/32 125712-01 Dual-channel Vibration Monitor Module thumbnail-1
BENTLY 3500/32 125712-01 Dual-channel Vibration Monitor Module thumbnail-2
BENTLY 3500/32 125712-01 Dual-channel Vibration Monitor Module thumbnail-3
BENTLY 3500/32 125712-01 Dual-channel Vibration Monitor Module photo-1
BENTLY 3500/32 125712-01 Dual-channel Vibration Monitor Module photo-2

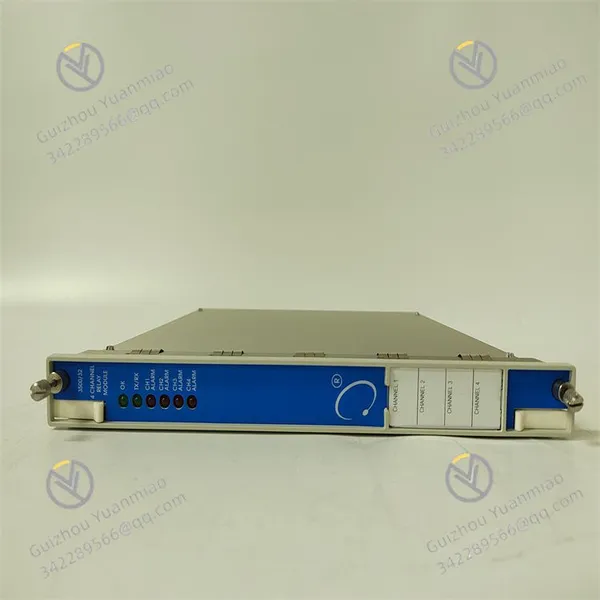

BENTLY 3500/32 125712-01 Dual-channel Vibration Monitor Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




Bently Nevada 3500/32 125712-01 is a dual-channel vibration monitor module in the 3500 series monitoring system, specifically designed for continuous monitoring of vibration and axial thrust in rotating machinery, providing real-time protection and diagnostic data. Here is the relevant content from its user manual:
Product Overview
This module is a core component for monitoring mechanical vibration, capable of processing signals from accelerometers, velocity transducers, or proximity probes. It converts raw vibration signals into measurable parameters (such as amplitude, frequency) and compares them with preset thresholds to trigger alarms or protection actions, ensuring the safe operation of critical equipment like turbines, compressors, and motors.
Technical Parameters

  • Power Supply: 24V DC input, typical power consumption ≤ 3W.

  • Channels: 2 independent monitoring channels, supporting simultaneous signal processing.

  • Input Signals:

    • Vibration: Acceleration (0-50g), velocity (0-200mm/s), displacement (0-2000μm).

    • Transducer Compatibility: Compatible with Bently Nevada 3300 series probes, accelerometers, and other industry-standard transducers.





3500-32 125712-01 (3)



    • Measurement Range:

      • Peak-to-peak displacement: 0-2000μm (configurable via software).

      • Velocity: 0-200mm/s (RMS).

      • Acceleration: 0-50g (peak).

    • Frequency Response: 0.1Hz to 10kHz (-3dB), ensuring accurate capture of low-frequency and high-frequency vibration components.

    • Alarm Settings: Each channel supports two programmable thresholds (Alarm and Danger), with configurable delay times (0-60s).

    • Communication: Integrates with the 3500 rack backplane, transmitting data to the Rack Interface Module (RIM) for system-wide monitoring.

    • Environmental Specifications:

      • Operating temperature: -40°C to 85°C.

      • Storage temperature: -50°C to 100°C.

      • Relative humidity: 5% to 95% (non-condensing).

      • Vibration resistance: 5g (10Hz-2000Hz), shock resistance: 25g (11ms half-sine wave).

    • Mechanical Dimensions: Approximately 100mm × 150mm × 35mm (half-height module), weight ~0.3kg.

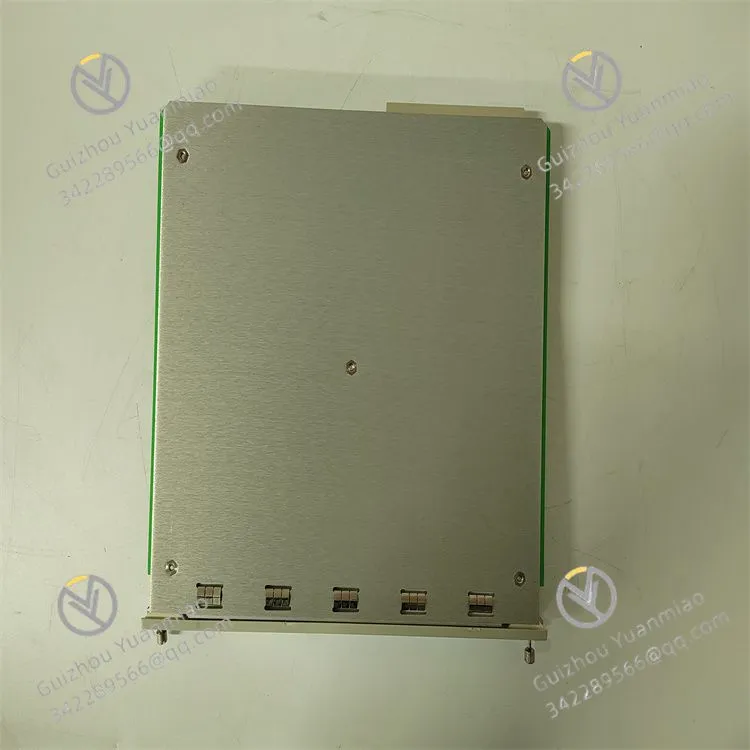

3500-32 125712-01 (2)






Related products:

BENTLY 3500/61
BENTLY 3500/22M 288055-01
BENTLY 3500/15 127610-01
BENTLY 3500/60 163179-01
BENTLY 3500/40M 140734-01
BENTLY 3500/20 125744-02
BENTLY 3500/32 125712-01
BENTLY 3500/25 149369-01
BENTLY 3500/53 133388-01





Product Tags: 3500/32 , 125712-01 , dual-channel vibration monitor module
