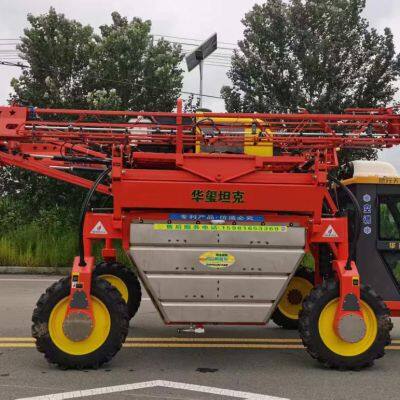

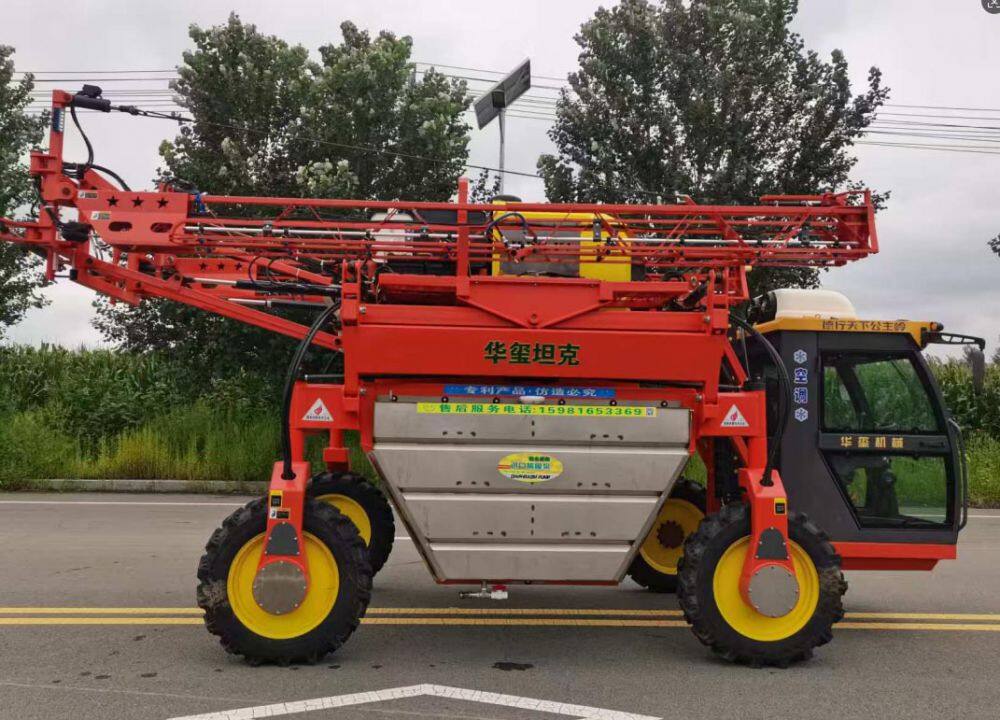

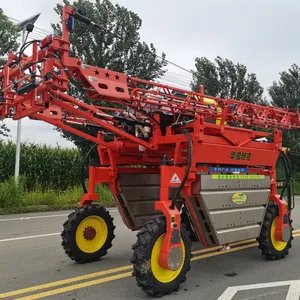

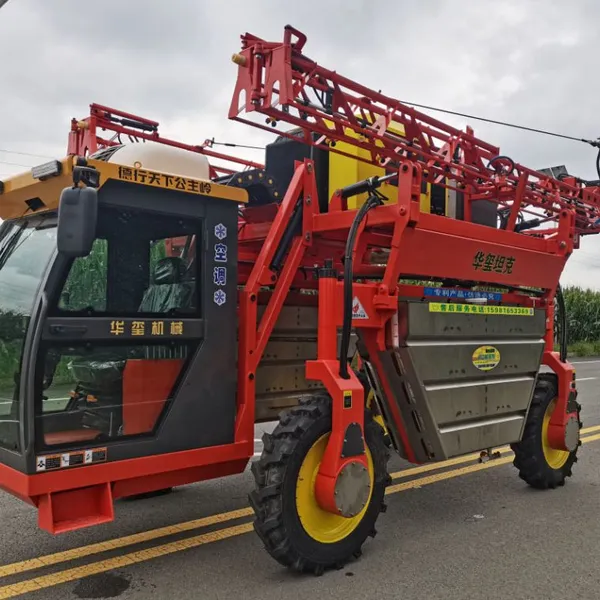

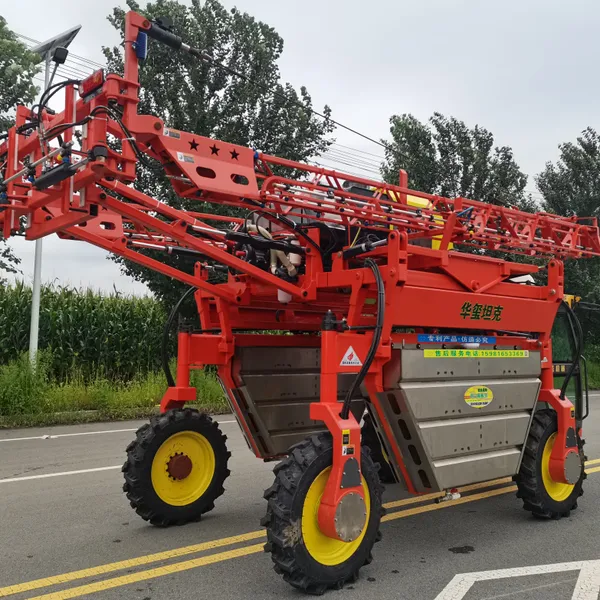

Huaxi 3WPZ-2000G self-propelled spray boom pesticide applicator corn spraying machine manufacturer
- 0 Unit / Units per Month
- Ship to the nearest customer's address
- T/T
- 90 days
You May Like
Product Details
Type | Other, Self-propelled boom sprayer | Warranty | year | |
Installation | Other, Machine | After-sales Service | The key parts are guaranteed for one year | |
Liquid Contained | Other, pesticide | Spraying Shape | Other, Fan-shaped spray | |
Engine Power | 150 hp | Volume | Other, 2000L | |
Power Supply | Other, diesel fuel | Spray Range | 21.5m | |
Transport Package | Machine | Specification | 6600*2720*3600mm | |
Trademark | Huaxi | Origin | Gongzhuling, Changchun City, Jilin Province |
Product Description
Power: diesel engine 150 horsepower
Model: Yuchai YCA05190-T300
Engine standard: China III
Diesel engine speed: 2200/2400r/min
Diesel tank volume L: 300
Hydraulic tank volume L: 100
Cab lifting range: 500mm-2200mm
Gear: hydraulic stepless speed change
Working speed: 5-18 km/h
Operation efficiency: 170-190 mu/h
Transition speed: 0-25 km/h
Drive mode: imported hydraulic four-wheel drive system
Steering mode: four-wheel steering
Ground clearance height: 2200mm
Wheel base: 2200-2800mm hydraulic adjustment
Tire width: 24cm
Tire diameter: 1600mm
Tire model: 9.5-48
Minimum turning radius: 4.5m
Medicine box material: stainless steel
Medicine box volume: 1000×2
Liquid pump model: diaphragm pump imported from Italy
Rated pressure: 2.0MPa
Pump flow: 360L/min
Working pressure: 0.3-1.0Mpa
Structural type of pressure limiting safety device: mechanical limit type
Limited pressure: ≤1.0MPa
Stirring method: high-pressure reflux stirring
Filtration system: three-stage filtration
Revolution: 550 rpm
Battery capacity: 60Ah
Standard voltage: 12V×2 (series)
Spray width: 21.5 meters
Boom height: 0.53-3.14 meters
Boom folding: hydraulic automatic folding
Boom lifting: hydraulic lifting
Boom shock absorption system: airbag swing shock absorption balance mechanism
Sprinkler spacing: 500mm can be customized
Number of printheads: optional
Nozzle model: three-head conversion
Nozzle flow: optional
Spray angle: 110 degrees
Spray standard: in line with European and American standards
Dimensions: 7.2 m long× 3.3 m wide × 3.8 m high
Whole machine form: all-terrain function
