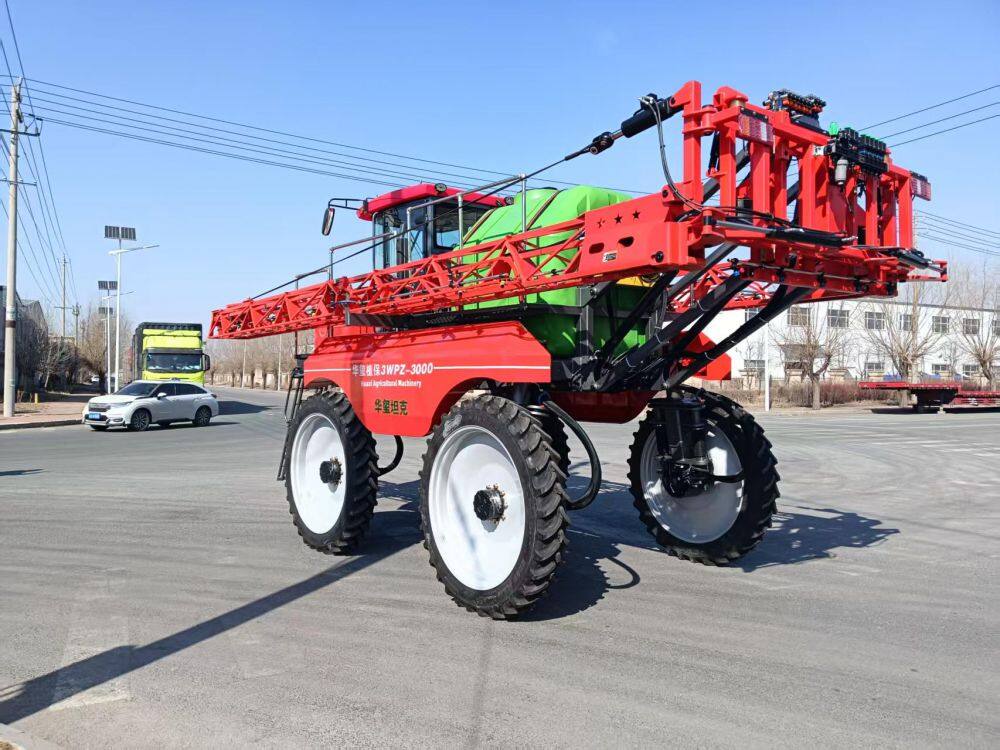

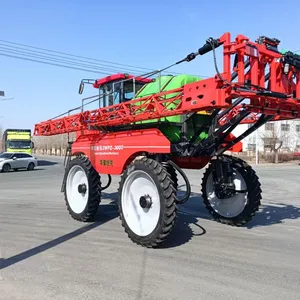

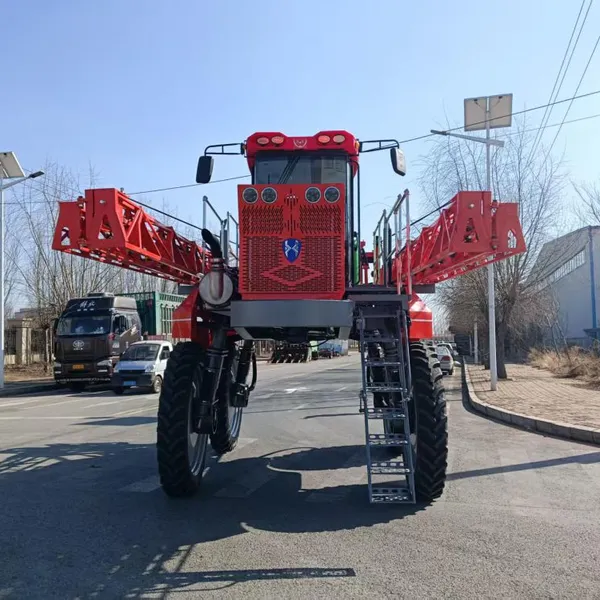

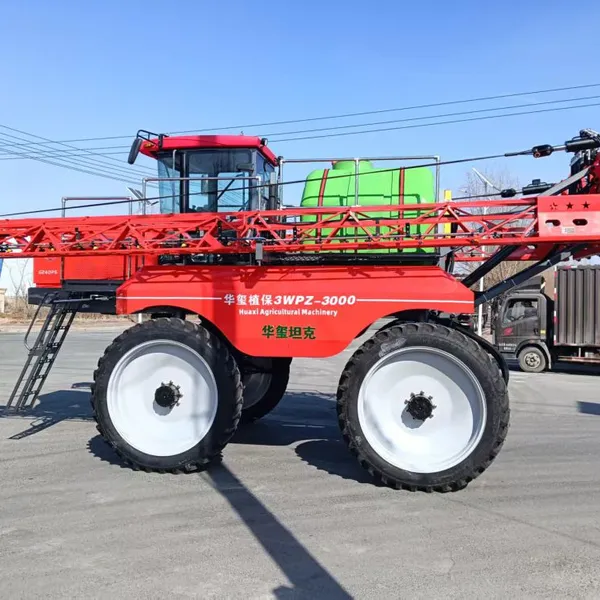

Huaxi 3WPZ-3000 Self-propelled Spray Boom Pesticide Applicator Corn Spraying Machine Manufacturer

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Ship to the nearest customer's address
Payment TermsT/T
Delivery Detail90 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Self-propelled boom sprayer	Installation	Other, Machine
Liquid Contained	Other, pesticide	Spraying Shape	Other, Fan-shaped spray
Engine Power	240 hp	Volume	Other, 3000L
Power Supply	Other, diesel fuel	Spray Range	21m
Transport Package	Machine	Specification	770034004000mm
Trademark	Huaxi

Product Description

Name Specification Name Specification
Implement name Self-propelled boom sprayer Front wheel specification 12.4-48
Implement Model 3WPZ-3000 Rear Wheel Size 12.4-48
Engine Weichai 240 hp left and right track 2.6-3.2 meters
Emission stage China IV air conditioning system refrigeration and air conditioning
Hydraulic pump type Hydrostatic Drive mode Hydraulic 4WD (imported)
Shock Absorption System Hydraulic Shock Absorption Steering Type 2 or 4 wheel steering (optional)
The volume of the medicine box is 3000L, and the stirring method is to stir with return water
Boom spray width 21m (customizable) System working pressure (Mpa) 0.3-0.5
Number of boom sections: 5 knots, travel speed (km/h) 0-30
Spray height 0.5-2.9m Working speed (km/h) 0-15
Folding method Hydraulic folding, automatic balancing Operational efficiency 32 hectares/hour
Nozzle form: Triple rotary nozzle filtration system Three-stage filtration
Fogging angle 110° (full sector coverage) Ground gap height 1.75 meters
Spraying System Precision Spraying Overall Dimensions(mm) 7700*3400*4000
Cab Air-conditioned cab with luxury seats
(Pneumatic suspension) The weight of the model is 11.5 tons
Number of sprinklers: 42 Wheel base adjustment Hydraulic adjustment
Sprinkler spacing 0.5m Optional hoisting system
