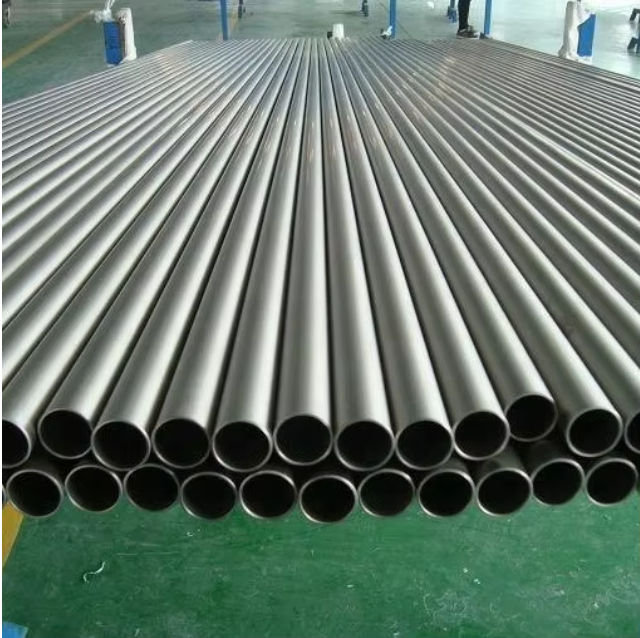

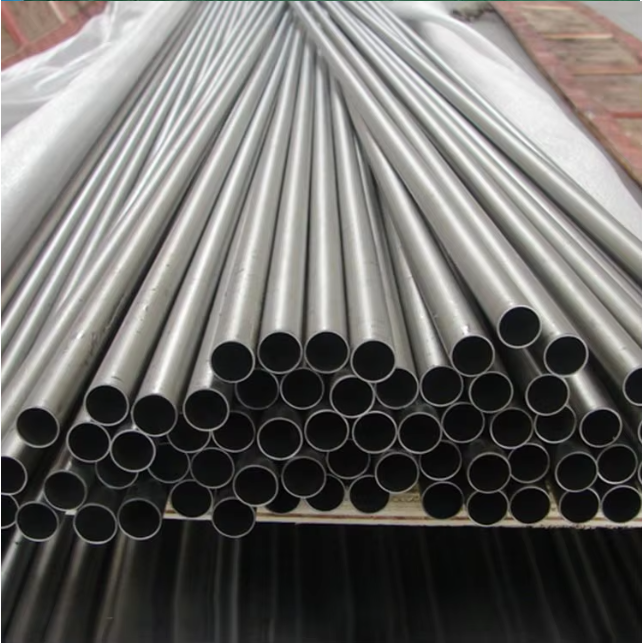

EU General Corrosion Resistant Nickel Alloy Incoloy 825 Uns N08825 Pipe Tube for Acid Production Piping Pickling Chemical Process Equipment

FOB Price

Negotiable / Ton

1 Ton(Min. Order)

Payment TermsT/T
Delivery Detail8 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Seamless	Technique	Cold Rolled
Surface Treatment	Other	Material	Stainless steel
Section Shape	Round

Product Description

Basic Info.

Model NO.

Incoloy Alloy

Purity

30%-72%

Alloy

Type

Corrosion Resistant Alloy

Powder

Not Powder

Certificate

ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate

Quality Inspection

Ut, Chemical Composition, Physical Properties/SGS

Shape

Round/Sauqre/Flat/Hexagon

Material

Monel, Hastelloy, Inconel,Incoloy,Gh etc

Process

Cold Drawn,Cold Rolled,Bright Anneal etc

Surface Require

Mirror Polishing, Hairline Finishing, Sb , No.4

Inconel

600/601/625/718/750/X-750/800

Inconel2

Inconel 738LC Inconel 939 792

Monel

400/K500/404

Hasteloy

B3/B2/X/C/C22/C276/G-30/N/X

Diameter (Od)

Cold Drawn Bar:4.76~120mm(All Sizes Can Be Custom)

Transport Package

Seaworthy Packing/Wooden Box or Client′s Require

Specification

Customized

Trademark

OEM & ODM

Origin

China

HS Code

7505120000

Production Capacity

500 Ton/Month

Product Description

Material	Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Shape	Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
Grade	Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
	Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc
	Alloy : Alloy 20/28/31
	Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g
	Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
	Haynes: Haynes 230/556/188
	Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20
	Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
	Incoloy: Incoloy 800/800H/800HT/825/925/926;
	GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
	Monel: Monel 400/K500/R405
	Nitronic: Nitronic 40/50/60;
	Nimonic: Nimonic 75/80A/90/A263 ;
Product Characteristics	1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..
Standard	GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection	ISO,SGS,BV and so on.
Application	High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines
Packaging	1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products
Delivery	7-25days or According to the product
Payment	L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders.

Specifications

Nickel Sheet
Thickness	0.3mm - 6.0mm
Width	1000mm - 2200mm
Length	Produce as requirement
Nickel Plate
Thickness	3.0mm - 300mm
Width	1000mm - 3000mm
Length	Produce as requirement
Nickel Strip / Nickel Foil
Thickness	0.02mm - 16.0mm
Width	5mm - 900mm
Nickel Coil
Thickness	0.3mm - 16.0mm
Width	1000mm - 3000mm
Nickel Pipe
Outside Diameter	6.0mm - 1219mm
Thickness	0.5mm - 100mm
Nickel Capillary Pipe
Outside Diameter	0.5mm - 6.0mm
Thickness	0.05mm - 2.0mm
Nickel Bar
Diameter	Ф4mm - Ф600mm
Nickel Wire Rod
Diameter	Ф0.01mm - Ф6.0mm

Chemical Component

Inconel Alloy

Item	600	601	617	625	690	718	X750	825
C	≤0.15	≤0.1	0.05-0.15	≤0.1	≤0.05	≤0.08	≤0.08	≤0.05
Mn	≤1	≤1.5	≤0.5	≤0.5	≤0.5	≤0.35	≤1	≤1
Fe	6-10	rest	≤3	rest	7-11	rest	5-9	≥22
P	≤0.015	≤0.02	≤0.015	--	--	--	--	--
S	≤0.015	≤0.015	≤0.015	≤0.015	≤0.015	≤0.01	≤0.01	≤0.03
Si	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.35	≤0.5	≤0.5
Cu	≤0.5	≤1	--	≤0.3	≤0.5	≤0.3	≤0.5	1.5-3
Ni	≥72	58-63	≥44.5	50-55	≥58	50-55	≥70	38-46
Co	--	--	10-15	≤10	--	≤1	≤1	--
Al	--	1-1.7	0.8-1.5	≤0.8	--	0.2-0.8	0.4-1	≤0.2
Ti	--	--	≤0.6	≤1.15	--	--	2.25-2.75	0.6-1.2
Cr	14-17	21-25	20-24	17-21	27-31	17-21	14-17	19.5-23.5
Nb+Ta	--	--	--	4.75-5.5	--	4.75-5.5	0.7-1.2	--
Mo	--	--	8-10	2.8-3.3	--	2.8-3.3	--	2.5-3.5
B	--	--	≤0.006	--	--	--	--	--

Incoloy Alloy

Grade		800	800H	800HT	825	925
Chemical Composition (%)	C	≤0.1	0.05-0.1	0.06-0.1	≤0.05	≤0.03
	Mn	≤1.5	≤1.5	≤1.5	≤1	≤1
	Fe	rest	rest	rest	rest	rest
	P	--	--	--	≤0.02	≤0.03
	S	≤0.015	≤0.015	≤0.015	≤0.03	≤0.03
	Si	≤1	≤1	≤1	≤0.5	≤0.5
	Cu	≤0.75	≤0.75	≤0.75	1.5-3	1.5-3
	Ni	30-35	30-35	30-35	38-46	42-46
	Al	0.15-0.6	0.15-0.6	0.15-0.6	0.2-1	0.15-0.5
	Ti	0.15-0.6	0.15-0.6	0.15-0.6	0.6-1.2	1.9-2.4
	Cr	19-23	19-23	19-23	19.5-23.5	19.5-23.5
	Mo	--	--	--	2.5-3.5	2.5-3.5

Hastelloy Alloy

Grade		C276	C22	C4	B2	B3	N
Chemical Composition (%)	C	≤0.01	≤0.015	≤0.015	≤0.02	≤0.01	0.04-0.08
	Mn	≤1	≤0.5	≤1	≤1	≤3	≤1
	Fe	4-7	2-6	≤3	≤2	≤1.5	≤5
	P	≤0.04	≤0.02	≤0.04	≤0.04	--	≤0.015
	S	≤0.03	≤0.02	≤0.03	≤0.03	--	≤0.02
	Si	≤0.08	≤0.08	≤0.08	≤0.1	≤0.1	≤1
	Ni	rest	rest	rest	rest	≥65	rest
	Co	≤2.5	≤2.5	≤2	≤1	≤3	≤0.2
	Ti+Cu	--	--	≤0.7	--	≤0.4	≤0.35
	Al+Ti	--	--	--	--	≤0.5	≤0.5
	Cr	14.5-16.5	20-22.5	14-18	≤1	≤1.5	6-8
	Mo	15-17	12.5-14.5	14-17	26-30	≤28.5	15-18
	B	--	--	--	--	--	≤0.01
	W	3-4.5	2.5-3.5	--	--	≤3	≤0.5
	V	≤0.35	≤0.35	--	0.2-0.4	--	≤0.5

Material

Trademark

UNS

Werkst. nr.

Density

Bar/Billet

Forgings

Flanges

Tube

Pipe

Plate

Fittings

ASME Fittings

Nickel Alloys

smls/wld

Alloy 200

Nickel 200

N02200

2.4066

8,89

B160

B564

B163/B730

B161/B725

B162

B366

WPN

Alloy 201

Nickel 201

N0220l

2.4068

8,89

B160

B163/B730

B161/B725

B162

B366

WPNL

Alloy 400

Monel 400

N04400

2.4360

8,83

B164

B564

B163/B730

B165/B725

B127

B366

WPNC

Alloy K-500

Monel K-500

N05500

2.4375

8,46

B865

Alloy 600

lnconel 600

N06600

2.4816

8,42

B166

B564

B163/B516

B167/B517

B168

B366

WPNCI

Alloy 601

lnconel 601

N06601

2.4851

8,20

B166

B163/B516

B167

B168

Alloy 625

lnconel 625

N06625

2.4856

8,44

B446

B564

B444/B704

B444/B705

B443

B366

WPNCMC

Alloy 718

lnconel 718

N07718

2.4668

8,19

B637

B670

Alloy 800

lncoloy 800

N08800

l.4876

8,00

B408

B564

B163/B515

B407/B514

B409

B366

WPNIC

Alloy 800H

lncoloy 800H

N088l0

l.4876

8,00

B408

B564

B163/B515

B407/B514

B409

B366

WPNIClO

Alloy 800HT

lncoloy 800HT

N088ll

l.4876

8,00

B408

B564

B163/B515

B407

B409

B366

WPNICll

Alloy 825

lncoloy 825

N08825

2.4858

8,18

B425

B564

B163/B704

B423/B705

B424

B366

WPNICMC

Alloy C-276

Hastelloy C-276

Nl0276

2.4819

8,87

B574

B564

B622/B626

B622/B619

B575

B366

WPHC276

Alloy C-22

Hastelloy C-22

N06022

2.4602

8,69

B574

B564

B622/B626

B622/B619

B575

B366

WPHC22

Alloy B-2

Hastelloy B-2

Nl0665

2.4617

9,22

B335

B564

B622/B626

B622/B619

B333

B366

WPHB2

Alloy B-3

Hastelloy B-3

Nl0675

2.4600

9,20

B335

B564

B622/B626

B622/B619

B333

B366

WPHB3

Alloy 59

Nicrofer 5923 hMo

N06059

2.4605

8,60

B574

B564

B622/B626

B622/B619

B575

B366

WP5923

Alloy 20

Carpenter 20Cb3

N08020

2.4660

8,10

B473

B462

B729/B468

B729/B464

B463

B366

WP20CB

Titanium Grade 2

R50400

3.7035

4,50

B348

B381

B338

B861/B862

B265

B363

WPT2

Titanium Grade 5

R56400

3.7165

4,40

B348

B381

B861/B862

B265

Zirconium 702

R60702

6,60

B550

B493

B523/B523

B658/B658

B551

B653

Tantalum

R05200

16,66

B365

B521/B521

B708

、
