Kollmorgen S20660-SRS Single-Axis Servo Drive

Kollmorgen S20660-SRS Single-Axis Servo Drive photo-1
Kollmorgen S20660-SRS Single-Axis Servo Drive photo-2
Kollmorgen S20660-SRS Single-Axis Servo Drive photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Rated Current 6A
Rated Power 1kW/1000W
Operating Temperature 0℃-40℃
Kollmorgen S20660-SRS
Overview
The S20660-SRS is a servo drive controller primarily used in industrial automation and motion control systems. It can drive servo motors to achieve high-precision position, speed, and force control, commonly applied in fields such as CNC machine tools, printing & packaging, food & beverage production, and semiconductor manufacturing.
Functional Features
  • High Speed Loop Bandwidth
    The S200 series servo drives are among the first all-digital industrial drives with a speed loop bandwidth of up to 800Hz, enabling smooth motion and fast response.
  • Easy Debugging
    With a compact design, it simplifies the tuning process. Combined with high-resolution feedback and high-performance current loop bandwidth, it delivers excellent system throughput.
  • Plug-and-Play
    Intelligent feedback devices with electronic motor nameplates enable plug-and-play debugging in most applications.
Technical Parameters
  • Power Input
    Single-phase or three-phase input, voltage range: 120VAC-240VAC (supporting 200VAC, 208VAC, 220VAC, 230VAC, etc.).
  • Rated Current
    6A.
  • Rated Power
    1kW/1000W.
  • Communication Interfaces
    Capable of SynqNet protocol/Endat communication, equipped with Firewire (IEEE 1394) connector (feedback), RJ45 connector (SynqNet bus), 15-pin D-type connector (discrete I/O), RJ12/RJ11 connector (serial), and 26-pin D-type connector (auxiliary I/O), etc.
  • Protection Class
    IP20.
  • Operating Temperature
    0℃-40℃.

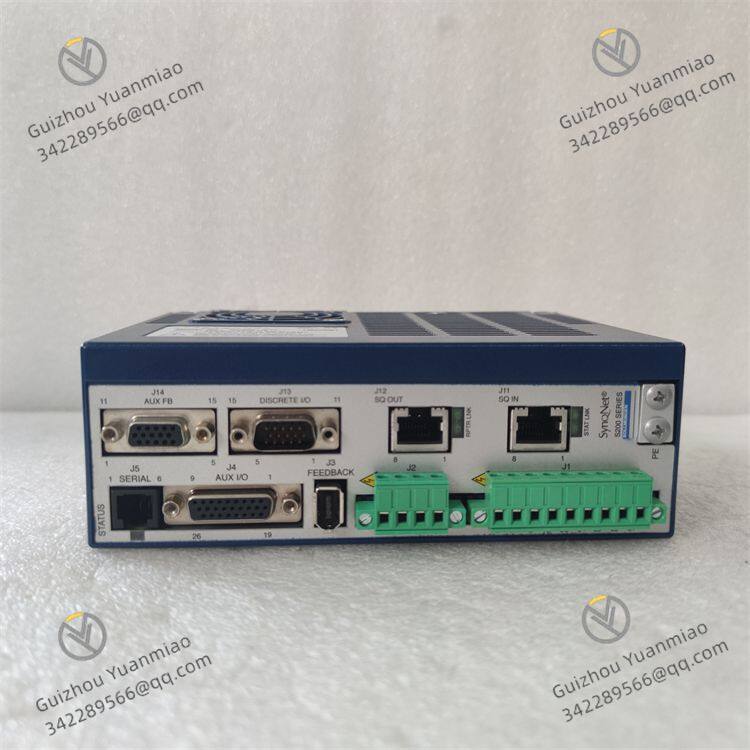

S20660-SRS (2)

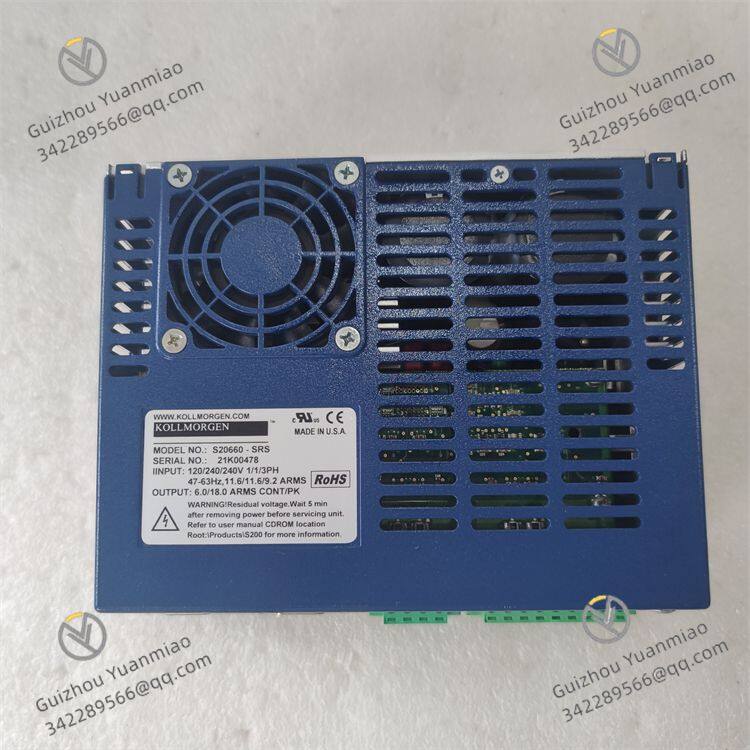

S20660-SRS (3)

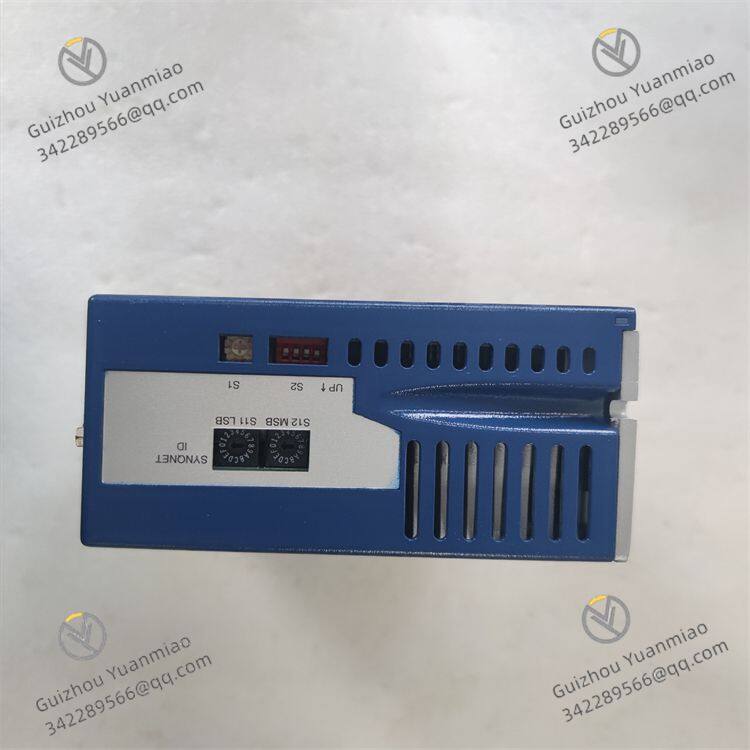

S20660-SRS (1)

Working Principle
Similar to most servo drives, the S20660-SRS receives motion commands (such as position, speed, or torque commands) from the host computer. The internal processor of the drive parses the commands, then calculates the required drive signals through control algorithms (such as PID algorithms). By controlling the power module, it outputs appropriate current to the servo motor to drive its operation. The encoder on the motor real-time feeds back the motor's position and speed information to the drive, which continuously adjusts the output signals based on the deviation between the feedback and command signals, forming a closed-loop control to achieve precise position and speed control.
Common Faults and Solutions
  • Fault Codes F01, F02, F03, F04
    • Possible Causes: Usually related to power supply, such as power short circuit, overvoltage, or undervoltage.

    • Solutions: First, turn off the motor, wait for a few minutes, and restart. If the problem persists, check the power supply.

  • Fault Codes F05, F06, F07, F08
    • Possible Causes: Generally related to motor magnets, such as magnet open circuit, short circuit, or damage.

    • Solutions: First, check if the magnet is installed correctly and fastened. If the magnet is fine, replace it.

  • Fault Code F09
    • Possible Causes: Mostly related to the encoder, such as encoder failure or signal distortion.

    • Solutions: Check if the encoder cable is correctly connected. If the cable is normal, replace the encoder.

  • Fault Code F10
    • Possible Causes: Usually a problem with the motor control panel, such as panel failure or incorrect motor identification.

    • Solutions: Check if the panel connection is correct. If the panel is fine, try replacing the control panel or motor.

  • Fault Codes F11, F12
    • Possible Causes: Often related to motor cables, such as loose connection or damage.

    • Solutions: Check the cable connection for wear or breakage. If the connection is correct, replace the cable.

  • Fault Codes F13, F14
    • Possible Causes: Generally caused by motor overheating, possibly due to excessive motor load or prolonged use.

    • Solutions: First, stop using the motor and wait for it to cool. If the fault persists, reduce the load or replace the motor.

Product Tags: S20660-SRS
