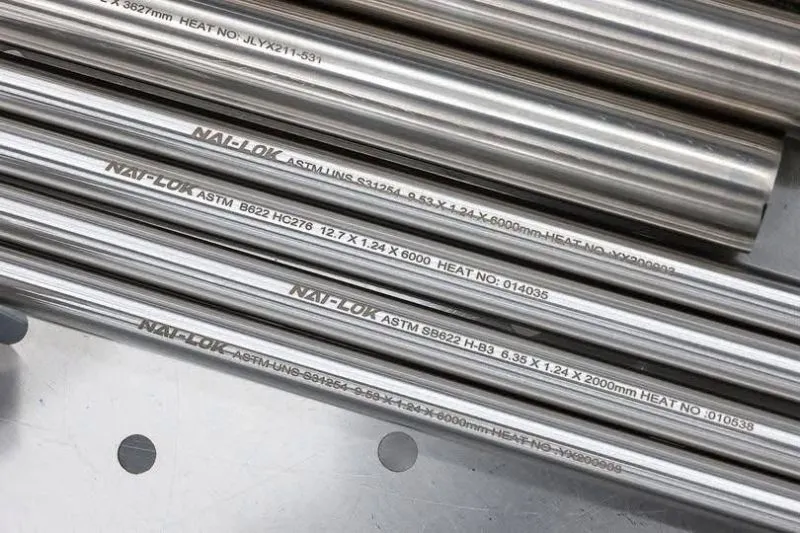

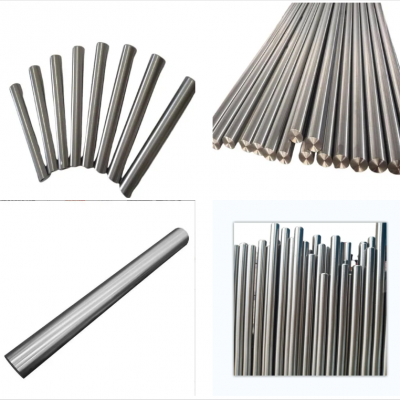

ASTM A312 Uns S31254 6 Moly Bright Annealing (BA) Stainless Stel Seamless Pipe Tube 10X1.5mm 6m for Oil and Gas Pipeline

Basic Info.

Product Description

NAl-LOK brand was established in Shanghai in 2000, we focus on the production, research and development, salesof instrumentation valves, fittings, hose & tubing. We have two plants in China and our headquarter is locatedin Shanghai. We manufacture valves in special materials such as HASTELLOy®, titanium, nickel alloys, INCOLOy®,MONEL®, super-duplex, corrosion resistant alloys and urea grade materials.
We have the world's advanced processingequipment, testing equipment, class 1000 grade clean room to ensure quality control and on time delivery.
We strive to develop, serve global customers and provide stable and reliable products.

We have the capability to manufacture and supply 4 different product categories,including:
.General Instrumentation Valves and Fittings
.High Purity & Ultra High Purity Products
.Hose & Tubing
Special Alloy Valves
 Features

1. Tubes according to ASTM A269/270, ASME BPE

2. Bright annealing seamless tube

3. For high purity pipeline and laboratory

Material : 304/304L  316/316L

Size Tube: 1/4"~6"    Pipe:8"~32"/6A~800A

Tubes : According to ASTM A269/270,ASME BPE

Pipes : According to ASTM A312,JIS G 3459

Length : 6000MM(Optional:4000mm:6100mm)(+/-10% possible)

Tubes Tolerance:  According to ASTM A269/A632

Tube fittings : Pre-material according to ASTM A269/A632/A312

Pipe Fittings : Pre-material according to ASTM A403(pipe)/JIS B 2312/2313

Pipe Tolerance: According to ASTM A312,JIS G 3459

Ends: Tubes and fittings are prepared for orbital welding

Surface Roughness

Grade	AP	BA	EP
Inside Surface Roughness	Ra ≤ 10	Ry ≤ 0.8	Ry ≤ 0.25
Material	316 Stainless Steel
Wall Thickness	0.028 inch-0.083 inch
Length	6000mm (optional: 4000mm),(+/- 10% possible)
Inside Surface Roughness	BA grade: Ra≤0.8 EP grade: Ra≤0.25
Size	1/8''-6''

Ordering Informatin

Part Number	Tube OD(in)	Wall Thickness(in)	Length(mm)
TSSM-02T028L06	1/8	0.028	6000
TSSM-04T035L06	1/4	0.035	6000
TSSM-04T049L06	1/4	0.049	6000
TSSM-04T065L06	1/4	0.065	6000
TSSM-06T035L06	3/8	0.035	6000
TSSM-06T049L06	3/8	0.049	6000
TSSM-06T065L06	3/8	0.065	6000
TSSM-08T035L06	1/2	0.035	6000
TSSM-08T049L06	1/2	0.049	6000
TSSM-08T065L06	1/2	0.065	6000
TSSM-10T065L06	5/8	0.065	6000
TSSM-12T065L06	3/4	0.065	6000
TSSM-16T083L06	1	0.083	6000
TSSM-20T095L06	1-1/4	0.095	6000
TSSM-20T120L06	1-1/4	0.120	6000
TSSM-24T120L06	1-1/2	0.120	6000
TSSM-24T134L06	1-1/2	0.134	6000
TSSM-32T134L06	2	0.134	6000
TSSM-32T188L06	2	0.177	6000

ZHEJIANG ZHONGZHENG STAINLESS STEE MANUFACTURING CO. LTD. is a professional supplier of stainless steel materials, located in Zhejiang, China with high speed of economic development. We are near shanghai port; the traffic is very convenient.The main stainless steel materials are stainless steel plate, pressure vessel stainless steel plate, high temperature boiler plate, corrosion resistant stainless steel plate, stainless steel seamless pipe, stainless steel industrial pipe, stainless steel welded pipe, stainless steel bar, stainless steel pipe and so on.With the aim of "quality first, timely delivery, good faith cooperation, considerate service and common development", the company has set up a good reputation in the industry for providing high quality stainless steel materials and perfect after-sales service.

Are you a factory or a trading company?

We are a company with two mill and one warehouse,produce Stainless Steel/(Super)Duplex Steel/ Nickel Alloy seamless tube&pipes.
But we also can provide welded stainless steel pipes and pipe fittings, coils, sheets, bar, plates etc.

Do you have any certificate?

We have approvals of ISO9001:2015,ISO14001:2015,ISO45001:2018, BV Ocean& Offshore Ship Classification Societies, GOST, TUV, PED AD2000 etc.
And will get ABS/NORSOK/DNV/CU-TR(EAC) soon.

What is your delivery time?

It mainly depends on your demanded volume and material grade. The time of delivery is usually around0.5- 1 month(1*40HT as usual).
We can send it out in 5 days if it has stock.

What is your payment terms?

Our usual payment term is 30% deposit and the rest against B/L. L/C is also acceptable. And the shipping terms are EXW,FOB, CFR,CIF.Whichever you like.

How can you guarantee the quality of my goods?

All material are 100% PMI tested and measured before shipping. We also accept third part inspection andEN10204.3.1B Mill test certificate for all materials.

How do you make our business long-term and good relationship?

1.We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer and we sincerely do business with them, sustain our service level before and after every deal.
