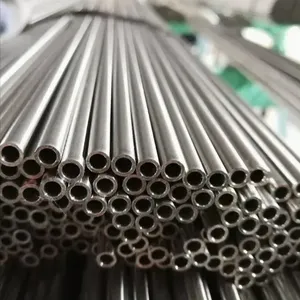

Help CenterEU General Hastelloy G30/Uns N06030 /No4400/ Monel K-500seamless Pipe and Tubes, in China
Related Products
-
EU General Hastelloy C-22 (N06022) , Hastelloy G30 (N06030) Nickel Alloy Uns N10276 W. Nr. 2.4819 Tube Pipe Price Per KgNegotiableMOQ: 1 Ton -
EU General Competitive Price 2.3mm Thickness Hastelloy C-22 (N06022) , Hastelloy G30 (N06030) Nickel Alloy Pipe for Generator TubingNegotiableMOQ: 1 Ton
-
EU General Factory Price Hastelloy C-22 (N06022) , Hastelloy G30 (N06030) Alloy Tube Inconel 718 Nickel Alloy Seamless PipeNegotiableMOQ: 1 Ton
-
EU General Large Diameter Inconel 625 600 690 718 X-750 G30/N06030 Welded/Seamless Steel PipeNegotiableMOQ: 1 Ton
-
EU General SO9001 Industry Seamless Nickel Alloy Tube N02200 N02201 N08800 N08811 N06601 G30 Alloy28 for Fluid TransitNegotiableMOQ: 1 Ton
Super alloys or high performance alloys are used in environments with very high temperature above 540ºC (1000ºF) where deformation resistance and high surface stability are chiefly required. They have good oxidation and creep resistance. Cobalt-base, nickel-base and iron-base alloys are the three major types of super alloys. The iron-base super alloys are generally wrought alloys provided with stainless steel technology. Nickel-base and cobalt-base super alloys may be cast or wrought based on its composition or application. Super alloys can be generally forged, rolled to sheet or produced in different shapes. Highly alloyed compositions are formed as castings. They can be strengthened using hardening techniques like work hardening, solid-solution hardening and precipitation hardening.
HASTELLOY(r) G30(r) alloy is corrosion resistant and has the ability to oxidize acids.
The following sections will provide a detailed description of HASTELLOY(r) G30(r) alloy.
Chemical CompositionThe following table shows the chemical composition of HASTELLOY(r) G30(r) alloy.
| Element | Content (%) |
|---|---|
| Nickel, Ni | 43 |
| Chromium, Cr | 28.0-31.5 |
| Iron, Fe | 13-17 |
| Cobalt, Co | 5 |
| Molybdenum, Mo | 4-6 |
| Tungsten, W | 1.50 - 4 |
| Manganese, Mn | 1.50 |
| Copper, Cu | 1 - 2 .40 |
| Silicon, Si | 0.8 |
| Phosphorous, P | 0.040 |
| Carbon, C | 0.030 |
| Sulfur, S | 0.020 |
The physical properties of HASTELLOY(r) G30(r) alloy are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.22 g/cm³ | 0.297 lb/in³ |
| Melting point | 1371ºC | 2500ºF |
The mechanical properties of HASTELLOY(r) G30(r) alloy are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1096 MPa | 159000 psi |
| Yield strength (@0.2%) | 1000 MPa | 145000 psi |
| Modulus of elasticity (plate heat treated to 1177°C, rapid quenched) | 202 GPa | 29300 ksi |
| Elongation at break (in 50.8 mm) | 12% | 12% |
| Reduction of area | 57% | 57% |
| Hardness, Brinell (converted from Rockwell C hardness) | 304 | 304 |
| Hardness, Knoop (converted from Rockwell C hardness) | 326 | 326 |
| Hardness, Rockwell C | 32 | 32 |
| Hardness, Vickers (converted from Rockwell C hardness) | 316 | 316 |
The thermal properties of HASTELLOY(r) G30(r) alloy are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@30-316ºC/86-601ºF) | 14.4 µm/m°C | 8 µin/in°F |
| Thermal conductivity | 10.2 W/mK | 70.8 BTU in/hr.ft2.°F |
Equivalent materials to HASTELLOY(r) G30(r) alloy are the following:
ASTM B366
ASTM B581
ASTM B582
ASTM B619
ASTM B622
DIN 2.4603
HASTELLOY(r) G30(r) alloy can be machined using conventional techniques employed for iron based alloys. The quality of the alloy can be improved with the utilization of water-base coolants. Heavy duty machining tools and equipment can be used prior to cutting in order to reduce chattering or work-hardening of the alloy.
FormingHASTELLOY(r) G30(r) alloy can be formed through conventional forming methods.
WeldingWelding of HASTELLOY(r) G30(r) alloy is performed through commonly used welding techniques like gas tungsten arc welding, shielded metal-arc welding, metal-arc welding and submerged-arc welding. However, an alloy filler metal that suits this alloy should be used.
Heat TreatmentHASTELLOY(r) G30(r) alloy is capable of being annealed. However, this alloy must be solution-annealed after hot forming in order to restore its resistance to corrosion.
ForgingAs HASTELLOY(r) G30(r) alloy has good ductile property, it can be forged easily.
Cold WorkingHASTELLOY(r) G30(r) alloy can be cold worked using standard tooling methods. As plain carbon steels produce galling, they are not preferred for forming HASTELLOY(r) G30(r) alloy. Galling can be minimized with the help of heavy duty lubricants.
AnnealingHASTELLOY(r) G30(r) alloy can be annealed at 1177ºC (2150ºF) followed by rapid cooling of air and water quenching.
HardeningHASTELLOY(r) G30(r) alloy can be hardened by cold working.
ApplicationsThe following are the major applications of HASTELLOY(r) G30(r) alloy:
Chemical process equipment
Reheater tubes
Pump components
Agitator blades
Reboilers in nuclear waste reprocessing.
Stock
Form |
Specification |
Supply Form |
Others |
Sheet |
Thickness:0.40-4.75mm,General Width:1000,1219,1500mm |
Whole Coil or piece of it |
Cold Annealed,Surface 2B,2E |
Plate |
Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under 10mm plate can be coiled) |
Whole Coil or piece of it |
Single hot rolling,Solid solution annealed state,Surface 1D |
Belt |
Thickness:0.10-3.0mm,Width:50-500mm |
Whole Coil or Specified size |
Cold Annealed,Surface 2B,2E |
Bar & Rod |
Rolled barΦ5-45mm,Length≤1500mm |
Polished Bar(circle,Square) |
Solution annealing,descaling |
Forged barΦ26-245mm,Length≤4000mm | |||
Weld tube |
Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm |
Base on your requirement |
Use for PHE |
Seamless Tube |
Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm |
Base on your requirement |
Use for PHE |
Wire |
Outer diameterΦ0.1-13mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
Forged piece |
roundness and square alloy |
Base on your requirement |
Steel, Alloy |
Flangs |
All kinds of Flangs |
Base on your requirement |
Steel, Alloy |
Welding Material |
Coil wire Φ0.90mm/1.2mm/1.6mm |
Base on your requirement |
Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France. |
Straight WireΦ1.2mm/1.6mm/2.4mm/3.2mm/4.0mm | |||
Welding rodΦ2.4mm/3.2mm/4.0mm | |||
Tube |
Elbow, three links, four links, different diameter size |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
Explosive bonded laminate |
Raw Sheet Thickness≥2mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
