Emerson IC695CPE330 CPU Control Unit Module

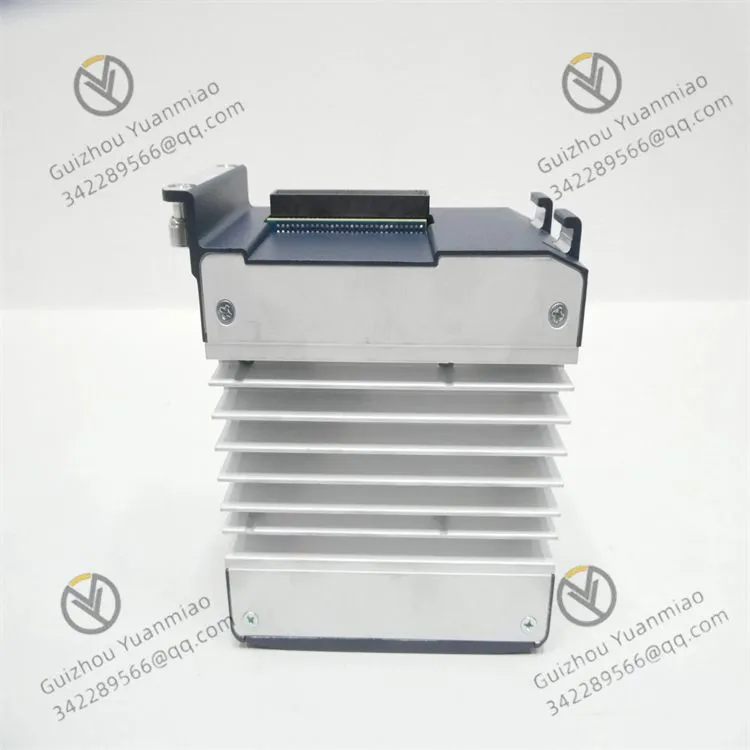

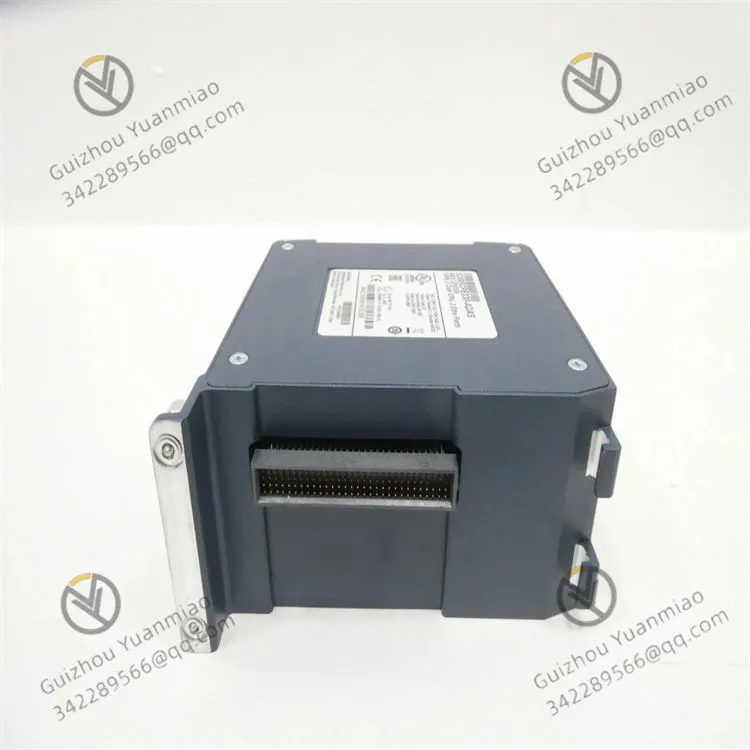

Emerson IC695CPE330 CPU control unit module

The IC695CPE330 is a programmable automation controller module in Emerson's PACSystems™ RX3i series, belonging to the CPU unit. The detailed introduction is as follows:

Performance Parameters

• Processor: Equipped with a 1.6GHz dual-core processor, featuring strong computing power and data processing speed. It can quickly respond to system commands and requests, ensuring real-time performance and high efficiency of the system.

• Memory: Comes with 64MB user memory and 64MB non-volatile memory, enabling storage of a large number of programs and data.

• I/O Capability: Supports up to 32K discrete and analog I/O points, meeting the input/output requirements of large and complex industrial systems.

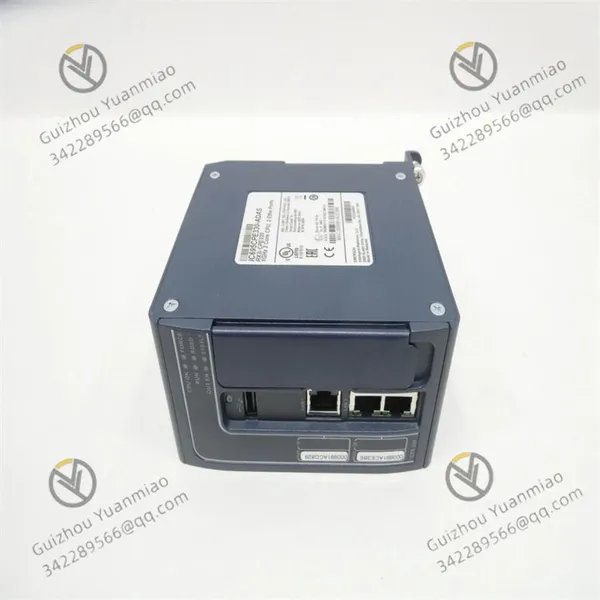

Interface Types

• Ethernet Ports: Features 3 x 10/100/1000Mbps Ethernet ports, including 2 switched ports, which can connect to high-speed Ethernet networks. It supports multiple Ethernet protocols such as SRTP, Modbus TCP/IP, and PROFINET.

• Serial Ports: Supports ASCII serial protocol and Modbus/RTU protocol, enabling connection and data transmission with devices equipped with serial communication interfaces.

• USB Interface: Equipped with 1 x USB-A 2.0 interface, which can be used to connect storage devices (e.g., USB drives) for convenient program upload/download, or connect to smart phones and other devices.

Communication Functions

• Supports multiple communication protocols including PROFINET, EGD, Modbus TCP, PROFIBUS, Genius, DeviceNet, and Modbus RTU, enabling communication with various industrial devices and systems for easy system integration.

• The Ethernet ports have a dedicated microprocessor core, capable of simultaneously executing up to 48 SRTP server connections and 16 Modbus/TCP server connections, with 32 clients per connection.

Programming-Related Features

• Supports programming languages such as Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and C, allowing programmers to choose based on requirements.

• Typically programmed and configured using Proficy Machine Edition software, which features tag-based programming, reusable code libraries, and a test editing mode for convenient online fault troubleshooting.

Other Characteristics

• Supports Media Redundancy (MRP) and PROFINET System Redundancy (PNSR) to enhance system reliability and availability.

• Operates in a temperature range of 0 to 60°C and has certifications from multiple organizations, including UKCA, UL, cUL, RoHS, as well as maritime certifications (ABS, BV), adapting to various industrial environments, including maritime applications.

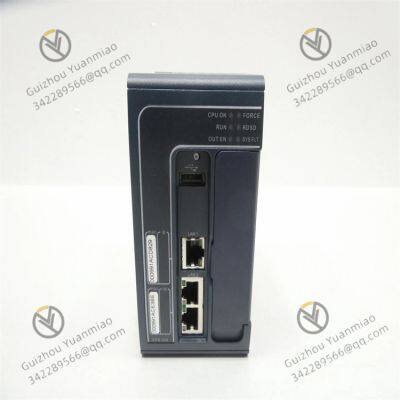

• The module panel is equipped with 6 LED status indicators, buttons, and a 3-position operation mode switch, facilitating users to monitor the module's operating status and perform operations.

•
