Home > Industrial Equipment & Components > Engine & Part > Engine > 2V98F Double Cylinder Diesel Engine for Generator / Water Pump
2V98F Double Cylinder Diesel Engine for Generator / Water Pump
Product Spotlights
Double cylinder, stable & strong power
Air-cooled, easy maintenance
Low fuel consumption & low noise
Reliable, long service life
Wide application for generator, pump, machinery
US$ 1200
10 - 29 Pieces
US$ 1150
30 - 49 Pieces
US$ 1100
≥50 Pieces
Key Specifications
Get Latest Price
Type:
Other, two cylinder air-cooled diesel engine
Warranty:
1 year or 1000 hours
Fuel:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
35 days
Related Products
-
2V88F Double Cylinder Air-cooled Diesel Engine 20hp Spline Shaft / Tapered Shaft / Flat Key ShaftUS$ 650 - 670MOQ: 10 Pieces -
2V92F Double Cylinder Air-Cooled Diesel Engine 22HP Spline Shaft / Tapered Shaft / Flat Key ShaftUS$ 710 - 750MOQ: 10 Pieces
-
2V95F 25HP Diesel Engine Double Cylinder for Generator & Water PumpUS$ 780 - 820MOQ: 10 Pieces
-
2V100F Diesel Engine 30HP Double Cylinder for Generator & Water PumpUS$ 1040 - 1080MOQ: 10 Pieces
-
32HP 2V105F Twin Cylinder Air Cooled Diesel EngineUS$ 1150 - 1190MOQ: 10 Pieces
Type
Other, two cylinder air-cooled diesel engine
Warranty
1 year or 1000 hours
Fuel
Diesel
Speed
High Speed
After-sales Service
Exchange spare parts
Ignition Mode
Compression-Ignition
Cooling Cylinder
Air-Cooled
Intake Pressure Impulse
Naturally Aspirated
Piston Movement
Reciprocating
Number of Strokes
Four-Stroke
Cylinder Arrangement Form
V
Number of Cylinders
Double-Cylinder

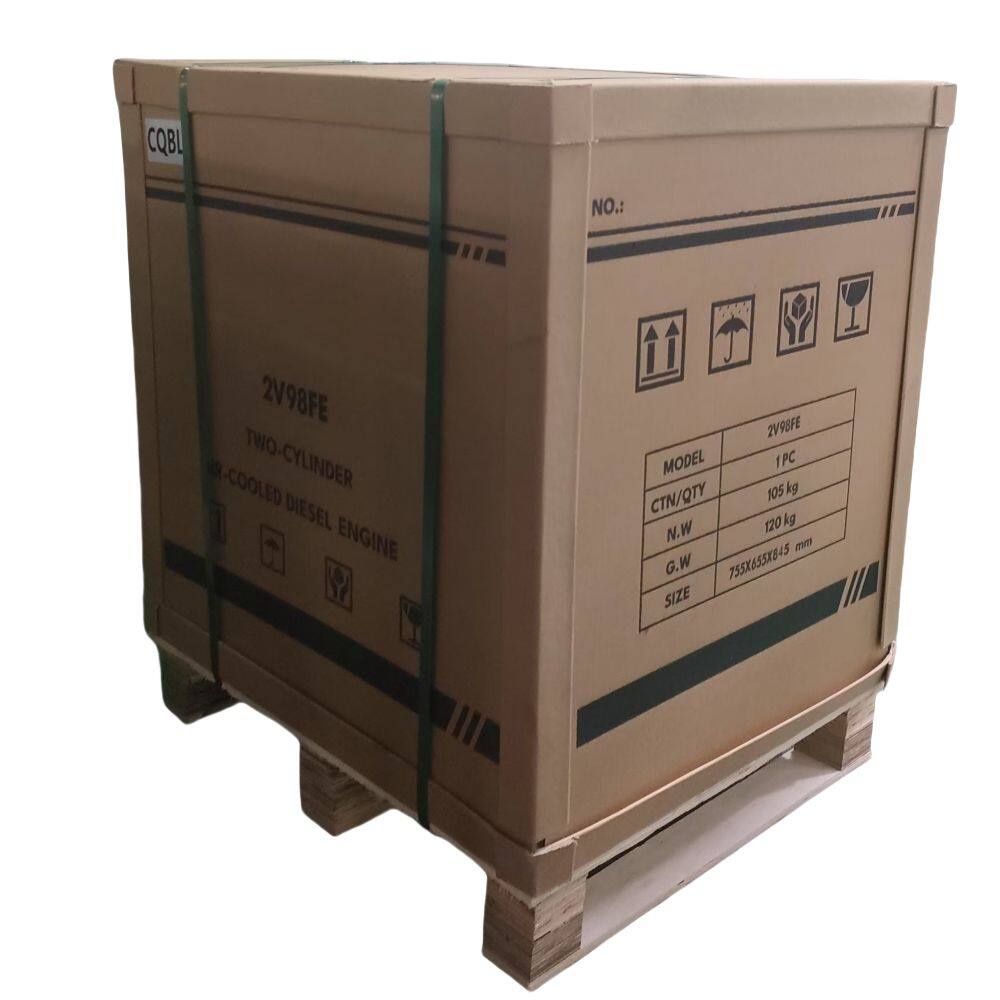

Transport Package
Wooden case
Specification
2V98F
Trademark
Belon Power
Origin
China

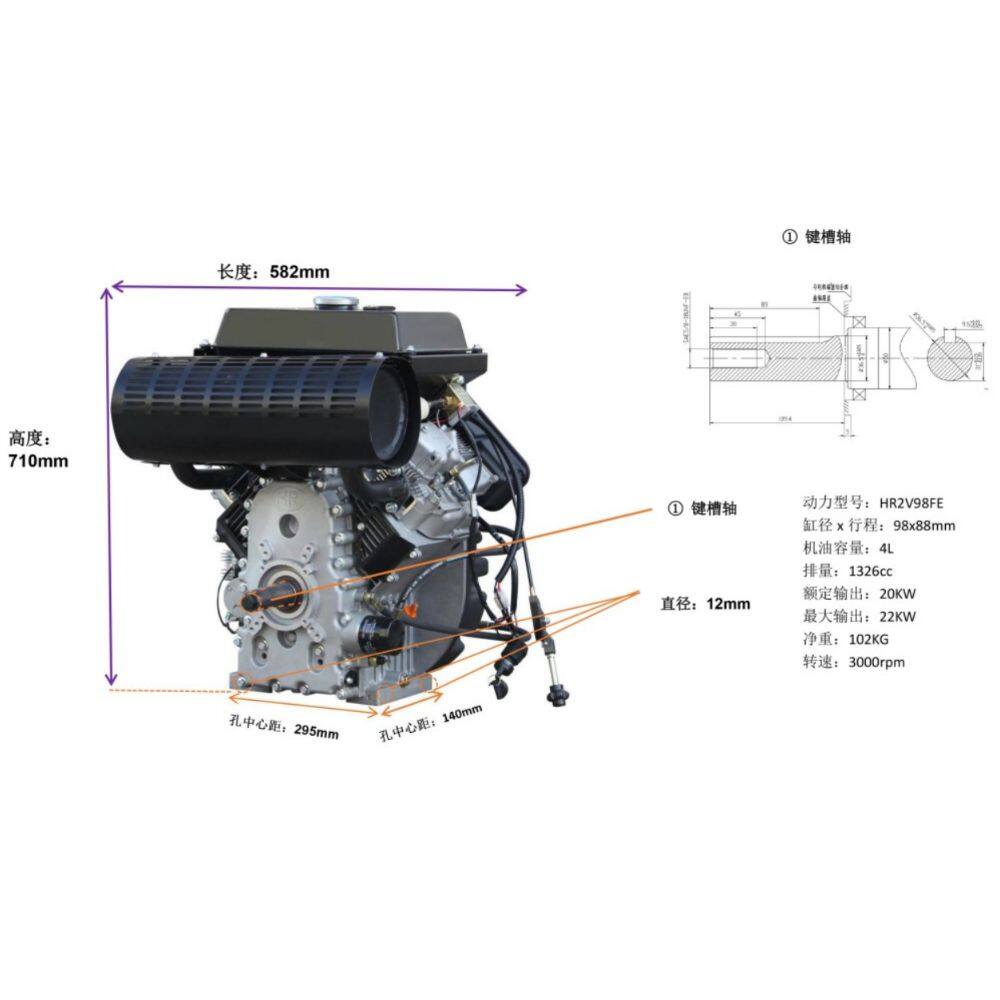

2V98F Double Cylinder Air-Cooled Diesel Engine
| Model | 2V98FA |
| Type | 2 cylinders V, air-cooled, 4 stroke, direct injector |
| Bore(mm) | 98 |
| Stroke(mm) | 88 |
| Displacement(L) | 1.326 |
| Rated power(kw) | 20 |
| Rated speed(r/min) | 3000 |
| Fuel consumption((g/kw.h) | 260 |
| Output shaft rotation direction | Counterclockwise |
| Lubrication method | Pressure splash |
| Start mode | Electric |
| Cooling mode | forced air-cooled |
| Oil tank capacity(L) | 4 |
| Middle height(mm) | 200 |
| Injection pressure(Mpa) | 19 |
| Fuel supply advance angle (top line) | 21±1° |
| Valve clearance(mm) | Intake valve 0.1，Exhaust valve0.15 |
| Size(mm) | 570x580x660 |
| Net weight(kg) | 90 |
| Packing Size (mm) | 755*655*845 |
| Gross Weight (kg) | 120 |
