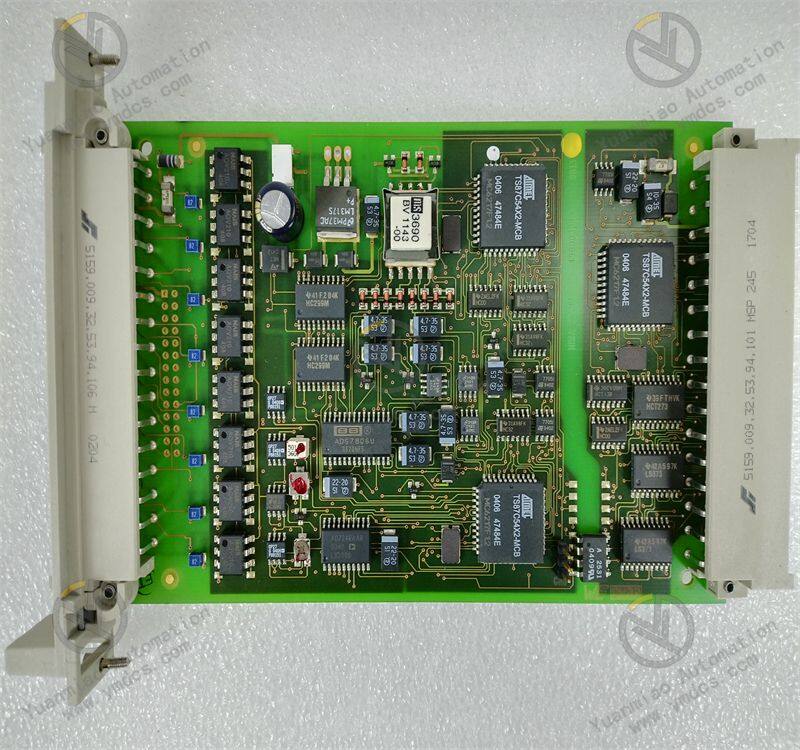

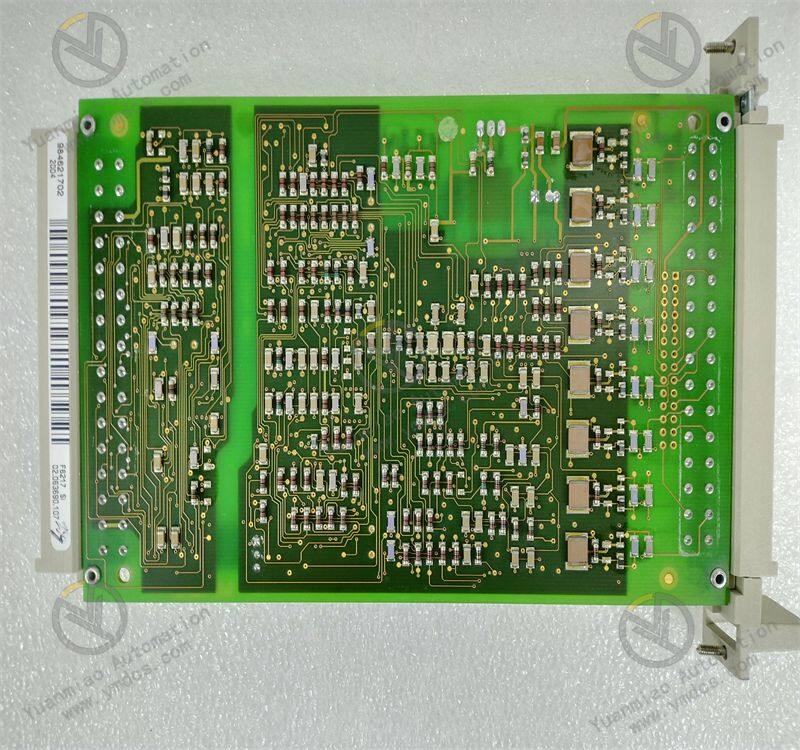

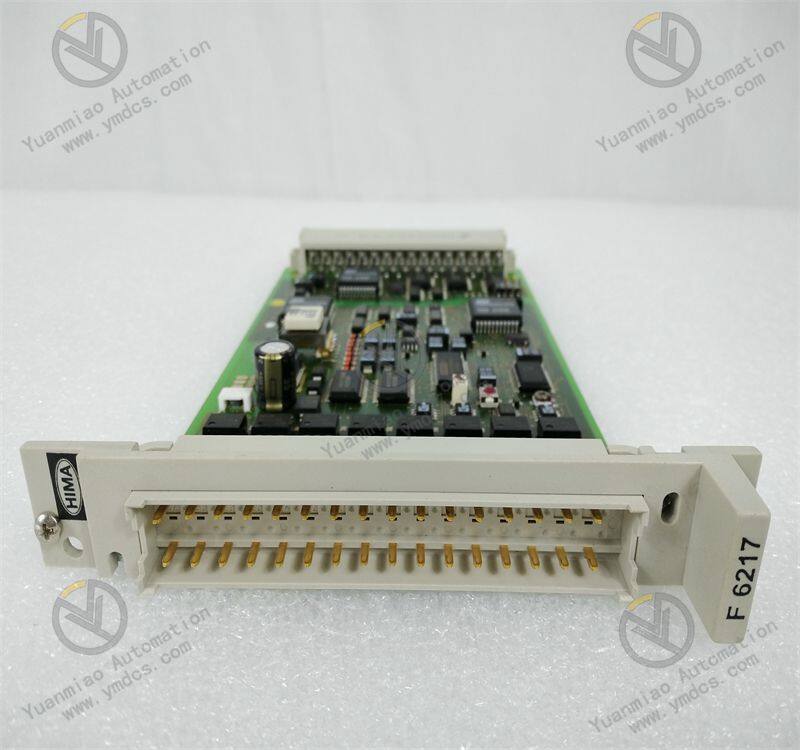

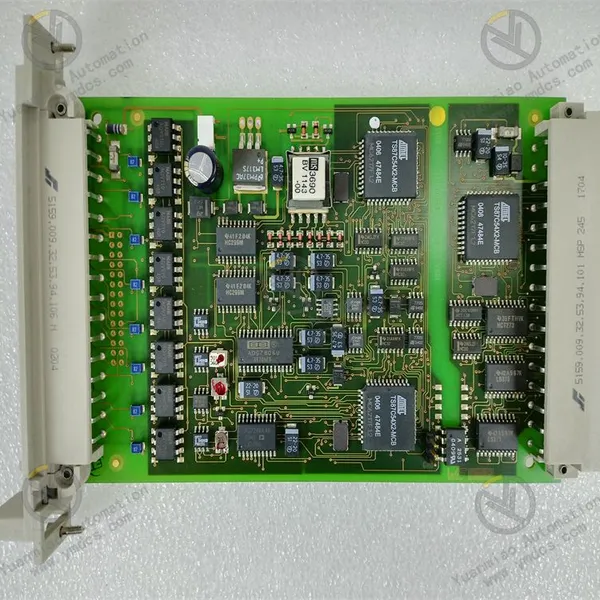

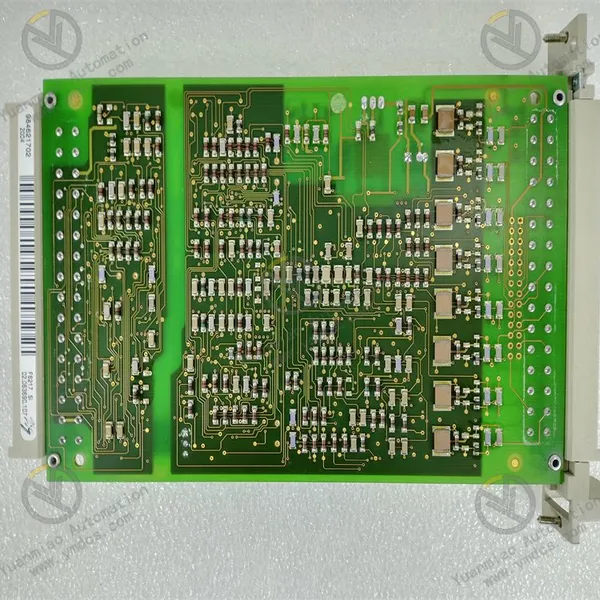

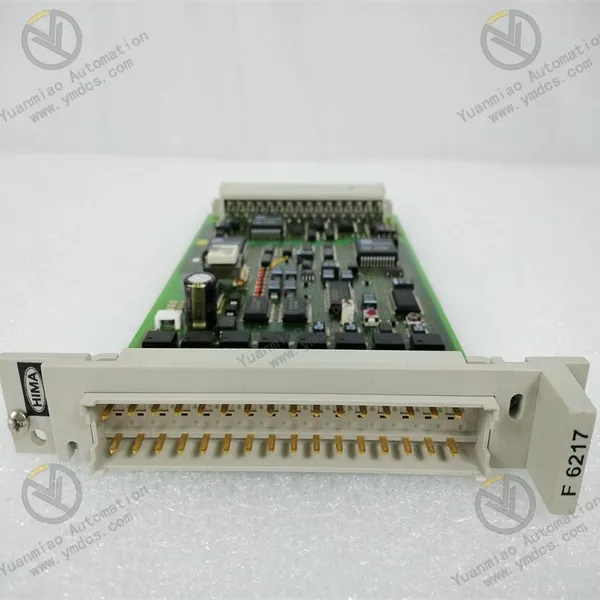

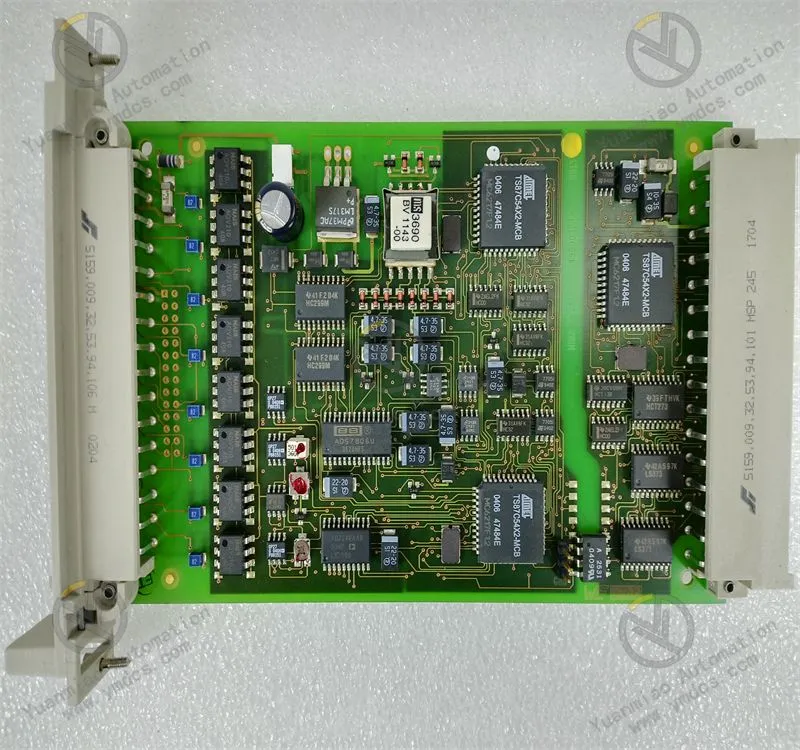

High - Sensitivity F6217 HIMA 8 - Channel Multi - Channel Analog Input Module

High - Sensitivity F6217 HIMA 8 - Channel Multi - Channel Analog Input ModuleOverview

The High - Sensitivity F6217 HIMA 8 - Channel Multi - Channel Analog Input Module is a state - of - the - art product designed to meet the demanding requirements of industrial automation. This module is part of the high - quality offerings from our company, Guizhou Yuanmiao Automation Equipment Co., Ltd., which has been a leading trading company in the field of industrial automation since 2014.

Product Features

1. High Sensitivity

• The F6217 module is equipped with high - sensitivity sensors that can accurately detect even the slightest changes in analog signals. This high - level of sensitivity makes it ideal for applications where precision is crucial, such as in chemical processing plants where small variations in pressure or temperature can have significant impacts on the production process.

• It can measure a wide range of analog values with a high degree of accuracy, ensuring reliable data collection for control and monitoring systems.

•


2. 8 - Channel Design

• With eight independent channels, this module allows for the simultaneous input of multiple analog signals. This multi - channel capability enables users to connect and monitor several different sensors or devices at once, increasing the efficiency of the overall system.

• For example, in a large - scale power generation facility, it can be used to monitor the voltage, current, and temperature of multiple generators simultaneously, providing comprehensive data for system management.

3. Global Universal Model

• The module is designed as a global universal model in terms of material, signal, mathematical model, structure, and task. This means that it can be easily integrated into various industrial systems around the world, regardless of the specific requirements of different regions or industries.

• It is compatible with a wide range of control systems and communication protocols, making it a versatile choice for international customers.

4. Automatic Control Function

• The F6217 features an automatic control function that can process the incoming analog signals and trigger appropriate actions based on pre - set parameters. This reduces the need for manual intervention and improves the real - time response of the system.

• In an automotive manufacturing plant, for instance, it can automatically adjust the production line speed based on the detected pressure and flow rate of hydraulic systems.

5. New Condition

• All F6217 modules are in new condition, ensuring reliable performance and a long service life. New modules are less likely to experience malfunctions and require less maintenance compared to used ones, providing peace of mind for customers.

Technical Specifications

• Manufacturer : HIMA

• Product No. : F6217

• Product type : 8 fold Analog input module, safety related

• for current inputs 0/4...20 mA, voltage inputs 0...5/10 V, with safety isolation

• resolution 12 bits

• tested according to AK6/SIL3

• Input voltage 0...5.5 V

• Input current 0...22 mA (via shunt)

• Resolution : 12 bit, 0 mV = 0 5.5 V = 4095

• Input resistance : 100 kOhm

• Shipping weight : 5 Kg

  Related Products

  HIMA F8650A	HIMA F2201
  HIMA F3322	HIMA F3102
  HIMA F7130A	HIMA F3105
  HIMA F3221	HIMA F3108
  HIMA F3222	HIMA F3113
  HIMA F3223	HIMA F3113a
  HIMA F3224	HIMA F3117
  HIMA Z7136	HIMA F3209

1. Input Signal Range

• The module can accept a wide range of analog input signals, typically from 0 - 10V DC or 4 - 20mA. This flexibility allows it to be used with different types of sensors and devices that output signals within this range.

2. Accuracy

• It offers an accuracy of up to ±0.1% of the full - scale range, ensuring highly precise measurement and control. This high level of accuracy is essential for applications where small errors can lead to significant problems.

3. Sampling Rate

• The sampling rate of the F6217 is up to 100 samples per second, enabling it to capture rapid changes in analog signals. This high sampling rate is crucial for applications that require real - time monitoring, such as in high - speed manufacturing processes.

Applications

1. Industrial Automation

• In industrial automation systems, the F6217 can be used to monitor and control various processes, such as temperature, pressure, and flow rate in chemical, pharmaceutical, and food processing industries.

2. Power Generation

• For power generation plants, it can monitor the electrical parameters of generators, transformers, and other equipment, ensuring stable and efficient power supply.

3. Automotive Manufacturing

• In the automotive industry, it can be used to control and monitor the performance of engines, transmissions, and other key components during the manufacturing process.

Company Support

Guizhou Yuanmiao Automation Equipment Co., Ltd. has a professional team of over 135 people across sales, tech, operations, and post - support. Our sales team of 80 professionals can provide tailored automation solutions for your specific needs. The technical team of 10 senior engineers can offer rapid support for DCS and robotics, resolving 98% of the annual tickets. The operations team manages the "Yimai" platform, optimizing listings, orders, and logistics. The post - support team ensures backend efficiency, handling a large number of inquiries and ensuring compliance. With our company's support, you can be confident in the performance and long - term use of the F6217 HIMA 8 - Channel Multi - Channel Analog Input Module.
