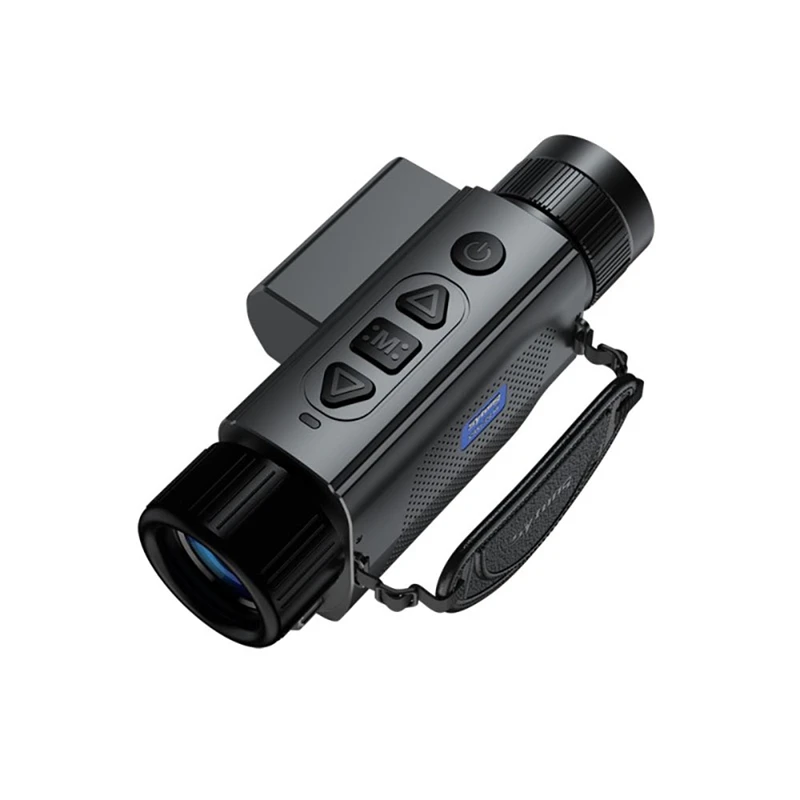

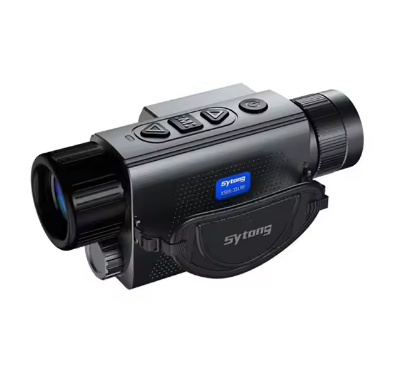

XS03-35LRF Thermal Handheld Monocular Rangefinder 384*288 Night Vision Resolution Scope Outdoor Handheld Thermal Imager High

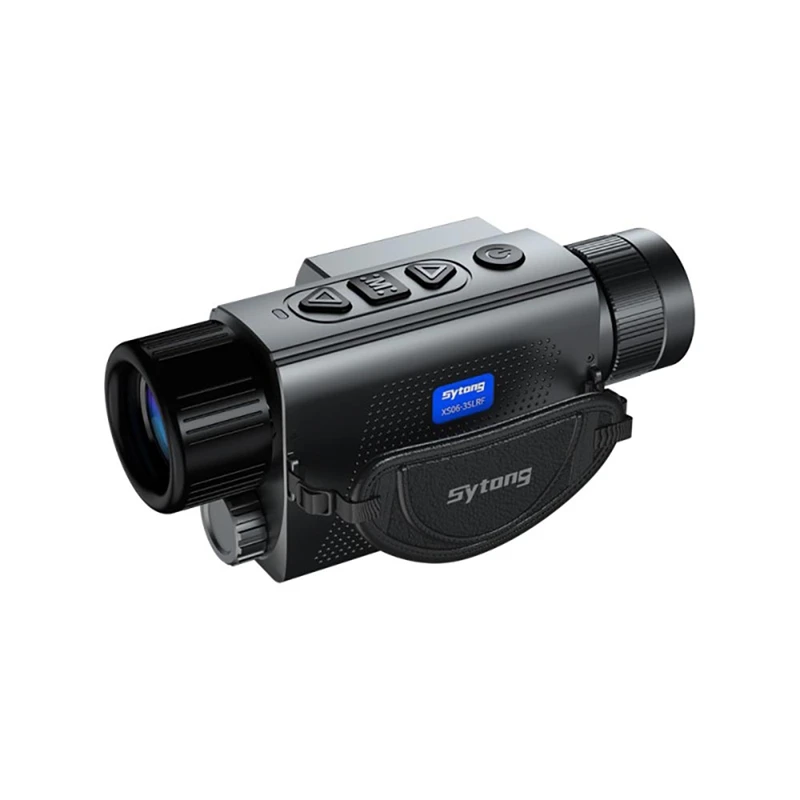

XS03-35LRF Thermal Handheld Monocular Rangefinder 384*288 Night Vision Resolution Scope Outdoor Handheld Thermal Imager High photo-1

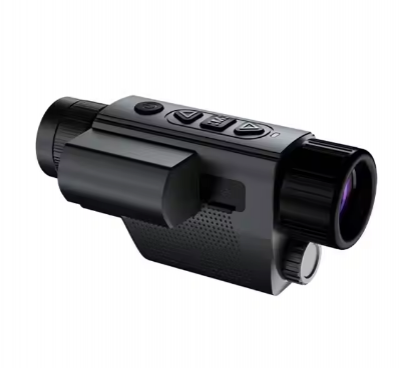

XS03-35LRF Thermal Handheld Monocular Rangefinder 384*288 Night Vision Resolution Scope Outdoor Handheld Thermal Imager High photo-2

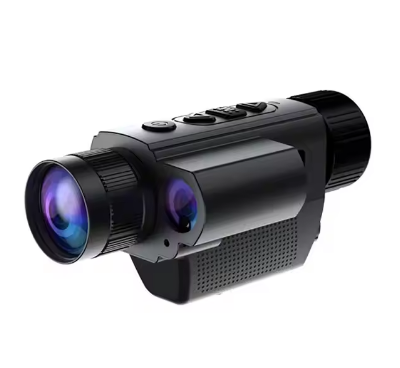

XS03-35LRF Thermal Handheld Monocular Rangefinder 384*288 Night Vision Resolution Scope Outdoor Handheld Thermal Imager High photo-3

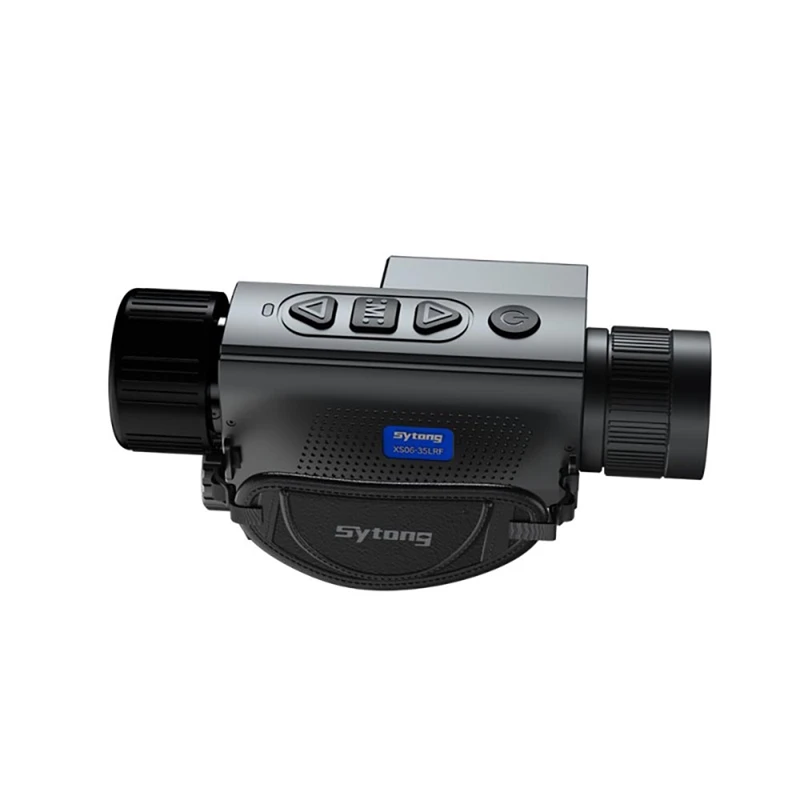

XS03-35LRF Thermal Handheld Monocular Rangefinder 384*288 Night Vision Resolution Scope Outdoor Handheld Thermal Imager High photo-4

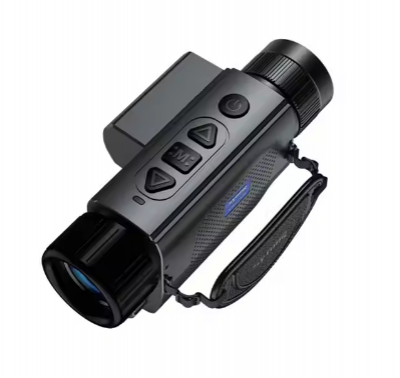

XS03-35LRF Thermal Handheld Monocular Rangefinder 384*288 Night Vision Resolution Scope Outdoor Handheld Thermal Imager High photo-5
US$ 909 - 999 MOQ: 1 Set
Key Specifications
Get Latest Price
Style:
Handheld
Structure:
Monocular
Kind:
Thermal Imaging Night Vision
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Style Handheld
Structure Monocular
Kind Thermal Imaging Night Vision
Operation Principle Infrared Night Vision
Customized Customized
Shell Material Plastic
Type Night vision camera, Night Vision Monocu
Sensor Element Type CMOS
Brand Name SYTONG
Model Number XS03-35LRF
Screen Size 0.39inch
Memory Card Type SD
Optical Zoom < 10x
Image Stabilization Yes
MegaPixel 12μm
Special Feature wifi
Origin Beijing, China
Product Description
Specification
Model
XS03-19LRF
XS03-25LRF
XS03-35LRF
XS06-25LRF
XS06-35LRF
Type
uncooled
uncooled
uncooled
uncooled
uncooled
Resolution, pixels
384×288
384×288
384×288
640×512
640×512
Frame rate
50 Hz
50 Hz
50 Hz
50 Hz
50 Hz
Pixel pitch
12μm
12μm
12μm
12μm
12μm
NETD
<25mK
<20mK
<20mK
<18mK
<18mK
Optical Characteristics
Objective lens
f19 / F1.0
f25 / F1.0
f35 / F1.0
f25 / F1.0
f35 / F1.0
Magnification
1.5X
2X
2.8X
1.2X
1.7X
Continuous digital zoom
x1 / x2 / x4 / x8
x1 / x2 / x4 / x8
x1 / x2 / x4 / x8
x1 / x2 / x4 / x8
x1 / x2 / x4 / x8
Eye relief
30 mm
20 mm
20 mm
20 mm
20 mm
Dioptre adjustment
+5/-5 D
+5/-5 D
+5/-5 D
+5/-5 D
+5/-5 D
Detection distance(1.7m high 0.5m wide)
955m
1250m
1750m
1250m
1750m
Close-up range
5m-∞
5m-∞
5m-∞
5m-∞
5m-∞
Field of view
13.8°x10.4°
10.5°x7.9°
7.5°x5.7°
17.5°x13.1°
12.5°x9.4°
Display
Colour Palettes
Black Hot, White Hot, Red Hot, Fusion, Sky
Black Hot, White Hot, Red Hot, Fusion, Sky
Black Hot, White Hot, Red Hot, Fusion, Sky
Black Hot, White Hot, Red Hot, Fusion, Sky
Black Hot, White Hot, Red Hot, Fusion, Sky
Type / Resolution
0.39 inch / AMOLED / 1024X768
0.39 inch / AMOLED / 1024X768
0.39 inch / AMOLED / 1024X768
0.39 inch / AMOLED / 1024X768
0.39 inch / AMOLED / 1024X768
Operational characteristics
3D Gyroscope
no
no
no
no
no
Power supply
3-4.2 V
3-4.2 V
3-4.2 V
3-4.2 V
3-4.2 V
Battery
18650 /3200mAh
18650 /3200mAh
18650 /3200mAh
18650 /3200mAh
18650 /3200mAh
External power supply
5V (USB)
5V (USB)
5V (USB)
5V (USB)
5V (USB)
Operating time (at t=22℃)
5 hours
5 hours
5 hours
5 hours
5 hours
Waterproof rating
IP66
IP66
IP66
IP66
IP66
Operating temperature
﹣20℃…50℃
﹣20℃…50℃
﹣20℃…50℃
﹣20℃…50℃
﹣20℃…50℃
Dimensions
156X54X75mm
156X54X75mm
156X54X75mm
156X54X75mm
156X54X75mm
Weight
308g
308g
308g
308g
308g
Video recorder
Video / photo resolution
1024×768
1024×768
1024×768
1024×768
1024×768
Video / photo format
.mp4 / .jpg
.mp4 / .jpg
.mp4 / .jpg
.mp4 / .jpg
.mp4 / .jpg
Memory type
32G memory card
32G memory card
32G memory card
32G memory card
32G memory card
Wifi channel
Frequency
2.4GHz
2.4GHz
2.4GHz
2.4GHz
2.4GHz
Standard
802.11 b/g
802.11 b/g
802.11 b/g
802.11 b/g
802.11 b/g
Line-of-sight reception range:
15m
15m
15m
15m
15m
Rangefinder
Wavelength
905nm
905nm
905nm
905nm
905nm
Max. measuring range
1200m
1200m
1200m
1200m
1200m
Measuring accuracy
+/- 1m
+/- 1m
+/- 1m
+/- 1m
+/- 1m
