AM03-35LRF Thermal Imaging Scope 384x288 High Resolution Night Vision Scope With Rangefinder Thermal Scope for Hunting

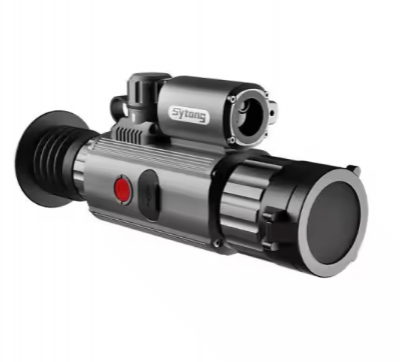

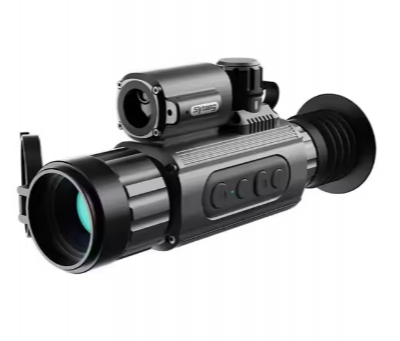

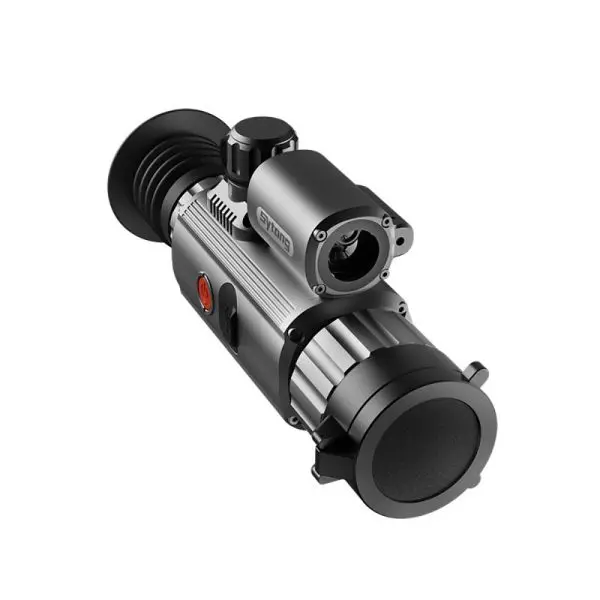

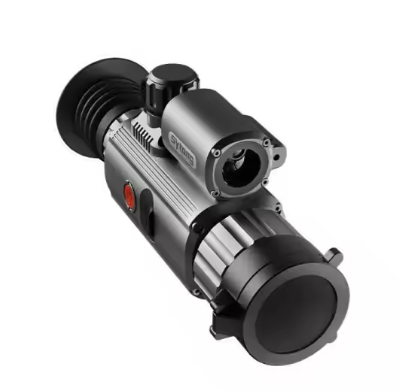

AM03-35LRF Thermal Imaging Scope 384x288 High Resolution Night Vision Scope With Rangefinder Thermal Scope for Hunting photo-1

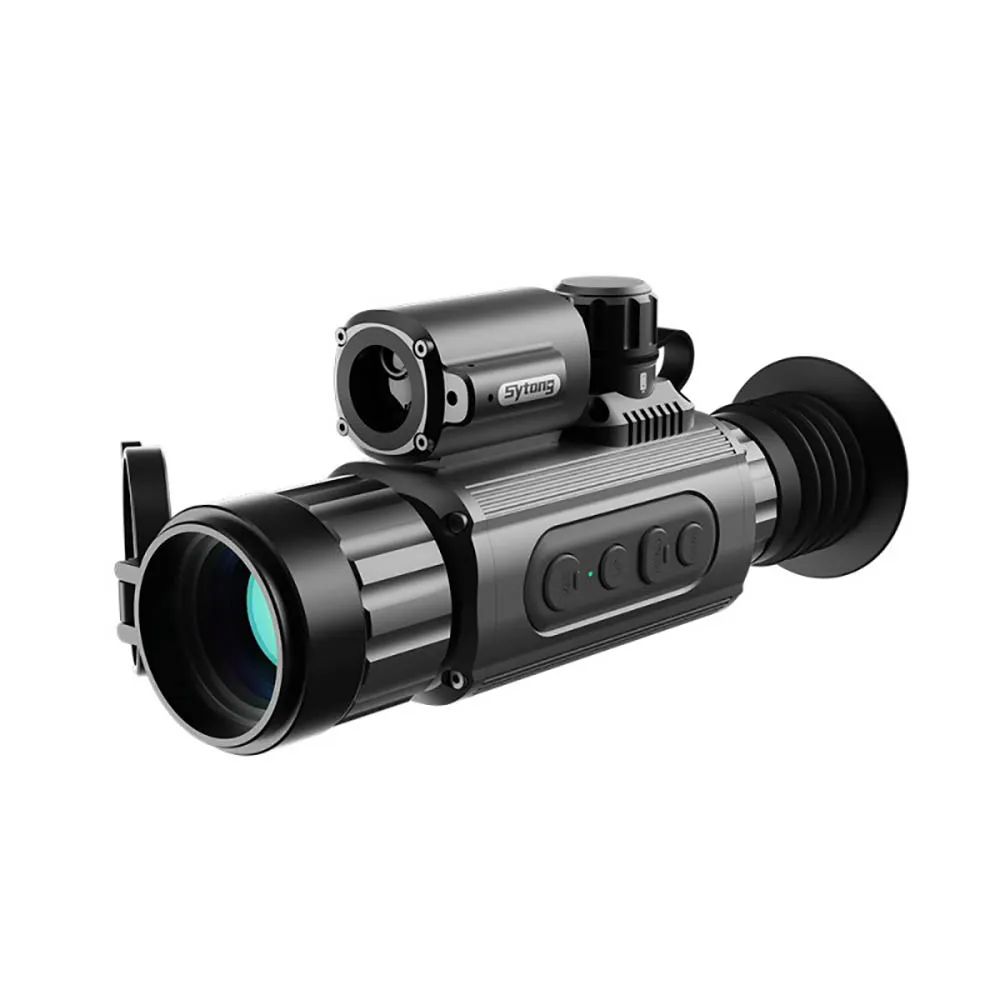

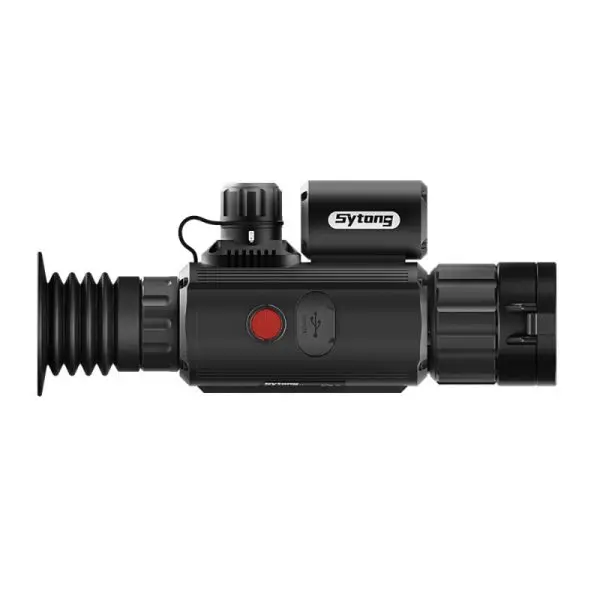

AM03-35LRF Thermal Imaging Scope 384x288 High Resolution Night Vision Scope With Rangefinder Thermal Scope for Hunting photo-2

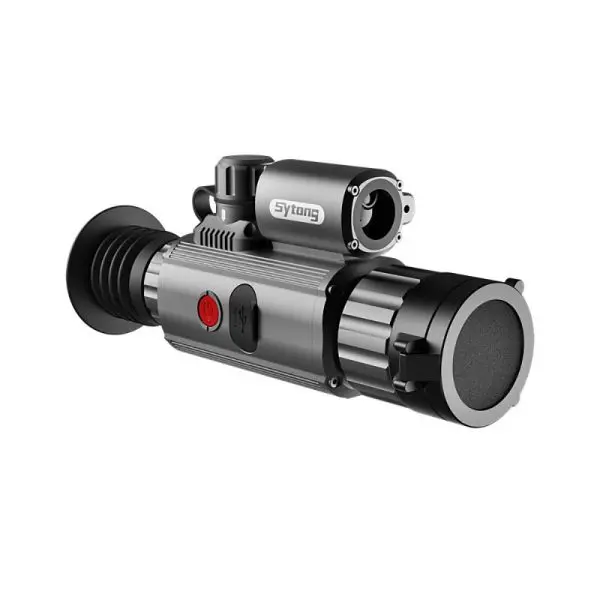

AM03-35LRF Thermal Imaging Scope 384x288 High Resolution Night Vision Scope With Rangefinder Thermal Scope for Hunting photo-3

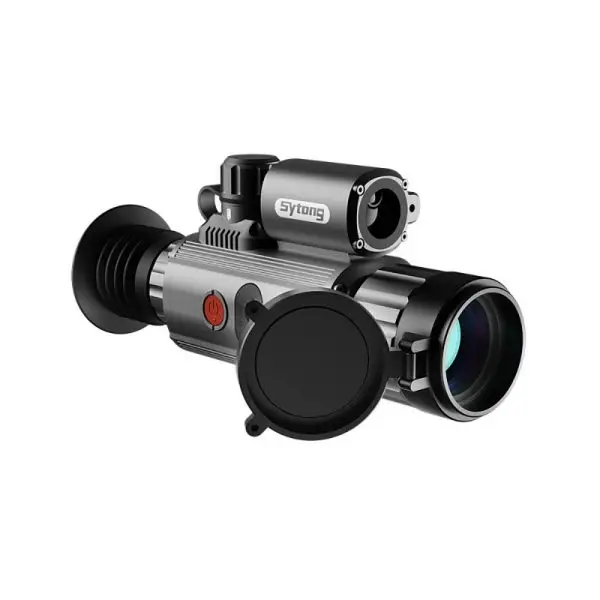

AM03-35LRF Thermal Imaging Scope 384x288 High Resolution Night Vision Scope With Rangefinder Thermal Scope for Hunting photo-4

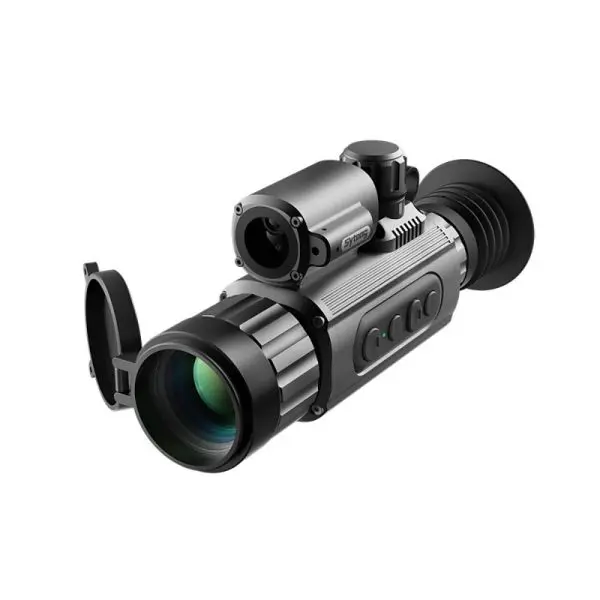

AM03-35LRF Thermal Imaging Scope 384x288 High Resolution Night Vision Scope With Rangefinder Thermal Scope for Hunting photo-5
US$ 1450 - 1860 MOQ: 1 Set
Key Specifications
Get Latest Price
Style:
Handheld
Structure:
Monocular
Kind:
Thermal Imaging Night Vision
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Style Handheld
Structure Monocular
Kind Thermal Imaging Night Vision
Operation Principle Infrared Night Vision
Customized Customized
Shell Material Plastic
Type Night vision camera, scope mount accesso
Sensor Element Type CMOS
Brand Name SYTONG
Model Number AM03-35LRF
Screen Size 0.39inch
Memory Card Type SD
Optical Zoom 1x - 8x
Image Stabilization Yes
MegaPixel 12μm
Special Feature wifi
Origin Beijing, China



Product Description
Specification
Item
AM03-35/50LRF
AM06-50LRF
Type
Uncooled VOx
Uncooled VOx
Frame Rate
50 Hz
50 Hz
NETD
≤18mk
≤18mk
Resolution
384x288 Super Sensitive
640x512 Super Sensitive
Pixel Size
12μm
12μm
Optical Characteristics
Objective Lens
35mm/50mm
50mm
Digital zoom
1 x/ 2x / 4x / 8x
1 x/ 2x / 4x / 8x
DioptreAdjustment
+5/-5 D
+5/-5 D
FOV
7.5°x5.7° /5.3°x4.0°
8.8°x6.6°
Magnification
2.8X / 4X
2.5X
Eye Relief
50 mm
50 mm
Focus scope Range
5m-∞
5m-∞
Detection Distance
(Target size:1.7mx0.5m)
1750m /2500m
2500m
Display
operating Mode
white Hot, SKY Mode,
Black Hot, Red Hot, Fusion
white Hot, SKY Mode,
Black Hot, Red Hot, Fusion
Type / Resolution
0.39 inch/ OLED/ 1024X768
0.39 inch/ OLED/ 1024X768
Operational characteristics
3D Gyroscope
yes
yes
power supply
3 -4 . 2 V
3 -4 . 2 V
External power supply
5V(USB)
5V(USB)
Max. Recoil Power, Joules
10000
10000
Dimensions
209.5X62.2X87.3mm
209.5X62.2X87.3mm
waterproof Rating
IP66
IP66
Battery
18650/3500mAh
18650/3500mAh
Operating Time
(At Temperature =22℃)
5 hours
5 hours
Operating Temperature
-20℃ to +50℃
-20℃ to +50℃
Weight (Without Battery/
Mount)
633g
633g
Video Recorder
Video / Photo Resolution
1024x768
1024x768
Video / Photo Format
.mp4 / .jpg
.mp4 / .jpg
Supported Memory Type
Built-in 32G Memory card
Built-in 32G Memory Card
Wifi Channel
Frequency
2.4GHz
2.4GHz
Standard
802.11 b/g
802.11 b/g
wiFi signal Range
15m
15m
Rangefinder
Wavelength
905nm
905nm
Max. Measuring Range
800m
800m
Measuring Accuracy
+ /- 1m
+ /- 1m
