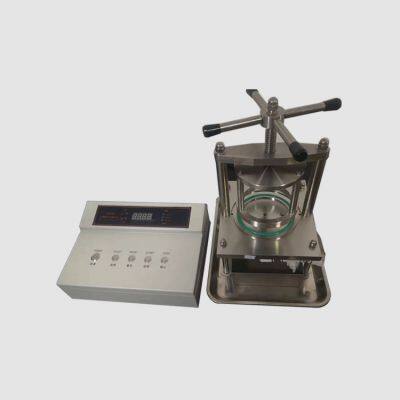

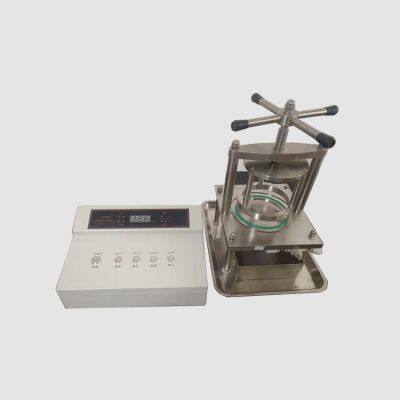

YG825 Static Water Pressure Tester

[Scope of application]:

Used for the determination of fabric resistance to static water pressure, also used to determine the resistance to static water pressure of coating materials.

[Method standard]: GB4744-84 ISO-811

[Product Features]:

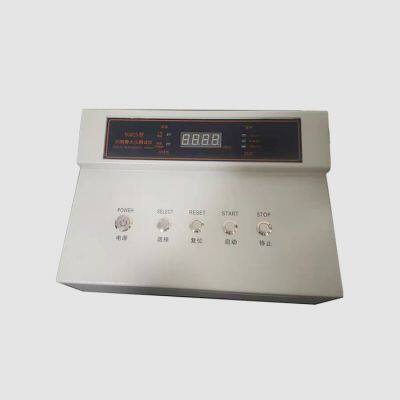

1. This instrument is controlled by microcomputer and displayed in digital form.

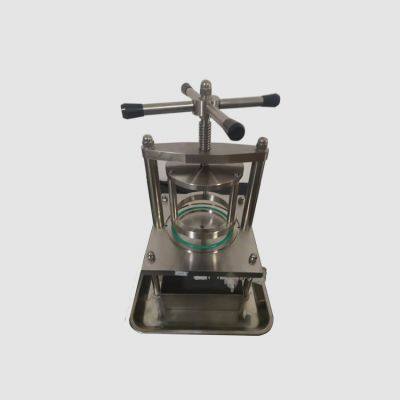

2. All sample fixing fixtures are made of ** stainless steel.。

3. Select high precision pressure sensor, microcomputer control, the measurement results are accurate and stable, reliable.

4. The instrument is simple and convenient to operate.

[ technical parameter ]：

1. Model: YG825

2. Sample chuck area: 100cm2

3. Range: 0-5000mm (optional) 0-10000mm (optional) 0-20000mm (optional) 0-30000mm (optional)

4. Rise speed: 10cm/min, 60cm/min, 100cm/min

5. Weight: 20kg

6. Power supply: AC220V

[hardware configuration ]：

1. High precision pressure sensor

2. Use brand electronic pump

3. Import computer master control chip
