20 Kg/bag 25Kg/bag 50Kg/bag Woven Bag Bagger Bagging Sewing System Powder Granular Weighing and Packing Machine
20-50 kg Fully Automatic Feed Packaging Machine - Efficient, Accurate & Reliable
Boost your feed production efficiency with our fully automatic 20-50 kg feed packaging machine, designed for high-speed, precision weighing and bagging of animal feed, pellets, and granules. Ideal for large-scale feed mills, farms, and agribusinesses, this robust system ensures fast, consistent, and dust-free packaging with minimal manual intervention.
Fully automatic bagging machine is used for automatic weighing and packing for granule&powder material. Suitable for extruded material, premix automatic packaging .

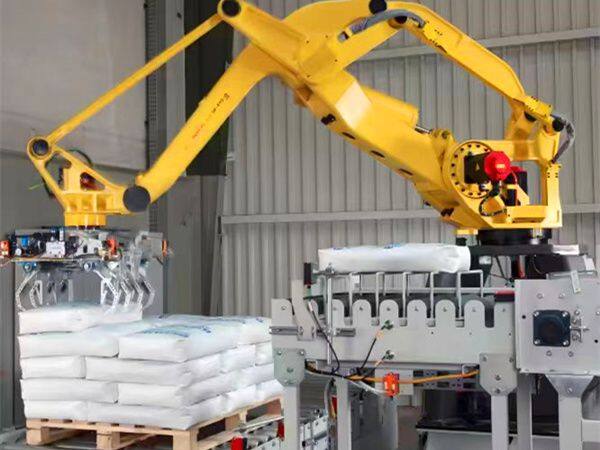

Its designed to solve the problems of less available workers, higher labor cost and unstable manual operating quality for granule material big bag packing requirement. And the relevant equipments like check weigh-er and robot palletizing system are also available.
High-Speed Weighing & Filling - Advanced load cell technology ensures ±0.2% weighing accuracy for 20-50 kg bags.
Full Automation - Auto weighing, filling, sewing (or heat sealing), and conveying for maximum productivity.
Durable Construction - Heavy-duty stainless steel & carbon steel frame for long-lasting performance.
Dust-Free Operation - Sealed design with optional dust collection system for a cleaner workplace.
User-Friendly Touchscreen - Intuitive PLC control with preset programs for different bag sizes & materials.
Wide Compatibility - Handles woven PP bags, paper bags, and laminated sacks with ease.
Low Maintenance - Servo motors & premium components reduce downtime and operational costs.
More Detailed adavantages
Unit configuration: material silo, digital weigh-er, packing system, conveying system and sewing system.
Material: contact parts S.S 304 (or S.S 316L if need)
Package range:15-25kg;25-50kg
Packing speed: 8~12 bags/min
10.2inch touch Screen,support online detection,parameter setting,alarm functions etc.
Electric parts brand: Siemens/Omron/Delta/ABB etc
Applied material: grain, animal feed, NPK or compound fertilizer, chemical material etc.
Parameter
| Machine Name | automatic bag packing machine |
| Model No. | TS-600 |
| Machine configuration | TS-50 weigher+TS-600 packaging machine+folding sewing machine+product conveyor |
| Packing Speed | 8-12 Bags / min( Varies depending on material status and measuring range) |
| Packing Range | 15-25kg ; 25-50kg |
| Accuracy | ±0.1% ~±0.3%(Varies depending on material status and measuring range) |
| Bag Size | L:750-950 W:400-500 ; L:900-1050 W:500-650 |
| Bag requirements |
1.The melting point of the outer bag is 140-150 degrees Celsius, and the melting point of the inner bag is 100 degrees Celsius (30-50 degrees Celsius temperature difference between the inner and outer bags). 2.The distance between the material and the top of the bag mouth is not less than 250mm 3.The inner PE bag and the outer bag mouth should be flush at the top and stitched together |
| Bag Type | The inner bag is hot sealed with PE film, and the outer bag is folded and stitched |
| Total Power | 12kw |
| Maximum air consumption | 2m3/min |
About us
SLD is a R & D and production enterprise specializing in solid material packaging solution. Our product portfolio includes bagging scales and feeders, open mouth bagging machines, valve bag fillers, jumbo bag filling machine, automatic packing palletizing plant, vacuum packaging equipment, robotic and conventional palletizers, stretch wrappers, conveyors,telescopic chute, flow meters, etc. SLD has a group of engineers with strong technical strength and rich practical experience, which can help customers with one-stop service from solution design to product delivery, freeing workers from the heavy or unfriendly working environment, improving production efficiency, and will also create considerable economic returns for customers.
