Feed Packaging Machine Automated Palletizing System Palletizing Robot
Product Description

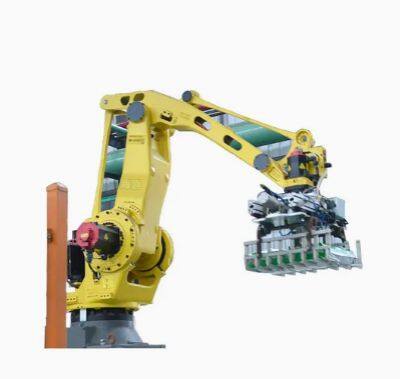

The robot palletizing system is an important equipment in automated logistics. According to the predetermined logistics process, it automatically moves the objects to be transported to the pallet under the control of the electronic control system. It is characterized by large working area and high speed;
More Detailed adavantages
The supporting operating software can help customers to quickly debug and program a variety of stack types: it can also be configured with remote control functions, and professionals can maintain the robot through the network.
Parameter
| Machine Name | Palletizing robots | |
| Model No. | IRB 460-110/2.4 | IRB 660-180/3.2 |
| Wrist weight | 110kg | 180kg |
| Maximum arm span radius | 2.4m | 3.2m |
| Number of axles | 4 | 4 |
| Position Accuracy | 0.2mm | 0.2mm |
| IP Grade | IP67 | IP67 |
| IRC5 control cabinet | ||
| Control hardware: | multi-processor system, PCI bus, Pentium CPU, large capacity flash memory (256M), 20s UPS backup power supply | |
| Control software: | BaseWare robot operating system, powerful PAPID programming language, PC-DOS text format, software factory pre-installed, coexist on CD-ROM | |
| Power supply: | 3-phase four-wire 400W (+10%, -15%), 48.5-61.8Hz | |
| Rated power: | 13KWA (transformer capacity) | |
| Protection class: | IP54 | |
| Safety: | emergency stop, automatic mode stop, test mode stop, etc | |
| Input/Output: | digital DC 24V input/output board | |
Bulk bag filling station
Liquid filling machine
Stretch hood machine
Pallet wrapper machine
Bag weighing filling machine
Bulk bag discharger machine
Palletizer
Crushing equipment
web:
email: shiyan-110@163.com
whatsapp: 0086 135 0624 5149
we can manufacture according to your requirement. so welcome your enquiry.
