Resolution 640*512 Thermal Monocular Scope GM06-50LRF Tube Thermal Imaging for Hunting 50mm With LRF Thermal Sight

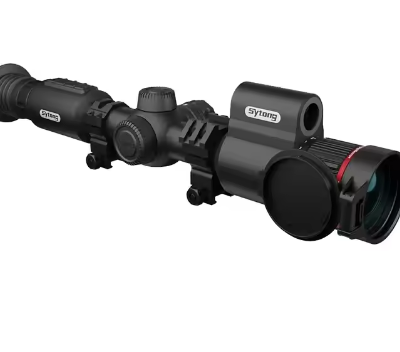

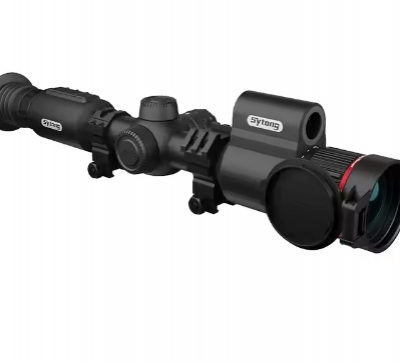

Resolution 640*512 Thermal Monocular Scope GM06-50LRF Tube Thermal Imaging for Hunting 50mm With LRF Thermal Sight photo-1

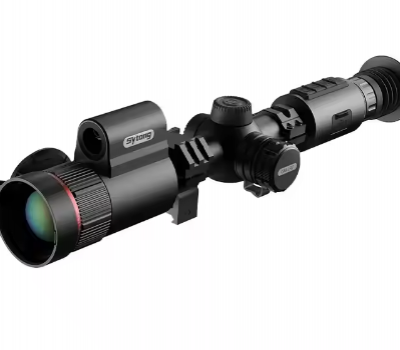

Resolution 640*512 Thermal Monocular Scope GM06-50LRF Tube Thermal Imaging for Hunting 50mm With LRF Thermal Sight photo-2

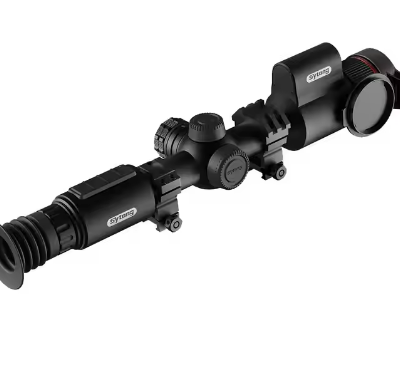

Resolution 640*512 Thermal Monocular Scope GM06-50LRF Tube Thermal Imaging for Hunting 50mm With LRF Thermal Sight photo-3
Resolution 640*512 Thermal Monocular Scope GM06-50LRF Tube Thermal Imaging for Hunting 50mm With LRF Thermal Sight photo-4
Resolution 640*512 Thermal Monocular Scope GM06-50LRF Tube Thermal Imaging for Hunting 50mm With LRF Thermal Sight photo-5
US$ 2399 1 - 9 Set
US$ 2299 ≥10 Set
Key Specifications
Get Latest Price
Style:
Handheld
Structure:
Monocular
Kind:
Thermal Imaging Night Vision
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Style Handheld
Structure Monocular
Kind Thermal Imaging Night Vision
Operation Principle Infrared Night Vision
Customized Customized
Shell Material Plastic
Brand Name SRAY
Model Number CS50
Function Video Recording, WIFI, Waterproof, Retic
Brightness Levels 5 Levels
Camera Frame Rate 50Hz
customized support OEM
Origin Guangdong, China

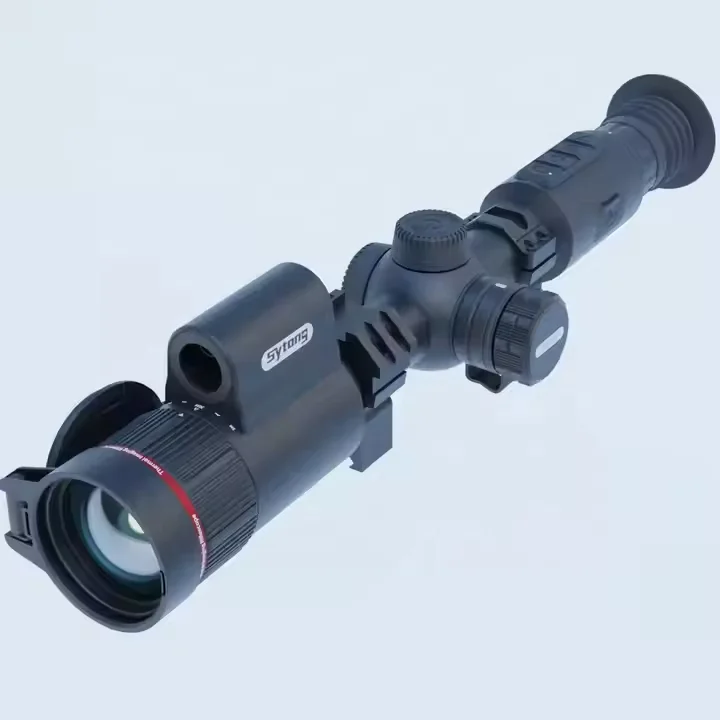

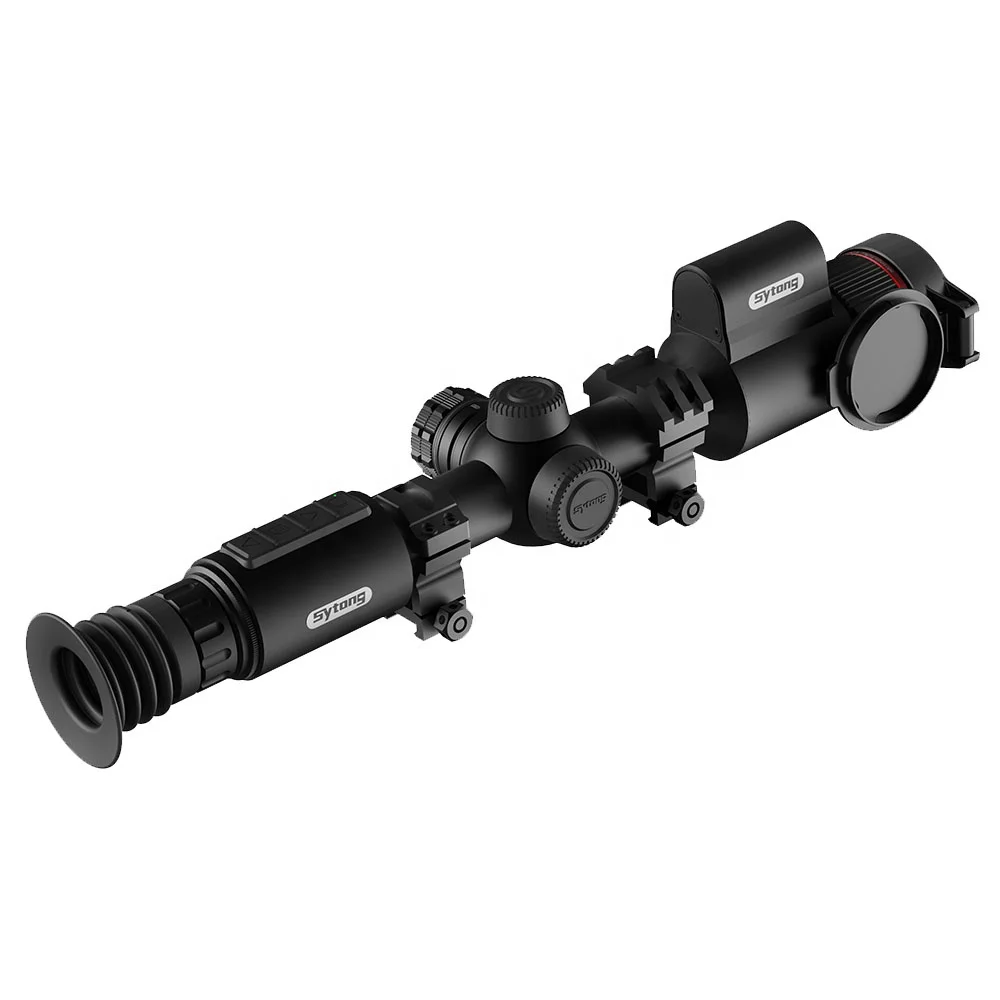

Product Picture
Specification
Sensor
Model
GM06-35LRF
GM06-50LRF
Type
uncooled
Resolution
640×512
Frame rate
50 Hz
Pixel pitch
12μm
NETD
Optical Characteristics
Objective lens
35mm / F1.0
50mm / F1.0
Magnification
1.7X
2.5X
Continuous digital zoom
x1 / x2 / x4 / x8
Eye relief
50mm
Dioptre adjustment
+5/-5 D
Detection Range (Human Size)
1700m
2500m
Close-up range
5m-∞
FOV
12.5°x9.4°
8.8°x6.6°
Display
Colour Palettes
White Hot, Sky Mode, Black Hot, Red Hot, Fusion
Type / Resolution
0.39″ / OLED / 1024×768
Operational characteristics
3D Gyroscope
Yes
Power supply
3-4.2 V
Battery
18650/26650
External power supply
5V (USB)
Operating time
9-11 Hours
Waterproof rating
IP67
Operating temperature
-20°C – +50°C
Dimensions
408x96x85mm
Weight
937g
Max Recoil Handling
1200g, 6ms
Video recorder
Video / photo resolution
1024×768
Video / photo format
.mp4 / .jpg
Memory type
Built-in 32G memory card
Wifi channel
Frequency
2.4GHz
Line-of-sight reception range
15m
Rangefinder
Wavelength
905nm
Max. measuring range
800m
Measuring accuracy
±1m
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing & Delivery
carton box+safe box
