ABB PCD237A101 3BHE028915R0101 Excitation Unit Controller

ABB PCD237A101 3BHE028915R0101 Excitation Unit Controller thumbnail-2

ABB PCD237A101 3BHE028915R0101 Excitation Unit Controller thumbnail-3

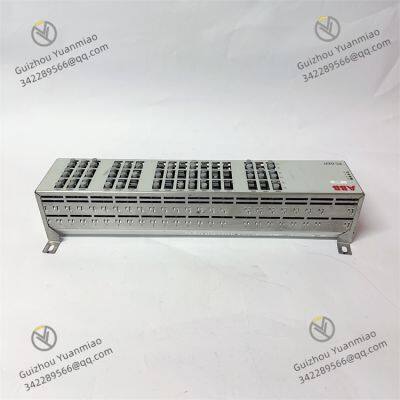

ABB PCD237A101 3BHE028915R0101 Excitation Unit Controller photo-1

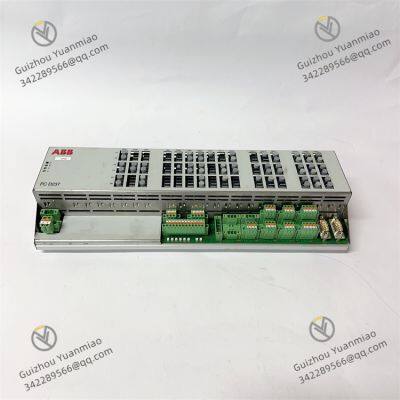

ABB PCD237A101 3BHE028915R0101 Excitation Unit Controller photo-2

ABB PCD237A101 3BHE028915R0101 Excitation Unit Controller photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

ABB PCD237A101 3BHE028915R0101 is an exciter control module, and the following is its detailed introduction:

Functional Features

Regulation Function: Provides precise and stable voltage regulation and excitation current regulation for synchronous generators, ensuring the stability of generator output voltage and power quality.
Protection Function: Equipped with multiple protection functions to protect both the generator and the module itself, effectively addressing various potential fault conditions and ensuring the safe operation of equipment.
Communication Function: Supports communication with upper computers or other control devices, enabling data exchange through standard protocols such as Ethernet/IP, Profinet, and Modbus, which facilitates remote monitoring and system integration.
Fault Diagnosis Function: Capable of quickly diagnosing faults to help users locate and solve problems rapidly, reducing equipment downtime and improving system availability.
User-Friendly Interface: May be equipped with LED indicators to provide intuitive status indication for convenient user monitoring and fault diagnosis.

Technical Parameters

Net Weight: 0.2 kg, lightweight for easy installation and handling.
Data Electrical Interface: Adopts a 9-pin Sub_D jack connector, supports Profibus DP bus standard, and communication rates include 9.6kBit/s, 19.2kBit/s, 45.45kBit/s, 93.75kBit/s, 187.5kBit/s, 500kBit/s, 1.5Mbit/s, 6Mbit/s, and 12Mbit/s.
Power Supply and Protection: Dual-power redundant input, DC (9–36)V, typical DC24V, power consumption
Protection Level: IP30 protection level, using a corrugated aluminum reinforced casing, supporting standard industrial 35mm rail installation, adapting to industrial environments, and having certain dust and foreign object intrusion resistance.

Application Fields

Power Generation Field: Mainly applied to the excitation control of synchronous generators, ensuring that generators stably output qualified electric energy in power plants and other places. It is widely used in various power generation scenarios such as thermal, hydropower, and wind power.
Industrial Automation: Can be used in industrial automation systems requiring precise voltage and current control, such as drive control of large motors and technological processes with high requirements for power stability, such as electroplating.
Marine Applications: In the marine power system, it provides excitation control for marine generators, ensuring the stable operation of the marine power system and meeting the power demand of various equipment on board.

I. Input Signal Types1. Electrical Quantity Input (Measurement and Monitoring)

Analog Input (AI)

Supports current-type input: such as 4–20mA (standard industrial signal), used for collecting parameters like current and power, compatible with current transformers (CT) or transmitters.
Supports voltage-type input: such as 0–10V, 0–5V, used for monitoring signals like voltage and frequency, which can be connected to voltage transformers (VT) or directly sampled.
Measurement accuracy: Usually within ±0.5% FS (full scale), supporting synchronous collection of three-phase electrical parameters (current, voltage, power factor, etc.).

Digital Input (DI)

Number of input channels: Typically configured as 8–16 channels, supporting dry contacts (such as switch positions, relay states) or wet contacts (DC 24V signals).
Electrical characteristics: Compatible with DC 24V/110V/220V, with optoelectronic isolation, and anti-interference capability conforming to IEC 61000 standards.
Function: Used to receive external equipment statuses (such as circuit breaker opening/closing positions, alarm signals), triggering logic control or event recording.

2. Communication Input (Data Interaction)

Serial Communication Interface

Standard RS485/RS232, supporting protocols such as Modbus RTU and Profibus DP, used to connect sensors, instruments, or upper computers.

Ethernet Interface (Optional)

Supports protocols such as IEC 61850, Modbus TCP, and EtherNet/IP, enabling data interaction with SCADA systems, PLCs, or cloud platforms.

II. Output Signal Types1. Control Signal Output

Digital Output (DO)

Number of channels: Commonly 4–8 channels, supporting relay output (dry contacts, such as AC 250V/5A, DC 30V/5A) or transistor output (DC 24V/1A).
Function: Controls circuit breaker opening/closing, signal relays, alarm devices, etc., with hardware interlock and overload protection.

Analog Output (AO)

Output signals: 4–20mA, 0–10V, used to transmit measurement data to other devices (such as recorders, human-machine interfaces), with accuracy of ±0.5% FS.

2. Communication Output (Data Transmission)

Compatible with input communication interfaces, supporting the output of internal data (such as measured values, fault statuses) to external systems through Modbus, Profibus, or Ethernet protocols for remote monitoring.

III. Special Function Interfaces (Possible Configurations)

Pulse Input/Output

Used for metering electrical energy pulses (such as energy meter pulse input) or outputting control pulses (such as motor speed regulation), with a frequency range typically 0–10kHz.

Synchronous Clock Interface

Supports IRIG-B and SNTP clock synchronization to ensure time consistency among multiple devices, suitable for fault recording and sequence of events (SOE) recording.

IV. Signal Interaction in Typical Application Scenarios

Scenario	Input Signal Types	Output Signal Types
Distribution Line Protection	Three-phase current/voltage (AI), switch position (DI)	Circuit breaker opening/closing control (DO), fault alarm (DO)
Motor Monitoring and Control	Current/temperature (AI), start/stop command (DI)	Frequency conversion speed regulation signal (AO), operating status (DO)
Power Quality Analysis	Harmonic components (AI), frequency (AI)	Data upload to PLC (Ethernet), alarm signal (DO)
