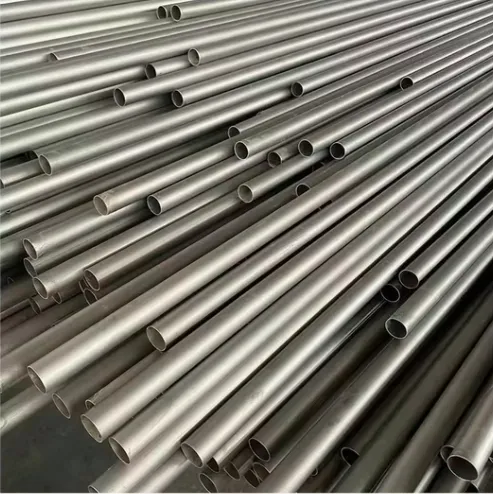

Help CenterGood Quality Tube Nickel Based Stainless Steel Hastelloy C-276 Pipe Seamless
Related Products
-
SUS201 304 316 Austenitic Welded Tube Stainless Steel Seamless PipeUS$ 800 - 1100MOQ: 1 Ton -
Large Diameter 304 Stainless Steel Seamless Pipe Round Tube 304/L/H/Ln 316L/H/Ln/Ti Super Austenitic Stainless Steel Seamless PipeUS$ 800 - 1100MOQ: 1 Ton
-
Alloy 310 & 310S Austenitic Stainless Steel Seamless Tubes in Standards Astma312/A269 for Oil and Gas Industry Pipeline UsingUS$ 800 - 1100MOQ: 1 Ton
-
Ss AISI China Factory Cheap Industrial SS304 316L Grade Stainless Steel Pipe PriceUS$ 1500MOQ: 1 Ton
-
Welding Industrial Material 1.5 Inch 304 316L Stainless Steel Food Grade Tube and PipeUS$ 1600MOQ: 1 Ton
Hastelloy C276/C22/C2000/B2/B3
(UNS N10665) is a nickel-molybdenum alloy known for its excellent resistance to a wide range of aggressive environments, particularly in reducing acids such as hydrochloric acid and sulfuric acid. It is a member of the Hastelloy family and is widely used in industries that require strong resistance to corrosion, especially in applications that involve highly corrosive, reducing environments.

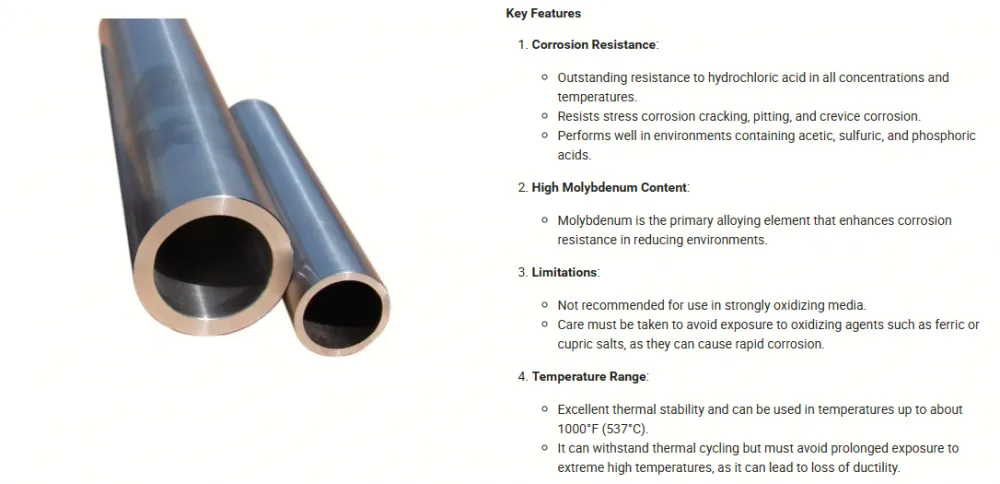

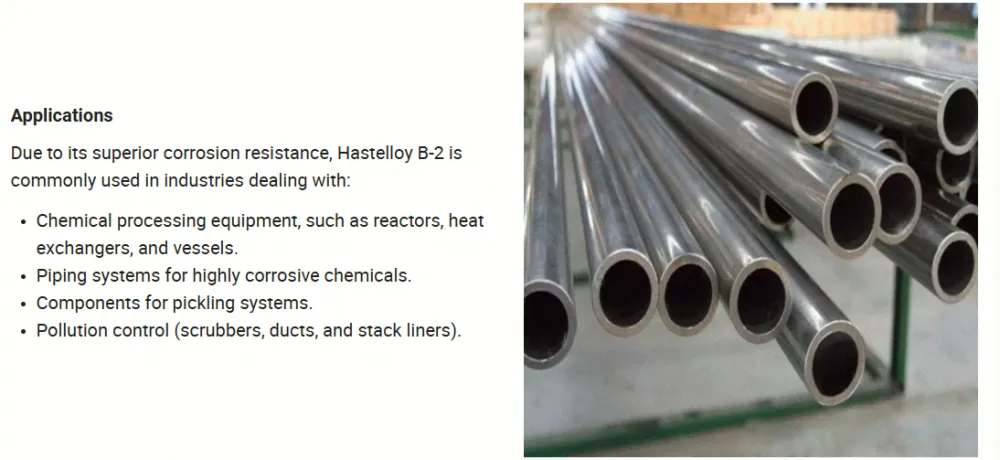

Hastelloy UNS N10665 is also known as Hastelloy B-2. It is a high-performance, nickel-molybdenum alloy designed primarily for applications that require excellent resistance to reducing acids, especially hydrochloric acid and sulfuric acid, as well as resistance to chloride-induced corrosion. Its outstanding properties make it ideal for chemical processing and other industries where exposure to aggressive, corrosive environments is common.
Hastelloy grades: Hastelloy C276, Hastelloy C22, Hastelloy C-2000, Hastelloy C-4, Hastelloy C, Hastelloy B, Hastelloy B-2, Hastelloy B-3, Hastelloy X, Hastelloy G-30, Hastelloy G-35, etc.
| Hastelloy | ||||||||||||
| Grade | Ni | Cr | Fe | Mo | W | Co | C | Mn | Si | S | P | Other |
| C-276 | Rom | 15-16.5 | 4-7 | 15-17 | 3-4.5 | 2.5 | 0.01 | 1 | 0.08 | 0.001 | 0.015 | v0.1-0.3 |
| C-22 | 56-59 | 20-22.5 | 2-6 | 12.5-14.5 | 2.5-3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.02 | v0.35 | |
| C-2000 | Rom | 22-24 | 3 | 15-17 | 2 | 0..01 | 0.5 | 0.06 | 0.01 | 0.025 | Al0.5 Cu1.6 | |
| B-2 | Rom | 0.4-0.7 | 1.6-2 | 26-30 | 1 | 0.01 | 1 | 0.08 | 0.01 | 0.02 | Cu0.5 | |
| B-3 | 64 | 1-3 | 1-3 | 27-32 | 3 | 3 | 0.01 | 3 | 0.1 | 0.01 | 0.03 | v0.2 Al0.5 Ti0.2 Cu0.2 |
| G-30 | Rom | 28-31.5 | 13-17 | 4-6 | 1.5-4 | ≤5 | 0..03 | ≤2 | ≤1 | ≤0.02 | ≤0.04 | Nb/Ta0.3-1.5 Cu1-2.4 |
| X | Rom | 20.5-23.5 | 17-20 | 8-10 | 0.2-1 | 0.5-2.5 | 0.05-0.15 | 1 | 1 | 0.015 | 0.025 | Al0.5 Ti0.15 B0.005 |
| C-4 | Rom | 14-18 | 3 | 14-17 | 2 | 0.015 | 1 | 0.08 | 0.7 | 0.04 | Ti0.7 | |
| G-35 | 8-10 | 5 | 33 | 2 | 0.03 | 2-3 | 1.5 | 1 | 2 | 0.02 | Cu0.04 | |
| C | Rom | 14.5-17.5 | 4-7 | 15-17 | 3-4.5 | 0.03 | 1 | 0.03 | 0.04 | |||
| Hastelloy |
Density
g/cm3
|
Melting point
ºC
|
Elongation A5 % |
Tensile Strength
Rm N/mm2
|
Yield Strength
RP0.2N/mm2
|
| C-276 | 8.9 | 1325-1370ºC | 62 | 758 | 363 |
| C-22 | 8.9 | 1325-1370ºC | 40 | 690 | 283 |
| C-2000 | 8.5 | 1399ºC 2550°F | 45 | 690 | 283 |
| B-2 | 9.2 | 1330-1380ºC | 40 | 745 | 325 |
| B-3 | 9.22 | 1370-1418ºC | 40 | 760 | 350 |
| G-30 | 8.22 | 1399ºC 2550°F | 62 | 524 | 200 |
| X | 8.3 | 1260-1355ºC | 30 | 690 | / |
| C-4 | 8.64 | 399°C 2550°F | 40 | 690 | 280 |
| G-35 | 8.22 | 1370-1400ºC | / | / | / |
| C | 8.94 | 1330-1380 ºC | 40 | 690 | 310 |
Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.
