A detailed description of Rockwell Automation (Allen Bradley, AB) PLC (Programmable Logic Controller), covering its core product line, technical features, application scenarios, and maintenance management strategies:
1、 Core product series
Large scale control system

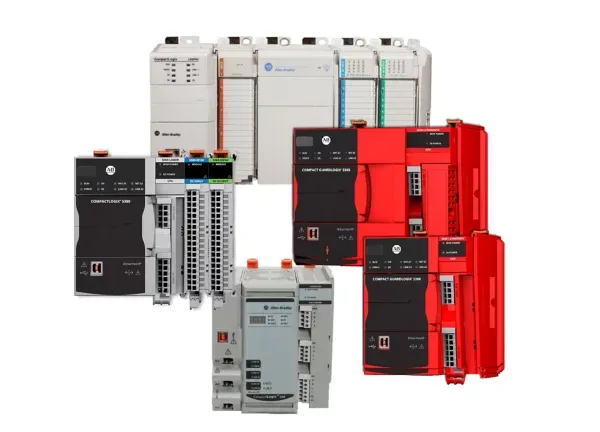

ControlLogix series
Modular design, supporting multiple processors and networks (EtherNet/IP, ControlNet, DeviceNet).
Typical model: 1756-L8x series controller, supporting motion control and safety logic integration.
Scalability: Supports up to 256 I/O modules, suitable for complex process control.
GuardLogix Safety PLC
Integrated safety function (SIL 3/PLe level), supporting safety I/O and SafeMotion control.
Application scenarios: Robot collaboration, dangerous area equipment interlocking.
Medium and compact systems
CompactLogix series
Integrated design (controller+I/O), such as 5069-L306ER, suitable for small and medium-sized production lines.
Supports EtherNet/IP real-time communication and integrates motion control axes (up to 16 axes).
Micro800 series
Low cost entry-level PLCs, such as Micro850 (2080-L50E), support 20-48 point I/O.
Built in serial port and Ethernet, suitable for simple mechanical control.
Dedicated controller
PowerFlex series integrated PLC
The frequency converter is equipped with built-in PLC function (such as PowerFlex 755T), which realizes the integration of drive and logic control.
PanelView Plus HMI-PLC all-in-one machine
Simplify the architecture of human-machine interaction systems by combining HMI and controllers.
2、 Core technical features
Unified Programming Platform
Studio 5000 software
Integrate Logix Designer (ladder diagram, structured text, functional block programming).
Support collaborative configuration of controllers, drivers, and HMI.
communication protocol
EtherNet/IP as the backbone: real-time I/O control and data exchange, supporting CIP (Common Industrial Protocol).
Traditional network compatibility: ControlNet (deterministic communication), DeviceNet (device level network).
Redundancy and reliability
Controller redundancy (ControlLogix dual machine hot standby), power redundancy module (1756 Px series).
Support firmware online upgrade (non-stop updates).
Safety function
Implement the co platform operation of security logic and standard logic through GuardLogix.
The safety I/O module (such as 1734-IB8S) supports dual channel safety inputs.
3、 Typical application scenarios
Manufacturing Automation
Automobile production line (welding robot control, assembly line synchronization).
Packaging machinery (servo positioning, tension control).
process industry
Petrochemical industry (tank level interlock control, safety instrument system).
Water treatment (pump station logic, PID regulation).
infrastructure
Intelligent buildings (HVAC system integration, energy management).
Power SCADA (Substation Equipment Monitoring).
4、 Spare parts and maintenance management
Classification of key spare parts
Controller module: CPU (such as 1756-L8x), communication module (1756-EN2T).
I/O modules: digital quantity (1756-IB16), analog quantity (1756-IF8), dedicated modules (thermocouple, high-speed counter).
Power supply and backplane: redundant power supply (1756-PB75), rack backplane (1756 Ax series).
Maintenance strategy suggestions
Regular diagnosis: Monitor PLC health status (memory usage, communication load) through FactoryTalk View.
Firmware management: Retain historical firmware files and ensure compatibility with old system upgrade requirements.
Module redundancy configuration: Key control nodes adopt dual power supply and dual network modules.
supply chain optimization
Compatible spare parts: Third party certification modules (such as Phoenix Contact's Profinet I/O) can reduce costs.
Quick replacement solution: Pre installed backup controller (mirror clone) to shorten fault recovery time.
5、 Typical faults and countermeasures
Case 1: EtherNet/IP communication interruption
Troubleshooting steps: Check switch ports, update 1756-ENBT module firmware, and replace faulty network cables.
Spare parts reserve: spare communication modules, industrial grade Ethernet switches (such as Stratix series).
Case 2: I/O module channel failure
Emergency plan: Activate the backup point and modify the program to replace the 1756-OB16 output module.
Preventive measures: Install a live plug-in base (1756-RM series) to reduce downtime.
6、 Economic considerations
Total Cost of Ownership (TCO): OEM module premium vs third-party component compatibility risk.
Old system renovation: Upgrading the networking of traditional PLCs (such as SLC 500) through the 1756-EWEB module
