Help CenterAustenitic Stainless Steel Alloy 310/310S/310h Heat Resistant Seamless Pipe
Related Products
-
ASTM AISI 201 304 316 316L 430 Pickling Ba 2b Bright Polish Cold Rolled ERW Factory Price Steel Tube Stainless Pipe for Industrial UseUS$ 998MOQ: 9 Tons -
Factory Price 304 Stainless Steel Pipe ASTM AISI 201 304L 316 316L 430 Cold Drawn Seamless Steel Pipe Ba 2b Bright Polish Steel Tube PipeUS$ 1400MOQ: 1 Ton
-
Stainles Steel Seamless Tubes A213 TP304/31/321/321H Pickled and Annealed Heat Exchanger PipeUS$ 800 - 1100MOQ: 1 Ton
-
Best-Selling ASTM AISI SS316L 304 201 Grade 2b Ba No. 1 Welded Seamless Stainless Steel PipeUS$ 1000MOQ: 5 Tons
-
SUS 304 316 304L 316L 321 Rectangular Square Pipe Polished Ba Hl Bright Ss Pipes Round Square Rectangular Stainless Steel Welded PipeUS$ 1000MOQ: 1 Ton
| Standard | ASTM A213/A312/A376/A279 /A789/A790/A450/A999ETC |
| Grade | TP 304,TP304L,TP316/316L/316TI |
| TP 309S,310S | |
| TP 347/347H,TP321/321H | |
| TP904L | |
| S31803,S32205,S32304,S32750 | |
| SAF2205,SAF2304,SAF2507 | |
| MOQ | 1 PCS |
| Manfacturing Method | Cold Drawing/Welding/Cold rolled |
| Outside Diameter Range | 6mm-508mm |
| Wall Thickness Range | 1mm-40mm |
| Length Range | 1M-12M |
| Pipe end | BE/PE |
| Chemical Composition and Mechanical Property | ||||||||||||||
| Chemical components | Mechanical Property | |||||||||||||
| Grade | C | Mn | P | S | Si | Cr | Ni | Yield | Tensile | Elongation | ||||
| Strength | strength | |||||||||||||
| (MPa) | (MPa) | % | ||||||||||||
| Max. | Max. | Max. | Max. | Max. | Min. | Max. | Min. | Max. | Max. | Min. | Max. | Min. | Min | |
| TP 304 | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 18.00 | 20.00 | 8.00 | 11.0. | 540 | 515 | 240 | 205 | 35 |
| TP 304L | 0.04 | 2.00 | 0.05 | 0.03 | 1.00 | 18.00 | 20.00 | 8.00 | 12.00 | 485 | 170 | 35 | ||
| TP 309S | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 22.00 | 24.00 | 12.00 | 15.00 | 600 | 515 | 310 | 205 | 35 |
| TP 310S | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 24.00 | 26.00 | 19.00 | 22.00 | 515 | 205 | 35 | ||
| TP 316 | 0.08 | 2.00 | 0.05 | 0.03 | 1.00 | 16.00 | 18.00 | 10.00 | 14.00 | 515 | 450 | 205 | 200 | 35 |
| TP 316L | 0.04 | 2.00 | 0.05 | 0.03 | 1.00 | 16.00 | 18.00 | 10.00 | 14.00 | 485 | 170 | 35 | ||
Dimension Tolerance
| Permitted Variations in Wall Thickness | ||||||||
| Wall Thickness % | ||||||||
| Outside Diameter in. (mm) | 0.095(2.4) and under | Over 0.095 to 0.150 (2.4 to 3.8) incl | Over 0.150 to 0.0180 (3.8 to 4.6) incl | Over 0.180 (4.6) | ||||
| Over | Under | Over | Under | Over | Under | Over | Under | |
| Seamless, Hot-Finished Tubes | ||||||||
| 4(100)and under | 40 | 0 | 35 | 0 | 33 | 0 | 28 | 0 |
| Over 4(100) | 35 | 0 | 33 | 0 | 28 | 0 | ||
| Seamless, Cold-Finished Tubes | ||||||||
| Over | Under | |||||||
| 1½ (38.1) and under | 20 | 0 | ||||||
| Over 1½ (38.1) | 22 | 0 | ||||||
| Welded Tubes | ||||||||
| All sizes | 18 | 0 | ||||||
| Permitted Variations in Outside Diameter | ||
| Specified Outside Diameter | Permitted Variations in (mm) | |
| in(mm) | Over | Under |
| Hot-Finished Seamless Tubes | ||
| 4(100) or under | 1/64 (0.4) | 1/32 (0.8) |
| Over 4 to 7 ½ (100 to 200) incl | 1/64 (0.4) | 3/64 (1.2) |
| Over 7 ½ to 9 (200 to 225) incl | 1/64 (0.4) | 1/16 (1.6) |
| Welded Tubes and Cold-Finished Seamless Tubes | ||
| Under 1(25) | 0.004 (0.1) | 0.004 (0.1) |
| 1 to 1½ (25 to 40) incl | 0.006 (0.15) | 0.006 (0.15) |
| Over 1½ to 2 (40 to 50) excl | 0.008 (0.2) | 0.008 (0.2) |
| 2 to 2½ (50 to 65) excl | 0.010 (0.25) | 0.010 (0.25) |
| 2½ to 3 (65 to 75) excl | 0.012 (0.3) | 0.012 (0.3) |
| 3 to 4 (75 to 100) incl | 0.015 (0.38) | 0.015 (0.38) |
| Over 4 to 7 ½ (100 to 200) incl | 0.015 (0.38) | 0.025 (0.64) |
| Over 7 ½ to 9 (200 to 225) incl | 0.015 (0.38) | 0..045 (1.14) |

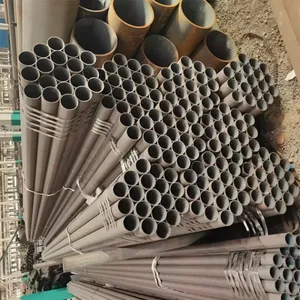

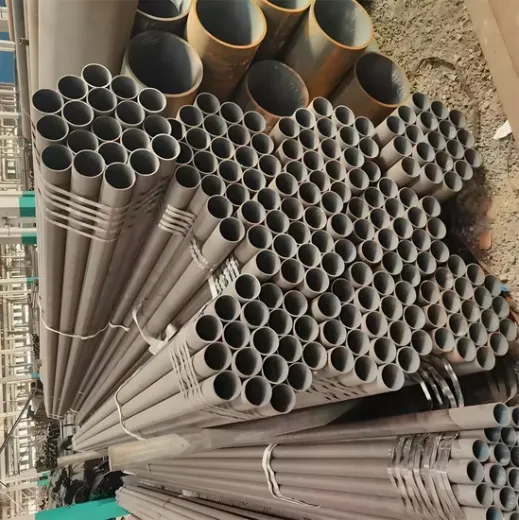

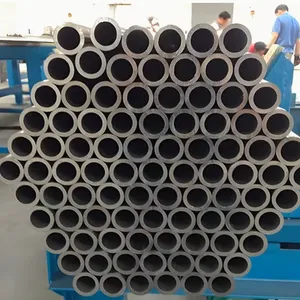

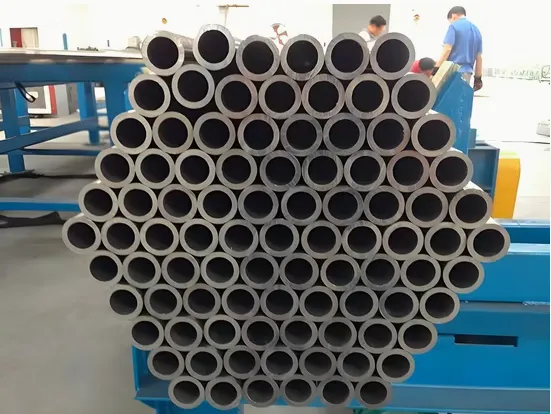

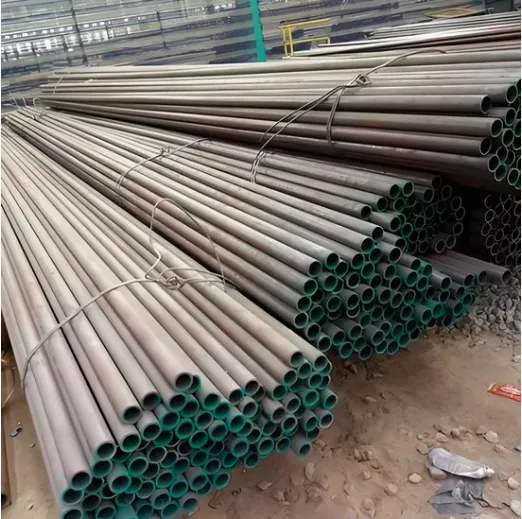

Product Show
High Quality Control Process
Product Application

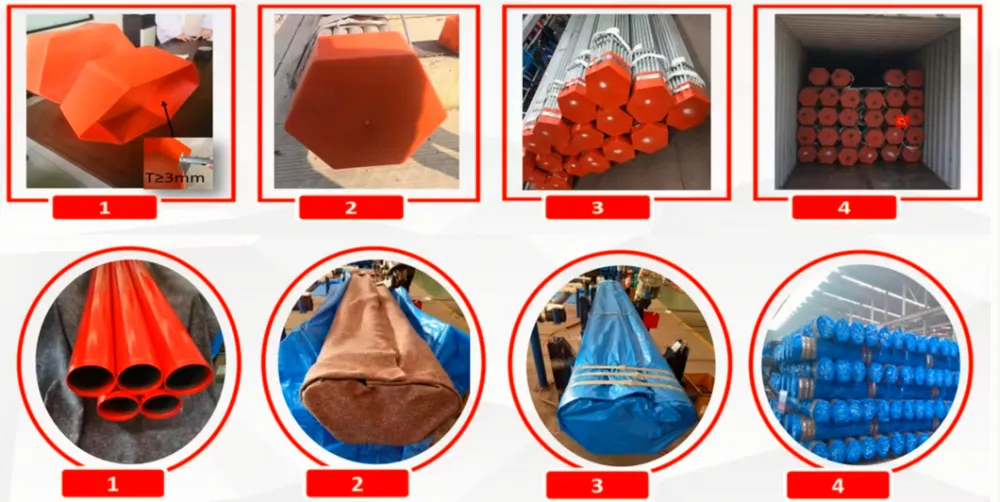

Packaging
Packaging & Shipping

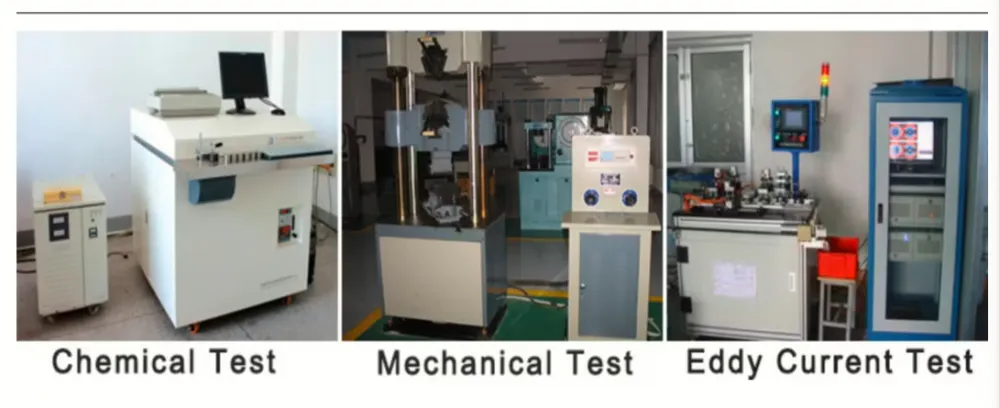

Inspection

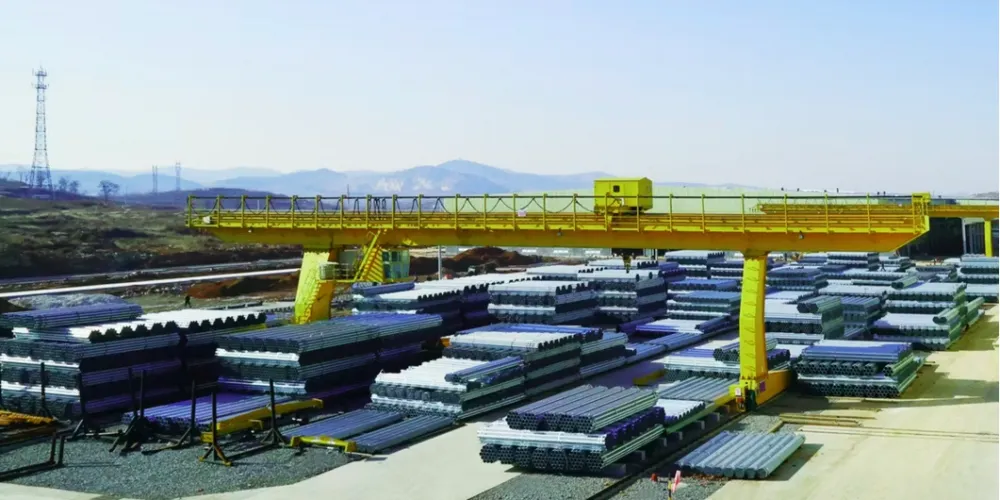

Warehouse Show
Customer inspection
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer for steel pipes,and our company also is a very professional and technical foreign trade company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
Q:Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra?
A: The sample could can provide for customer with free,but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,Wechat and WhatsApp will be online in 24 hours. Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
Q: Do you have any certifications?
A: Yes,that's what we guarantee to our clients. we have IS09000,IATF16949 certinicate,ISO 14001 certificates etc.Our products are of high quality and we have professional engineers and development team.
Q: What is your terms of payment?
A:Payment
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
