Help CenterStainles Steel Seamless Tubes A213 TP304/31/321/321H Pickled and Annealed Heat Exchanger Pipe
Related Products
-
Best-Selling ASTM AISI SS316L 304 201 Grade 2b Ba No. 1 Welded Seamless Stainless Steel PipeUS$ 1000MOQ: 5 Tons -
SUS 304 316 304L 316L 321 Rectangular Square Pipe Polished Ba Hl Bright Ss Pipes Round Square Rectangular Stainless Steel Welded PipeUS$ 1000MOQ: 1 Ton
-
ASTM Hot Rolled SUS304 TP304L TP304 Seamless Stainless Steel Pipe DN20 Sch40 Tp304h Tp309h Tp310 Tp316ti Tp316L 201 Tp321 Welded Steel Round PipeUS$ 800 - 1100MOQ: 1 Ton
-
ASTM A269 Seamless and Welded Austenitic Tubing Round Stainless Steel Pipe/TubeUS$ 800 - 1100MOQ: 1 Ton
-
Ss 304 316 38mm Balustrade for BS Black Chrome Austenitic Stainless Steel PipeUS$ 800 - 1100MOQ: 1 Ton
| Standard: | ASTM ASME A213,A312,A269 | Material: | TP321/321H |
|---|---|---|---|
| Type: | SEAMLESS,WELDED | SOLUTION: | PICKLED AND ANNEALED |
| Package: | Ply-wooden Case | ||
| High Light: | heat exchanger pipe, heat recovery pipe | ||

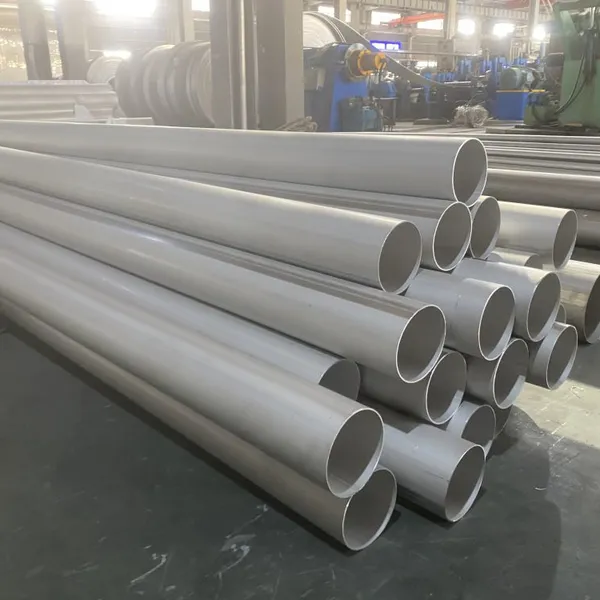

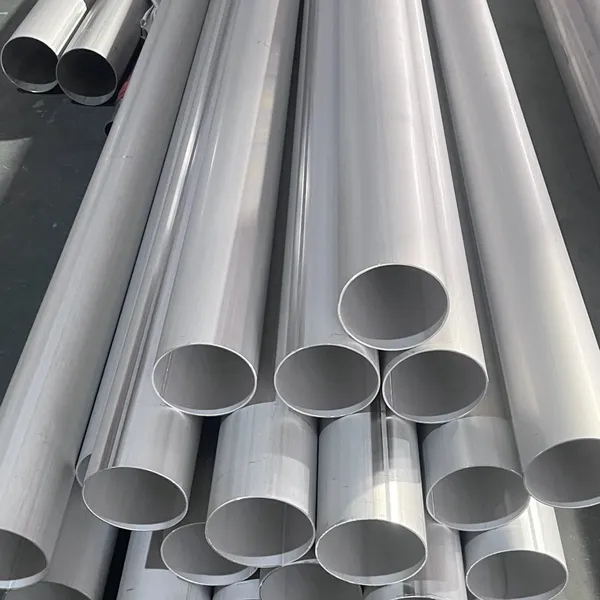

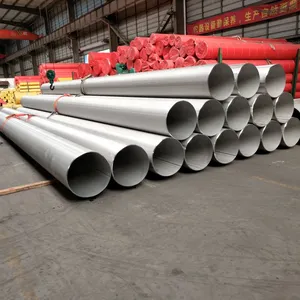

Stainles steel seamless tubes A213 TP304 TP316 TP321 TP321H Pickled And Annealed Heat Exchanger Tube
Stainless Steel 321 is a basic austenitic 18/8 steel (Grade 304) stabilised by Titanium (321) addition. SS 321 is used because they are not sensitive to intergranular corrosion after heating within the carbide precipitation range of 425-850°C. SS 321 is the grade of choice for applications in the temperature range of up to about 900°C, combining high strength, resistance to scaling and phase stability with resistance to subsequent aqueous corrosion. SS 321H is a modification of SS 321 with a higher carbon content, to provide improved high temperature strength.
Specifications
| Stainless Steel SS 321 / 321H | |
|---|---|
| AISI | 321 / 321H |
| UNS | S32100 / S32109 |
| Werkstoff Nr. | 1.4541 / 1.4878 |
Mechanical & Physical Properties
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi - 75000 , MPa - 515 |
| Yield Strength (0.2%Offset) | Psi - 30000 , MPa - 205 |
| Elongation | 35 % |
Chemical Composition
| SS 321 | SS 321H | |
| Ni | 9 - 12 | 9 - 12 |
| Cr | 17 - 19 | 17 - 19 |
| C | 0.08 max | 0.04 - 0.10 |
| N | 0.10 max | |
| Fe | Balance | |
| Mn | 2 max | 2 max |
| Si | 0.75 max | 0.75 max |
| S | 0.03 max | 0.03 max |
| P | 0.045 max | 0.045 max |
| Ti | 5xC min 0.60% max |
4xC min 0.60% max |
Alloys 321 (S32100) and 347 (S34700) are stabilized stainless steels which offer as their main advantage an excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 15000F (427 to 8160C). Alloy 321 is stabilized against chromium carbide formation by the addition of titanium. Alloy 347 is stabilized by the addition of columbium and tantalum.
Resistance to Corrosion of 321 Stainless Steel Pipes and Tubes
General Corrosion
Alloys 321 and 347 offer similar resistance to general, overall corrosion as the unstabilized chromium nickels Alloy 304. Heating for long periods of time in the chromium carbide precipitation range may affect the general resistance of Alloys 321 and 347 in severe corrosive media.
In most environments, both alloys will show similar corrosion resistance; however, Alloy 321 in the annealed condition is somewhat less resistant to general corrosion in strongly oxidizing environments than annealed Alloy 347. For this reason, Alloy 347 is preferable for aqueous and other low temperature environments. Exposure in the 8000F to 15000F (4270C to 8160C) temperature range lowers the overall corrosion resistance of Alloy 321 to a much greater extent than Alloy 347. Alloy 347 is used primarily in high temperature applications where high resistance to sensitization is essential, thereby preventing intergranular corrosion at lower temperatures.
Physical Properties of 321 Stainless Steel Pipes and Tubes
The physical properties of Types 321 and 347 are quite similar and, for all practical purposes, may be considered to be the same. The values given in the table may be used to apply to both steels.
When properly annealed, the Alloys 321 and 347 stainless steels consist principally of austenite and carbides of titanium or columbium. Small amounts of ferrite may or may not be present in the microstructure. Small amounts of sigma phase may form during long time exposure in the 10000F to 15000F (5930C to 8160C) temperature range.
The stabilized Alloys 321 and 347 stainless steels are not hardenable by heat treatment.
The overall heat transfer coefficient of metals is determined by factors in addition to thermal conductivity of the metal. In most cases, film coefficients, scaling, and surface conditions are such that not more than 10 to 15% more surface area is required for stainless steels than for other metals having higher thermal conductivity. The ability of stainless steels to maintain clean surfaces often allows better heat transfer than other metals having higher thermal conductivity.

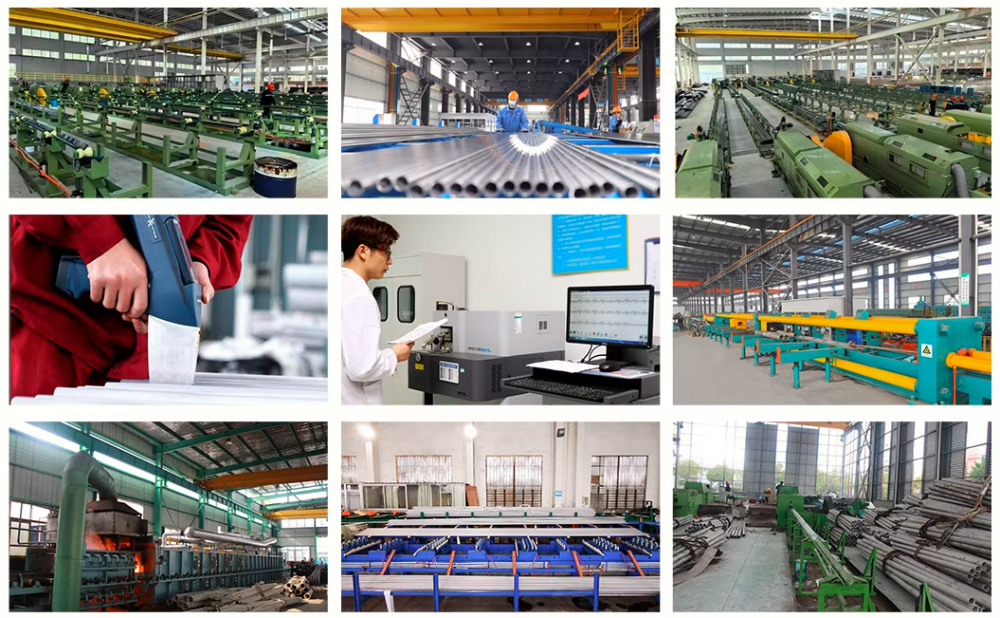

Company ProfileZhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from Φ6 toΦ762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from Φ15 to Φ2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.WORKSHOP
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer for steel pipes,and our company also is a very professional and technical foreign trade company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
Q:Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra?
A: The sample could can provide for customer with free,but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,Wechat and WhatsApp will be online in 24 hours. Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
Q: Do you have any certifications?
A: Yes,that's what we guarantee to our clients. we have IS09000,IATF16949 certinicate,ISO 14001 certificates etc.Our products are of high quality and we have professional engineers and development team.
Q: What is your terms of payment?
A:Payment
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
