ASTM A249 TP321 Welded Austenitic Steel Tubes Intended for Such Use as Boiler, Superheater, Heat Exchanger, or Condenser Tubes.
US$ 28 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Tianjin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI/TIANJIN/XIAMEN
Delivery Detail:
25 days
Related Products
-
What is ASTM A249 Stainless Steel Tube?ASTM A249 Stainless Steel TubesNegotiableMOQ: 1 Ton -
Welded Tube, Stainless Steel A249 Grade TP 310HCbNegotiableMOQ: 1 Ton
-
TP304/304L Tp316/316L ASTM A249 Welded Austenitic Stainless Steel Pipes for BoilerUS$ 28 - 35MOQ: 1 Piece
-
A249 TP310H S31009 Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes ASTM A249/A249M-2018US$ 28 - 35MOQ: 1 Piece
-
A249 TP310H S31009 Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes ASTM A249/A249M-2018US$ 28 - 35MOQ: 1 Piece
Model NO.
A249 stainless steel pipe
Certification
ISO, RoHS, IBR, AISI, ASTM, GB, EN, DIN, JIS
Shape
Round
Technique
Hot Rolled
Surface Treatment
Pickling
out Diameter
20-508mm
Thickness
1-50mm
Length
6m
Commodity
A249 Stainless Steel Tube
Transport Package
Export Standard Packing
Specification
42*2
Origin
China
ASTM A249 TP321 Welded Boiler Tubes
ASTM A249 TP321 Welded Boiler Tubes
ASTM A249 TP321 Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
Standard:ASTM A249/A249M
Standard Specification for
Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
ASTM A249 TP321 Welded Boiler Tubes covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes made from the austenitic steels, ASTM A249 TP321 Welded Austenitic Steel Tubes intended for such use as boiler, superheater, heat exchanger, or condenser tubes.
ASTM A249 TP321 Welded Boiler Tubes sizes and thicknesses usually furnished to this specification are 1 ⁄ 8 in. [3.2 mm] in inside diameter to 12 in. [304.8 mm] in outside diameter and 0.015 to 0.320 in. [0.4 to 8.1 mm], inclusive, in wall thickness.
ASTM A249 TP321 Welded Boiler Tubes Quick Details
Company Name: Beite steel pipe
Country/Region: China
Product Name：ASTM A249 TP321 Welded Boiler Tubes
Manufacture：welded process,
Outside Diameter：12.7mm——127mm
Wall thickness：0.9mm——12.7mm
Length：6000mm、12000m or specified length as require
Port of Shipment：Tianjin,China
Payment：L/C or T/T
Delivery: 7-15 days after payment
Package: Bundles (hexagonal),Wooden Boxes,Crates (steel/wooden)

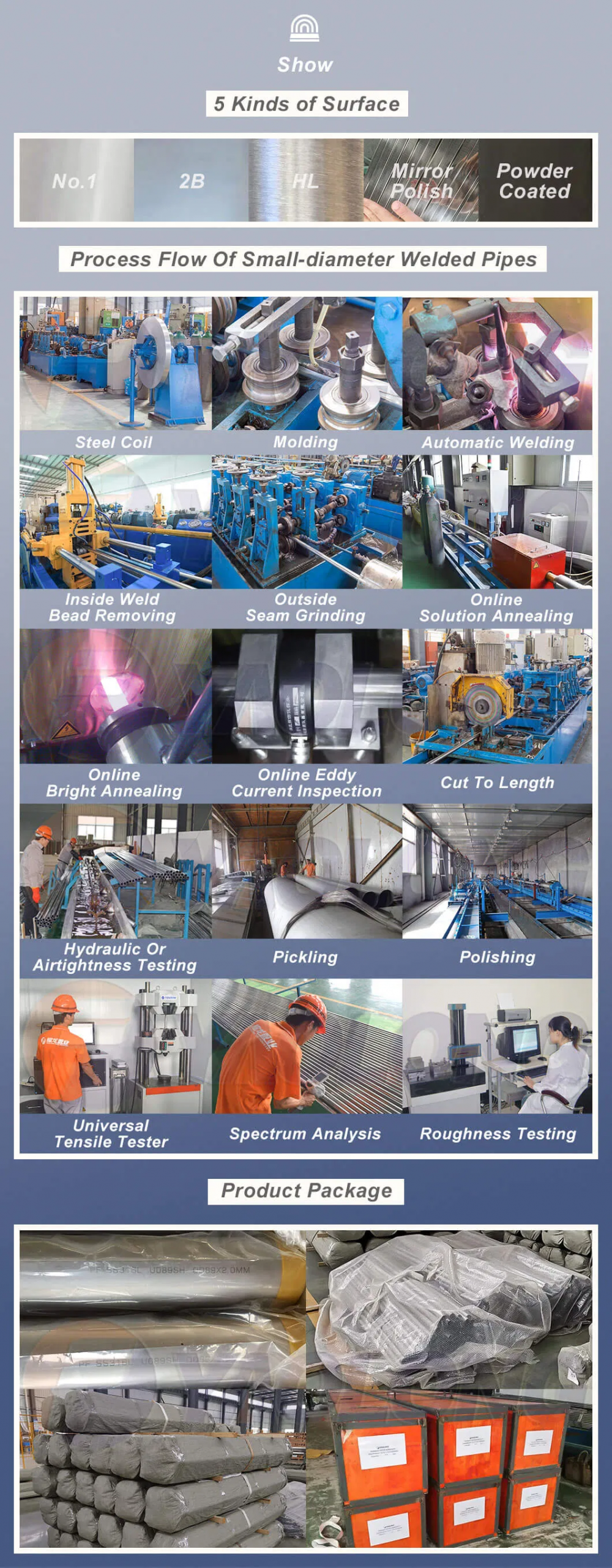

Manufacture
The welded (WLD) tubes are made from flat-rolled steel by an automatic welding process
Subsequent to welding and prior to final heat treatment, the tubes shall be cold worked either in both weld and base metal or in weld metal only.
Heavily cold worked (HCW) tubes are made by applying cold working
Heat Treatment of ASTM A249 TP321
| Grade | UNS Number | Solutioning Temperature, min or range | Quenching Method |
| TP321 | S32100 | 1900 °F [1040 °C] C | Quenched in water or rapidly cooled by other methods. |
A solution annealing temperature above 1950 °F [1065°C] may impair the resistance to intergranular corrosion after subsequent exposure to sensitizing conditions inTP321.
Chemical Composition of ASTM A249 TP321
| Grade |
UNS
Designation
|
Composition, % | ||||||||
| Carbon | Manganese | Phosphorous | Sulfur | Silicon | Chromium | Nickel | Nitrogen | Other | ||
| TP321 | S32100 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0–12.0 | 0.10 |
Ti 5(C+N)-
0.70
|
Mechanical Properties of ASTM A249 TP321
| Grade |
UNS
Designation
|
Tensile Strength,
min, ksi [MPa]
|
Yield Strength,
min, ksi [MPa]
|
Elongation in 2 in. or
50 mm,min, %
|
Rockwell Hardness
Number,max
|
| TP321 | S32100 | 75 [515] | 30 [205] | 35 | B90 |
Mechanical property requirements do not apply to tubing smaller than 1 ⁄ 8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness.
Mechanical Tests and Grain Size Determinations
Grain Size
Tension Test—One tension test be made on tubes.
Tension Test—One tension test be made on tubes.
Flattening Test—One flattening test shall be made on specimens from each end of one finished tube
Flange Test—One flange test shall be made on specimens from each end of one finished tube
Reverse-Bend Test—One reverse-bend test shall be made on a specimen from each 1500 ft [450 m] of finished tubing.
Hardness Test—Brinell or Rockwell hardness tests shall be made on specimens from two tubes from each lot .
Hydrostatic or Nondestructive Electric Test—Each tube shall be subjected to either the hydrostatic or the nondestructive electric test.
Heavily cold worked tubes (HCW) are capable of passing the weld decay test listed
Permissible Variations in Dimensions
| Standard | Allowable Outside Diameter Variation in mm | Allowable Wall Thickness Variation | Exact Length Tolerance in mm | ||||
| Nominal Diameter | Over | Under | %Over | %Under | Over | Under | |
| ASTM-A249 | Under 25.4 | .1016 | .1016 | +10 | -10 | 3.175 | 0 |
| 25.4-38.1 incl | .1524 | .1524 | +10 | -10 | 3.175 | 0 | |
| 38.1-50.8 Excl | .2032 | .2032 | +10 | -10 | 3.175 | 0 | |
| 50.0-63.5 excl | .254 | .254 | +10 | -10 | 4.762 | 0 | |
| 63.5-76.2 excl | .3848 | .3848 | +10 | -10 | 4.762 | 0 | |
| 76.2-101.6 incl | .381 | .381 | +10 | -10 | 4.762 | 0 | |
| Minimum Wall tubes +18% 0 available On request | |||||||
Surface Condition
The tubes, after final heat treatment, shall be chemically descaled or pickled free of scale. When bright annealing is used, pickling or chemical descaling is not necessary.
