PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose

PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose thumbnail-1
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose thumbnail-2
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose thumbnail-3
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose thumbnail-4
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose thumbnail-5
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose photo-1
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose photo-2
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose photo-3
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose photo-4
PTFE Braided Hose PTFE Smooth High Pressure Hydraulic Hose photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
PTFE
Kind:
Other, Thermoplastics Pipes
Tensile Strength:
30~40MPa
Contact Supplier Request Quote Chat Now
Hebei Biaohui Rubber And Plastic Products Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin shanghai qingdao shenzhen
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material PTFE
Kind Other, Thermoplastics Pipes
Tensile Strength 30~40MPa
Color Milky White/Translucent
Temperature -70ºC to 260ºC
Application Chemical Industry/Electrical/ Automotive
Feature Bending/High Flexibility
HS Code 3917390000
Transport Package Carton/Wooden Case/Pallet
Specification 1/4“ 1/2“ 5/16“ 5/8“ 3/4“ 1“ 1-1/2“ 1-1/
Origin China

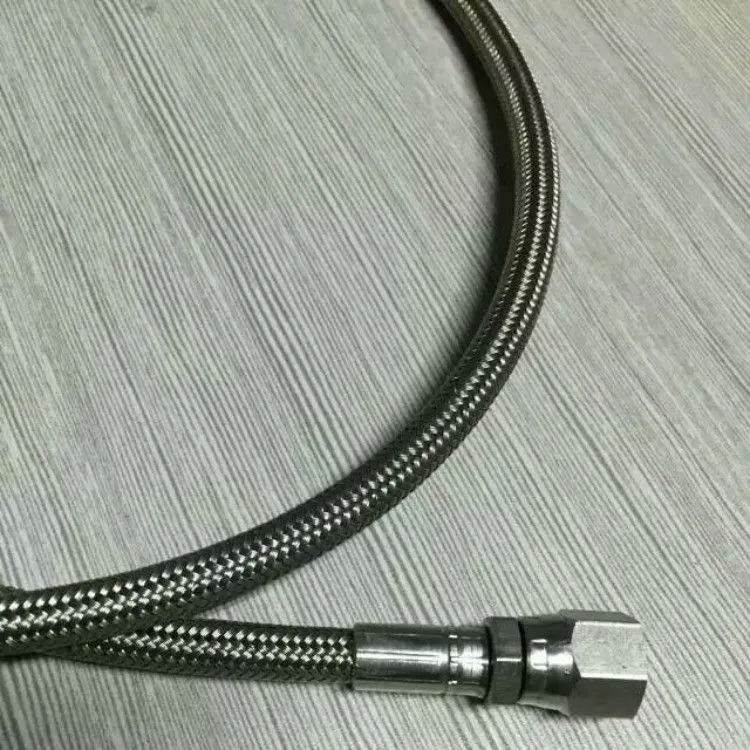

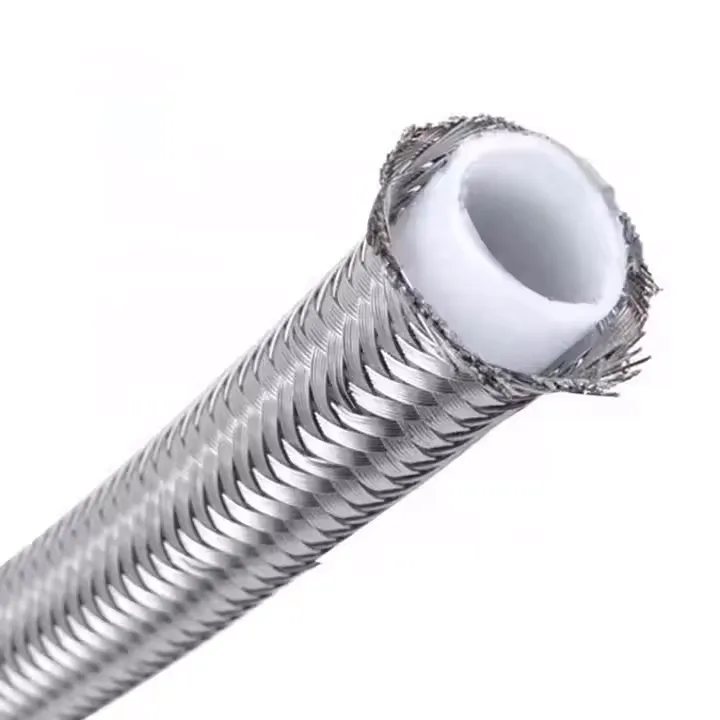

PTFE smooth hose braided with 304 stainless steel

1. Smooth ptfe hose less resistance and less residue fluid
2. It is widely used in chemical, food and medical industries.
3. Material: PTFE+304 stainless steel.
4. Working temperature: -70~+260ºC
5. Advantages: less residue liquid, less resistance, flexible, non-stick, non-toxic, anti-corrosion.


Technical date of PTFE smooth hose braid with 304 stainless steel


Inner Diameter (inches) Working Pressure (bar)  Burst Pressure  (bar) Bend Radius  (mm)
1/8'' 280 840 40
3/16'' 227 680 50
1/4'' 200 600 75
5/16'' 177 530 100
3/8'' 153 460 125
13/32'' 150 450 135
1/2'' 140 420 165
5/8'' 117 350 200
3/4'' 93 280 230
7/8'' 82 245 260
1'' 67 200 300

Heca308a7720247ebacce839.pngmmexport1467460709940_meitu_14H737fe4e259a34df4aba5ba98ac867ad5BSmooth-Bore-PTFE-Hose-400x400.jpg

Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
