Home > Chemicals > Plastic Products > Plastic Pipe & Tube > Flexible Corrugated PTFE Hydraulic Hose Braided With 304 Stainless Steel

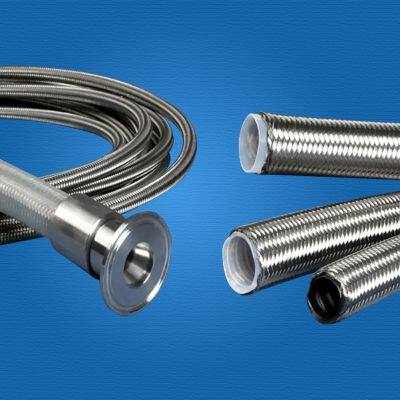

Flexible Corrugated PTFE Hydraulic Hose Braided With 304 Stainless Steel
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
PTFE
Kind:
Other, Thermoplastics Pipes
Tensile Strength:
30~40MPa
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin shanghai qingdao shenzhen
Delivery Detail:
3 days
Related Products
-
Heat Resistant 304 Woven Polytetrafluoroethylene Tube Cotton Thread Used for Cutting Plastic Molds in Mold Temperature MachinesNegotiableMOQ: 1 Piece -
Hydraulic Oil Polytetrafluoroethylene Hose for Injection MoldsNegotiableMOQ: 1 Piece
-
High Pressure Stainless Steel Braided Fuel and Hydraulic Oil Hoses Made of PolytetrafluoroethyleneNegotiableMOQ: 1 Piece
-
Flexible PTFE Hose for Fluid Transfer Applications Milky White PTFE HoseNegotiableMOQ: 1 Piece
-
Low Friction, Non-Stick, Flame Retardant PTFE Tube/PipeNegotiableMOQ: 1 Piece
Material
PTFE
Kind
Other, Thermoplastics Pipes
Tensile Strength
30~40MPa
Color
Milky White/Translucent
Temperature
-70ºC to 260ºC
Application
Chemical Industry/Electrical/ Automotive
Feature
Bending/High Flexibility
HS Code
3917390000
Transport Package
Carton/Wooden Case/Pallet
Specification
1/4“ 1/2“ 5/16“ 5/8“ 3/4“ 1“ 1-1/2“ 1-1/
Origin
China

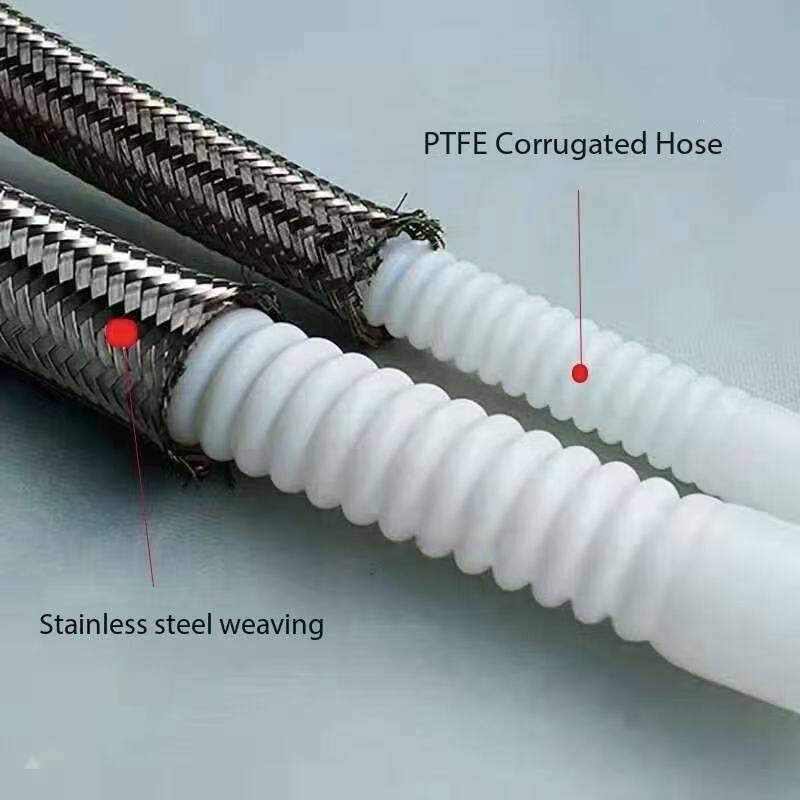

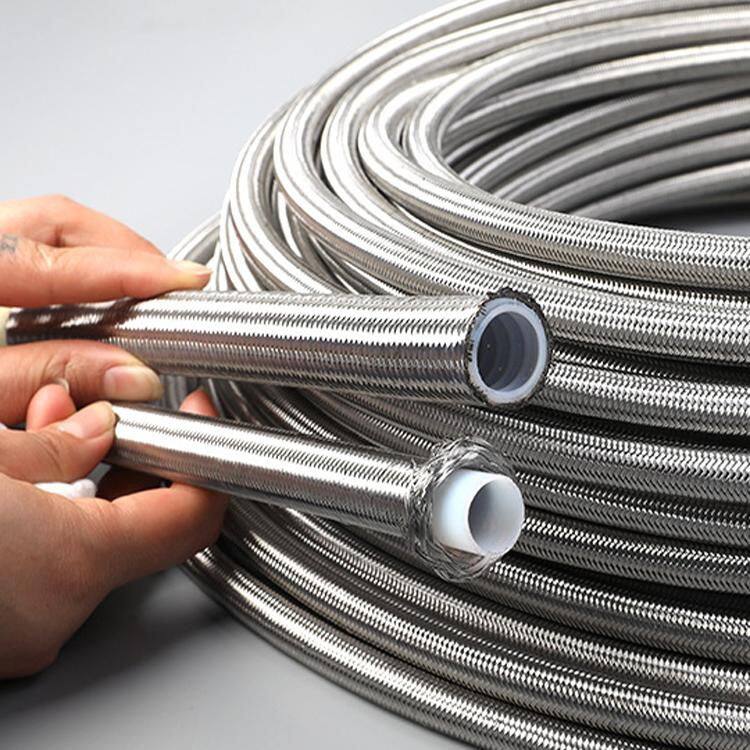

PTFE corrugated hose braided with 304 stainless steel

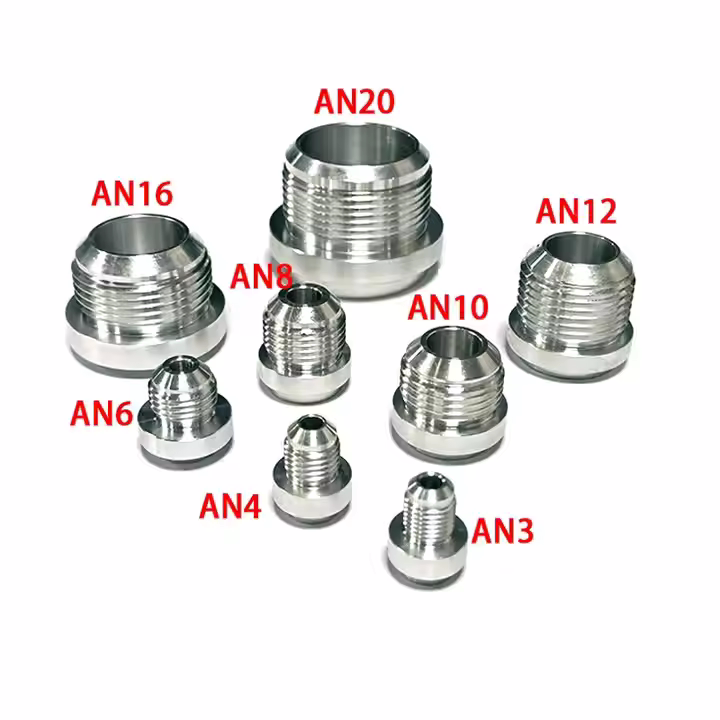

1. We can help to add different fitting on both ends, please don't hesitate to contact us!
2. If you need ultra high working pressure, we can meet your need!
3. Material: virgin PTFE+304 stainless steel.
4. Anti-both low and high temperature, working temperature range: -70C~+260 Celsius degree.
5. High pressure resistance, we can offer single braid and double braid.
6. Advantages: flexible, non-stick, non-toxic, anti-corrosion.
7. It is widely used in chemical, food and medical and pharmaceutical industries.
2. If you need ultra high working pressure, we can meet your need!
3. Material: virgin PTFE+304 stainless steel.
4. Anti-both low and high temperature, working temperature range: -70C~+260 Celsius degree.
5. High pressure resistance, we can offer single braid and double braid.
6. Advantages: flexible, non-stick, non-toxic, anti-corrosion.
7. It is widely used in chemical, food and medical and pharmaceutical industries.
Technical date of PTFE Corrugated hose
| Inner Diameter (inches) | Working Pressure (bar) | Burst Pressure (bar) | Bend Radius (mm) |
| 1/8'' | 183 | 550 | 24 |
| 3/16'' | 170 | 510 | 28 |
| 1/4'' | 140 | 420 | 32 |
| 5/16'' | 133 | 400 | 36 |
| 3/8'' | 127 | 380 | 59 |
| 1/2'' | 110 | 330 | 80 |
| 5/8'' | 73 | 220 | 92 |
| 3/4'' | 67 | 200 | 105 |
| 7/8'' | 58 | 175 | 120 |
| 1'' | 50 | 150 | 135 |
| 1''+1/2'' | 27 | 80 | 135 |
| 2'' | 18 | 55 | 165 |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
contact information:
Company Name: Hebei Biaohui Rubber Products Co., Ltd
Address: Zhanggehou Rubber and Plastic Base, Jing County, Hebei Province
Telehone: +86 15075803959
E-mail: info@biaohuihose.com
WhatsApp：+86 15075803959
WeChat ： +8615075803959
