direct factory price hydraulic UTM CNC hydraulic UTM machine supplier cheap hydraulic universal testing machine China

1. Main functions and features of testing machine

1)    Using microcomputer controlled high precision electro-hydraulic servo valve to drive precise hydraulic cylinder and can realize constant speed control to test force, displacement, deformation, etc. and so that to make tensile, compression, bending tests. If equipped with accessories, it can comply with other test requirements for various materials;

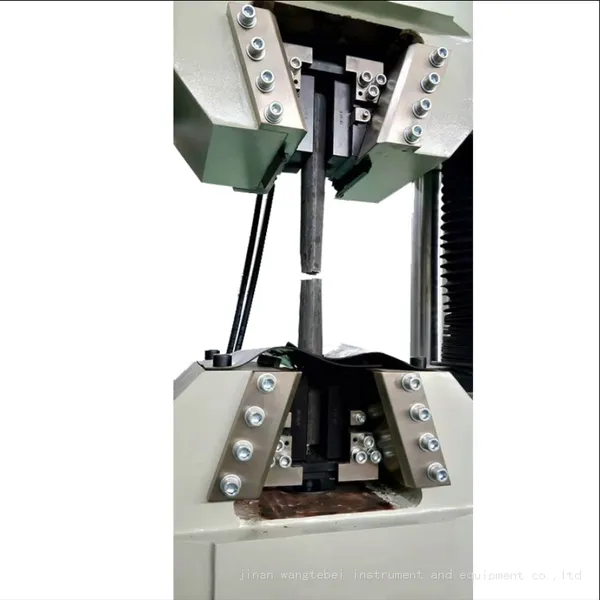

2)    Adopting underneath type hydraulic cylinder, which is installed at the bottom of the main machine, running stably; upper and lower jaw base are open structure, easy to clamp specimen;

3)    Independent hydraulic servo loading system, using high precision broadband electro-hydraulic servo valve to ensure system high precision, high efficiency, low noise, quick response; using independent hydraulic clamping system to ensure system run stably and low noise, and no-slipping of specimen during test.

Computer control and processing system:

l  Servo control system: complete test parameters setting, test procedure auto control, data acquisition, processing, analysis, storage and display (test data including: upper and lower yield points, tensile strength, break strength, elastic modulus, elongation, proof strength of non-proportional elongation, etc.). It can realize closed-loop control of test force, deformation, displacement and constant speed control to test force, strain, displacement, deformation;

l  Displaying test force, peak, deformation, piston displacement, test curve on screen, with intelligent system of full keyboard input and control mode, which can realize arbitrary setting and smooth shift between control modes;

l  Complete data acquisition and processing (with many test methods, standards). With functions of simulation and reproduction of test procedure, re-analysis of test data, enlargement, comparison, traverse, zoom in or out of test curves;

l  Using modularization, open programming, human design, users can freely adjust test standards, test reports, test parameters to meet with their different requirements, easy to upgrade and manage rights;

l  Using database to manage test data;

l  With expansion and updating capacity.

4)    protection functions:

l  limit position protection for oil cylinder;

l  over current protection for hydraulic system;

l  overload protection;

l  over current, over voltage protection;

l  safe protection at the time of specimen break;

l  automatic protection after test.

2. Specifications of testing machine
