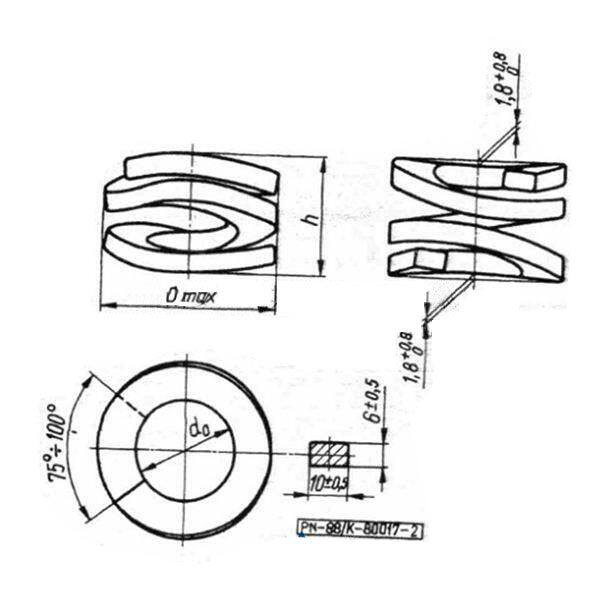

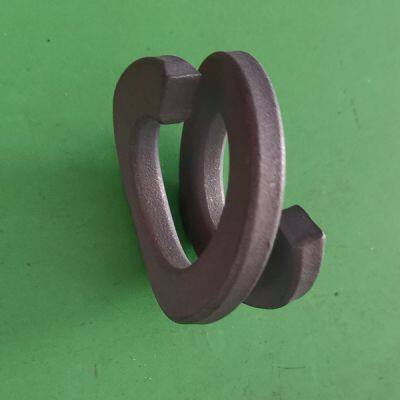

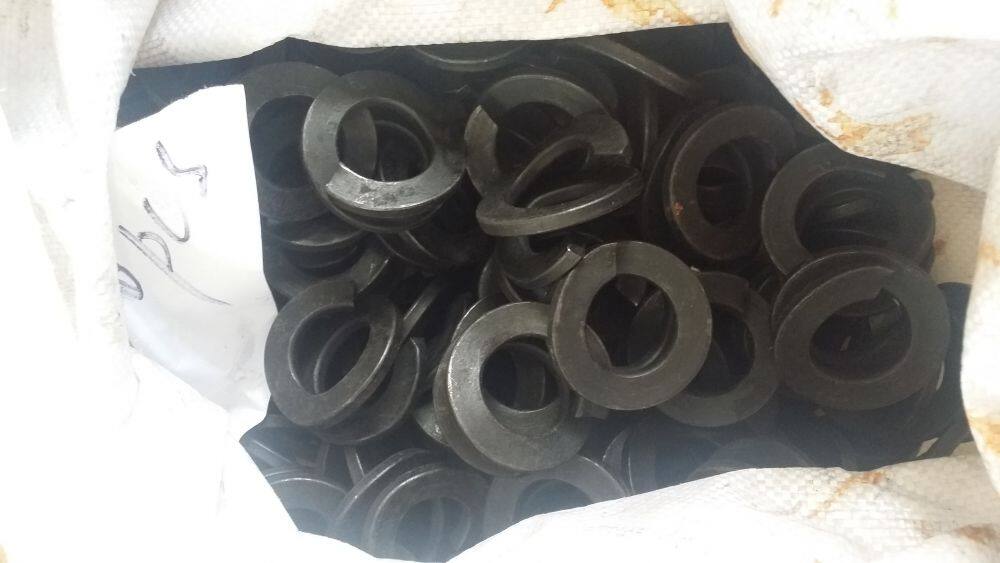

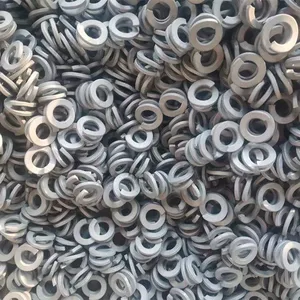

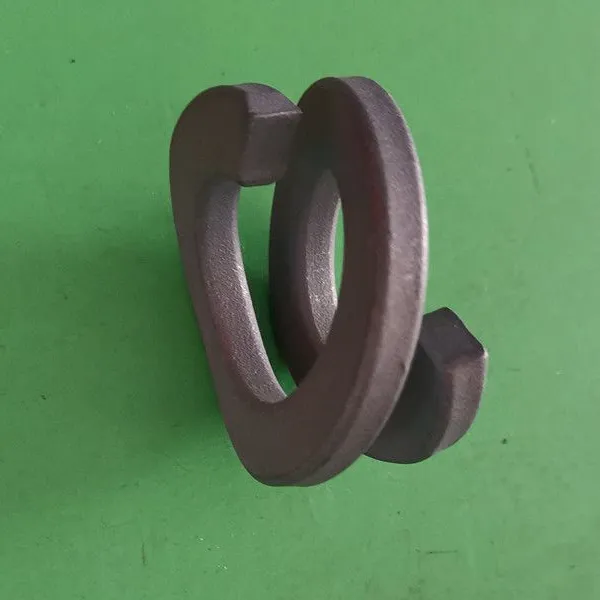

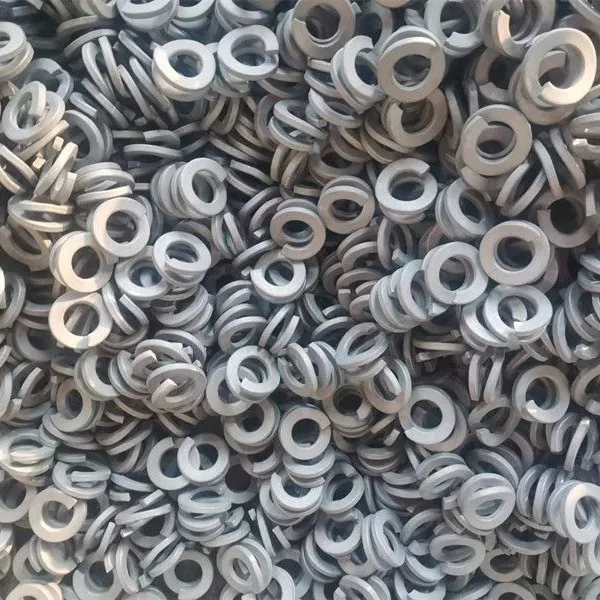

VOSSLOH SCREW FE6 DOUBLE COIL SPRING WASHER

Kunshan Signum Machinery Technology Co., Ltd. specilises in manufacturing spring washers according to AREMA,DIN standards and our customer's specific requirements.This includes custom material, grade and finish.

The fe6 double coil spring washers are used for numerous engineering purposes in various industrial applications. We manufacture the spring washers using high quality materials that are sourced from the certified raw material suppliers. These spring washers are available in various sizes, and can be made according to the specifications from the clients.

Product Parameters Of VOSSLOH SCREW FE6 DOUBLE COIL SPRING WASHER

The double coil spring washers compensate for wood shrinkage to help eliminate radio interference caused by loose hardware.

Fe6 double coil spring washer is commonly used in the railway fastening system. The hardness is 43~49 HRC, and the height should be more than 17.8mm after compression force of 40KN sustained for 10 seconds.

For Fe6 washers production, material of 65Mn and 60Si2Mn are used, and each occupies nearly 50% of the market. 82B is suitable for super cold temperature districts.

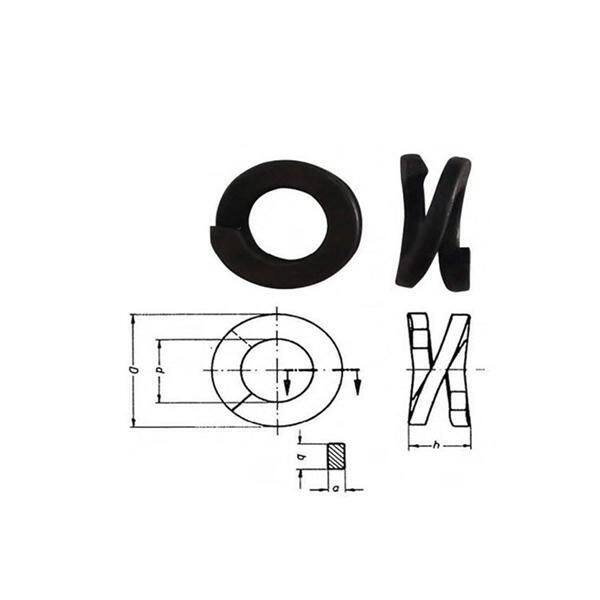

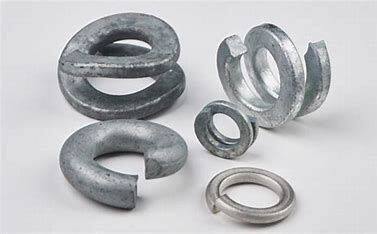

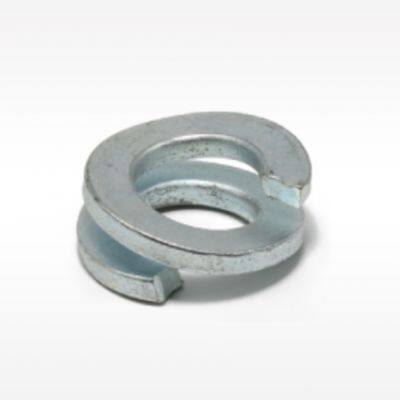

Other than Fe6 spring washers, we can supply different kinds of spring washers, including single heavy lock washer, double coil spring washers, triple helical spring washers and multiple spring washers.

We adapts advanced manufacturing machinery including Automatic Universal testing machine for mechanical properties, Rockwell C hardness for strength of the material, Shadow graph for dimensions, Metallographic image automatic analysis machine, Metal element analysis machine for chemical compositions, automatic impact testing machine, fatigue testing machine, magnetic detector, salt spray test machine, zinc thickness meter.

Our Staff have years of experience and higly qualified skills with more than ten years of expertise in the railway fastening designing, which ensures us to supply qualified products to our customers.

We can provide railway fastening products according to customers drawings and samples. Our main products are as following:

1. Screw spike, Coach screw, Drive screw, Sleeper screw, Dog spike, Railroad spike, Lock spike, Cut spike, etc.

2. Rail clip, Tension clamp, SKL clip, Pandrol clip, Deenik clip.

3. Swivel bolts, Track bolt, Special bolts, U bolts, J bolts, Anchor bolts, Foundation bolts, Stud bolts, Rod bolts, Curved bolts, Tunnel bolts.

4. Tie plate, Base plate, Rail plate, Rail fixing base, Rail Pads, Sole plate, Sole pad

5. Fish plate, Joint bar, Rail joint, Splice bar.

6. Track bolt, T bolt, Rail bolt, Clamp bolt, Inserted bolt, Clip bolt, Fish bolt, Square bolt, Rod bolt, rail joint bolt.

7. Clamp plate, Rail spring clamp, Anchor plate, Steel clip.

8. Rail Shoulder, Rail sleeper Inserts, Rail Anchors for rail sleepers.

9. Plastic dowel, Guide plate, Nylon insert.

10. Chinese Standard Steel Rail: GB/T11264-89 9kg 12kg 15kg 22kg 30kg steel light rail; Q/YYG001-2008 (formerly YB222-63) 4kg 8kg 18kg 24kg steel light rail. GB2585-2007 38kg 43kg 50kg 60kg 75kg steel heavy rail. YB/T5055/93 QU70 QU80 QU100 QU120 crane rail.

11. German Standard Steel Rail: DIN536 A45 A55 A65 A75 A100 A120 A150 Crane Rail.

12. American Standard Steel Rail: ASTM-A1 ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBs Steel Rail.

13. British Standard Steel Rail: BS11-1985 BS50O, BS60A, BS60R, BS70A, BS75A, BS75R, BS80A, BS80R, BS90A, BS100A, BS113A.

We can make products as per customers' drawings and samples.
